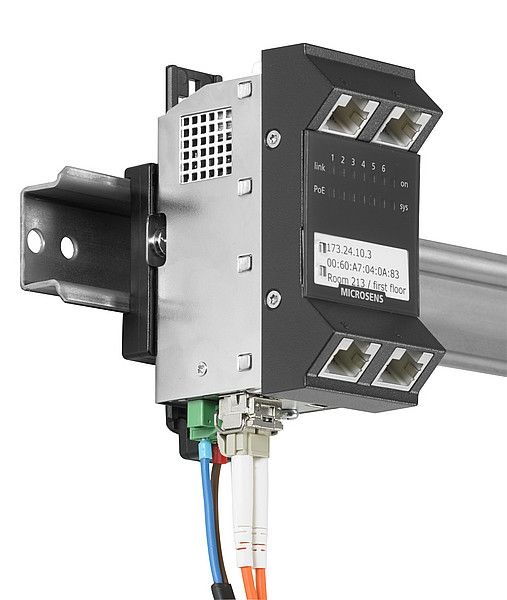

The MICROSENS 6-Port GbE Ruggedized Micro Switch G6 PoE+ is a highly compact and robust network solution designed for demanding environments. This switch combines energy-efficient performance, extended temperature range (-25°C to +65°C), and Power-over-Ethernet (PoE+) functionality, making it ideal for industrial applications. PoE+ support allows connected devices like cameras or access points to operate without an additional power source.

Based on the successful FTTO series, this fanless switch includes a 35-mm DIN rail mount for easy installation in control cabinets. Six different variants are available, including options with up to two fiber-optic uplink ports (SFP) or a pure RJ-45 connection. The models with two SFP ports are designed for ring topology applications and are fully compatible with other MICROSENS industrial switches. The Ruggedized Micro Switch G6 comes standard with a durable, graphite-colored cover.

Thanks to its compact design and versatile mounting options, the Ruggedized Micro Switch G6 is suitable for various applications, from automation systems to video surveillance.

Technical Details:

Switch:

• Type: Gigabit Ethernet Switch
• Layer 2+, IEEE 802.3 compliant
• Performance: Store-and-forward, Full wire-speed, non-blocking on all ports
• MAC Addresses: 8,192, automatic learning and aging
• Jumbo Frames: Up to 10,240 bytes

Twisted-Pair Ports:

• Quantity: 4 or 5 (TP variant: 6)
• Type: Gigabit Ethernet, Triple Speed (10/100/1000Base-T)
• Connector: RJ-45, shielded
• Cable Type: Category 5e, impedance 100 Ohms, max. length 100 m
• Features: Auto MDI/MDI-X, Auto Polarity, Flow Control (Pause Frames, IEEE 802.3x, configurable)

PoE+ (Power-over-Ethernet):

• Standard: IEEE 802.3at (max. 30 W/Port)
• Ports: 4 or 5x 10/100/1000Base-T (RJ-45)
• Max Power: 80 W total output
• Power Supply: External, typ. 54 VDC

Fiber Ports (LWL Variants):

• Type: SFP (Dual Speed, 100/1000Base-X), supports SFP diagnostics
• Quantity: 1 or 2 (depending on variant)

Mounting and Mechanics:

• Mounting: DIN rail (DIN EN 50022)
• Dimensions (L x W x H): 90 x 78.2 x 53.7 mm (including DIN adapter, without connectors)
• Weight: 350 g (including DIN adapter)

Operating Conditions:

• Temperature Range: -25°C to +65°C (operation), -25°C to +85°C (storage)
• Humidity: 10 to 90%, non-condensing

Power Supply:

• Input: 44–57 VDC (typ. 54 VDC)
• Power Consumption: 4.5 W (without PoE), max. 80 W (with PoE)
• Connector: 3-pin screw terminal, additional grounding (PE) via 6.3 mm flat plug

LED Indicators:

• Type: 14 LEDs, switchable
• Indicators for: Link status, PoE status, system status

Special Features:

• Supports ring topology with fast switching (<50 ms) in case of segment failure
• Network management via Web interface (HTTP/HTTPS), Telnet/SSH, SNMP v1/v2c/v3

Scope of Delivery:

• 1x Ruggedized Micro Switch G6
• 1x Grounding cable (PE), 20 cm
• 1x Power supply connector
• 1x Quick Start Guide
• 1x DIN rail mount (installed)

Ordering Information:

• MS440209PMXH-48G6+: 1x SFP uplink, 5x RJ-45 PoE+, horizontal
• MS440217PMXH-48G6+: 2x SFP uplinks, 4x RJ-45 PoE+, horizontal
• MS450186PMXH-48G6+: 1x RJ-45 uplink, 5x RJ-45 PoE+, horizontal
• MS440219PMXH-48G6+: 1x SFP uplink, 5x RJ-45 PoE+, vertical
• MS440217PMXH-48G6+: 2x SFP uplinks, 4x RJ-45
