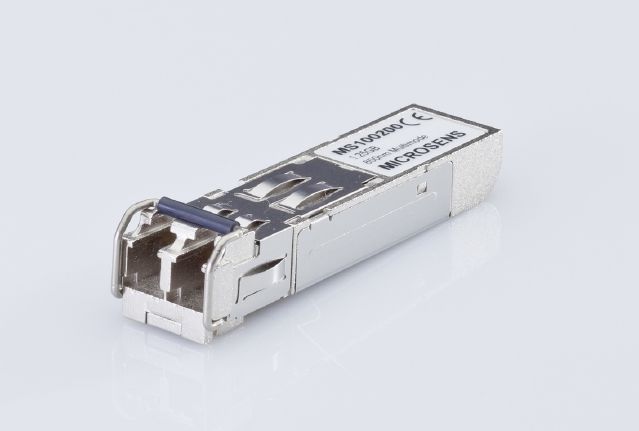

Microsens industrial GBIC SFP 1000Mbps, SX / LC, MS100200DX

The Small Form Factor Pluggable (SFP) is a state-of-the-art, interchangeable transceiver module designed for use in networking components with 1G interfaces. It features a compact form factor, allowing maximum port density per line card. SFP modules offer exceptional flexibility in network configuration, with hot-swap functionality enabling module replacement or installation during operation without disrupting network functionality.

Low Power SFPs (LPC SFP) are an energy-efficient advancement that deliver identical transmission performance to standard SFPs while consuming only 70% of the energy. This significantly reduces power consumption and heat generation, optimizing network performance and minimizing environmental impact. Compliance with MSA and SFF-8472 standards ensures a standardized design and provides digital diagnostic functionality, enhancing reliability and maintenance.

Technical Specifications:

Transceiver Types:

• MS100200DX-V2
• MS100210DX-V2
• MS100221DXA-V2
• MS100221DXB-V2

Connector:

• LC plug (duplex or simplex, depending on the model)

Supported Cable Media:

• Multimode
• Singlemode
• Singlemode simplex

Range:

• 300 m to 20 km (depending on the model)

Power Consumption:

• Maximum 0.6 W

Operating Temperature:

• -40 °C to +85 °C

Bandwidth:

• 1.063 Gbps to 1.25 Gbps

Wavelength Range:

• TX: 830–1570 nm (depending on the model)
• RX: 830–1330 nm (depending on the model)

Power Budget:

• 7.5 dB to 15 dB (depending on the model)

Laser Type:

• VCSEL (850 nm)
• FP Laser (1310 nm)
• DFB Laser (1550 nm)

Protocol Support:

• Gigabit Ethernet
• Gigabit Fibre Channel

Features:

• Hot-swappable
• Energy-efficient Low-Power design
• Digital diagnostic interface (DDM)
• Compliant with MSA and SFF-8472 standards
• Laser Class 1 safety certification

Safety Notes:

• Never look directly into optical outputs, as visible and invisible laser light can cause permanent eye damage.
• Always cover unused ports with protective caps.
• Ensure all connections are completed before activating the transmission line.

Ordering Information:

• MS100200DX-V2: LPC SFP GbE Transceiver 1.25G SX, Multimode, 850nm, DDM, LC, -40..+85°C
• MS100210DX-V2: LPC SFP GbE Transceiver 1.25G LX, SingleMode, 1310nm, 10km, DDM, LC, -40..+85°C
• MS100221DXA-V2: LPC SFP GbE WDM Transceiver 1.25G BX, SingleMode TX1310nm / RX1550nm, 20km, DDM, LC simplex, -40..+85°C
• MS100221DXB-V2: LPC SFP GbE WDM Transceiver 1.25G BX, SingleMode TX1550nm / RX1310nm, 20km, DDM, LC simplex, -40..+85°C
