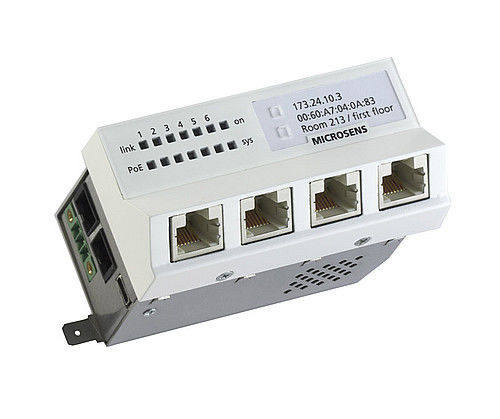

Microsens installation switch GBE 6 port, horizontal. Built-in, 4xRJ45, 1xSFP, MS440209M-G6+

Microsens installation switch GBE 6 port, horizontal. Installation, 4xRJ45, 1xSFP, MS440209M-G6+
Gigabit Ethernet installation switch 45x45 horizontal installation, 4x10/100/1000T with 100/1000X SFP uplink port (dual speed) and 10/100/1000T downlink, internal 230VAC power supply, management capable (web/ Telnet/SNMP/optional NMP software),
VLANs, QoS, securityThe 6-Port GbE Micro Switch G6 from MICROSENS is a cutting-edge and flexible networking component designed specifically for Fiber-To-The-Office applications. With its forward-thinking technology and various configurations, it perfectly meets individual customer requirements. The switch offers 6 ports, including fiber uplinks and optional PoE+ functionality to power devices like IP cameras and access points.

Its compact design, available in both horizontal and vertical versions, allows for installation in tight spaces such as trunking channels or floor tanks. The fanless construction ensures silent operation and high reliability. Energy-efficient operation is supported by IEEE 802.3az Energy Efficient Ethernet technology, dynamically adjusting power consumption based on network load.

The integrated Linux-based management system supports a wide range of management standards, including SNMP, web manager, and CLI scripting, enabling efficient administration and automation. The optional microSD memory card provides added flexibility by storing firmware, configuration files, and scripts.

Technical details:

Type:

• Gigabit Ethernet Switch (Layer-2+), Store-and-Forward

Performance:

• Switching capacity: 32 Gbps
• MAC addresses: 8,192, automatic learning and aging
• Jumbo frames: up to 10,240 bytes

Ports:

• Local ports: 4 or 5x RJ-45 (10/100/1000Base-T)
• Uplink ports: 1 or 2x fiber ports (1000Base-SX/-LX) or SFP (100/1000Base-X)
• PoE+: IEEE 802.3at, max. 30 W/port, max. 80 W total output

Network management:

• Web manager (HTTP/HTTPS), Telnet/SSH
• SNMP v1/v2c/v3, IPv4/IPv6 dual stack
• CLI script support
• Firmware and configuration updates via FTP/SFTP/TFTP

Power supply:

• PoE variant: 54 V DC, max. power consumption 80 W
• Non-PoE variant: 230 V AC, typical power consumption 4.5 W

Mounting:

• Snap-in mounting for 45 mm installation systems
• Compatible with standard trunking channels and floor tanks

Dimensions & weight:

• Dimensions: 90 x 45 x 59.7 mm (L x W x H, without connectors)
• Weight: 325 g

Operating conditions:

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 85 °C
• Humidity: 10–90%, non-condensing

Scope of delivery:

• 1x Micro Switch G6
• 1x Grounding cable (PE)
• 1x Power supply connector
• 1x Quick start guide
• 1x Set of pictogram stickers

Key features:

• Supports up to 2 independent ring topologies
• Enhanced security and data integrity with optional microSD memory card

Applications:

• Office and industrial networks
• Integration into trunking channels, floor tanks, or surface-mounted housings
• Power-over-Ethernet for powering network devices

Quality:

• Manufactured in Germany with strict quality controls and burn-in tests
• High reliability through robust design and long service life
