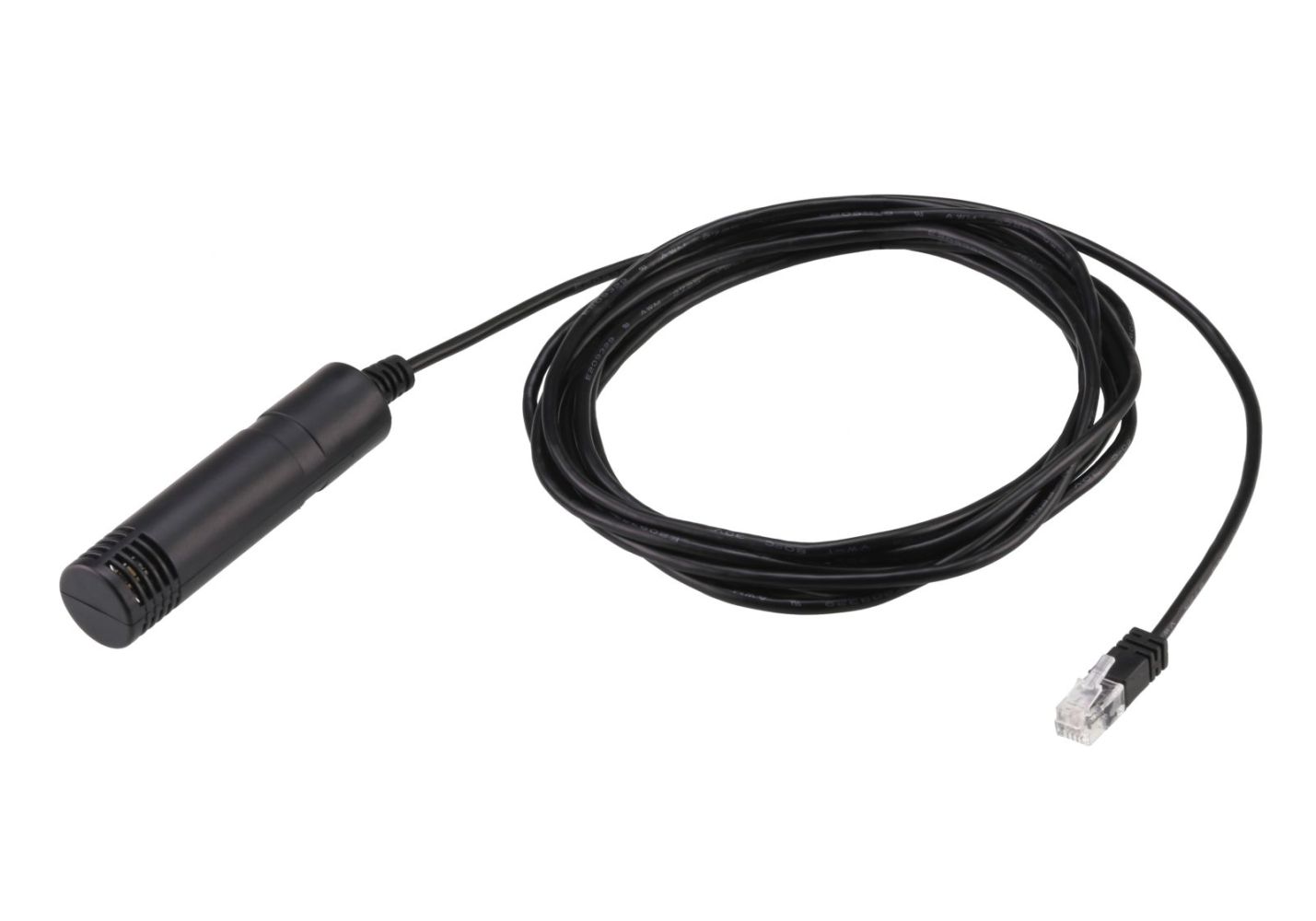

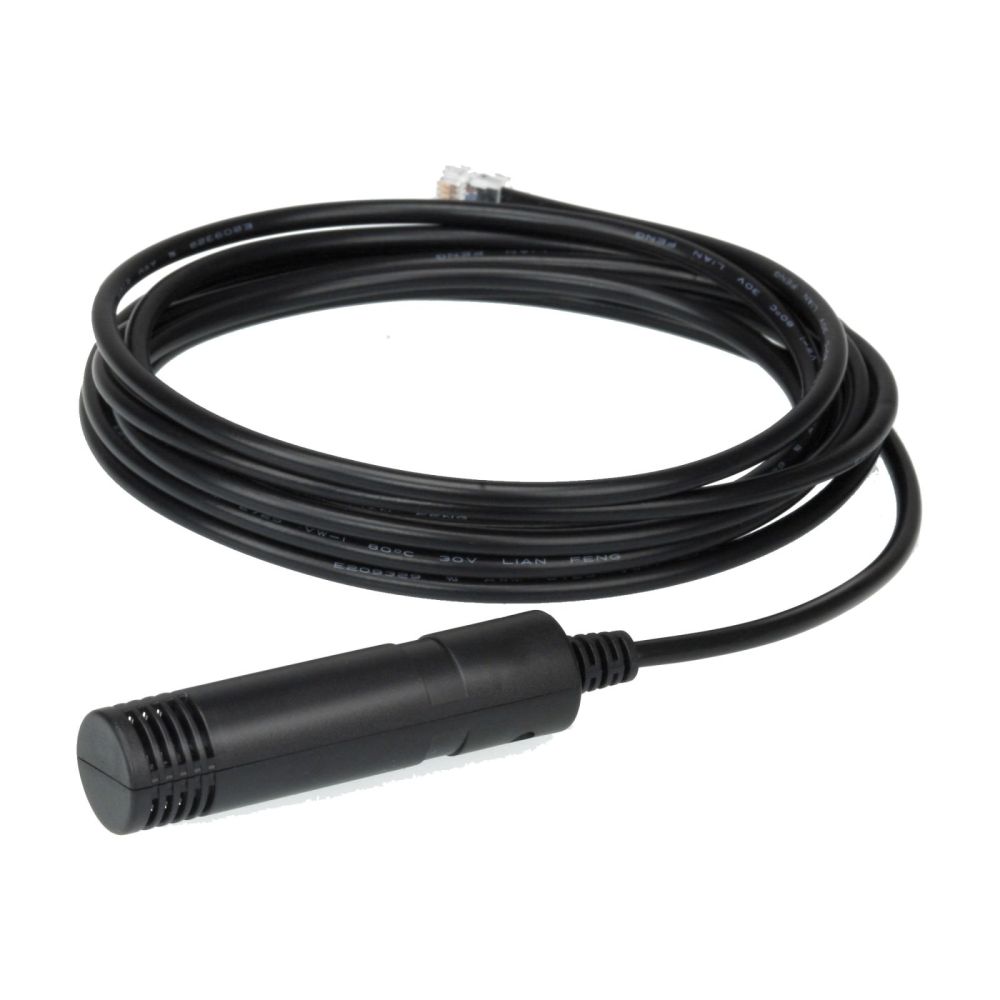

ATEN EA1140 Temperature sensor 3m content_copy

Temperature Sensor
For environmental monitoring and management, ATEN provides sensor probes that work in tandem with the Power Distribution Units, which enable you to get readings of temperate. Environmental conditions can be monitored with alarms according to customizable minimum/maximum thresholds set for temperature. * The Sensor is an optional accessory You can use the ATEN PDU without environmental sensors. However, if you want to have complete energy management of your data center with the full use of ATEN solutions, a sensor installation is required
FeaturesMeasurement range: 0 - 40°C
Measurement accuracy: +/- 1°C
Compact design - built in 3 m cable
High sensitivity
Easy operation
SpecificationsConnectors: RJ-11 Male
Supply Voltage: 5VDC (Max.)
Current Consumption: 5mA max. (2 mA avg.)
EnvironmentOperating Temp.: 0 - 55°C
Storage Temp.: -20 - 70°C
Humidity: Housing: Plastic
Weight: 0,06 kg
Cable Length: 3 meter
Package Contents1x EA1140 Temperature sensor
1x Sensor mount
4x Tie wrap
3x Adhesive cable tie holder
ConnectorsRJ-11 Male
Measurement
Range0 - 40°C
Accuracy+/- 1°C
Supply Voltage5 VDC (Max)
Current Consumption5mA(Max); 2mA(Avg.)
Environmental
Operating Temperature0 - 55°C
Storage Temperature-20 - 70°C
Humidity
Physical Properties
HousingPlastic
Weight0.06 kg
Cable Length3 m

Features
Sensor type	Temperature sensor
Connectivity technology	Wired
Standard interfaces	RJ-11
Temperature measuring range	0 - 40 °C
Accuracy	1 °C
Cable length	3 m
Material	Plastic
Logistics data
Master (outer) case net weight	1.6 kg
Master (outer) case width	420 mm
Master (outer) case length	230 mm
Master (outer) case height	190 mm
Master (outer) case gross weight	3.1 kg
Products per master (outer) case	20 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Packaging data
Package width	110 mm
Package depth	160 mm
Package height	40 mm
Package weight	80 g
Technical data
Height packaging	0.040m
Length packaging	0.160m
Weight	0.080kg
Width packaging	0.110m
Packaging volume	0.0007m³
Weight & dimensions
Weight	80 g

---
