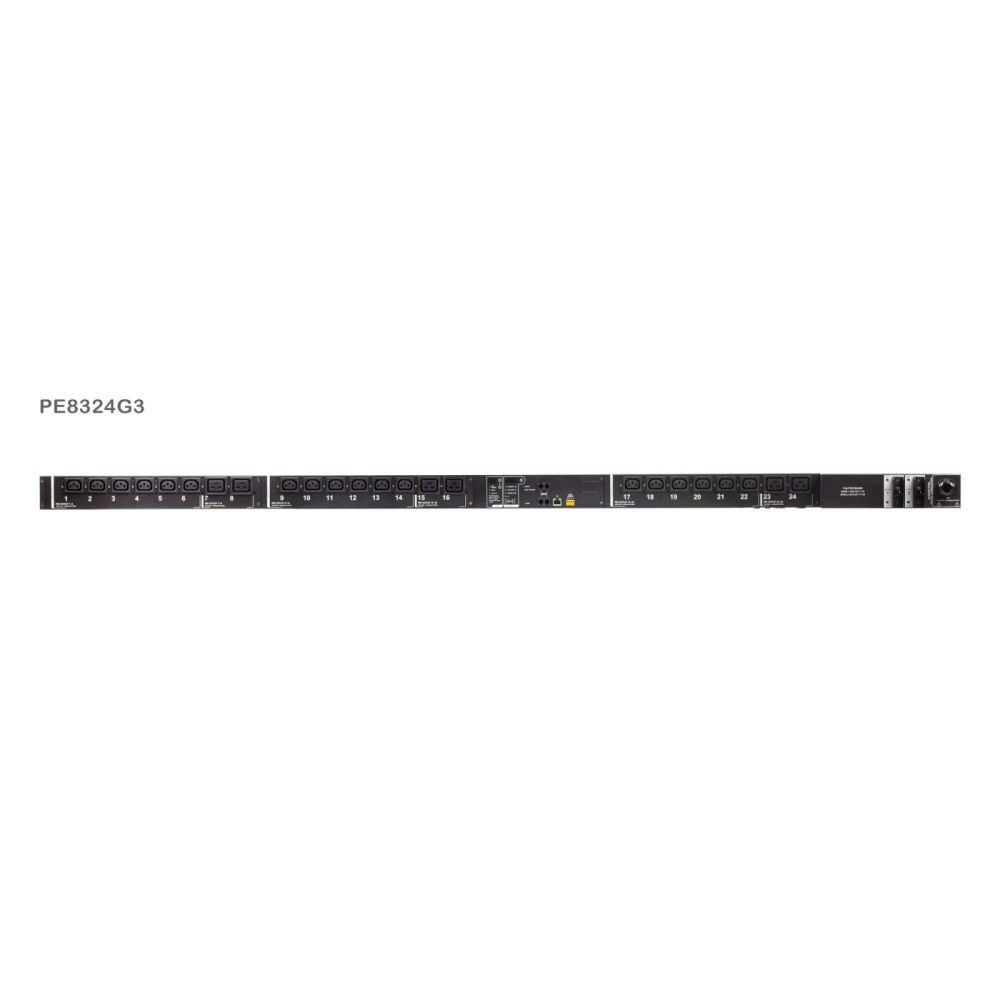

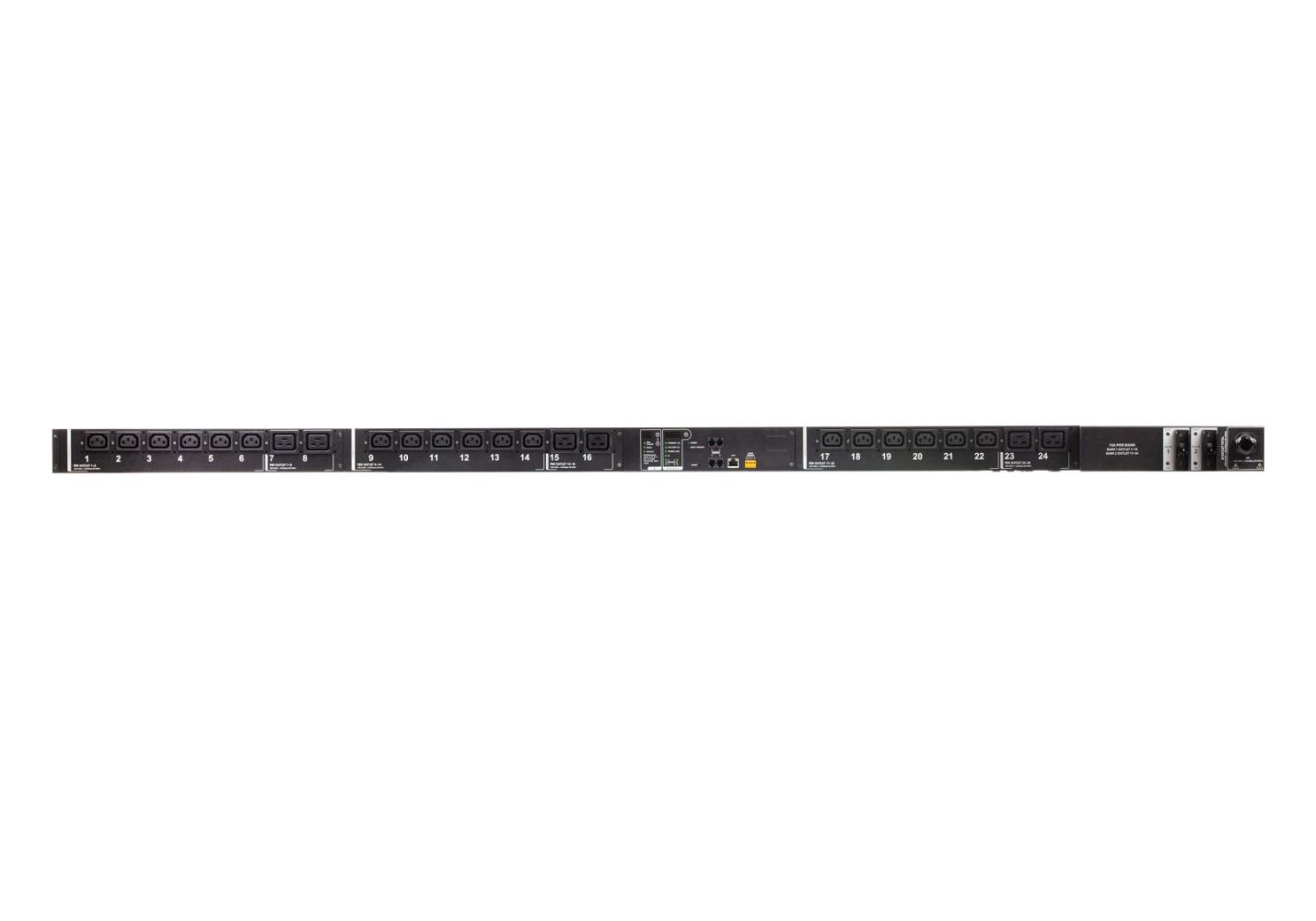

ATEN PE8324G3 32A eco PDU 24 outputs output measurement and switching function content_copy

ATEN's NRGence range is a new generation of eco-friendly power distribution units (eco PDUs) that optimize the efficiency of power use in data centers. The PE8324 eco PDUs are intelligent PDUs with 24 AC outlets, available in various IEC/NEMA socket configurations. These models feature proactive overload protection that automatically shuts down the last outlet causing an overload, with the user being able to set the shutdown priority.

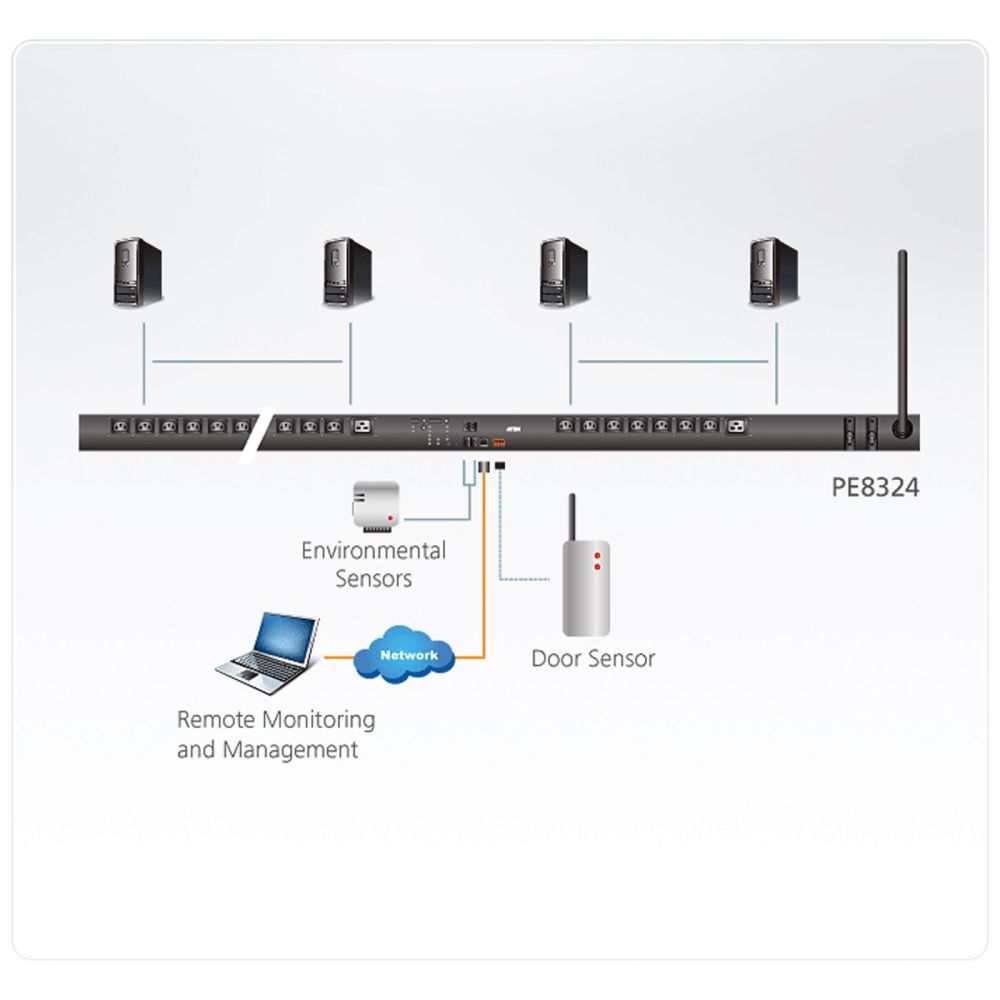

The eco PDUs offer secure, centralized and intelligent power management (One -, power off and cycling) for the data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.) as well as the ability to monitor the state of the data center environment via sensors.*These PDUs offer remote control of power supply combined with real-time power metering, allowing users to control and monitor the power status of devices connected to the PDUs, either at the PDU device, bank or outlet level, depending on the model, from virtually anyone location via a TCP/IP connection.
The power status of each outlet can be set individually so that users can turn each device on and off. The eco PDU also offers comprehensive power analysis reports, which can be separated by department and location, providing precise measurements of current, voltage, power and watt-hours in a real-time display. Installation and operation are quick and easy by simply plugging cables into the appropriate ports, and users can take advantage of intuitive browser-based configuration and management. The firmware of the eco PDU can be updated via the Internet, i. H. Users can download updates from the ATEN website to ensure their eco PDU is equipped with the latest features and improvements.
The series also supports third-party V3 SNMP manager software and NRGence eco DC (power management - Web GUI). The eco DC simplifies the management of multiple devices by allowing users to configure the eco PDU settings and monitor the power status of the devices connected to the PDU from one user-friendly interface. Along with its features, the PE8324 series is a convenient, reliable and cost-effective solution to remotely manage power access for multiple computer installations and efficiently allocate power resources.
Note:
1. Sensors are optional accessories. A sensor-based installation is required to produce more complete energy efficiency data and charts. The higher the density of sensor installation, the more accurate the data generated will be.
2. eco PDUs are primarily designed for access via the intranet; additional network security protection is recommended for using Internet access.
Scope of delivery:1 x power distribution unit (PDU)
1x mounting kit
1x CD-ROM1x instructions for use

Certificates
Compliance certificates	CE
Design
PDU types	Metered, Switched
Product colour	Black
On/off switch
Features
Cable length	1.6 m
Security algorithms	128-bit SSL, 802.1x RADIUS
Logistics data
Country of origin	Taiwan
Master (outer) case net weight	6.72 kg
Master (outer) case width	229 mm
Master (outer) case length	1865 mm
Master (outer) case height	179 mm
Master (outer) case gross weight	9.37 kg
Master (outer) case volume	76455.49 cm³
Management features
Monitoring	Current, Humidity, Power, Temperature, Voltage
Outlet control	Turn off, Turn on
Supported network protocols	TCP / IP, UDP, HTTP, HTTPS, SSL, DHCP, ARP, NTP, DNS, Telnet, Auto Sense, Ping, SNMP V1,V2, V3
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
Manual
Rack mount kit
Packaging data
Package weight	9.38 kg
Package width	229 mm
Package depth	1865 mm
Package height	179 mm
Package volume	76455.49 cm³
Ports & interfaces
AC outlets quantity	24 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler, C19 coupler
Ethernet LAN (RJ-45) ports	1
Power
Nominal input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Block 1 output current	15 A
Block 2 output current	15 A
Output voltage	100 - 240 V
Load capacity	7360 VA
Maximum total current draw per phase	32 A
Technical data
Mounting	Vertical
Max. input power	7360VA
Type	PDU
Number of C19 sockets	6
Width packaging	0.229m
Output current	32A
Height packaging	0.179m
Length packaging	1.865m
Packaging volume	0.0764m³
Supply line	Power cable with IEC 60309 32A plug
Number of C13 sockets	18
Weight	9.380kg
With overvoltage protection
Switching function
Input C14
Measuring function
Input CE 16/32A
Protective function
Input C20
Weight & dimensions
Width	66 mm
Depth	177.5 mm
Height	44 mm
Weight	6.33 kg

---
