ATEN Pressure / Temperature Sensor for PE Series
|
-45% 63,01 EUR 114,60 EUR |
|
|
( 74,98 EUR incl. VAT ) ≈ £52.68 | ≈ $70.13 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 514785 |
| Mfg Part No: | EA1440 |
| UPC/EAN: | 4710423779334 |
| Weight: | 0.2 kg |
Product information for Aten EA1440:
For the security of your data center, ATEN provides Photo Door sensor probes that work in tandem with the Power Distribution Units, which allows the monitoring of a rack mounted enclosure´s door access, notifying users when a door has been opened. Various conditions can be monitored with alarms according to customizable minimum/maximum settings.
* The Sensor is an optional accessory and you can use the ATEN PDU without the door sensors. However, if you want to have complete security management of your data center with the full use of ATEN solutions, a sensor installation is required.
**Support PE7/PE8/PE9 series only

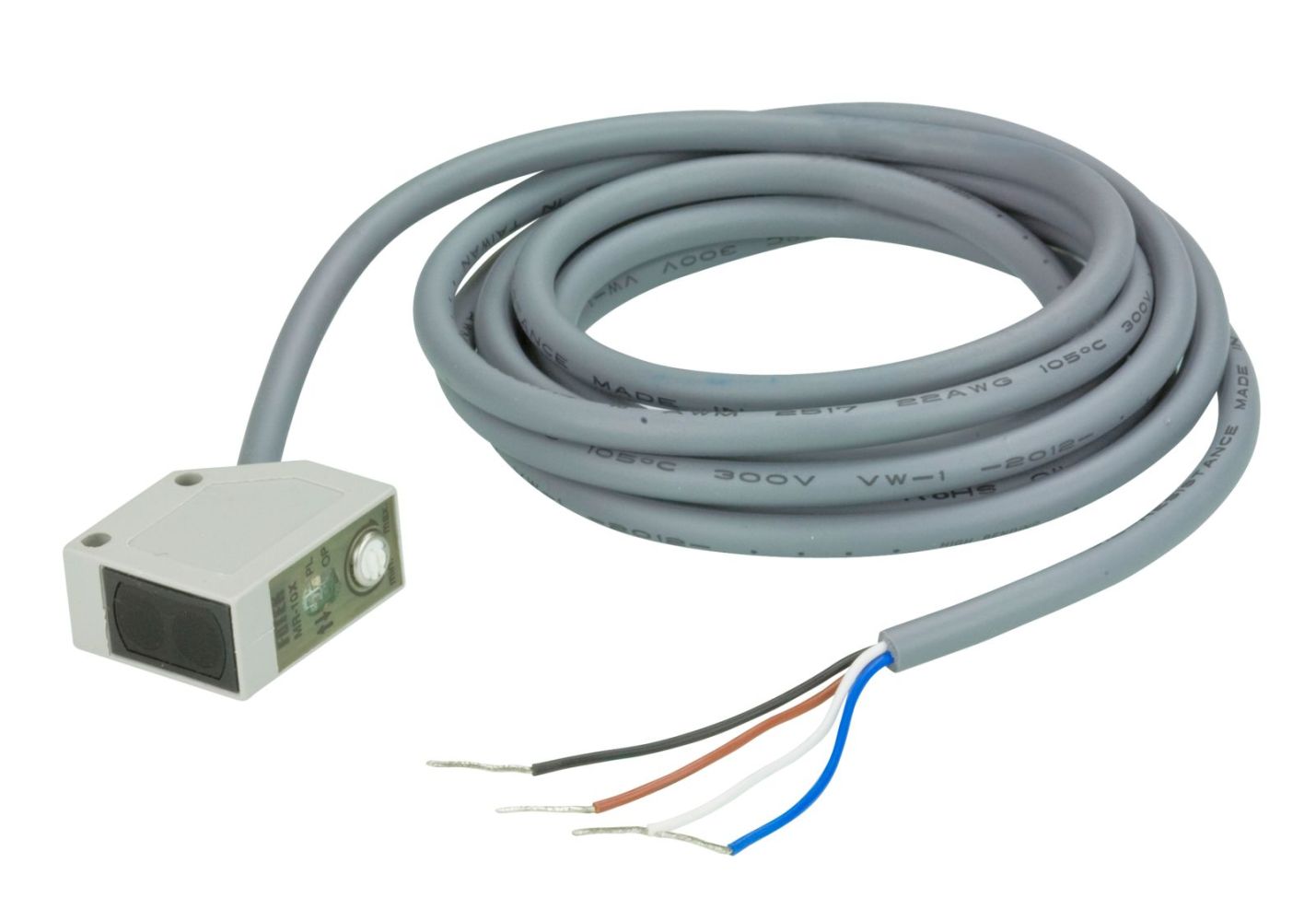

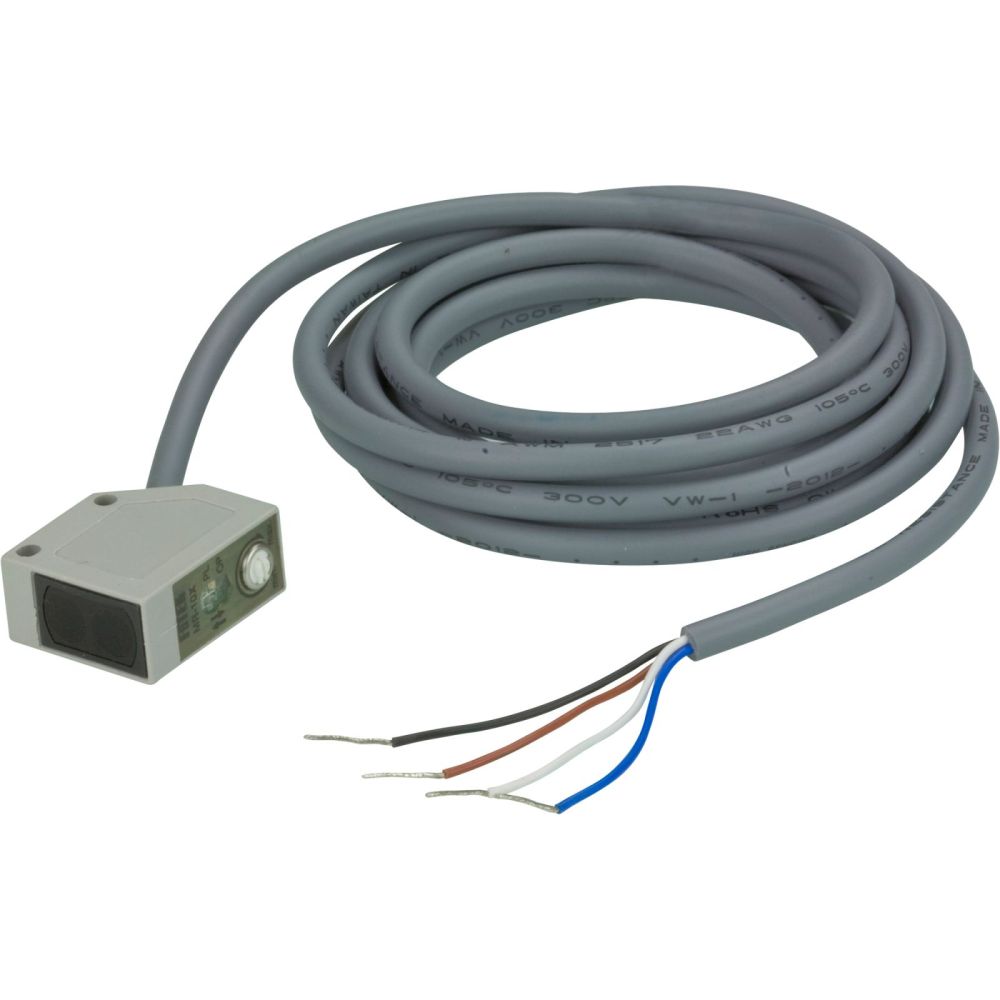

The Photo Door Sensor allows the monitoring of a rack mounted enclosure´s door access – notifying users when a door has been opened
High sensitivity
Easy operation
Sensing distance10 cm
Operating voltage10 – 30 VDC; Ripple
Current Consumption30 mA (max.)
Output methodNPN & PNP Two Output
Output statusNormal open NO type
Output current150 mA (max.)
Leakage current0,8 mA (max.)
Residual voltage0,6 mA (max.)
Protection circuitShort Circuit and Polarity Protection
Sensor Response Time1 ms (max.)
Sensitivity adjuster270° Trimmer
Hysteresis10 % of Sensing Distance Max
EmitterInfrared LED
IlluminationSunlight
Physical Properties
HousingPlastic
Package Contents
1x Photo Door Sensor
1x Adjustment Tool
2x Screw
1x Bracket
1x hook-and-loop
* The Sensor is an optional accessory and you can use the ATEN PDU without the door sensors. However, if you want to have complete security management of your data center with the full use of ATEN solutions, a sensor installation is required.
**Support PE7/PE8/PE9 series only
The Photo Door Sensor allows the monitoring of a rack mounted enclosure´s door access – notifying users when a door has been opened
High sensitivity
Easy operation
Sensing distance10 cm
Operating voltage10 – 30 VDC; Ripple
Current Consumption30 mA (max.)
Output methodNPN & PNP Two Output
Output statusNormal open NO type
Output current150 mA (max.)
Leakage current0,8 mA (max.)
Residual voltage0,6 mA (max.)
Protection circuitShort Circuit and Polarity Protection
Sensor Response Time1 ms (max.)
Sensitivity adjuster270° Trimmer
Hysteresis10 % of Sensing Distance Max
EmitterInfrared LED
IlluminationSunlight
Physical Properties
HousingPlastic
Package Contents
1x Photo Door Sensor
1x Adjustment Tool
2x Screw
1x Bracket
1x hook-and-loop
| Features | |
| Connectivity technology | Wired |
| Suitable for | Door |
| Product colour | Grey |
| Housing material | Plastic |
| Logistics data | |
| Products per master (outer) case | 140 pc(s) |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 140 mm |
| Master (outer) case height | 450 mm |
| Master (outer) case net weight | 17.5 kg |
| Master (outer) case gross weight | 18 kg |
| Packaging content | |
| Screws included | |
| Packaging data | |
| Package width | 85 mm |
| Package depth | 110 mm |
| Package height | 45 mm |
| Package weight | 125 g |
| Technical data | |
| Length packaging | 0.110m |
| Packaging volume | 0.0004m³ |
| Weight | 0.125kg |
| Width packaging | 0.085m |
| Height packaging | 0.045m |
| Weight & dimensions | |
| Weight | 125 g |
