ATEN 42-Port Intelligent 0U PDU (3) 3Phase/400V/16
|
-14% 188,08 EUR 217,54 EUR |
|
|
( 223,82 EUR incl. VAT ) ≈ £157.23 | ≈ $209.33 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1567950 |
| Mfg Part No: | EA1340 |
| UPC/EAN: | 4710423778887 |
| Weight: | 0.2 kg |
Product information for Aten EA1340:

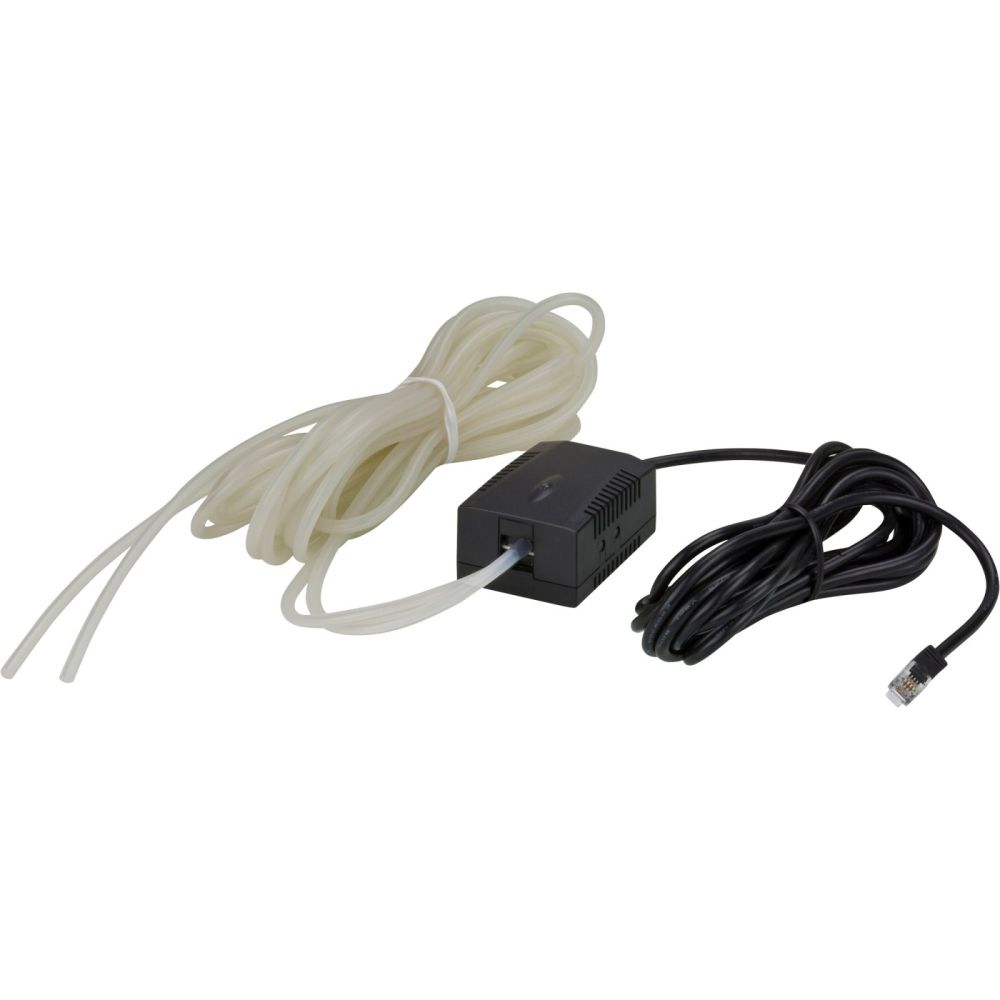

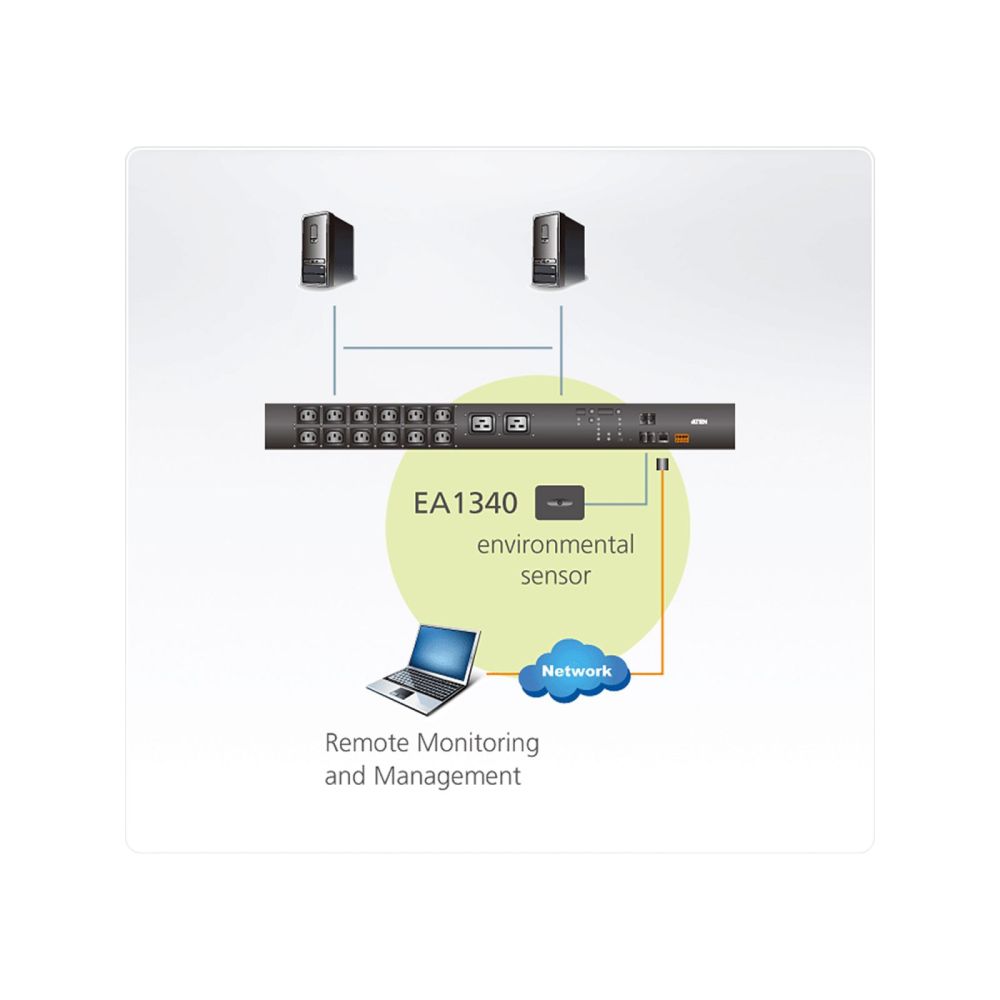

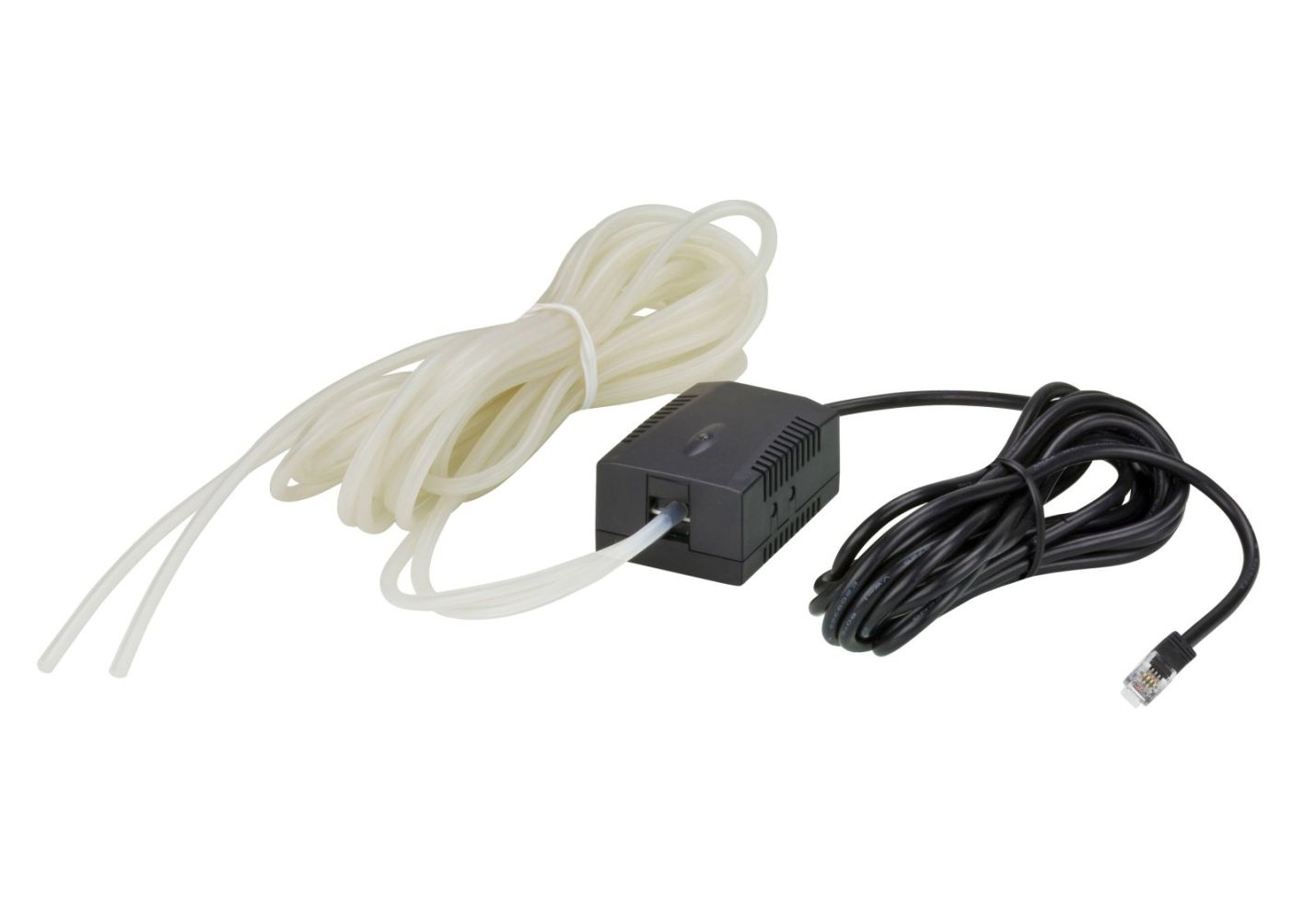

For environmental monitoring and management, ATEN provides sensor probes that work in tandem with the Power Distribution Units, which enable you to get readings of Differential Pressure & Temperature. Environmental conditions can be monitored with alarms according to customizable minimum/maximum thresholds set for temperature and humidity.
* The Sensor is an optional accessory and you can use the ATEN PDU without environmental sensors. However, if you want to have complete energy management of your data center with the full use of ATEN solutions, a sensor installation is required.
Measurement range: -19-60°C (Temperature); +/- 500 Pa (Pressure)
Compact design – built in 3 m cable
High sensitivity
Easy operation
ConnectorsRJ11-4P4C
Measurement
RangeTemperature: -19-60°C
Pressure: +-500 Pa
AccuracyTemperature: +-1 °C (0 – 40 °C)
Pressure: +-1 % (15 – 35 °C)
T.C: -0,1 Pa/°C
Power Consumption5 VDC (Max), 3mA (Typical)
Umgebung
Operating Temperature0 – 60 °C,
Storage Temperature0 – 40°C
Humidity
Physical Properties
HousingPlastic
Weight0,09 kg
Cable Length3 m
Package Contents
1x Differential Pressure & Temperature Sensor
2x Air Tube
* The Sensor is an optional accessory and you can use the ATEN PDU without environmental sensors. However, if you want to have complete energy management of your data center with the full use of ATEN solutions, a sensor installation is required.
Measurement range: -19-60°C (Temperature); +/- 500 Pa (Pressure)
Compact design – built in 3 m cable
High sensitivity
Easy operation
ConnectorsRJ11-4P4C
Measurement
RangeTemperature: -19-60°C
Pressure: +-500 Pa
AccuracyTemperature: +-1 °C (0 – 40 °C)
Pressure: +-1 % (15 – 35 °C)
T.C: -0,1 Pa/°C
Power Consumption5 VDC (Max), 3mA (Typical)
Umgebung
Operating Temperature0 – 60 °C,
Storage Temperature0 – 40°C
Humidity
Physical Properties
HousingPlastic
Weight0,09 kg
Cable Length3 m
Package Contents
1x Differential Pressure & Temperature Sensor
2x Air Tube
| Features | |
| Purpose | Indoor |
| Sensor type | Temperature sensor |
| Connectivity technology | Wired |
| Standard interfaces | RJ-11 |
| Temperature measuring range | -19 - 60 °C |
| Accuracy | 1 °C |
| Cable length | 3 m |
| Material | Plastic |
| Logistics data | |
| Master (outer) case net weight | 2.6 kg |
| Harmonized System (HS) code | 90318080 |
| Master (outer) case width | 297 mm |
| Master (outer) case length | 369 mm |
| Master (outer) case height | 284 mm |
| Master (outer) case gross weight | 4.33 kg |
| Products per master (outer) case | 20 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Packaging data | |
| Package width | 130 mm |
| Package depth | 180 mm |
| Package height | 54 mm |
| Package weight | 185 g |
| Technical data | |
| Length packaging | 0.180m |
| Width packaging | 0.130m |
| Height packaging | 0.054m |
| Packaging volume | 0.0013m³ |
| Weight | 0.185kg |
| Weight & dimensions | |
| Weight | 130 g |
Questions & answers
What is the delivery time of ATEN 42-Port Intelligent 0U PDU (3) 3Phase/400V/16?
The article ATEN 42-Port Intelligent 0U PDU (3) 3Phase/400V/16 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten EA1340 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN 42-Port Intelligent 0U PDU (3) 3Phase/400V/16 always at the best possible price. We can give you a discount of 2% on ATEN 42-Port Intelligent 0U PDU (3) 3Phase/400V/16 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
