ATEN PE8208G PDU 8 Port 1U 7xC13 + 1xC19 16A Single Port Measurement content_copy

The PE8208 eco PDU is intelligent PDUs that contains 8 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors. (Sensors are optional accessories. A sensor-enabled installation is required to generate a more complete energy-efficient data and chart. Higher sensor installation density is helpful to generate more accurate data.) The eco PDUs offer remote power control combined with real-time power measurement - allowing you to control and monitor the power status of devices attached to the PDUs at the PDU device level from practically any location via a TCP/IP connection. The eco PDU supports any 3rd party v3 SNMP Manager Software and The eco Sensors (Energy Management Software). The eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. With ALTUSEN eco Sensors, the Sensor-enabled eco PDU also offers comprehensive power analysis reports which can separate by departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display. With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.Space saving 1U rack mount design with rear mounting

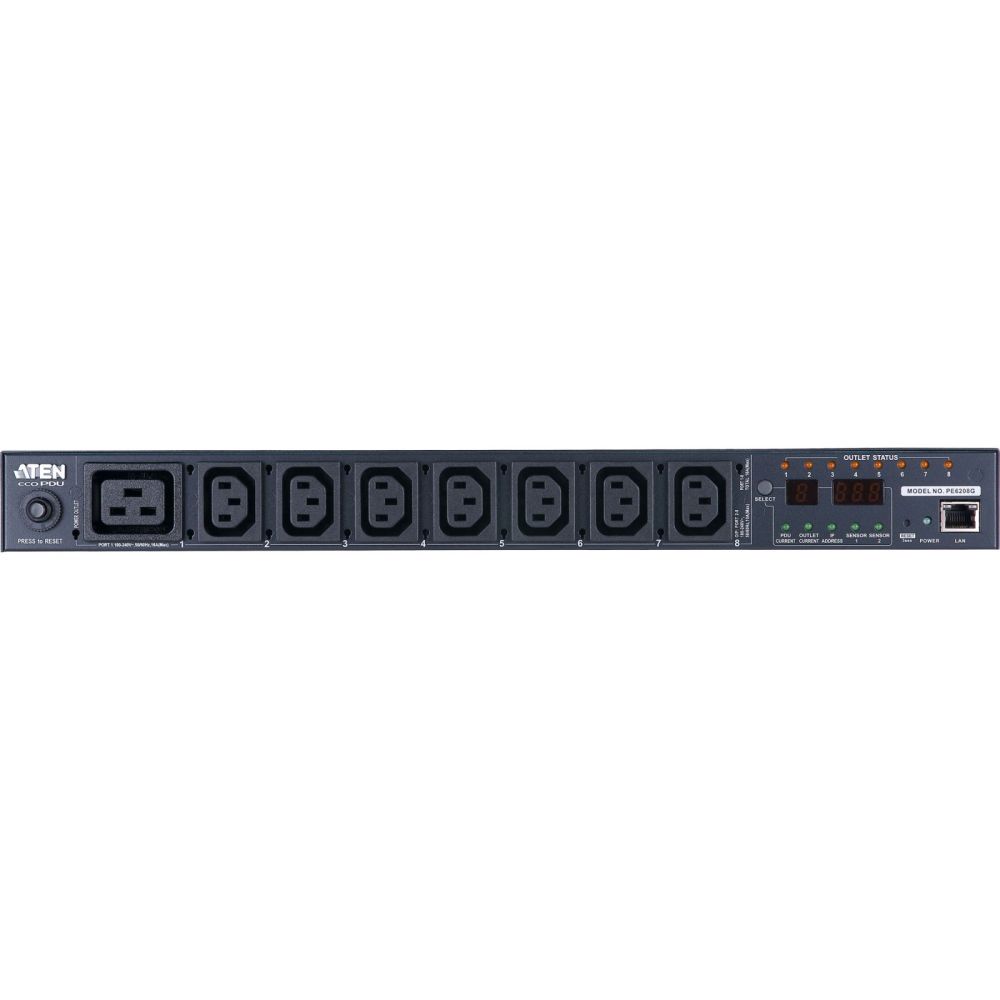

7 IEC C13 outlets, each 10A max., 1 IEC C19 outlets, 16A max.
3 digit 7-segment front panel LED shows Current / IP Address
Remote users can monitor outlet status via web pages on their browsers
Safe shutdown support
Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices' circuit breaker
Remote Access: Remote power control via TCP/IP and a built in 10/100 Ethernet port
Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
eco PDU Power Management software eco Sensors
Supports SNMP Manager V3
Operation: Local and Remote power outlet control (On, Off, Power Cycle) by individual outlets
Power-on sequencing users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
Easy setup and operation via a browser-based user interface
Multibrowser support (IE, Firefox, Chrome, Safari)
RTC support to keep the timer running during times of no power.
Supports up to 8 user and 1 administrator accounts
Management: Power status measurement at the PDU level
LED indicators for current and IP address at the PDU device level
Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the outlet level
Current and voltage threshold setting
Naming support for outlets
User outlet access assignment on an outlet-by-outlet basis.
Event logging and syslog support
Upgradeable firmware
Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian
Security: Two-level password security
Strong security features include password protection and advanced encryption technologies 128 bit SSL
Remote authentication support: RADIUS

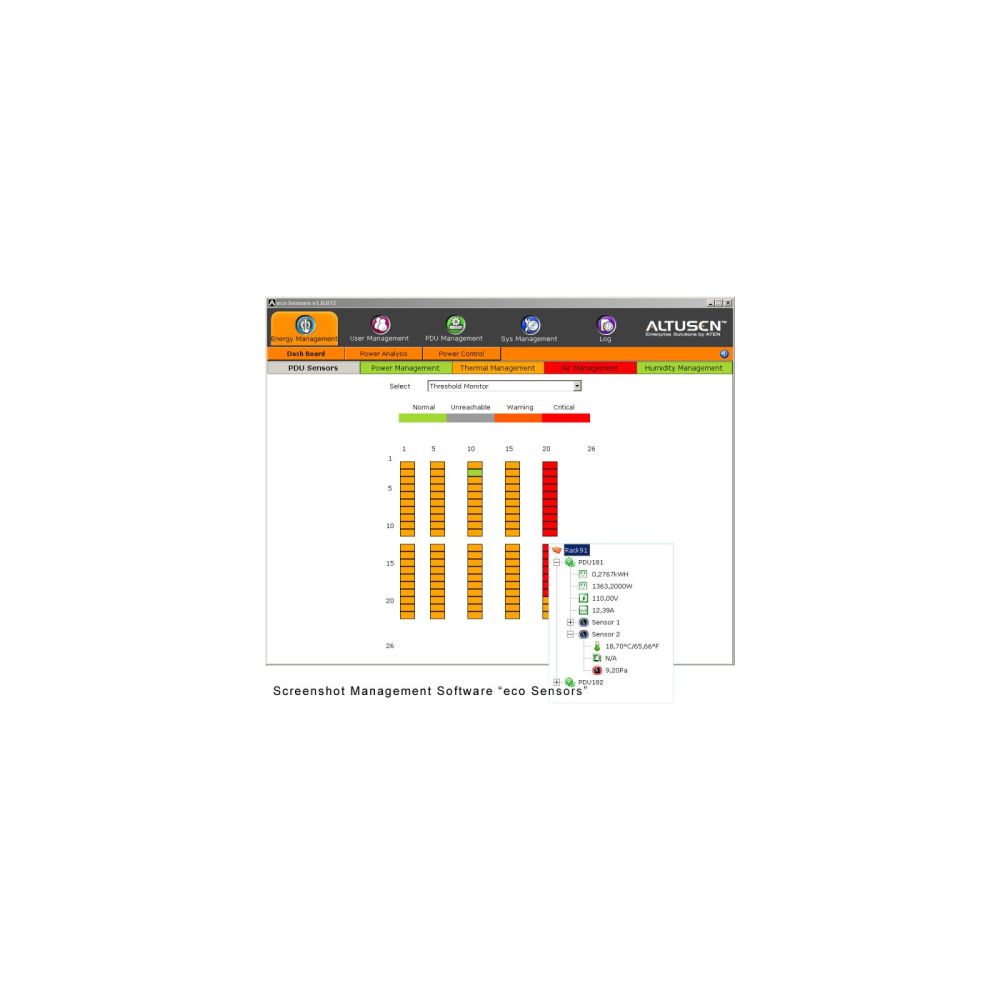

eco Sensors Energy Management Software: Automatic discovery of all PE devices within the same intranet, Remote real-time power measurement and monitoring, Remote real-time power outlet management, Remote real-time environment sensor monitoring, Plotting/Monitoring of all PE devices, Exceed threshold alert through SMTP and Syslog, Power Analysis Report
Package Contents: 1x PE8208 Power Distribution Unit, 1x Power Cord, 1x Rack Mount Kit, 1x Grounding Wire, 1x Software CD, 1x Quick Start Guide

Certificates
Certification	CE TUV-CB CE-LVD GOST
Design
PDU types	Metered, Switched
Rack capacity	1U
Mounting	Horizontal
Product colour	Black
On/off switch
Features
Cable length	3 m
LED indicators
Logistics data
Master (outer) case net weight	10.1 kg
Master (outer) case width	388 mm
Master (outer) case length	519 mm
Master (outer) case height	348 mm
Master (outer) case gross weight	13.3 kg
Products per master (outer) case	3 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
Cables included	AC
Rack mount kit
Packaging data
Package weight	4.04 kg
Package width	116 mm
Package depth	499 mm
Package height	324 mm
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
Power plug	C20 coupler
AC outlet types	C13 coupler, C19 coupler
Power
Nominal input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Maximum current	16 A
Nominal output voltage	100 - 240 V
Load capacity	3680 VA
Maximum power	100 W
Technical data
Output current	16A
Max. input power	3680VA
Height packaging	0.324m
Supply line	Power cable with C19 connector
Packaging volume	0.0188m³
Type	PDU
Number of C13 sockets	7
Number of C19 sockets	1
U	1
Width packaging	0.116m
Length packaging	0.499m
Weight	4.000kg
Mounting	Horizontal 19"
Switching function
Input C14
Input C20
Input CE 16/32A
With overvoltage protection
Protective function
Measuring function
Weight & dimensions
Width	220.4 mm
Depth	432.4 mm
Height	44 mm
Weight	3.38 kg

---
