ATEN Energy-Box EC1000 - Device for Over IP measurement of PDU parameters content_copy

Energy Box

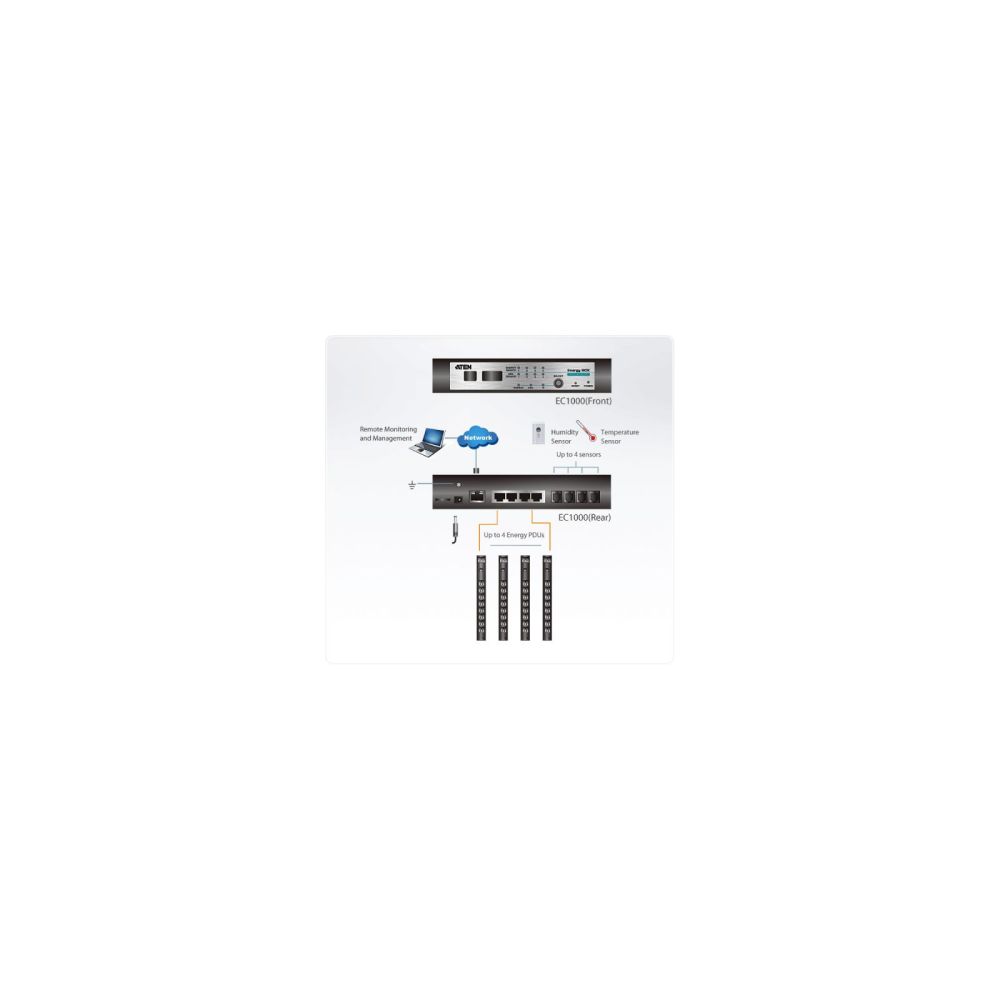

The EC1000 Energy Box is the latest evolution of NRGence™ - ATEN's energy intelligence solutions. It is the intelligent, cost effective solution to monitor ATEN's Energy PDUs - to ensure safe and effective energy-saving power management. The EC1000 Energy Box has four Energy Sensor ports to connect to four Energy PDU modules and four Environment Sensor ports for external sensors to monitor environmental conditions. Each environmental sensor can provide measured readings of temperature, humidity, and differential pressure from separate areas of a data room, giving a wide range of monitoring and protection you need. The Energy Box allows power and environmental data to be monitored and displayed at the rack or remotely for easy viewing and maintenance. The Energy Box is a standalone unit with Over IP monitoring that is controlled by Web GUI or ATEN´s eco Sensors software. The EC1000 Energy Box features real-time status, system logs, threshold alerts, and event notifications. The EC1000 logs power and environmental conditions according to customizable minimum/maximum thresholds set for electrical current, temperature, humidity, and differential pressure.
FeaturesSpace saving 1U rack mounting with front and rear mounting
4 RJ-45 Energy Sensor Ports to monitor four Energy PDU currents (0A to 32A per port)

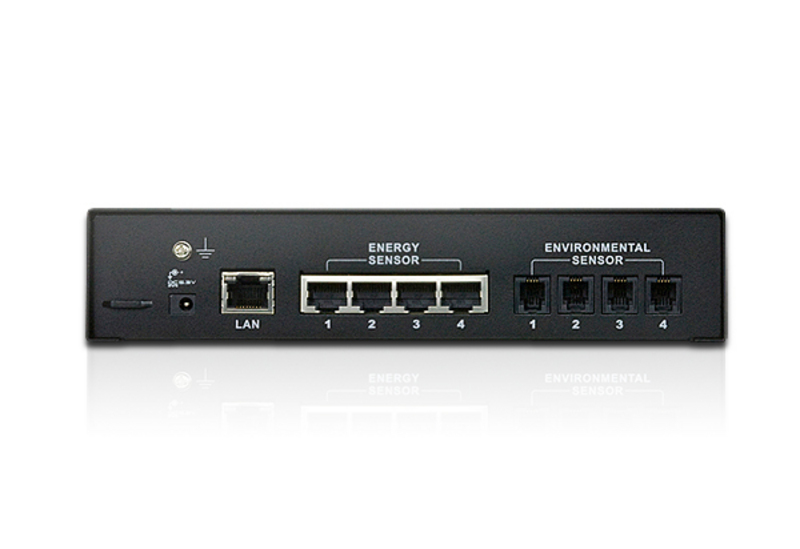

4 RJ-11 Environment Sensor Ports to monitor temperature, humidity, and differential pressure (Requires external sensors)
Maximum Amperage Monitor 32A@100V~240V (Energy Box)

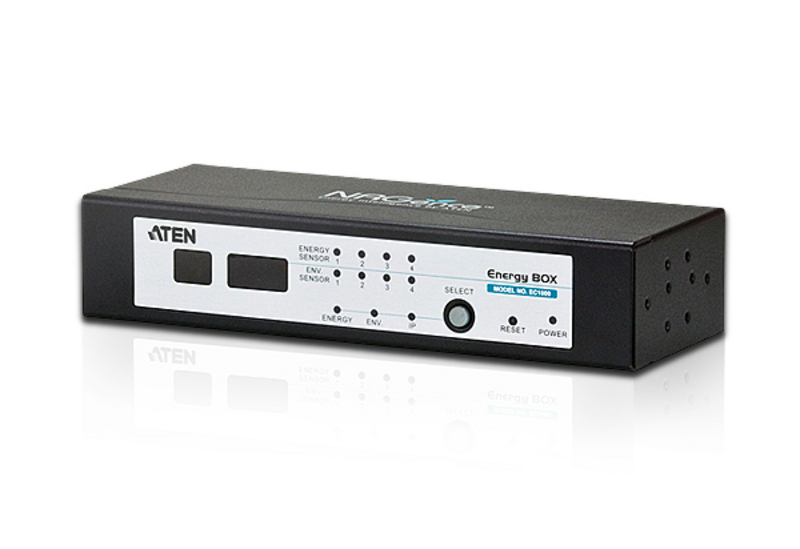

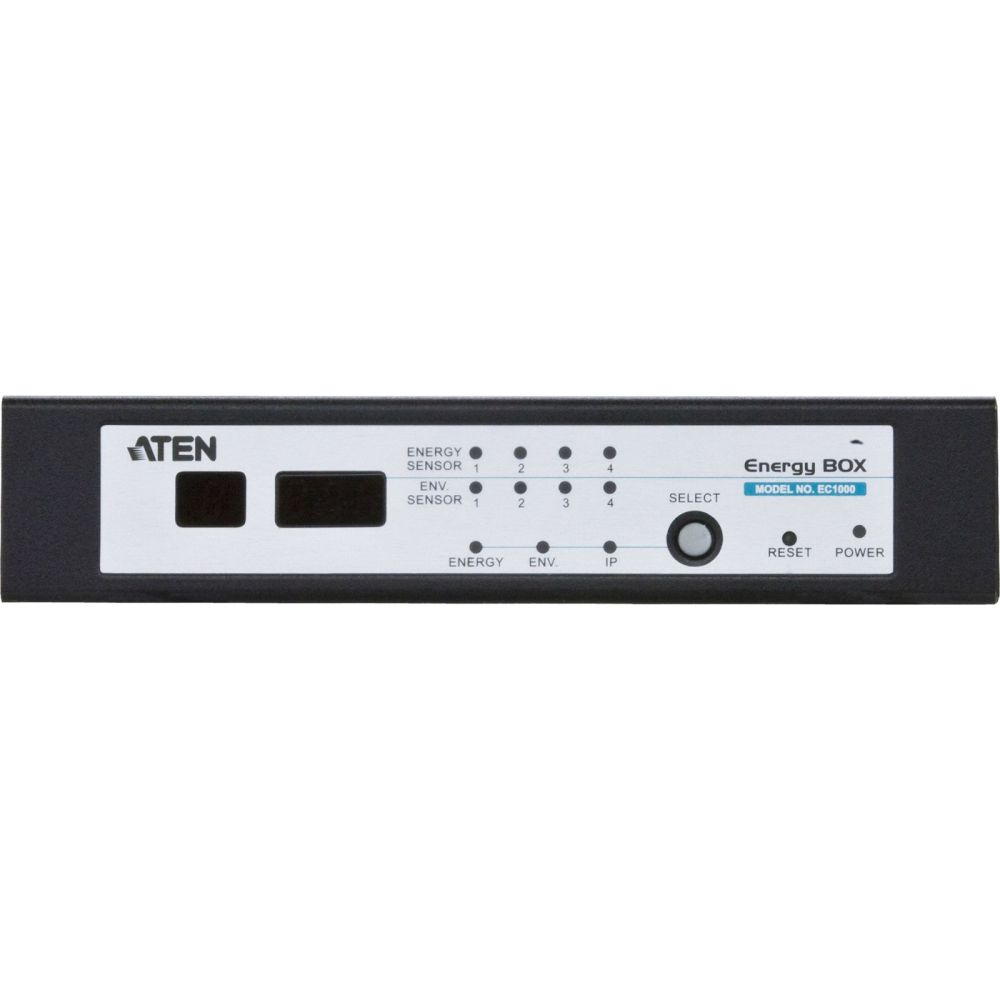

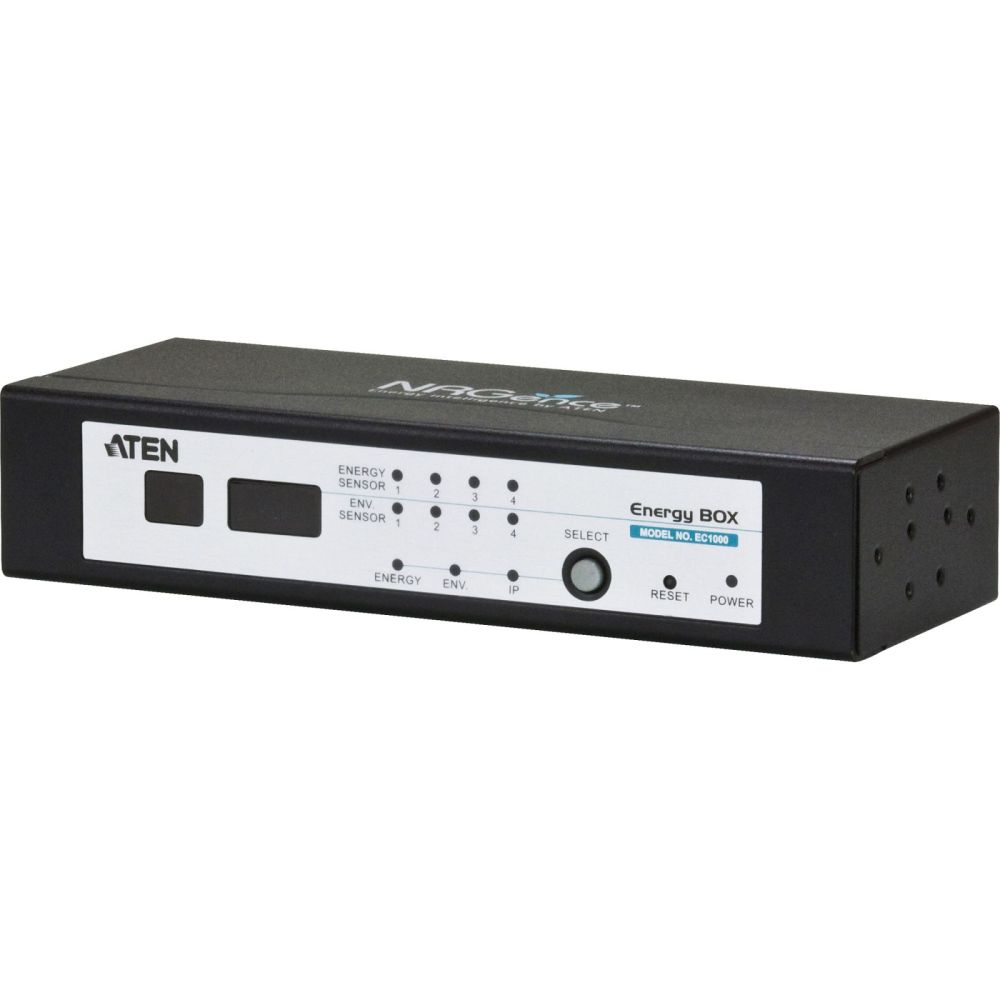

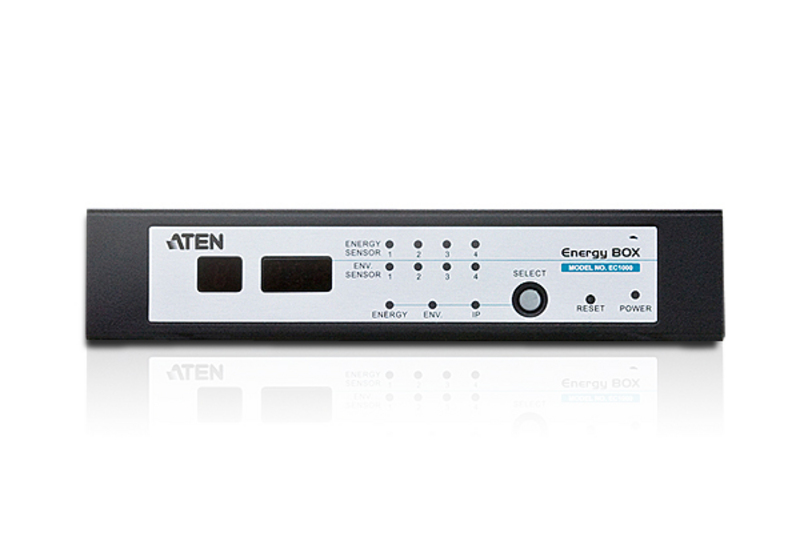

3 digit 7 segment front panel LED displays current/sensor/IP address information
Threshold monitoring for: 1. Current, 2. Temperature (Requires external sensors), 3. Humidity (Requires external sensors), 4. Differential pressure (Requires external sensors)
Threshold alerting through: 1. Local: audible alarm and LED lights, 2. Remote: SMTP/SNMP trap/Syslog
Front panel LED indicators for current, temperature (requires external sensors), humidity (requires external sensors) and differential pressure (requires external sensors), and IP address information at the Energy Box
Remote real-time current, temperature (requires external sensors), humidity (requires external sensors), and differential pressure (requires external sensors) monitoring and management
Management through eco Sensors Energy Management Software or 3rd party SNMP manager
Supports name assignment for individual Energy PDUs
Event Logging - 128 line event log
Syslog support
Firmware upgradable
Remote management via TCP/IP using built in 10/100Mbps Ethernet port
Management via built in browser based GUI
Network Interfaces: TCP/IP, UDP, http, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX auto sense, Ping
Supports SNMP Manager V1, V2, V3
Strong security features include password protection and advanced encryption technologies - utilizing 128 bit SSL
RADIUS authorization and authentication
SpecificationsEnergy PDU Connections: 4
Port Selection: Pushbutton

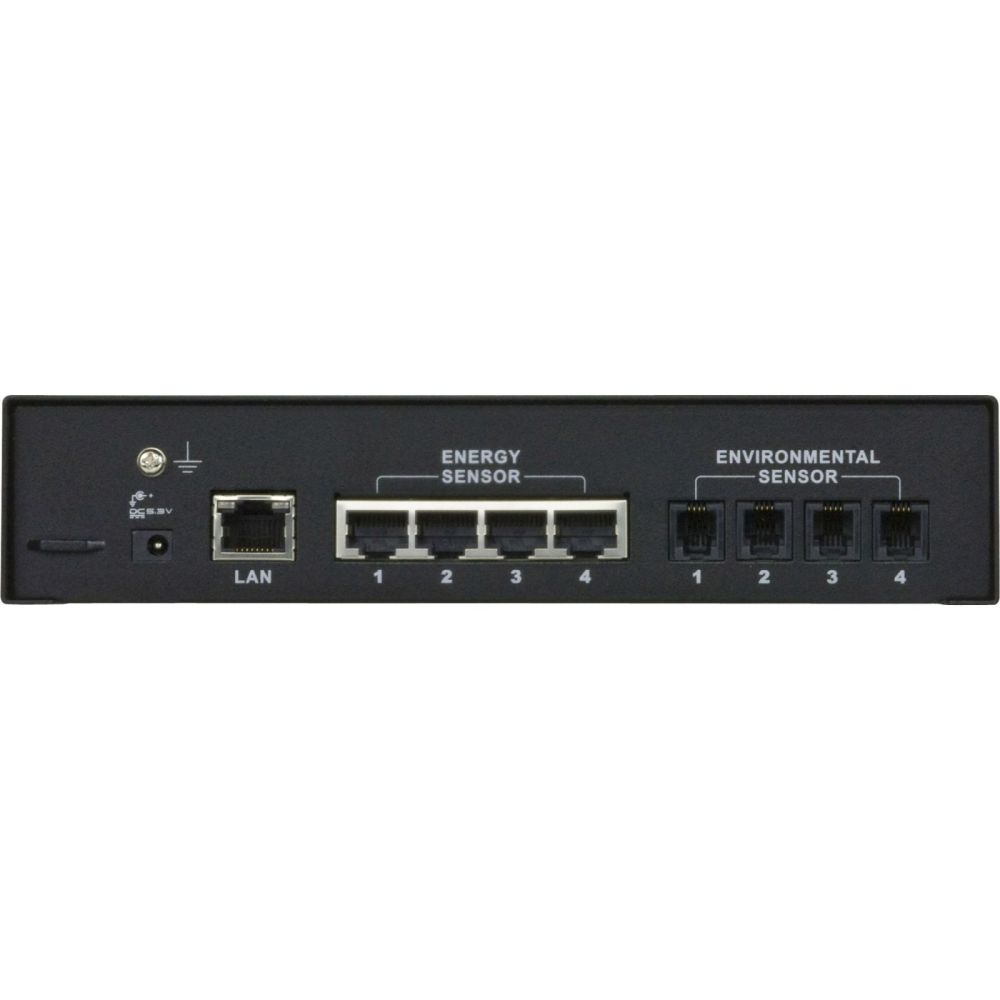

Connectors Energy Sensor: 4 x RJ-45 Female
Connectors Environment Sensor: 4 x RJ-11 Female
Connectors Power: 1 x DC Jack
Connectors LAN: 1 x RJ-45 Female
Switches Reset: 1 x Semi-recessed Pushbutton
Switches Selection: 1 x Selection Pushbutton
LEDsPDU Status: 4 (Orange)
Sensor Status: 4 (Green)
Energy/Environment/IP: 3 (Green)
Selection: 1 digit, 7-segment (Orange)
Current / Sensor / IP Address: 3 digit, 7-segment (Orange)
Power: 1 (Blue)
LAN 10/100 Mbps: 1 (Orange/Green)
LAN Link: 1 (Green)
Monitoring Range: 100-240 V, 50/60 Hz, 0 A to 32 A (per port), LED Display Resolution 0.1 A, Precision: ± 0,1 A @ 0 ~ 1 A, ±1 %

1 A

Power Consumption: 5.3 V
Environment:Operating Temp.: 0 - 50°C
Storage Temp.: -20 - 60 °C
Humidity: 0-80% RH, Non-condensing
Physical PropertiesHousing: Metal
Weight: 0.59 kg
Dimensions (L x W x H): 20.00 x 7.59 x 4.20 cm
Package Contents1x EC1000 Energy Box
1x Power Adapter
1x Mounting Kit
4x RJ-45 Cables
1x CD ROM (Manual, eco Sensors Software)
1x User Instructions

Design
Housing colour	Black
Housing material	Metal
Features
Number of devices supported	4
Connectivity technology	Wired
RJ-45 ports quantity	4
LED indicators	Power, Status
DC-in jack
Logistics data
Products per master (outer) case	5 pc(s)
Master (outer) case gross weight	9.1 kg
Master (outer) case length	500 mm
Master (outer) case width	232 mm
Master (outer) case height	283 mm
Master (outer) case net weight	7.1 kg
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Packaging content
Manual
Packaging data
Package width	95 mm
Package depth	265 mm
Package height	220 mm
Package weight	1.68 kg
Power
Power source type	AC
Input voltage	100-240 V
Operating frequency	50/60 MHz
Power consumption (typical)	2.93 W
Technical data
Packaging volume	0.0055m³
Weight	1.700kg
Height packaging	0.220m
Width packaging	0.095m
Length packaging	0.265m
Weight & dimensions
Width	200 mm
Depth	75.9 mm
Height	44 mm
Weight	1.42 kg

---
