As part of its NRGence line, ATEN has developed a new generation of green energy power distribution units (eco PDUs) to effectively increase the efficiency of data center power usage. The NRGence PE8324 eco PDUs are intelligent PDUs that contain 24 AC outlets and are available in various IEC socket configurations. Models in the advanced PE8 ranges feature NRGence´s proactive overload protection, which automatically powers off the last outlet that caused the current overload.

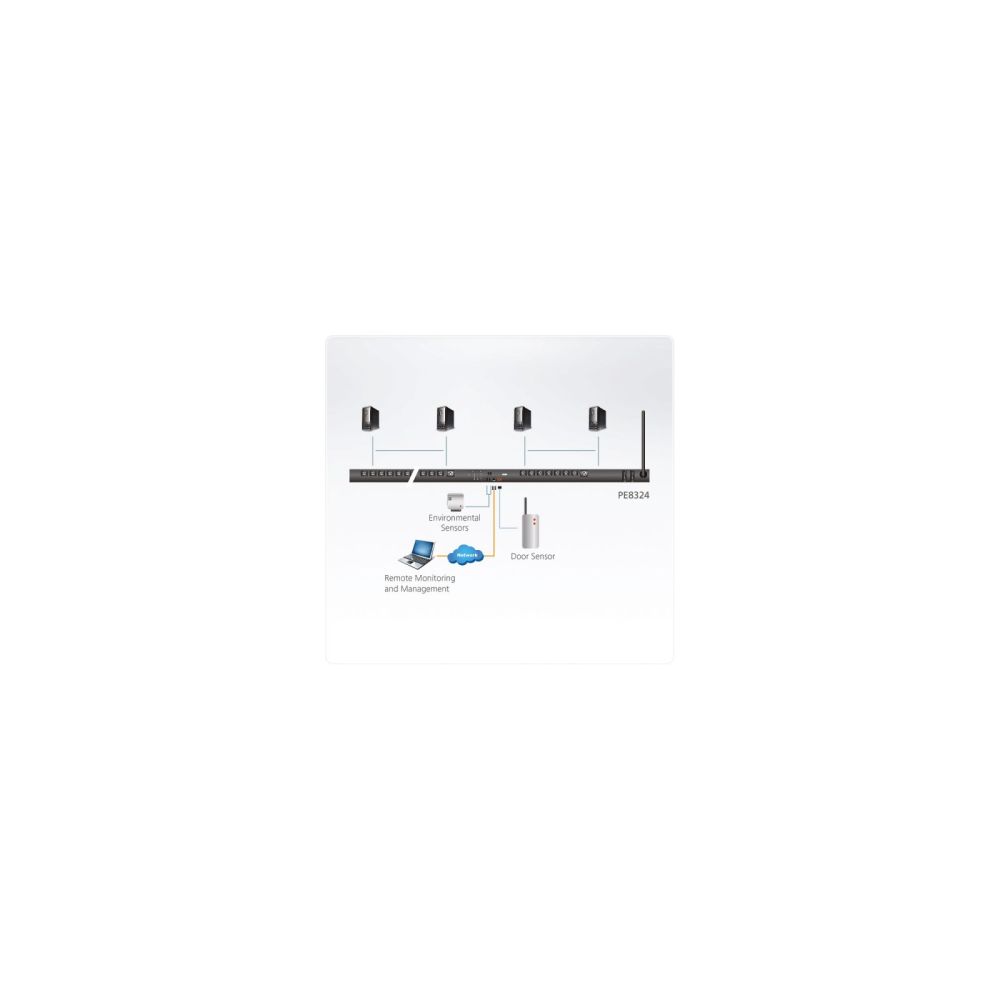

NRGence eco PDUs provide secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center´s health environment via sensors. NRGence eco PDUs offer remote power control combined with real-time power measurement — allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device, bank, or outlet level, depending on the model, from practically any location via a TCP/IP connection.
The power status of each outlet can be set individually, allowing users to switch each device On/Off. The eco PDU also offers comprehensive power analysis reports which can separate departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display. Installation and operation is fast and easy: plugging cables into their appropriate ports and user-friendly browser-based configuration and management is all that is entailed. Since the eco PDU firmware is upgradeable over the Net, you can stay current with the latest functionality improvements simply by downloading updates from our website as they become available. NRGence eco PDU supports any 3rd party V3 SNMP Manager Software and NRGence eco Sensors (eco PDU Manager Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.
With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.
ConnectionsSupport 10/100Mbit Ethernet Interface
Support TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3
Support 2-level account/password security, IP/MAC filter, 128 bit SSL, RADIOUS
Support : eco Sensors, Browser ( IE, Firefox, Chrome, Safari )
MeteringPDU and outlet level power metering and monitoring
Environment monitoring — supports external temperature/temperature & humidity sensors for rack temperature and humidity monitoring
Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting
Support door sensor
Outlet Switch ControlRemote power outlet control (On/Off, Power Cycle) by individual outlets and outlet groups
Outlet group support at the PDU
Supports multiple power control methods — Wake on LAN, System After AC Back, Kill the Power
Power-On sequencing — users can set the power-on sequence and delay time for each outlet to allow equipment to be powered on in the correct order
Proactive overload protection(POP) — automatically powers off the last outlet that caused the current overload
Package Contents1x PE8324 eco PDU
1x Standard Rack Mount Kit
1x CD-ROM (Manual, eco Sensors Software)
1x User Instructions
FunctionPE8324APE8324BPE8324G
Electrical
Nominal Input Voltage100 – 120 VAC100 – 240 VAC100 – 240 VAC
Maximum Input Current30A(Max); 24A(UL de-rated)30A Max; 24A (UL de-rated)32A Max
Input Frequency50-60 Hz50-60 Hz50-60 Hz
Input ConnectionNEMA L5-30PNEMA L6-30PIEC 60309 32A
Input Power6240 VA(Max); 4992 VA(UL de-rated)6240 VA(Max); 4992 VA(UL de-rated)7360 VA(Max)
Outlet TypeTotal: 24 x NEMA 5-15R
Bank1-1: Outlet 1 – 8; 8 x NEMA 5-15R
Bank1-2: Outlet 9 – 16; 8 x NEMA 5-15R
Bank2: Outlet 17 – 24; 8 x NEMA 5-15RTotal: 21 x IEC320 C13 + 3 x IEC320 C19
Bank1-1: Outlet 1 – 8; 7 x C13 + 1 x C19
Bank1-2: Outlet 9 – 16; 7 x C13 + 1 x C19
Bank2: Outlet 17 – 24; 7 x C13 + 1 x C19Total: 21 x IEC320 C13 + 3 x IEC320 C19
Bank1-1: Outlet 1 – 8; 7 x C13 + 1 x C19
Bank1-2: Outlet 9 – 16; 7 x C13 + 1 x C19
Bank2: Outlet 17 – 24; 7 x C13 + 1 x C19
Nominal Output Voltage100 – 120 VAC100 – 240 VAC100 – 240 VAC
Maximum Output Current (Outlet)NEMA 5-15R: 15A(Max); 12A(UL de-rated)C13: 15A(Max); 12A(UL de-rated)
C19: 15A(Max); 12A(UL de-rated)C13: 10A(Max)
C19: 16A(Max); TUV De-rated 15A(Max)
Maximum Output Current (Bank)15A(Max); 12A(UL de-rated)15A(Max); 12A(UL de-rated)16A(Max); TUV De-rated 15A(Max)
Maximum Output Current (Total)30A(Max); 24A(UL de-rated)30A(Max); 24A(UL de-rated)32A(Max); TUV De-rated 30A(Max)
Breakers2 x 16A UL489 Breaker2 x 16A UL489 Breaker2 x 16A UL489 Breaker
MeteringOutlet Level Current, Voltage, VA, PF, KWh MonitoringOutlet Level Current, Voltage, VA, PF, KWh MonitoringOutlet Level Current, Voltage, VA, PF, KWh Monitoring
Outlet SwitchingYesYesYes
Environment Sensor Ports444
Metering AccuracyVoltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H)177.50 x 6.60 x 4.40 cm
(69.88 x 2.6 x 1.73 in.)177.50 x 6.60 x 4.40 cm
(69.88 x 2.6 x 1.73 in.)177.50 x 6.60 x 4.40 cm
(69.88 x 2.6 x 1.73 in.)
Weight6.33 kg ( 13.94 lb )6.33 kg ( 13.94 lb )6.33 kg ( 13.94 lb )
Power Cord Length1.6 m1.6 m1.6 m
Environmental
Temperature (Operating / Storage)0 – 50°C / -20 – 60°C0 – 50°C / -20 – 60°C0 – 40°C / -20 – 60°C
Humidity (Operating & Storage)0 – 80% RH, Non-Condensing0 – 80% RH, Non-Condensing0 – 80% RH, Non-Condensing
Compliance
EMC VerificationFCC Part 15 Class A, Others by RequestFCC Part 15 Class A, Others by RequestCE, Others by Request
Safety VerificationBy RequestBy RequestCE-LVD, Others by Request
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Certificates
Certification	CE CE-LVD
Design
PDU types	Metered, Switched
Product colour	Black
Features
Cable length	1.6 m
Security algorithms	128-bit SSL, SNMP, SNMPv2, SNMPv3
Logistics data
Master (outer) case net weight	6.5 kg
Master (outer) case width	229 mm
Master (outer) case length	1865 mm
Master (outer) case height	179 mm
Master (outer) case gross weight	8.98 kg
Products per master (outer) case	1 pc(s)
Management features
Monitoring	Current, Voltage
Supported network protocols	TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, ARP, NTP, DNS, Auto Sense, Ping, Telnet
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Packaging content
Manual
Rack mount kit
Packaging data
Package weight	8.98 kg
Package width	229 mm
Package depth	1865 mm
Package height	179 mm
Ports & interfaces
AC outlets quantity	24 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler, C19 coupler
Ethernet LAN (RJ-45) ports	1
Power
Nominal input voltage	100-240 V
AC input frequency	50-60 Hz
Maximum current	32 A
Technical data
Packaging volume	0.0764m³
Supply line	Power cable with IEC 60309 32A plug
Weight	9.092kg
Type	PDU
Number of C19 sockets	3
Width packaging	0.229m
Height packaging	0.179m
Input voltage	230V
Number of C13 sockets	21
Mounting	Vertical
Max. input power	7360VA
Length packaging	1.865m
Output current	32A
Measuring function
Protective function
Input C14
With overvoltage protection
Switching function
Input CE 16/32A
Input C20
Weight & dimensions
Width	1775 mm
Depth	66 mm
Height	44 mm
Weight	6.5 kg

---
