ATEN Photo sensor for PE 7/8/9 series content_copy

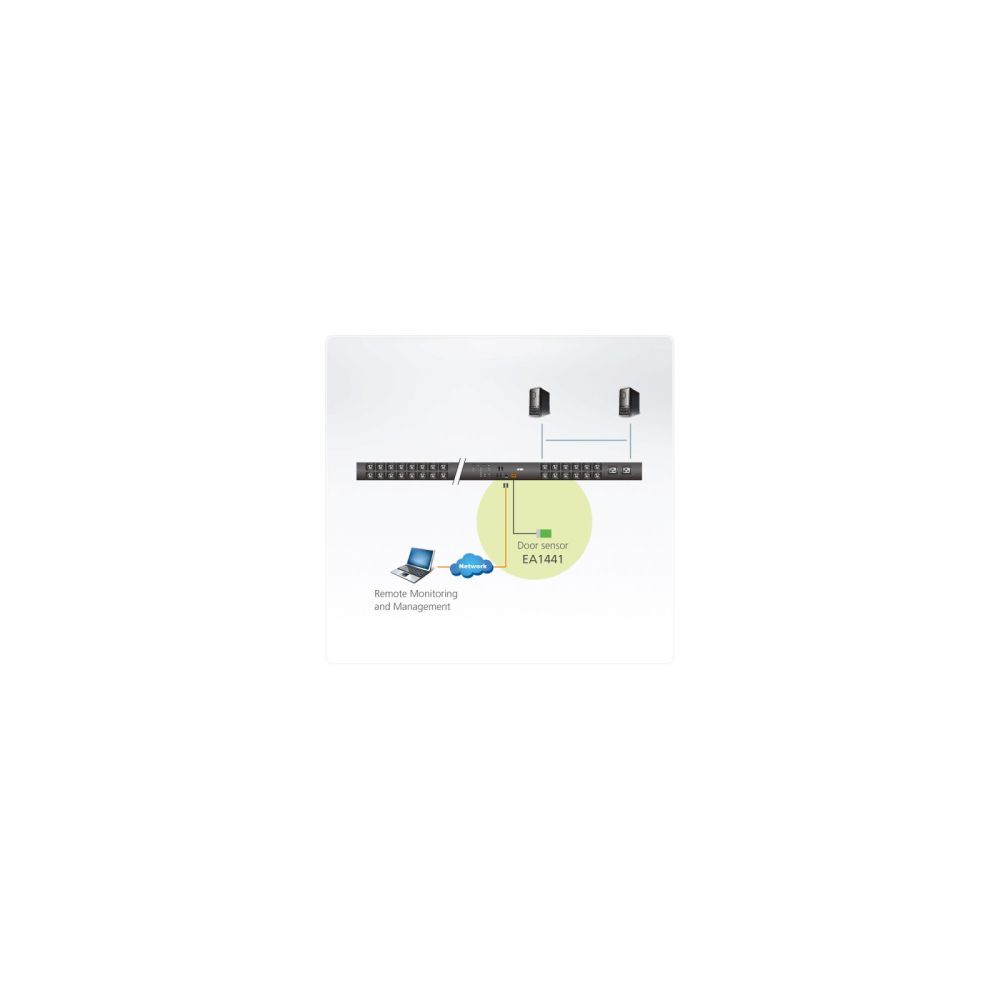

For the security of your data center, ATEN provides Inductive Proximity Door sensor probes that work in tandem with the Power Distribution Units, which allows the monitoring of a rack mounted enclosure´s door access, notifying users when a door has been opened. Various conditions can be monitored with alarms according to customizable minimum/maximum settings.
* The Sensor is an optional accessory and you can use the ATEN PDU without the door sensors. However, if you want to have complete security management of your data center with the full use of ATEN solutions, a sensor installation is required.
** Support PE7/PE8/PE9 series only

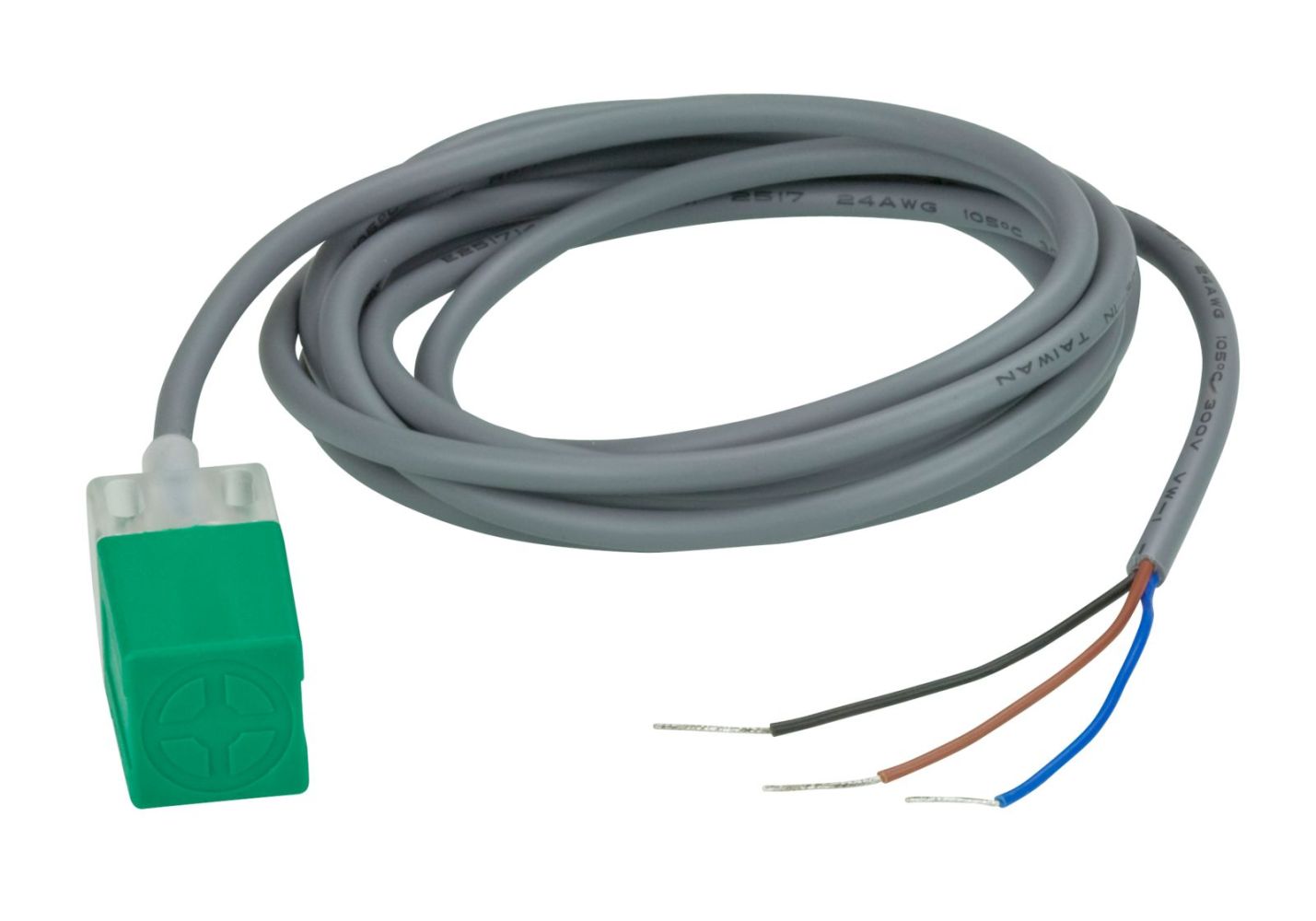

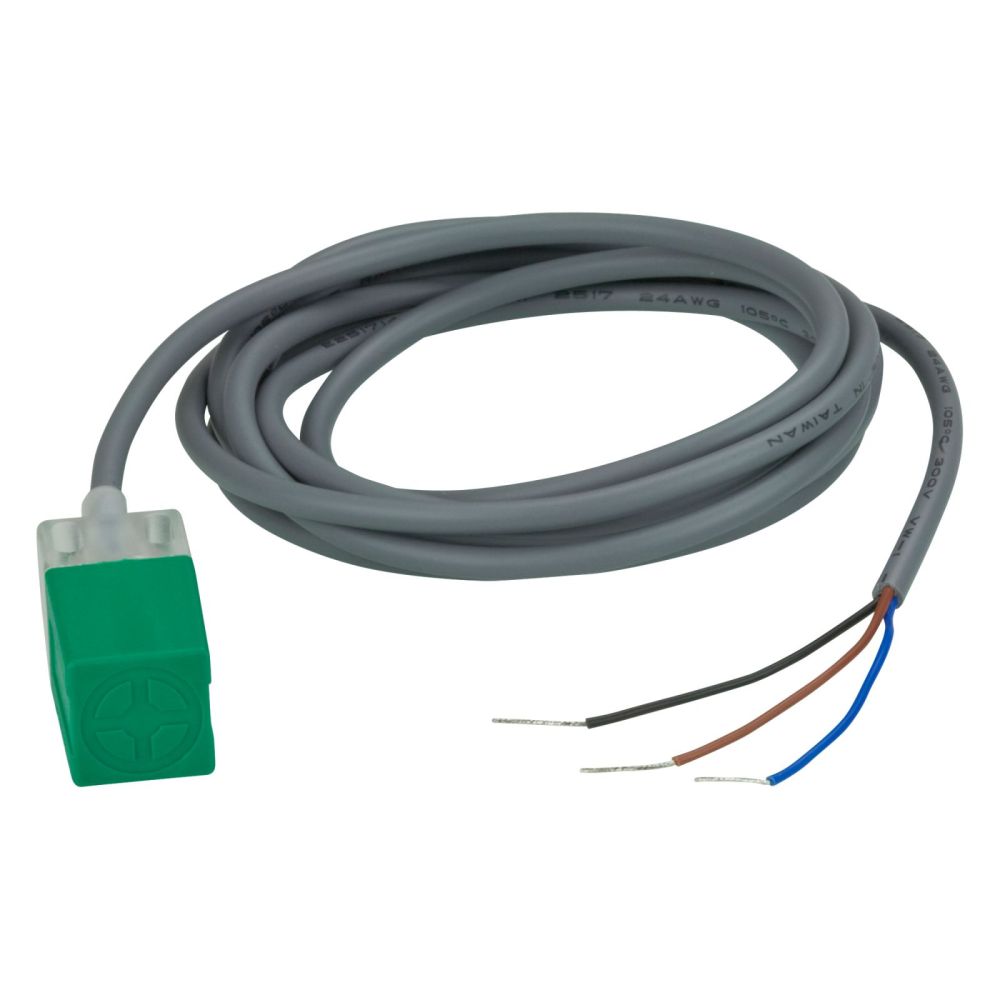

The Inductive Proximity Door Sensor allows the monitoring of a rack mounted enclosure’s door access  –  notifying users when a door has been opened
High sensitivity
Easy operation
Operating voltage10 – 30 VDC
Ripple of power20 % peak to peak
Current Consumption10 mA (max.)
Sensing distance5 mm
Hysteresis10 % of sensing distance max
Response frequency800 Hz (min.)
Output methodPNP
Output current150 mA (max.)
Residual voltage0,1 V (max.)
Leakage current0,8 mA (max.)
Protection circuitShort circuit & polarity reversed protection
Connection3c/4.0
Dielectric strength2,5 kV / 1 minute (min.)
Insulation strength100 MΩ / 500 V VDC
Environmental
Operating Temperature-20°C-80°C
Humidity35 – 95 % RH
Protection classIP-67
Package Contents
1x Inductive Proximity Door Sensor
2x Screw
1x Bracket
1x hook-and-loop

Features
Connectivity technology	Wired
Suitable for	Door
Product colour	Green, Grey
Logistics data
Products per master (outer) case	50 pc(s)
Master (outer) case width	380 mm
Master (outer) case length	380 mm
Master (outer) case height	250 mm
Master (outer) case net weight	3 kg
Master (outer) case gross weight	5.5 kg
Operational conditions
Operating temperature (T-T)	-20 - 80 °C
Operating relative humidity (H-H)	35 - 95%
Packaging content
Screws included
Packaging data
Package width	85 mm
Package depth	110 mm
Package height	45 mm
Package weight	90 g
Technical data
Height packaging	0.045m
Width packaging	0.085m
Weight	0.090kg
Length packaging	0.110m
Packaging volume	0.0004m³
Weight & dimensions
Weight	60 g

---
