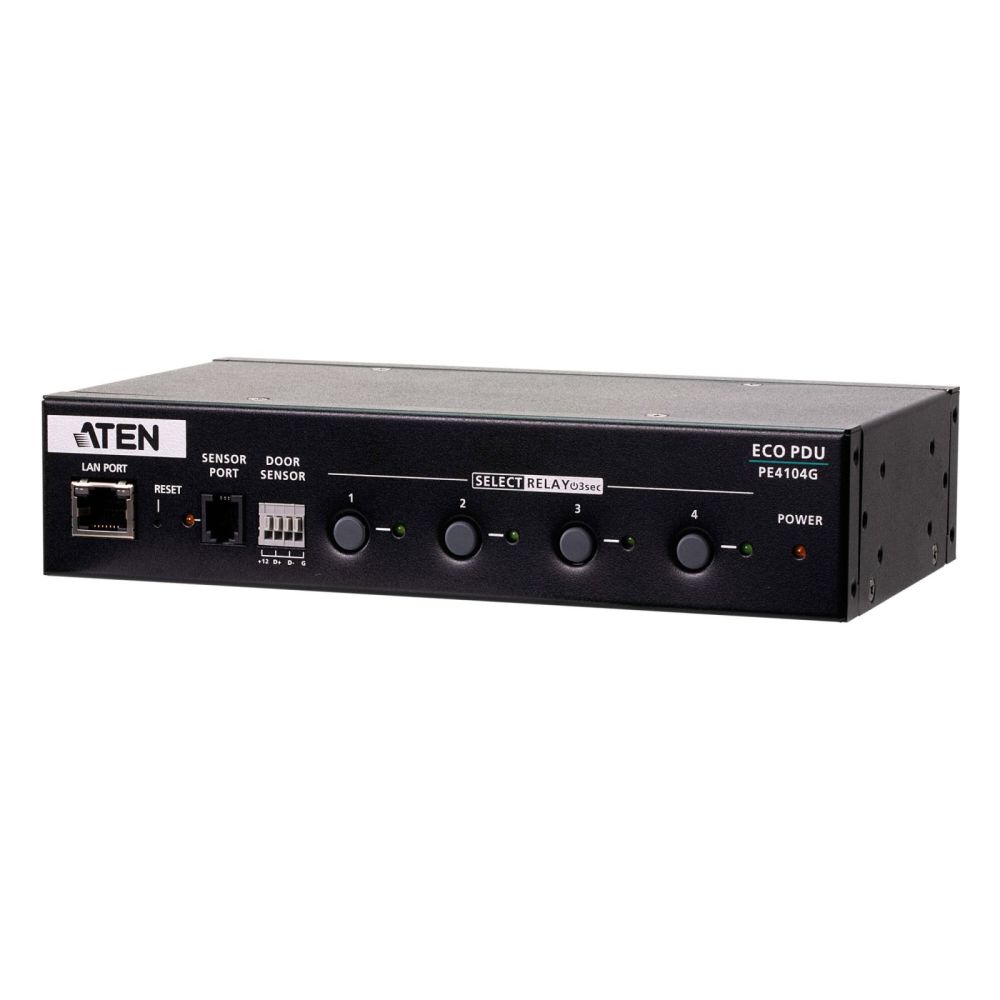

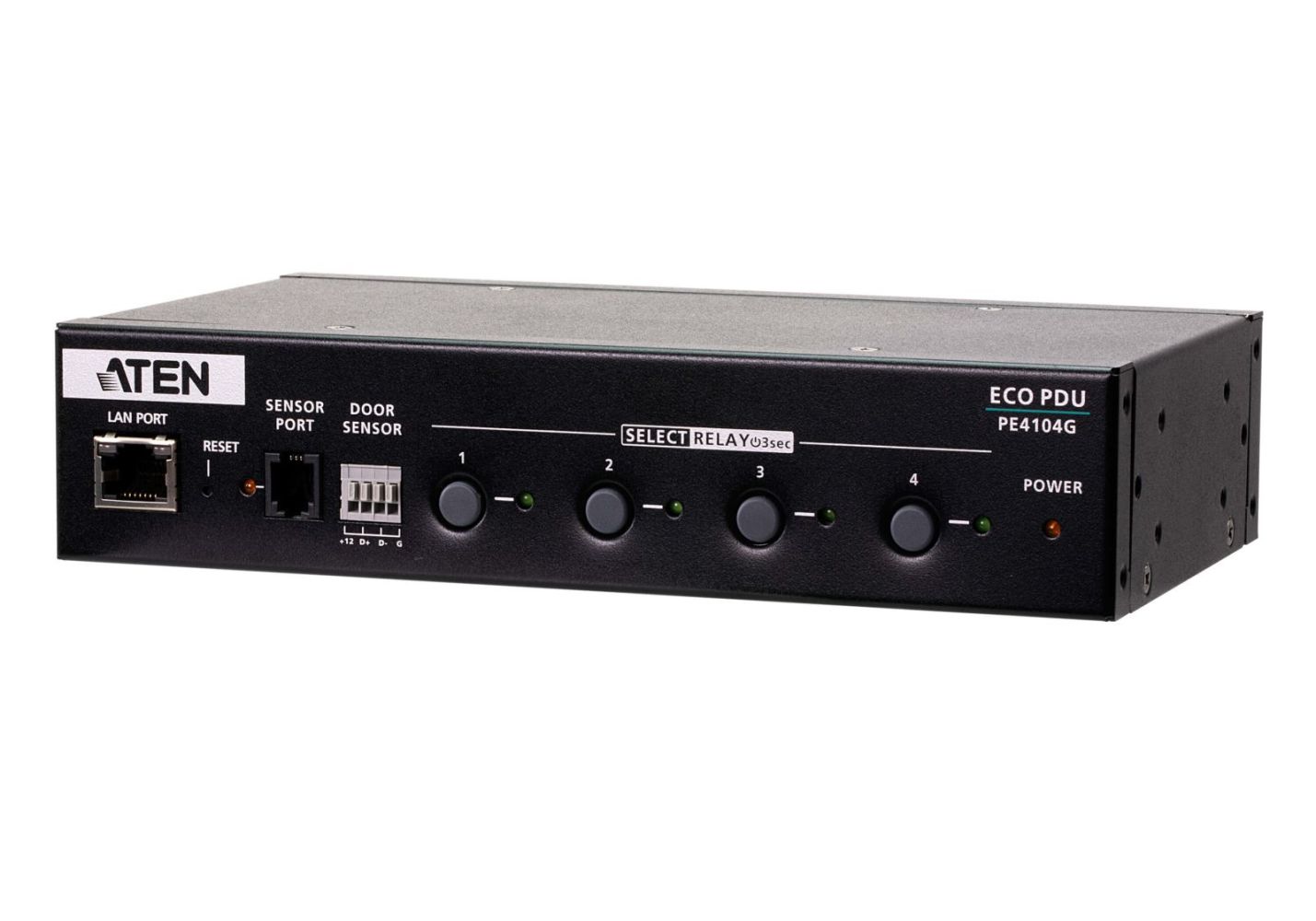

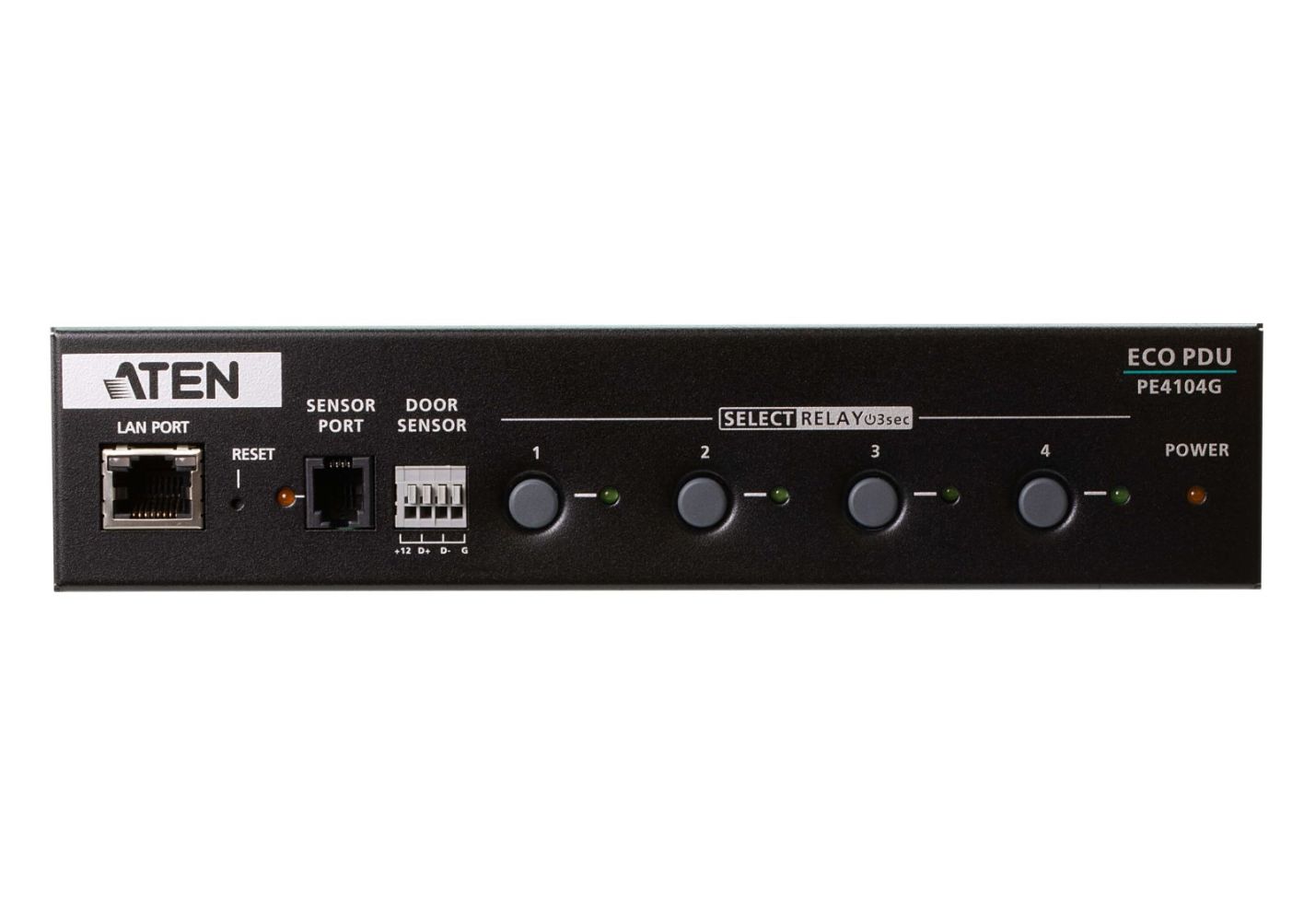

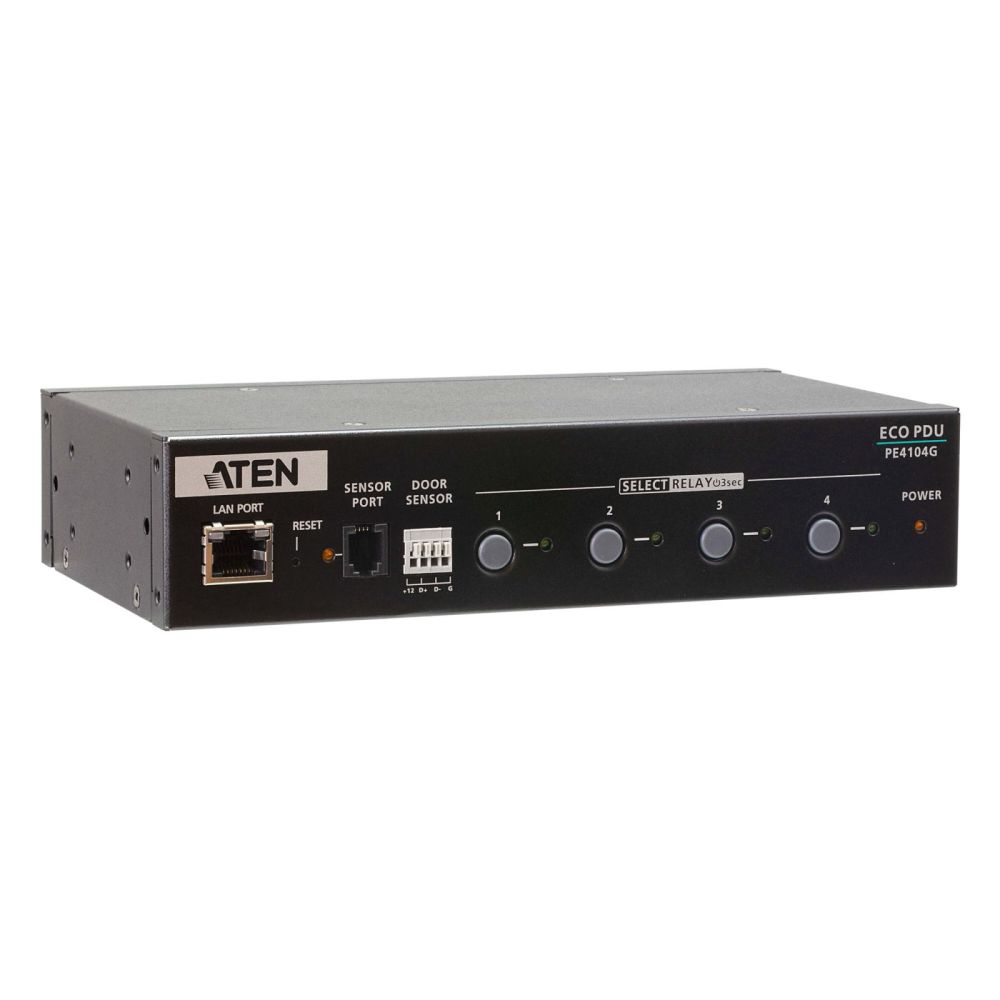

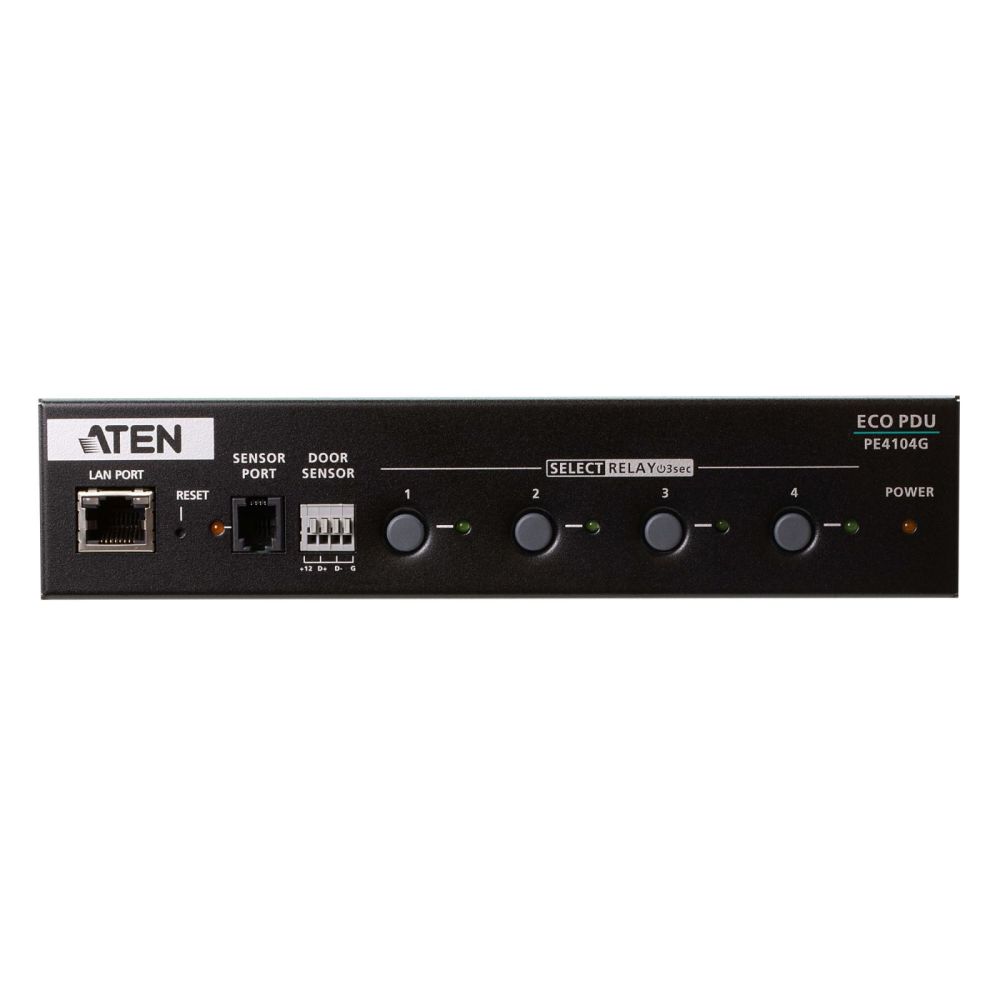

ATEN PE4104G PDU 4-Output IP Control Box content_copy

Engineered to be an intelligent power distribution solution, the PE4104G IP Control Box ships with 4 power outlets in an IEC socket configuration. It provides secure, centralized, intelligent, and remote power management of data center IT equipment to minimize the operating cost.
The PE4104G features the remote power control function, allowing you to control devices attached to the PDU at the PDU device level from practically any location via a TCP/IP connection. The power sequence design eliminates the risks for a power inrush to guarantee reliable operation and protects the overall system health. With the support for eco DC software, it provides an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and reboot the device in case any equipment lock-up occurs. The administrators can switch on/off or set a delay time for each power outlet or individual power outlets group whenever, wherever.
The PE4104G boasts a slim, compact form factor and supports desk mount as well as rack mount, ensuring easy installation in confined spaces. It is a smart power control box tailored for hospitality or retail applications, such as digital signages and video walls, for edge computing devices, including routers, servers and cameras, or for any data center environments where there is no need to keep the servers powered on at all times.
Power DistributionSpace saving slim form factor
IEC power outlet
Separates power for the unit's own power and its power outlets – user interface is still accessible even when an overload condition trips the device’s circuit breaker
Remote AccessRemote power control via TCP/IP and a built in 10/100 Ethernet port
Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, ARP, NTP, DNS, SNMP V1&V2&V3, auto sense, Ping, Telnet, Modbus (Over TCP IP)
Works with web-based eco DC software
OperationLocal and remote power outlet control (On, Off, Power Cycle) by individual outlets
Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in a proper order
Easy setup and operation via a browser-based user interface
SecurityTwo-level password security
Strong security features include password protection and advanced encryption technologies – TLS1.2
Remote authentication support: RADIUS
Package Contents1x IP Control Box
1x Standard Rack Mount Kit
1x Power Cord
4x Footpads
1x User Instructions
Electrical
Nominal Input Voltage100 – 240 VAC
Maximum Input Current10A Max
Input Frequency50-60 Hz
Input ConnectionIEC C14
Input Power2400VA(Max)

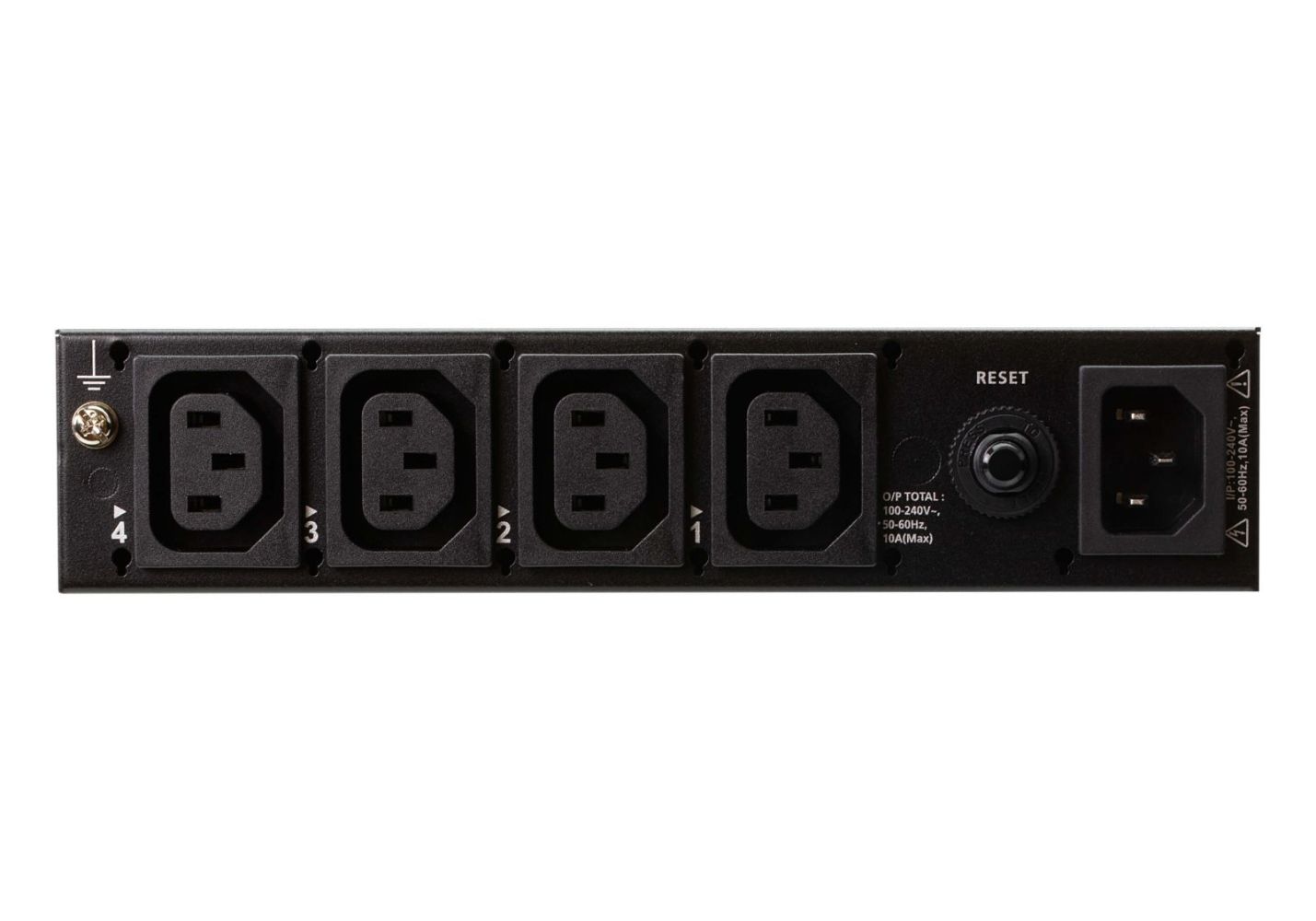

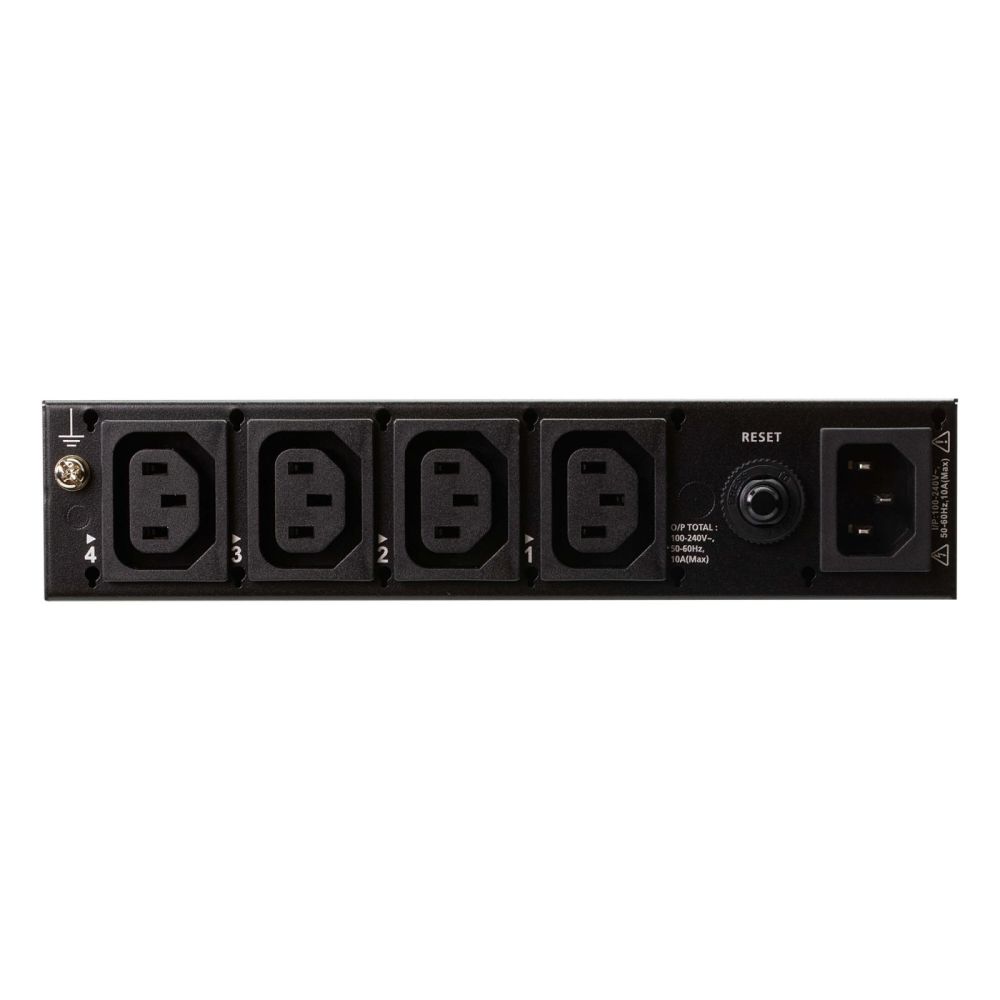

Outlet Type(4) IEC 320 C13
Nominal Output Voltage100 – 240 VAC
Maximum Output Current (Outlet)10A(Max)
Maximum Output Current (Bank)10A(Max)
Maximum Output Current (Total)10A(Max)
BreakersYes(UL1077)
MeteringNo
Outlet SwitchingYes
Power ConsumptionAC110V:3.1W:20BTU
AC220V:3.5W:22BTU
Physical Properties
Dimensions(W x D x H)44*115*200mm
Weight0.90 kg ( 1.98 lb )
Power Cord Length3m
Environmental
Temperature (Operating / Storage)0 – 50? / -20 – 60?
Humidity (Operating & Storage)0 – 80% RH, Non-Condensing

Certificates
Compliance certificates	CE
Certification	CE-EMC CE-LVD
Design
PDU types	Basic
Rack capacity	1U
Product colour	Black
Features
Cable length	3 m
Reset button
LED indicators
Logistics data
Master (outer) case net weight	6.45 kg
Master (outer) case width	292 mm
Master (outer) case length	517 mm
Master (outer) case height	194 mm
Master (outer) case gross weight	8.04 kg
Products per master (outer) case	5 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
Cables included	AC
Manual
Rack mount kit
Packaging data
Package weight	1.49 kg
Package width	100 mm
Package depth	283 mm
Package height	173 mm
Ports & interfaces
AC outlets quantity	4 AC outlet(s)
Power plug	IEC 320
AC outlet types	C13 coupler
Ethernet LAN (RJ-45) ports	1
Power
Nominal input voltage	100-240 V
Maximum current	10 A
Technical data
U	1
Length packaging	0.285m
Supply line	Power cable with C13 plug
Mounting	Horizontal 19"
Width packaging	0.100m
Output current	10A
Type	PDU
Max. input power	2400VA
Weight	1.478kg
Packaging volume	0.0188m³
Height packaging	0.175m
Number of C13 sockets	4
Input CE 16/32A
Protective function
Input C14
Switching function
Measuring function
With overvoltage protection
Input C20
Weight & dimensions
Width	200 mm
Depth	115 mm
Height	44 mm
Weight	1.29 kg

---
