ATEN capacitive leak sensor liquid detection content_copy

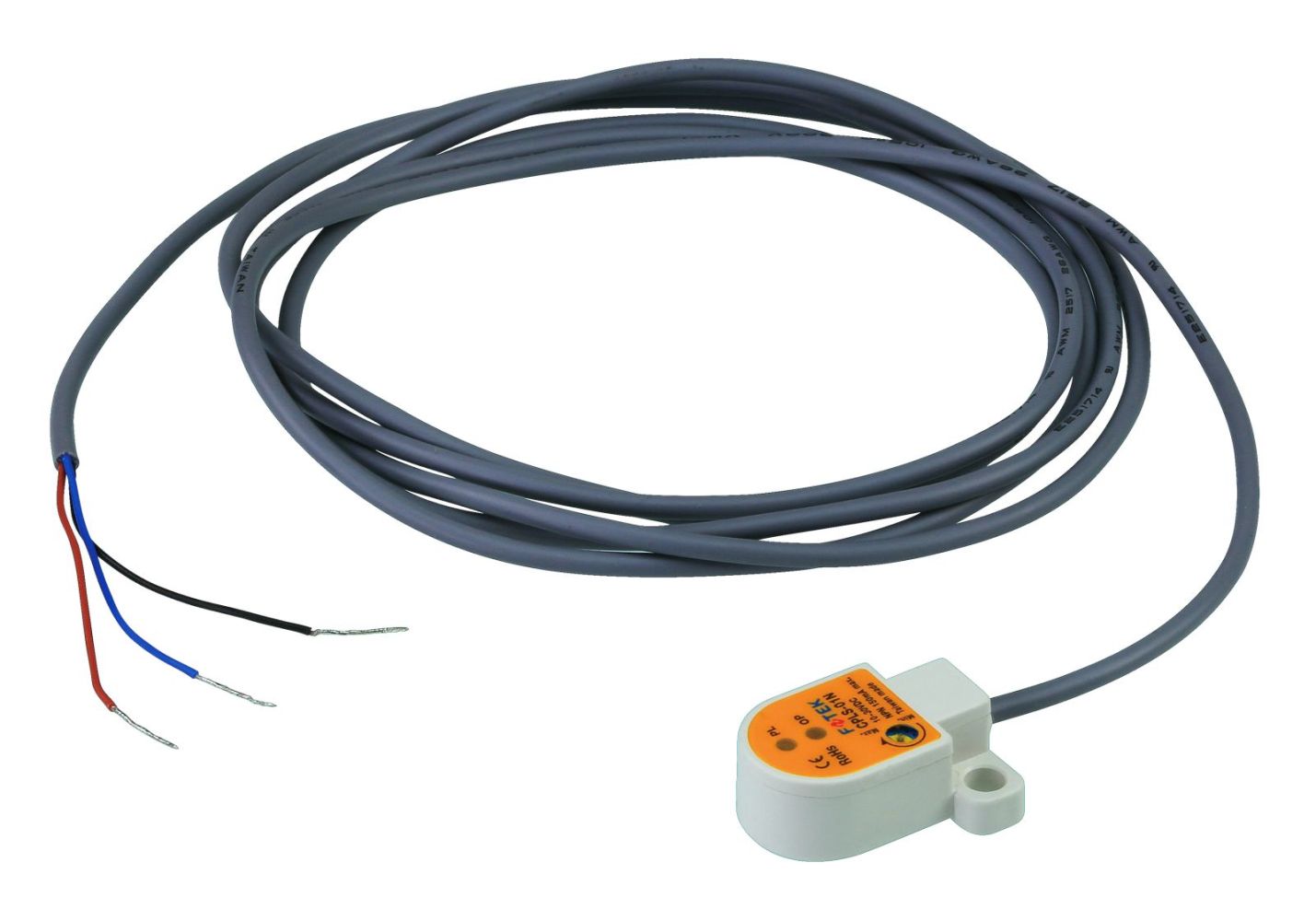

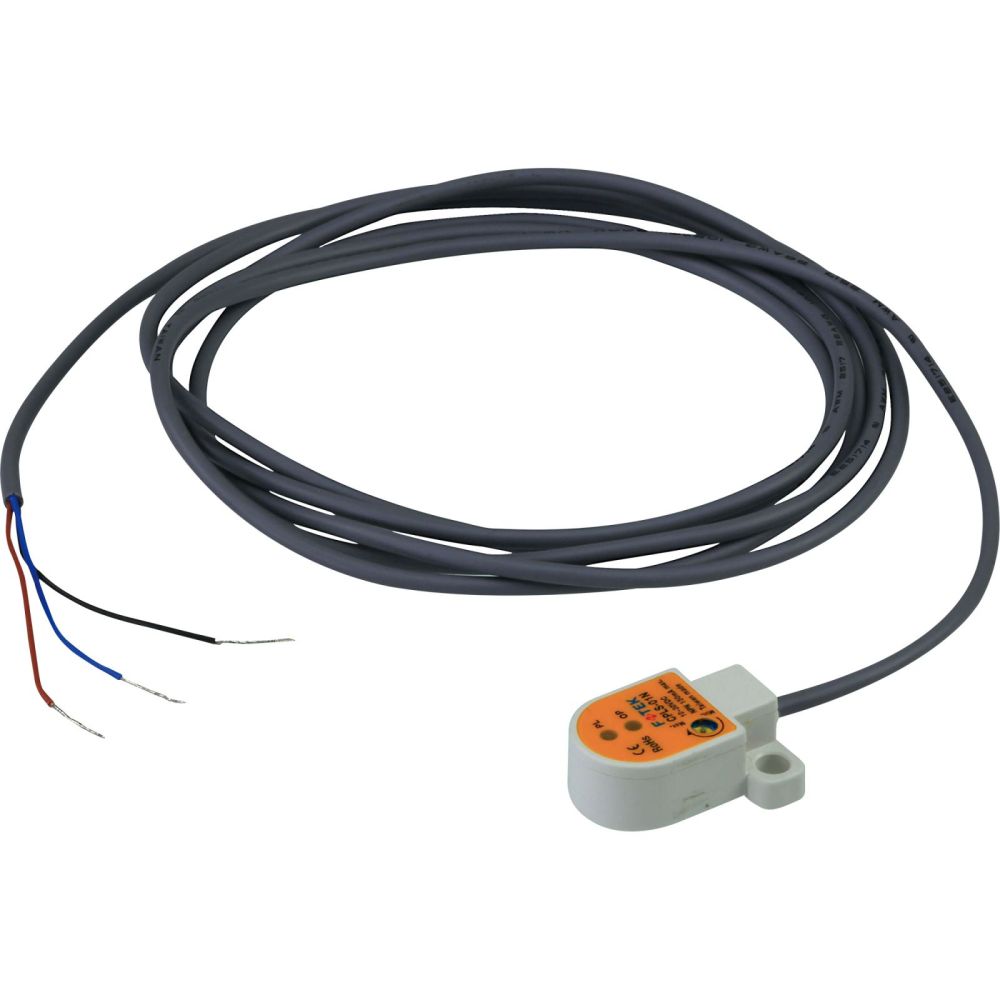

The EA1540 capacitive leak sensor can automatically detect any liquid in close proximity to the connected PDU and inform the user about it. When liquid is detected, the EA1540 will alarm and illuminate its red LED to demand immediate attention and response. This effectively reduces the risk of damage to the PDU and the devices powered. It is ideal for PDU installation environments such as underground data centers located underground.
Suitable for a wide range of applications, the EA1540 features a compact and non-disruptive design that it allows him to avoid external signals interfering with normal operation while saving valuable space for critical work. It is built from corrosion-resistant materials, making it adaptable to hazardous environments.
The EA1540 is the perfect solution for anyone who needs to ensure day-to-day operation of the PDU and prevent potential risks of equipment damage in advance .
Scope of delivery:
1 x capacitive leakage sensor, 1x wiring diagram
Compatible ATEN PDU models: Rack PDUs: PE4104G, EC1000, PE7216, PE7324, PE8216, PE8324
ProtectionIP-66
Physical Properties
HousingPP
Cable type2m( 22 AWG)Insulation strength100 MOhm / 500 VDC
Dielectric strength2.5 kV per minute
Residual ripple10% peak-valley value
Operating voltage10~ 30 VDC
Power consumption20 mA max
Output MethodNPN
Output StatusNO
Output current150 mA max.
Leakage current0.1 mA max.
Residual voltage0.1 V max.
Protection circuitShort circuit & Reverse polarity
Sensitivity controller270° Trimmer

Features
Product type	Sensor & alert system
Connectivity technology	Wired
Product colour	Black, Grey
Housing material	Polypropylene (PP)
Insulation resistance	100 MΩ
AWG wire size	22
International Protection (IP) code	IP66
Logistics data
Master (outer) case volume	25485.16 cm³
Master (outer) case width	380 mm
Master (outer) case length	140 mm
Master (outer) case height	480 mm
Master (outer) case gross weight	720 g
Products per master (outer) case	12 pc(s)
Other features
Country of origin	Taiwan
Packaging data
Package volume	566.34 cm³
Package width	85 mm
Package depth	110 mm
Package height	45 mm
Package weight	1.25 kg
Power
AC input voltage	10 - 30 V
Nominal current output	0.15 A
Power consumption	20 mA
Power source type	DC
Technical data
Weight	1.250kg
Height packaging	0.045m
Width packaging	0.085m
Packaging volume	0.0004m³
Length packaging	0.110m

---
