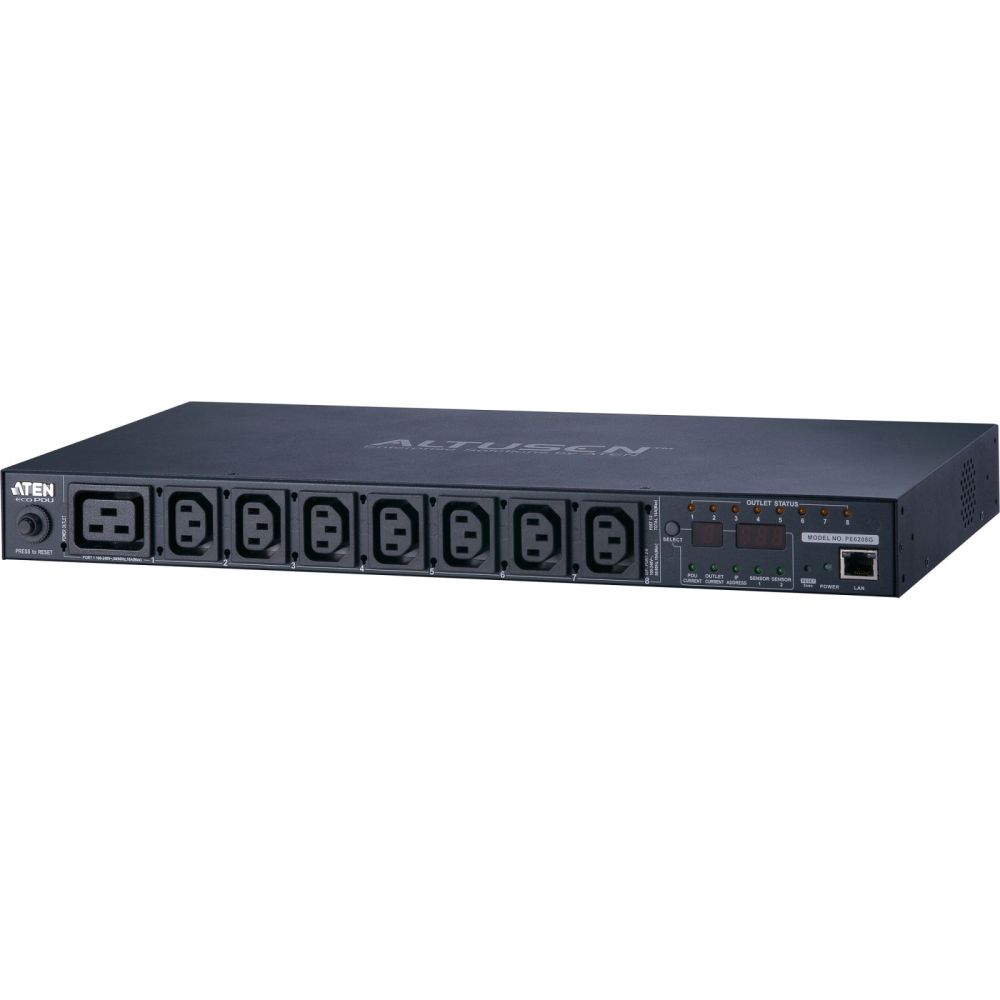

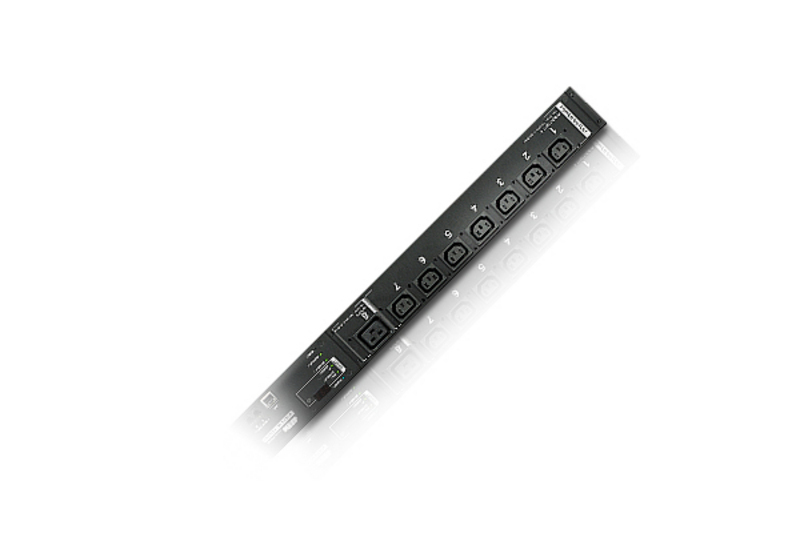

ATEN PE6216 IP power strip 16-port 16A Measurement current parameters sensor port temperature humidity content_copy

ATEN has developed a new generation of green energy power distribution units (PDUs) to effectively increase the efficiency of data center power usage. The PE6216 eco PDUs are intelligent PDUs that contain 16 AC outlets and are available in various IEC or NEMA socket configurations.
The series provides secure, centralized, intelligent power management (power on / off / cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*.
The PE6216 eco PDU offers remote power control combined with realtime power measurement – allowing you to control and monitor the power status of devices attached to the PDUs, either at the PDU device or outlet level, from practically any location via a TCP/IP connection.
The power status of each outlet can be set individually, allowing users to switch each device On/Off. The eco PDU also offers comprehensive power analysis reports – providing precise measurements of current, voltage, power and watt-hour in a realtime display.
These eco PDUs support any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN eco DC (Energy & DCIM Management Web GUI). eco DC provides an easy method for managing multiple devices, offering an intuitive and user-friendly GUI that allows users to configure a PDU device and monitor power status of the equipment connected to it.
With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.

• Sensors are optional accessories. A sensor-enabled installation is required to generate a more complete energy-efficient data and chart.
Power DistributionSpace saving 0U rack mount design with rear mounting
IEC or NEMA outlet models

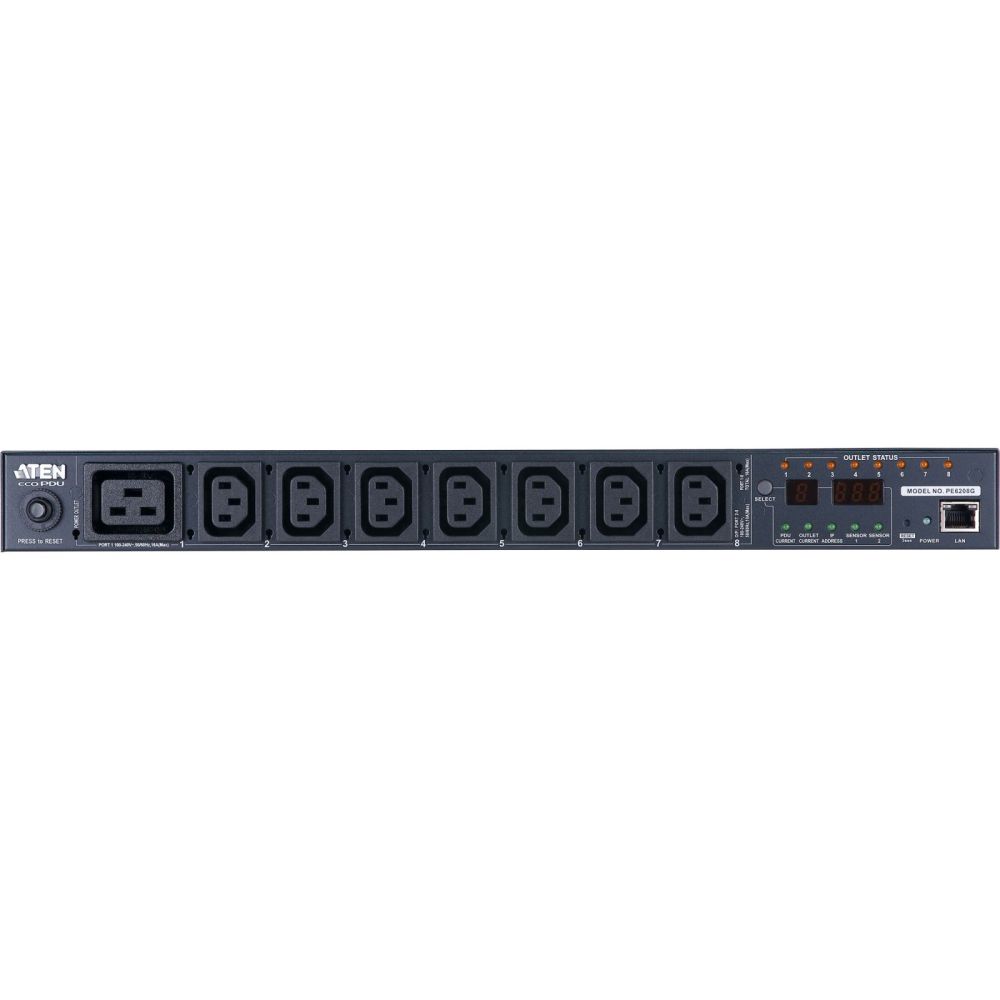

3 x 7-segment front panel LED shows Current / IP Address for PDU / Bank
Remote users can monitor PDU/Bank status via web pages on their browsers
Safe shutdown support
Separate power for the unit´s own power and its power outlets – the user interface is still accessible even when an overload condition trips the devices´ circuit breaker
Remote AccessRemote power control via TCP/IP and a built in 10 / 100 Ethernet port
Network Protocols: TCP / IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, auto sense, Ping,Telnet
Energy & DCIM Management Web GUI – eco DC
Supports SNMP Manager V1, V2 & V3
OperationLocal and Remote power outlet control (On, Off, Power Cycle) by individual outlets
Supports multiple power control methods – Wake on LAN, System After AC Back, Kill the Power
Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
Easy setup and operation via a browser-based user interface
Multibrowser support (IE, Firefox, Chrome, Safari, Opera, and Netscape)
RTC support to keep the timer running during times of no power.
Up to 8 user accounts and 1 administrator account
Proactive Overload Protection (POP) – automatically powers off outlets when current overloads to protect operating devices
ManagementPower status measurement at the PDU/Bank level
LED indicators for current and IP address at the PDU device and/or Bank levels
Real-time aggregate current, voltage, and power and power dissipation displayed in a browser-based UI for monitoring at the PDU level

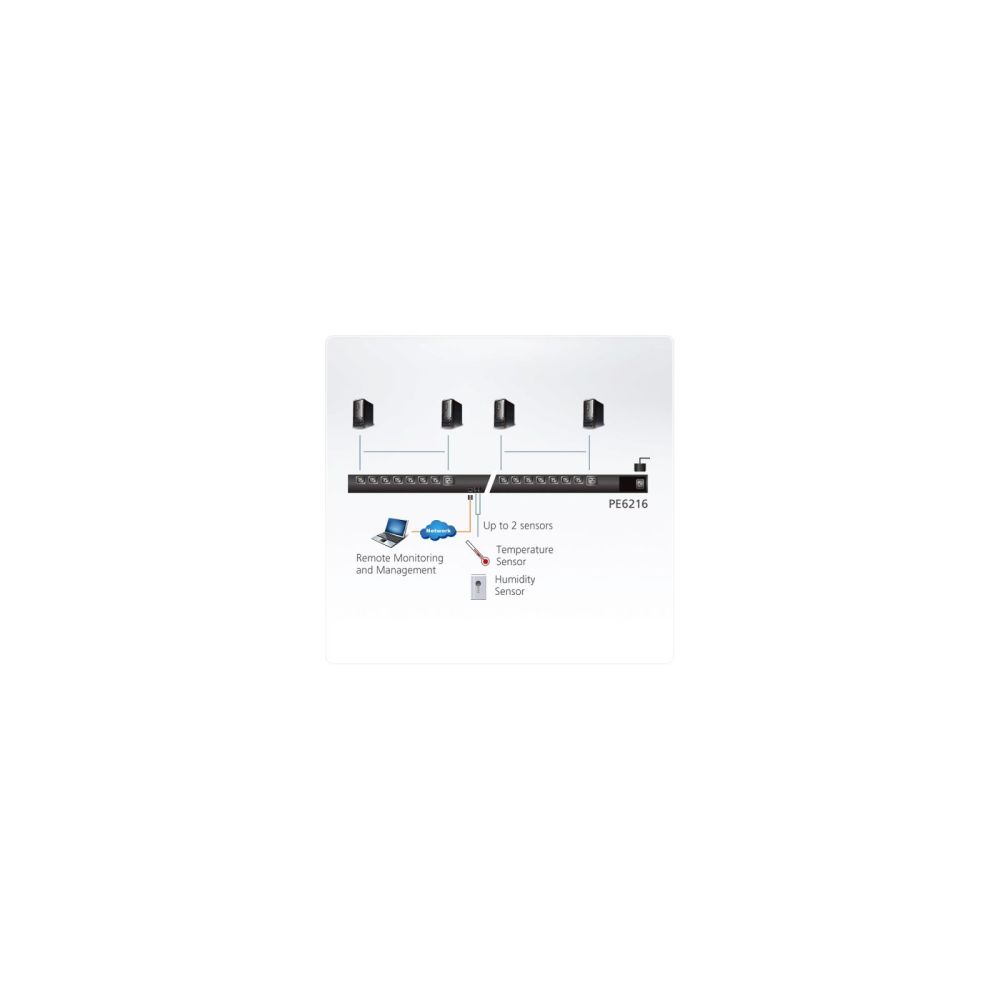

Environment monitoring – supports external temperature / humidity / Differential Pressure sensors for rack environment monitoring
Current and voltage threshold setting
Naming support for outlets
User outlet access assignment on an outlet-by-outlet basis
Event logging and syslog support
Upgradeable firmware
Multilanguage support: English, Traditional Chinese, Simplified Chinese, Japanese, German, Italian, Spanish, French, Russian
SecurityTwo-level password security
Strong security features include strong password protection and advanced encryption technologies – 128 bit SSL
Remote authentication support: RADIUS
eco DC Energy & DCIM Management Web GUI*Automatic discovery of all PE devices within the same intranet
Remote real-time power measurement and monitoring
Remote real-time environment sensor monitoring
Plotting/Monitoring of all PE devices
Exceed threshold alert through SMTP and System log
Power Analysis Report
Package Contents1x PE6216 eco PDU
1x Power Cord
1x Rack Mount Kit
1x User Instructions
FunctionPE6216APE6216BPE6216G
Electrical
Nominal Input Voltage100 – 120 VAC100 – 240 VAC100 – 240 VAC
Maximum Input Current20A(Max)20A(Max)16A(Max)
Input Frequency50-60 Hz50-60 Hz50-60 Hz
Input ConnectionNEMA 5-20PNEMA 6-20PIEC 60320 C20
Input Power2400 VA(Max)4160 VA(Max)3680 VA(Max)
Outlet TypeTotal: 14 x NEMA 5-15R + 2 x NEMA 5-20R
Bank1-1: Outlet 1 – 8; 7 x NEMA 5-15R + 1 x NEMA 5-20R
Bank1-2: Outlet 9 – 16; 7 x NEMA 5-15R + 1 x NEMA 5-20RTotal: 14 x IEC320 C13 + 2 x IEC320 C19
Bank1-1: Outlet 1 – 8; 7 x C13 + 1 x C19
Bank1-2: Outlet 9 – 16; 7 x C13 + 1 x C19Total: 14 x IEC320 C13 + 2 x IEC320 C19
Bank1-1: Outlet 1 – 8; 7 x C13 + 1 x C19
Bank1-2: Outlet 9 – 16; 7 x C13 + 1 x C19
Nominal Output Voltage100 – 120 VAC100 – 240 VAC100 – 240 VAC
Maximum Output Current (Outlet)NEMA 5-15R: 15A(Max)
NEMA 5-20R: 20A(Max)C13: 15A(Max)
C19: 20A(Max)C13: 10A(Max)
C19: 16A(Max)
Maximum Output Current (Bank)20A(Max)20A(Max)16A(Max)
Maximum Output Current (Total)20A(Max)20A(Max)16A(Max)
Breakers1 x 20A Non-Fuse Breaker1 x 20A Non-Fuse Breaker1 x 16A Non-Fuse Breaker
MeteringBank Level Current, Voltage, VA , PF and kWh MonitoringBank Level Current, Voltage, VA , PF and kWh MonitoringBank Level Current, Voltage, VA , PF and kWh Monitoring
Outlet SwitchingYesYesYes

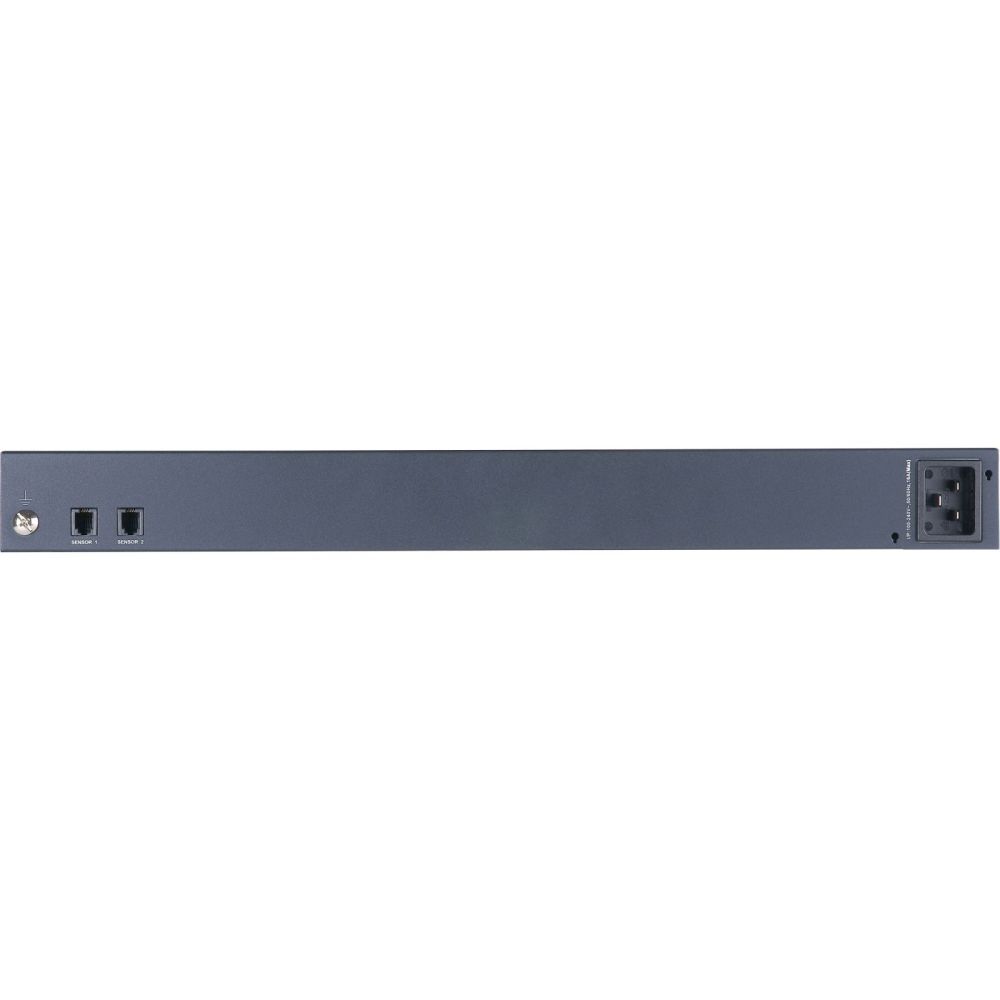

Environment Sensor Ports222
Metering AccuracyVoltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H)132.48 x 6.60 x 4.40 cm
(52.16 x 2.6 x 1.73 in.)132.48 x 6.60 x 4.40 cm
(52.16 x 2.6 x 1.73 in.)132.48 x 6.60 x 4.40 cm
(52.16 x 2.6 x 1.73 in.)
Weight3.73 kg ( 8.22 lb )3.73 kg ( 8.22 lb )3.73 kg ( 8.22 lb )
Power Cord Length3 m3 m3 m
Environmental
Temperature (Operating / Storage)0–50°C / -20–60°C0–50°C / -20–60°C0–40°C / -20–60°C
Humidity (Operating & Storage)0–80% RH, Non-Condensing0–80% RH, Non-Condensing0–80% RH, Non-Condensing
Compliance
EMC VerificationFCC, Others by RequestFCC, Others by RequestCE, C-Tick, Others by Request
Safety VerificationcTUVus, PSE, Others by RequestcTUVus, PSE, Others by RequestTUV-CB, GOST, Others by Request



Certificates
Certification	CE, C-Tick TUV-CB, GOST
Design
PDU types	Metered, Switched
Rack capacity	0U
Product colour	Black
Features
Cable length	3 m
Security algorithms	SNMP, SNMPv2, SNMPv3
LED indicators
Logistics data
Master (outer) case net weight	4.27 kg
Master (outer) case width	187 mm
Master (outer) case length	1415 mm
Master (outer) case height	179 mm
Master (outer) case gross weight	6.02 kg
Products per master (outer) case	1 pc(s)
Management features
Monitoring	Current, Voltage
Supported network protocols	TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, Ping, Telnet
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Packaging content
Cables included	AC
Manual
Rack mount kit
Packaging data
Package weight	6 kg
Package width	187 mm
Package depth	1415 mm
Package height	179 mm
Ports & interfaces
AC outlets quantity	16 AC outlet(s)
Power plug	C20 coupler
AC outlet types	C13 coupler, C19 coupler
Ethernet LAN (RJ-45) ports	1
Power
Nominal input voltage	100-240 V
AC input frequency	50-60 Hz
Maximum current	16 A
Load capacity	3680 VA
Power protection features	Overload
Technical data
Width packaging	0.187m
Output current	16A
Type	PDU
Height packaging	0.179m
Number of C13 sockets	14
Max. input power	3680VA
Length packaging	1.415m
Number of C19 sockets	2
Weight	5.972kg
Supply line	Power cable with C19 connector
Mounting	Vertical
Packaging volume	0.0474m³
Input CE 16/32A
Protective function
Switching function
With overvoltage protection
Measuring function
Input C14
Input C20
Weight & dimensions
Width	1324.8 mm
Depth	66 mm
Height	44 mm
Weight	4.27 kg

---
