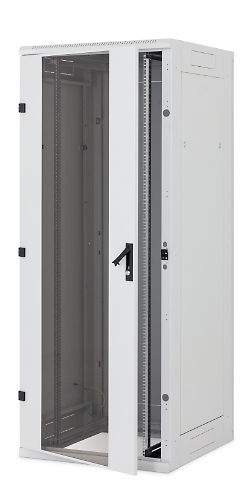

Triton 48,3 cm ( 19 inch ) cabinet 47U, B800/T1100, light gray, glass door, RYA series, can be dismantled, for load 1200 kg
|
943,52 EUR |
|
|
( 1.122,79 EUR incl. VAT ) ≈ £787.84 | ≈ $1,057.69 plus delivery charges |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 1436050 |
|---|---|
| Mfg Part No: | RYA-47-A80-CAX-A1 |
| UPC/EAN: | 8595105154274 |
| Weight: | 146.53 kg |
Product information for Triton RYA-47-A80-CAX-A1:
*Order-related, cannot be canceled*, Description: Dismountable floor-standing cabinet for a load of 1200kg, expandable up to 1500kg in sheet steel design, IP 20. Air slots on the side in the roof (ventilation dome) and base part. Covered cable ducts and mounting locations for ventilation units in the roof section. Bottom part opened. The removable roof part allows devices to be installed/removed without having to dismantle the installed cables. All parts grounded together. Star point pre-assembled, two pairs (three pairs for cabinet depths of 900 mm and above) 48,3 cm ( 19 inch ) vertical mounting rails, galvanized, adjustable. All height units marked on the mounting rails and numbered in opposite directions. In the accessory pack: 16 cage nuts with screws and washers, 4 leveling feet, brush strip set color : RAL 7035 - light gray Width: 800 mm Depth: 1100 mm Height: 47 HE (2194 mm) Front door: Glass door left-handed, opening angle 180° Closing of the front door: Single-point closure with Ergoform handle and safety lock Side wall on the right: solid sheet metal, with two security locks Side wall on the left : Solid sheet metal, with two safety locks Rear panel/rear door: Rear panel Solid sheet metal, with two security locks Closing the rear door: Security lock for rear panel
| Technical data | |
| Colour | Grey (RAL7035) |
| Rear panel/door | Solid sheet metal rear panel, with two safety locks |
| Height unit | 47U |
| Length packaging | 1.100m |
| Maximum spacing of vertical rails | 984mm |
| Door width | 487mm |
| Height (outside) | 2194mm |
| Locking of rear door | Safety lock for rear panel |
| Side panel left | Solid sheet metal, with two safety locks |
| Width packaging | 0.800m |
| Locking of front door | Single-point locking, safety lock |
| Door height | 2092mm |
| Height packaging | 2.194m |
| Protection class | IP20 |
| Front door | Glass door left hinge |
| Side panel right | Solid sheet metal, with two safety locks |
| Weight | 136.210kg |
| Recommended maximum load | 1200/1500kg |
| Product note | The cabinet height is specified without the levelling feet supplied in the accessories pack. If these feet are mounted, the installation dimension of the cabinet is increased by 24 to 35 mm. |
| Width | 800mm |
| Depth | 1100mm |
| Packaging volume | 1.9307m³ |
| Demountable | |
| Detachable side panels | |
| Detachable rear panel | |
Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
