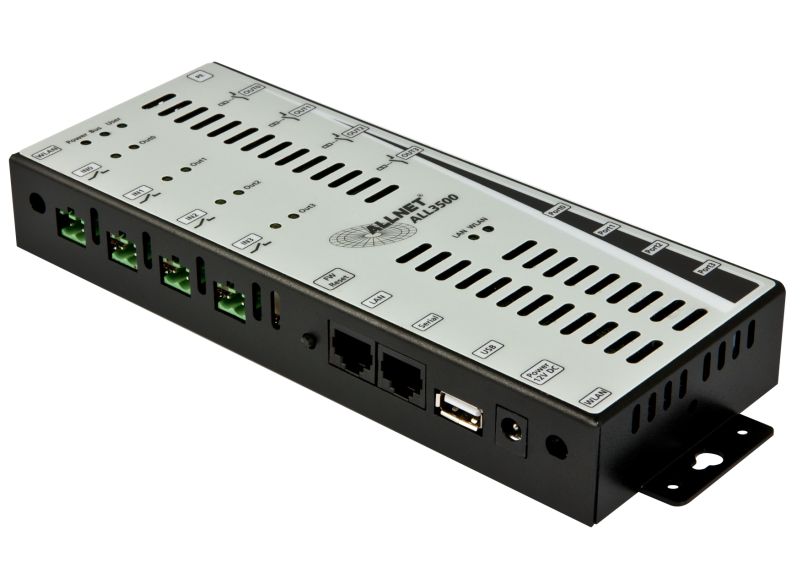

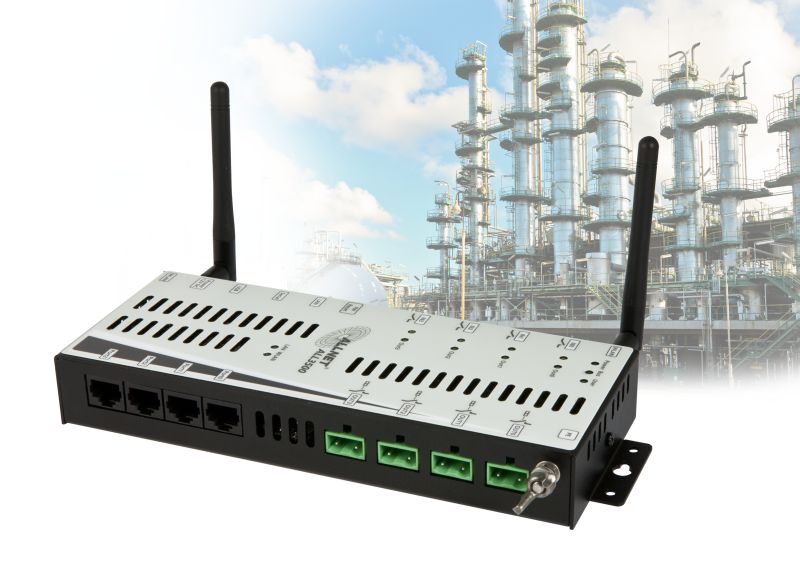

ALLNET ALL3500 / IP Home Automation Appliance

The economical entry in the Home Automation The ALLNET ALL3500 Home Automation Appliance provides a solid and cost-effective platform for the implementation of control solutions based on measured data. As the model ALL3418V2 also based ALL3500 on the new ALL5002 CPU board and a GNU / Linux firmware. This it is open to your own applications and all additional modules ALL3000/4000/5000 series can be operated with the ALL3500 central unit. The ALL3500 can be conveniently read from anywhere via web interface, configure and operate. The integrated XML interface allows for easy integration into complex installations or proprietary software products for controlling and monitoring. controlling, measuring, rules about network, Internet and Smartphone

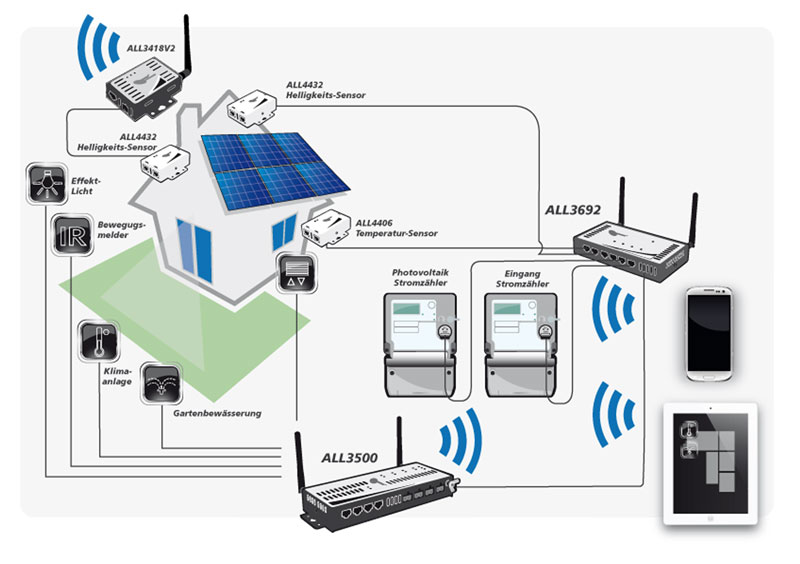

Examples of use:

• Temperature measurement in HACCP or alarm scenarios sowei them dependent switching of alarm sensors.
• climate control of a room by monitoring temperature and humidity, and needs-based control of heating and humidification.
• recognition of a crisis in mission critical areas and turn of alarms if you smell gas, flooding, smoke, etc .
• Time-and humidity-controlled irrigation
• Usage-based circuit using external sensors such as ALL4590 power meter module, Compact, Powerful, Cost- The right platform for your home automation application for the ALL3500 we managed a lot of functionality in a compact and cost-saving design to pack . This saves space and cost, yet delivers impressive functionality. Four relays, sensor ports and contact interfaces are available. Thus the ALL3500 is extremely versatile. sensors, actuators and switches A wide assortment allows complex

Applications:

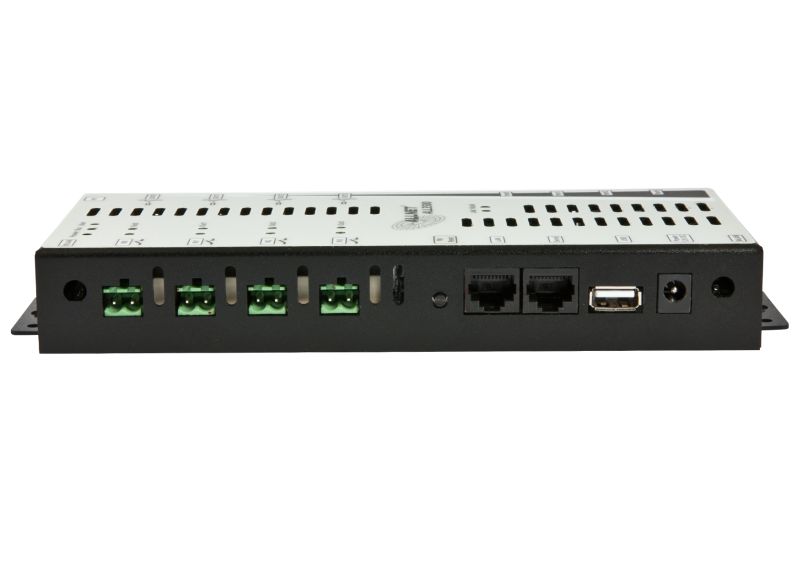

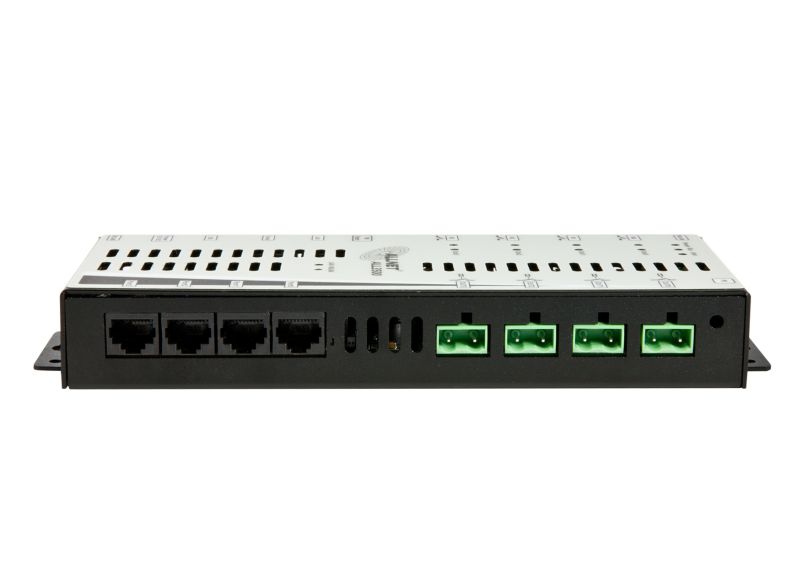

The ALL3500 central unit has four ports for connecting external sensors and actuators, and four relay outputs for switching any loads. In addition, the devices has four contact inputs can be used for connection of buttons and switches, for example.
Consequently, ambient conditions such as temperature, humidity, air pressure, and much more can capture, communicate and process, as well as switching processes via actuators or relays. This can be performed manually, time-controlled or a function of the detected values.

Connectivity:

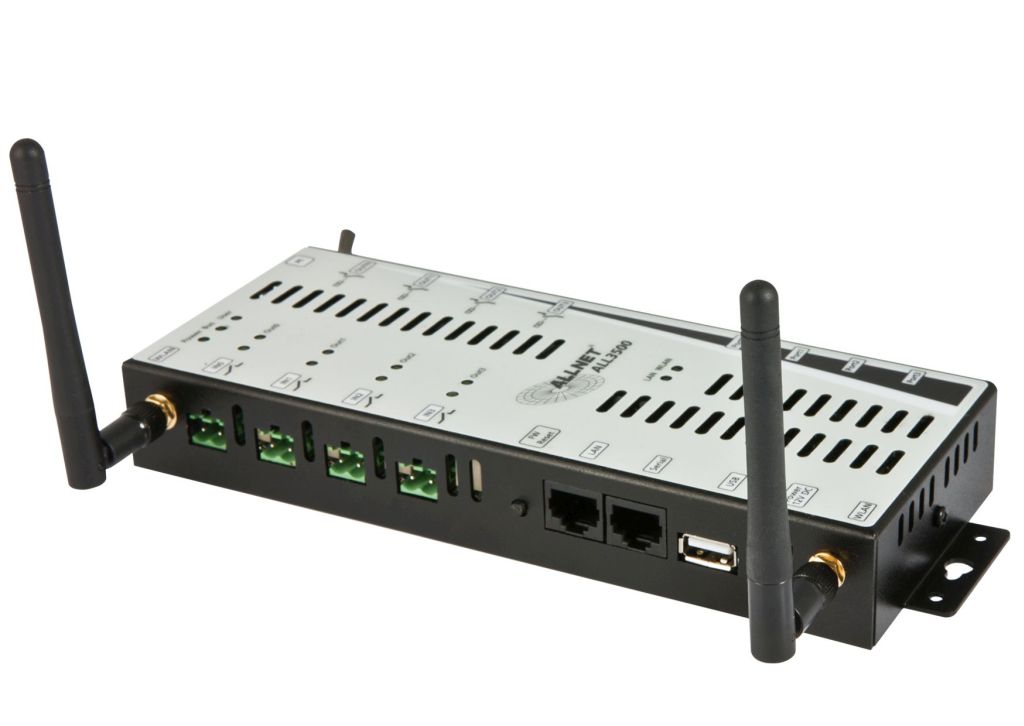

With built-in Ethernet and Wi-Fi accessible

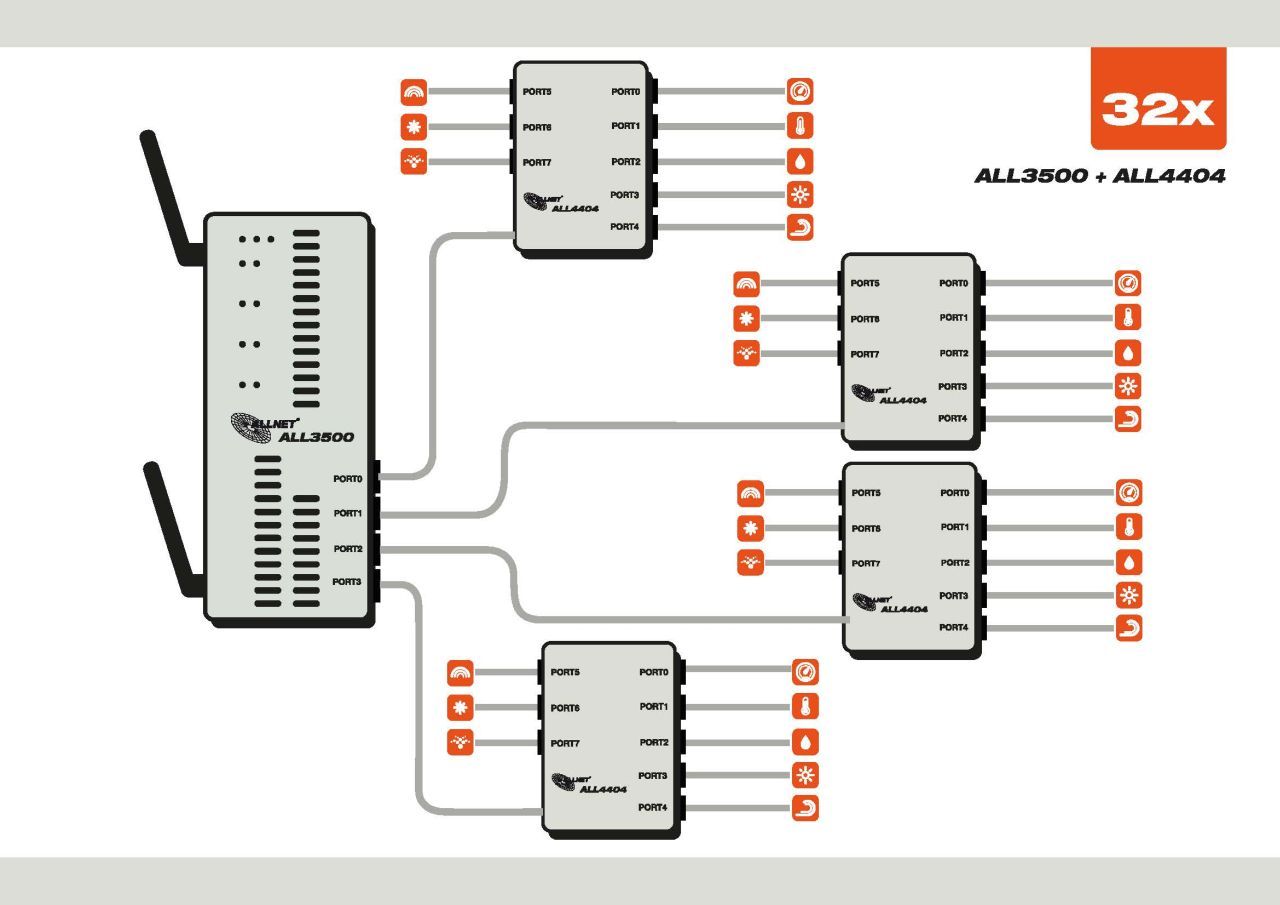

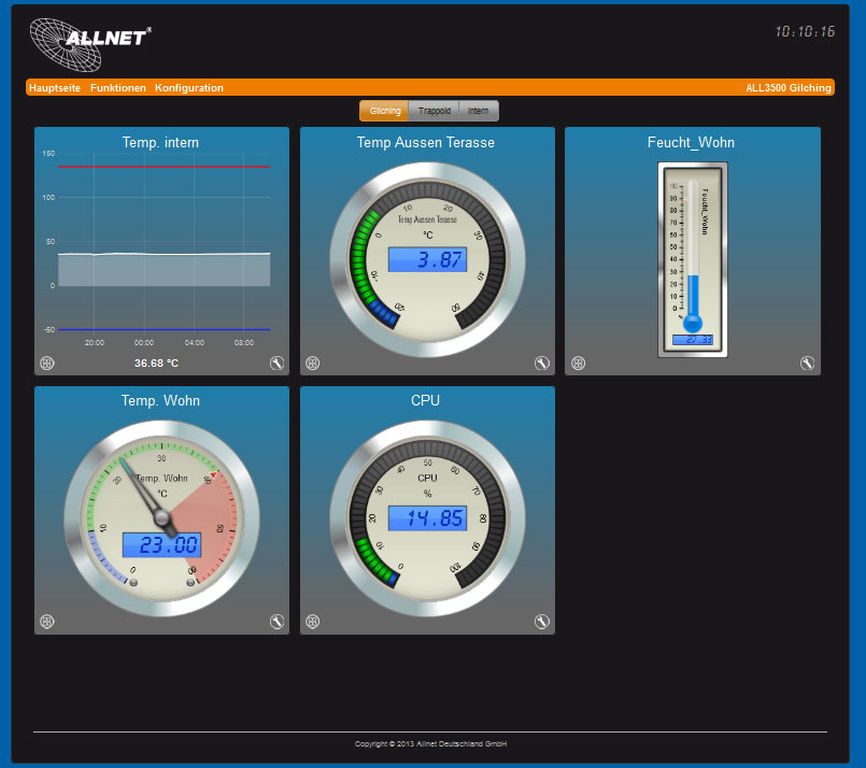

ALL3500 The central unit is accessed via an IP address in the TCP / IP network. The values ​​can be accessed via the web browser directly from the device, processed or sent periodically via email. An integrated XML interface is used for data acquisition and control via the Internet, bringing the ALL3500 can be integrated into an overall control solution. I2C bus: Existing cable networks for sensor connections use to connect the measurement and control modules to the CPU use all ALLNET Home Automation Products a simple network cable (RJ45 connector, Cat. 5). For this purpose, an existing wired network such as the own network or phone wiring can be used.



The maximum cable length between the central unit and module can be up to 100 meters. Here the modules are supplied with voltage by the CPU.A separate power source for each module is not necessary. USB Port: External wireless technologies integrate external sensors / actuators can be connected via separate USB radio stick with the ALL3500 example. The ALL3500 can recognize and process these sensors. The following technologies / manufacturers are already integrated in the ALL3500: Plugwise EnOcean
