ALLNET MSR sensor anemometer anemometer ALL3420 for IP building automation

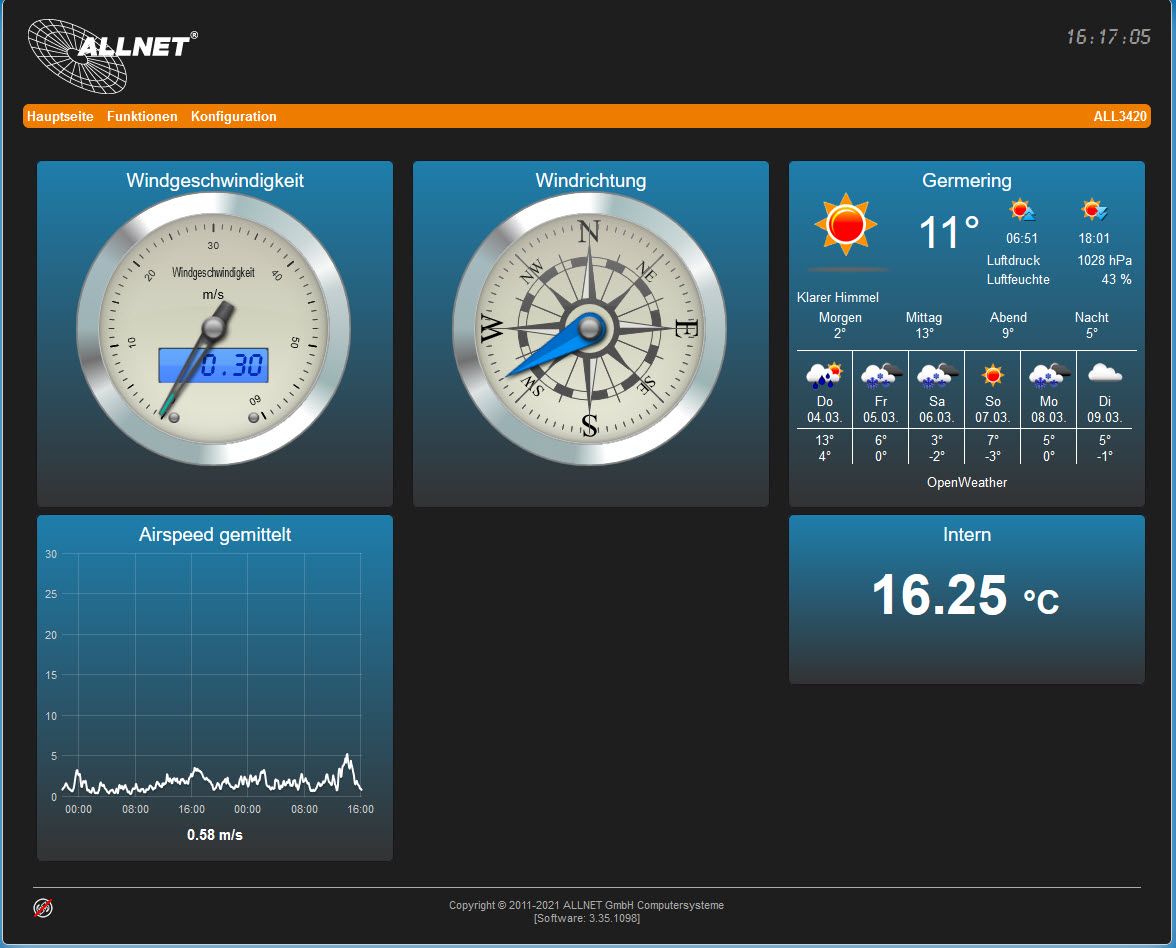

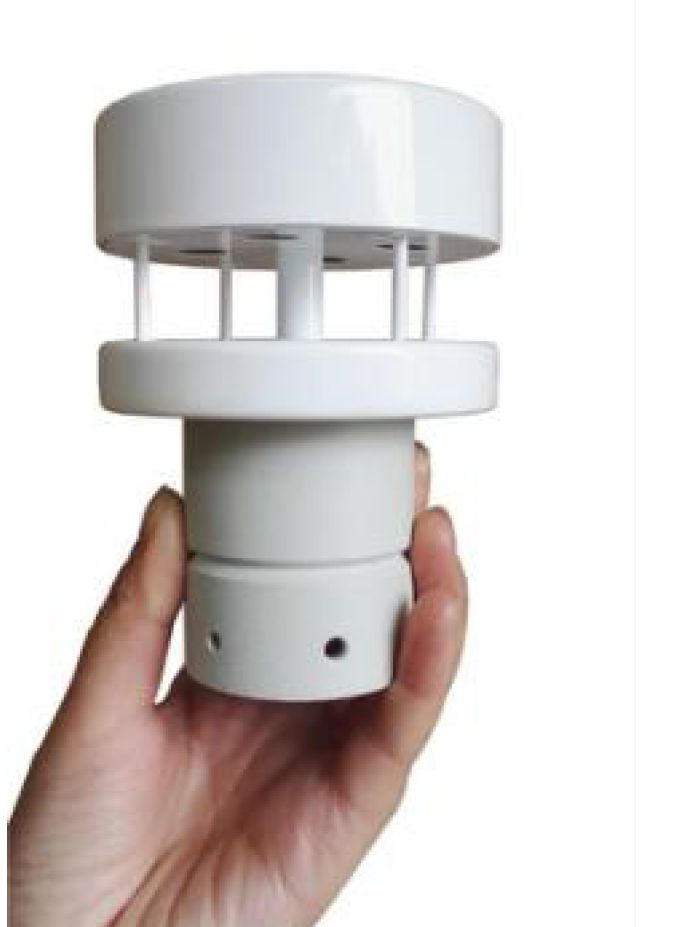

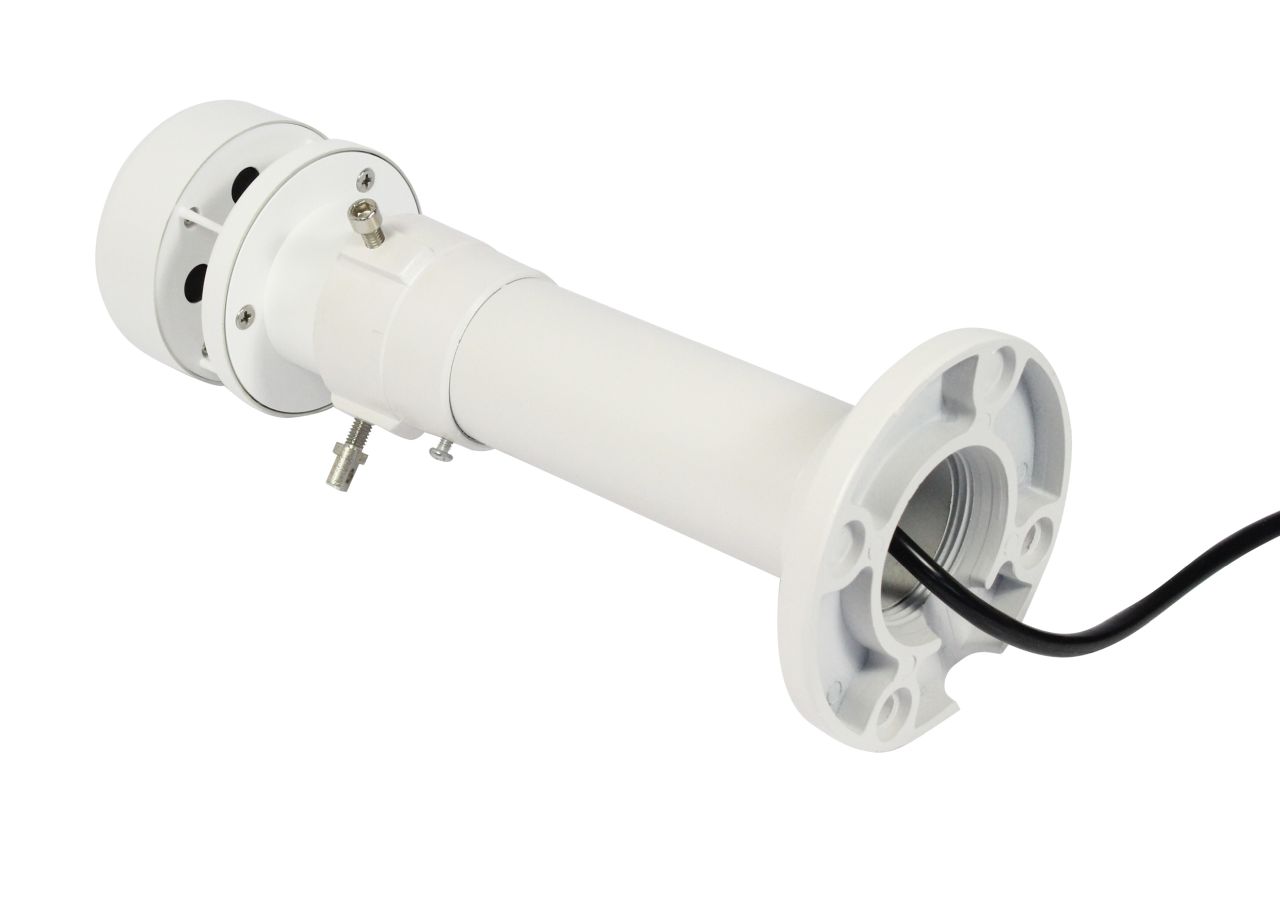

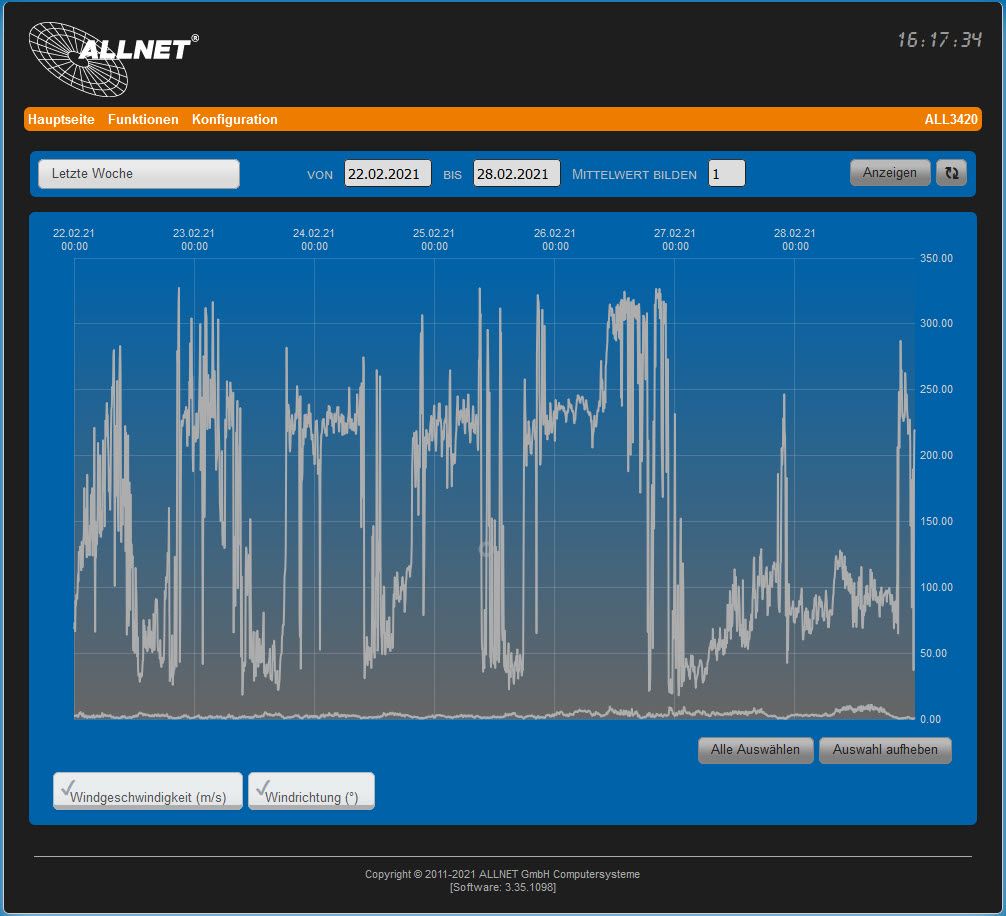

Highlights: Maintenance-free and long service life Compact size with 8.5cm diameter no moving parts therefore no wear due to the integrated ultrasonic sensors 20m long connection cable from central unit to sensor Logging of the measured values in the central unit possible Export of the sensors as CSV or optionally with module via FTP or to the cloud The ALL3420 ultrasonic wind speed and wind direction sensor is a measuring device that can be used to detect the wind speed and direction in the outside air. The sensor is designed so that you can mount it at the highest point in your building in order to detect and measure/record the wind direction and speed, etc. Using this data, you can then switch/retract the blinds or other actuators if necessary using the optional ALLNET MSR end devices to prevent damage to the building. Location: At the highest point of your building to protect roller blinds in case of danger Element Specification
Interfaces: 1x NMEA RS485 Wind speed Wireless LAN: Ralink/Mediatek MT7688AN Chipset
2.4 GHz Wireless N, up to 150 Mbps
Security: WEP 64/128bit, WPA, WPA2 Supported standards : IEEE 802.3
IEEE 802.3u
IEEE 802.11b/g/n Power supply: 100~240 VAC, 50/60 Hz, 12V / 1A external power adapter Power consumption: < watts maximum Housing: Metal Environment: Operating temperature: 0 ~ 40 ° C (IP Mainunit)
Operating temperature: -40° ~ +70° (wind sensor IP65)
Operating humidity: 10% ~ 85% (non-condensing)
Operating humidity: 0 ~ 100% (wind sensor IP65)
Storage temperature: -20 ~ 60 °C

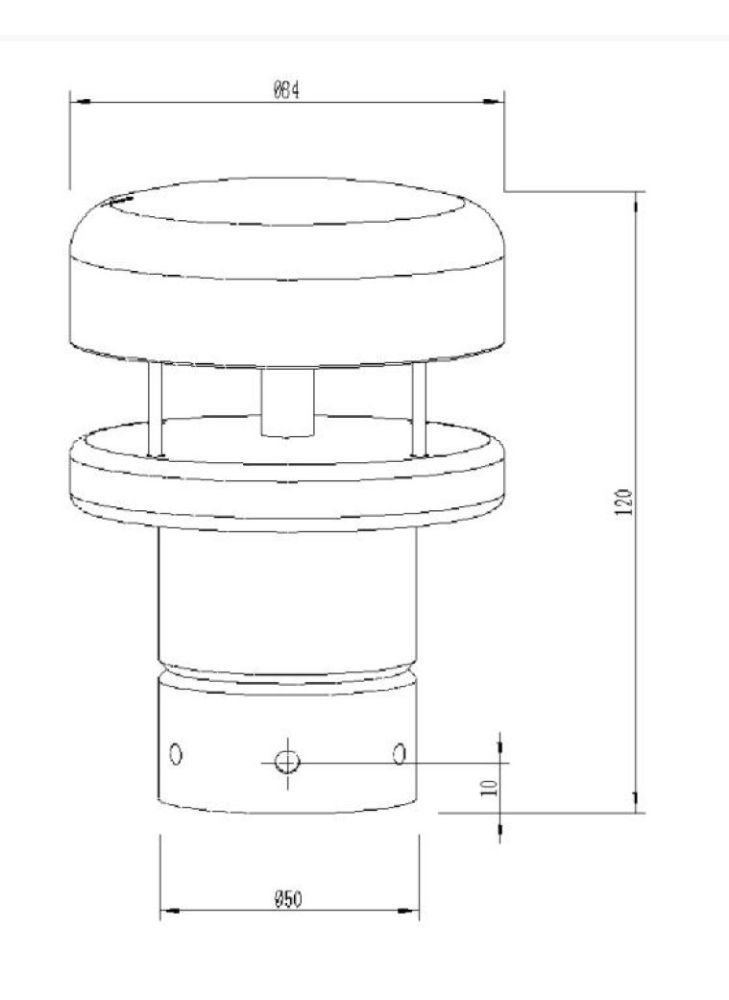

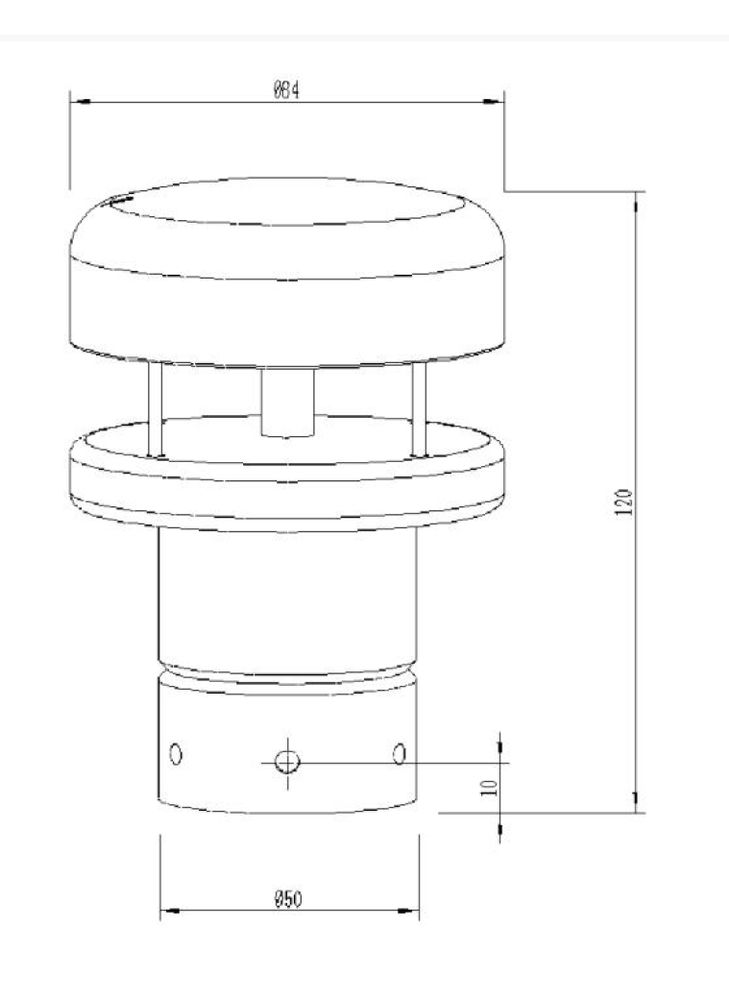

Storage humidity: 5% ~ 90% (non-condensing) Marks CE, RoHS, RED Dimensions: IP65 Wind sensor
11cm (height) x 8.5cm (diameter)
Ø5cm diameter socket to the mount

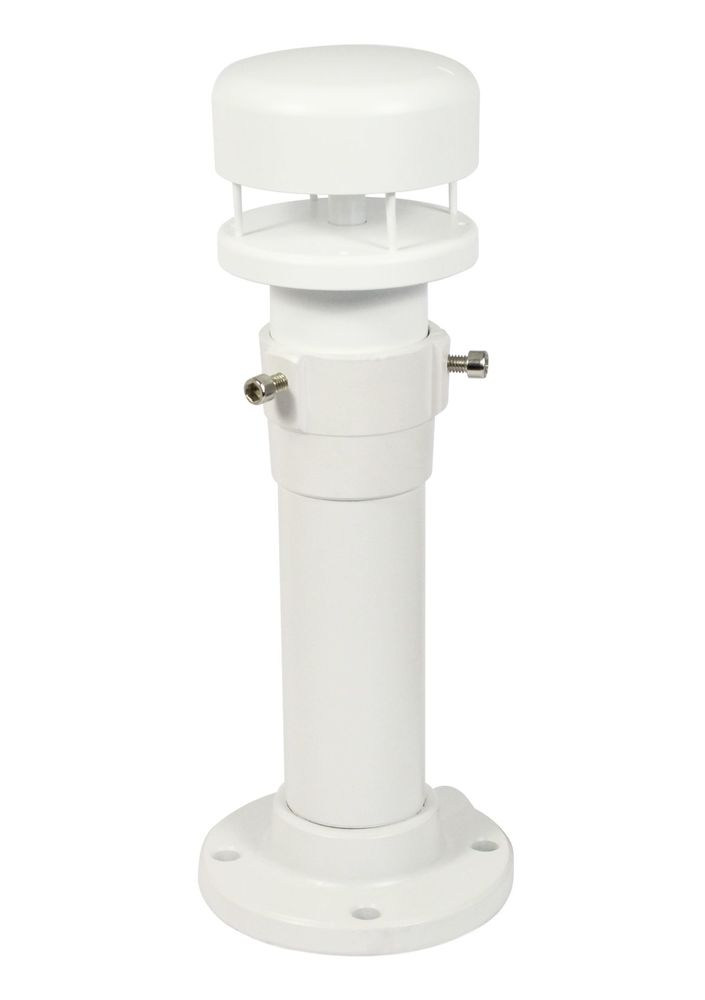

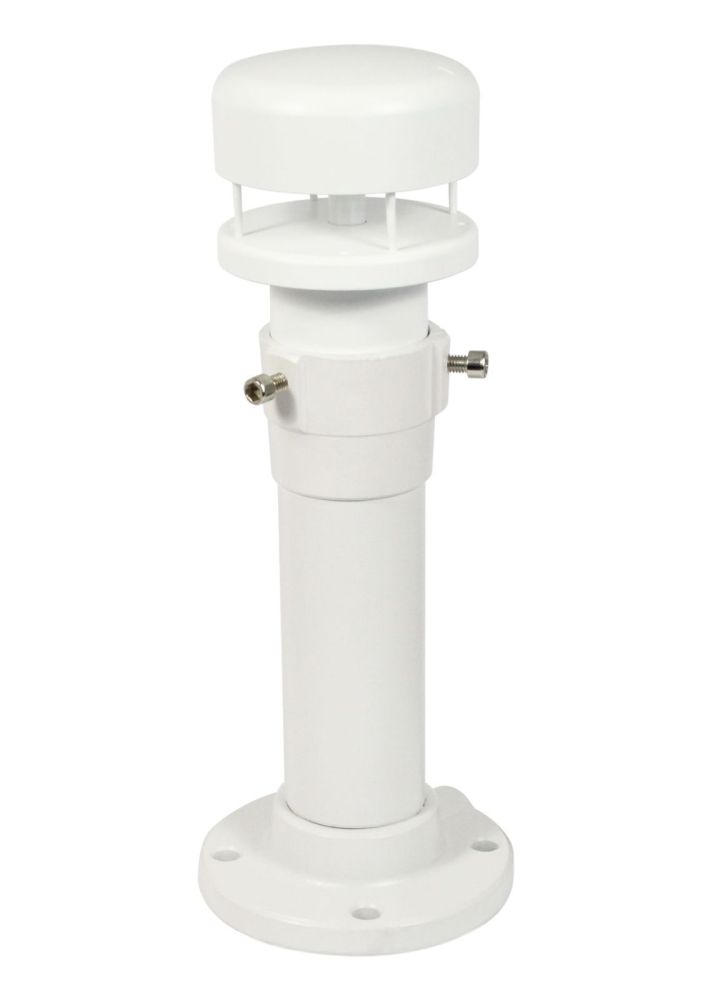

Mounting Kit
19.6cm (height) x 11cm (feet)
Ø5.6cm diameter for wind sensor
IP Main Unit

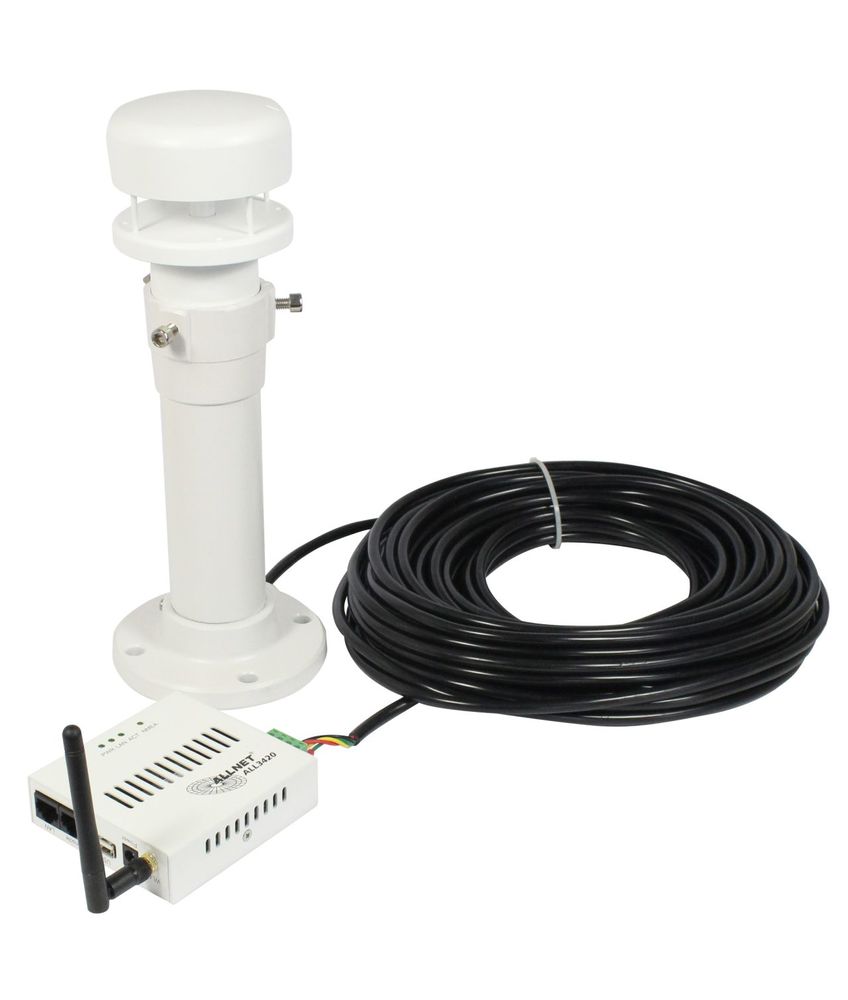

9.3cm (width) x 8.7cm (length) x 2.7cm (height) Weight: 2.5kg Package contents: - IP Mainunit ALL3420

• ALL3420 Ultrasonic Sensor
• Mount

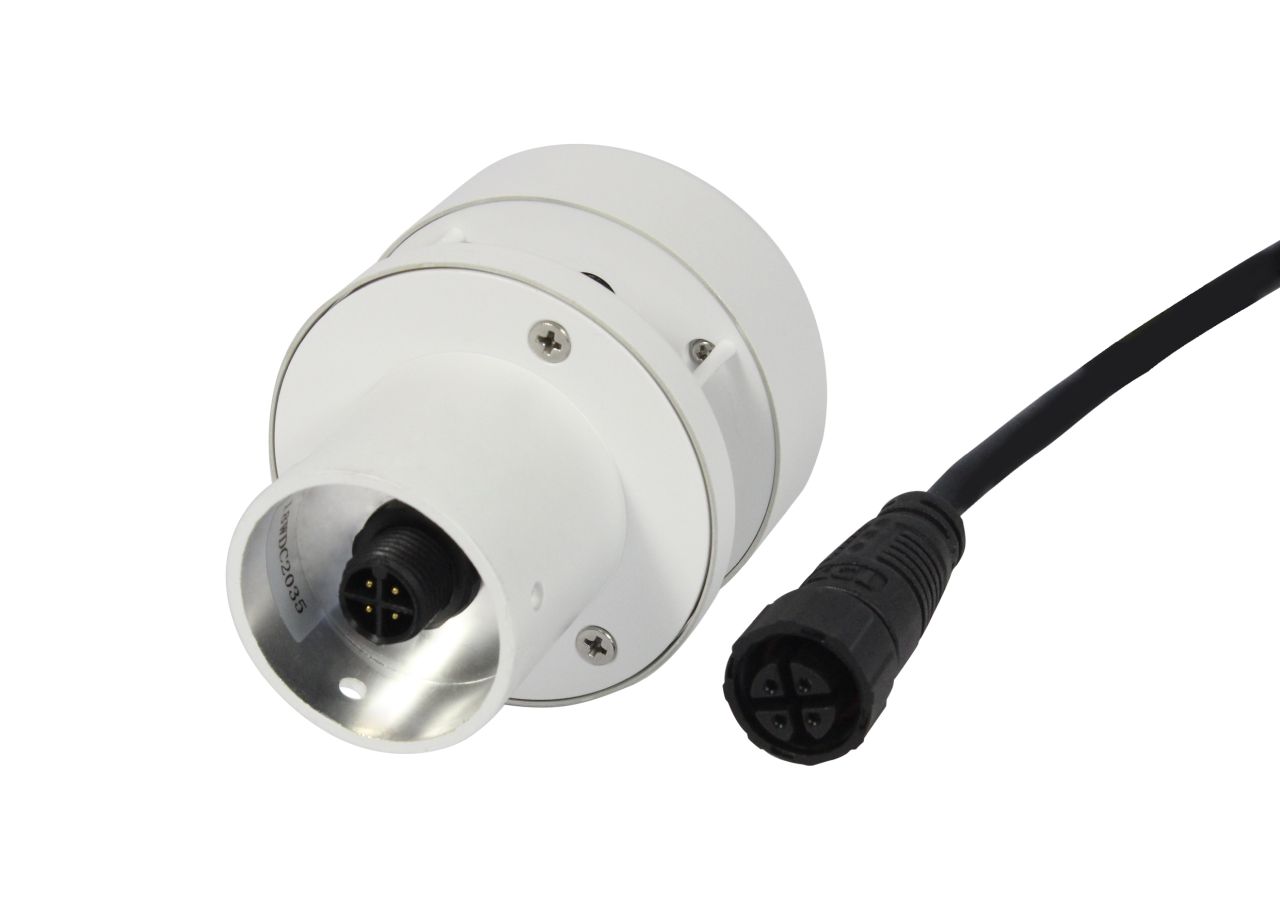

• 20m Cable to the Sensor
• Power supply external "12VDC / 1A
• Patchcable
• WiFi Antenna
• QIG
