ALLNET MSR IO central switching socket including WLAN ALL3073V3WLAN for IP building automation
|
66,00 EUR 66,49 EUR |
|||||||||||
|
( 78,54 EUR incl. VAT ) ≈ £55.11 | ≈ $73.99 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Expected to be available from 01.01.2027info_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1776888 | ||||||||||
| Mfg Part No: | ALL3073V3WLAN | ||||||||||
| UPC/EAN: | 4038816090287 | ||||||||||
| Weight: | 0.46 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Allnet ALL3073V3WLAN:

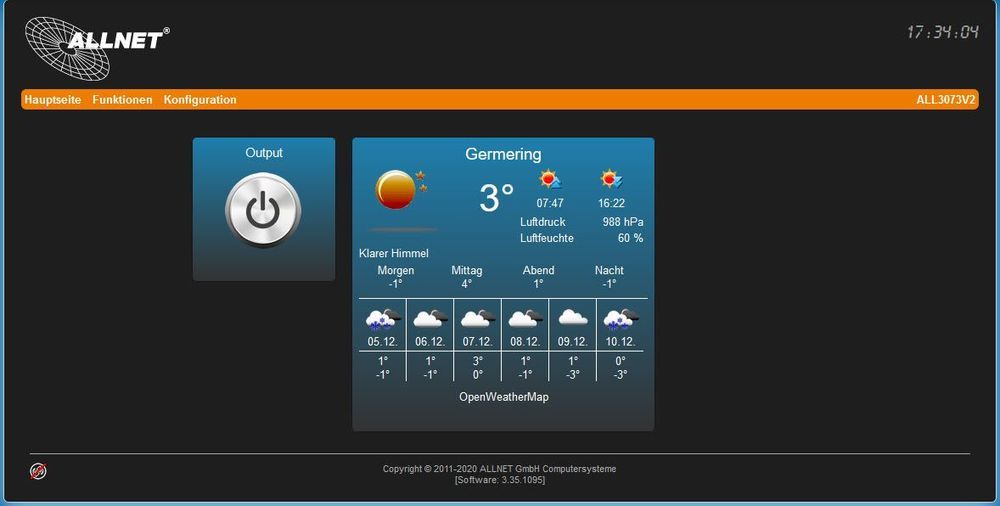

Highlights: Enables switching of the connected consumer (up to 16A) via the integrated web server - New Release 3.2 Wireless LAN according to IEEE802.11b/g/n with 300 Mbps Network: 10BaseT

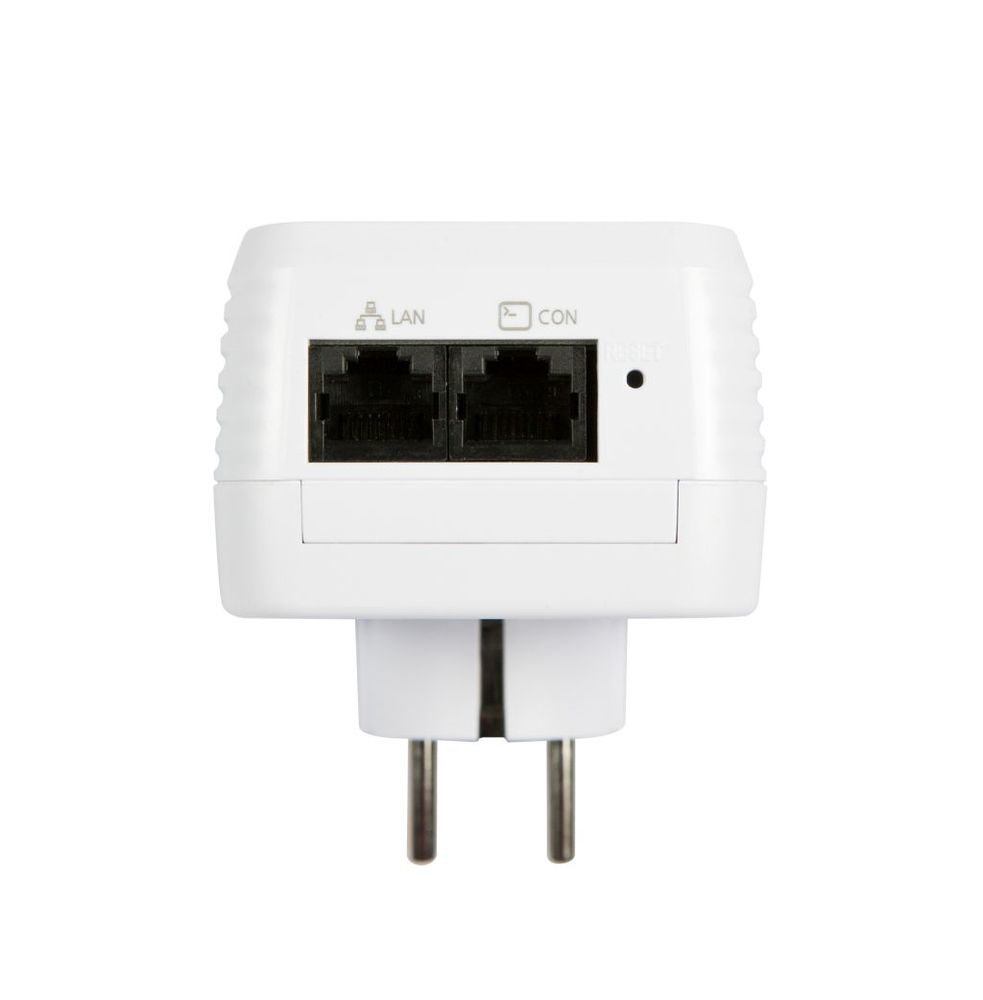

100BaseTX Network connection: RJ45 Supported standards: IEEE 802.3, IEEE 802.3u protocols : HTTP/HTTPS TCP/IP Management/Control: via web browser, XML, JSON Operating systems: all network-capable operating systems Voltage range: 200 - 250 volts Switching current: max. 16 amps = 3680 ohmic load Housing: Plastic housing with integrated earthing contact power socket/plug Environment : Operating temperature: 0 ~ 40 °C
Operating humidity: 10% ~ 85% (non-condensing)
Storage temperature: -20 ~ 60 °C
Storage humidity: 5% ~ 90% (non-condensing) Dimensions: 125 x 68 x 40 ( 60) mm (height x width x depth) Weight: 200 grams (adapter only) CE mark
100BaseTX Network connection: RJ45 Supported standards: IEEE 802.3, IEEE 802.3u protocols : HTTP/HTTPS TCP/IP Management/Control: via web browser, XML, JSON Operating systems: all network-capable operating systems Voltage range: 200 - 250 volts Switching current: max. 16 amps = 3680 ohmic load Housing: Plastic housing with integrated earthing contact power socket/plug Environment : Operating temperature: 0 ~ 40 °C
Operating humidity: 10% ~ 85% (non-condensing)
Storage temperature: -20 ~ 60 °C
Storage humidity: 5% ~ 90% (non-condensing) Dimensions: 125 x 68 x 40 ( 60) mm (height x width x depth) Weight: 200 grams (adapter only) CE mark
Questions & answers
What is the delivery time of ALLNET MSR IO central switching socket including WLAN ALL3073V3WLAN for IP building automation?
The article ALLNET MSR IO central switching socket including WLAN ALL3073V3WLAN for IP building automation is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 25 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allnet ALL3073V3WLAN to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ALLNET MSR IO central switching socket including WLAN ALL3073V3WLAN for IP building automation always at the best possible price. We can give you a discount of 2% on ALLNET MSR IO central switching socket including WLAN ALL3073V3WLAN for IP building automation if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of ALLNET MSR IO central switching socket including WLAN ALL3073V3WLAN for IP building automation we can offer you a price of 65,51 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
