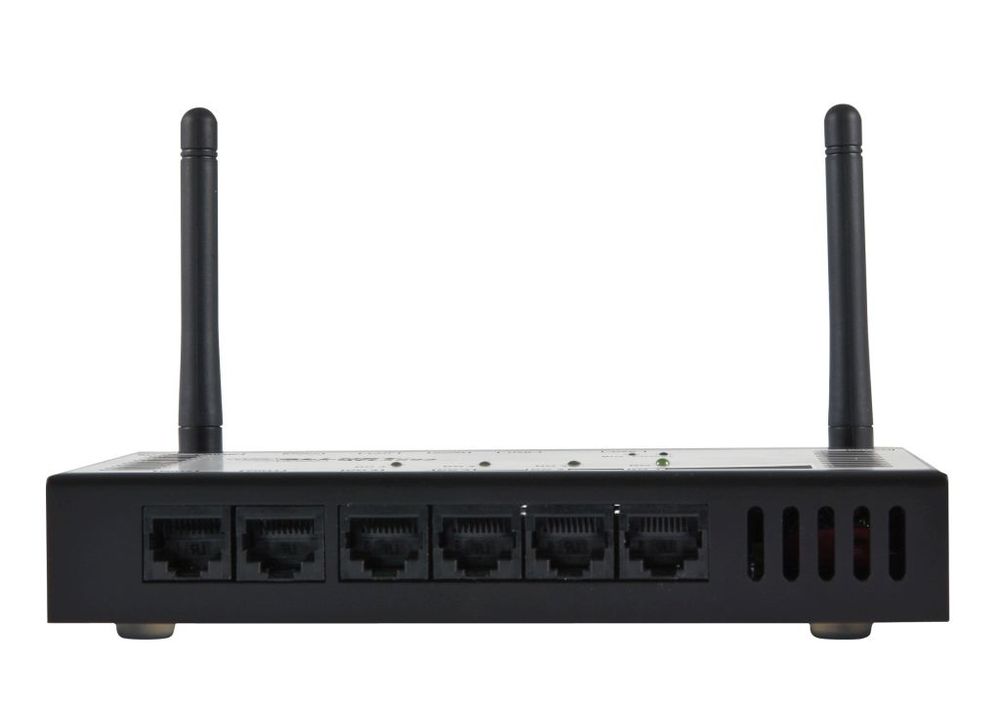

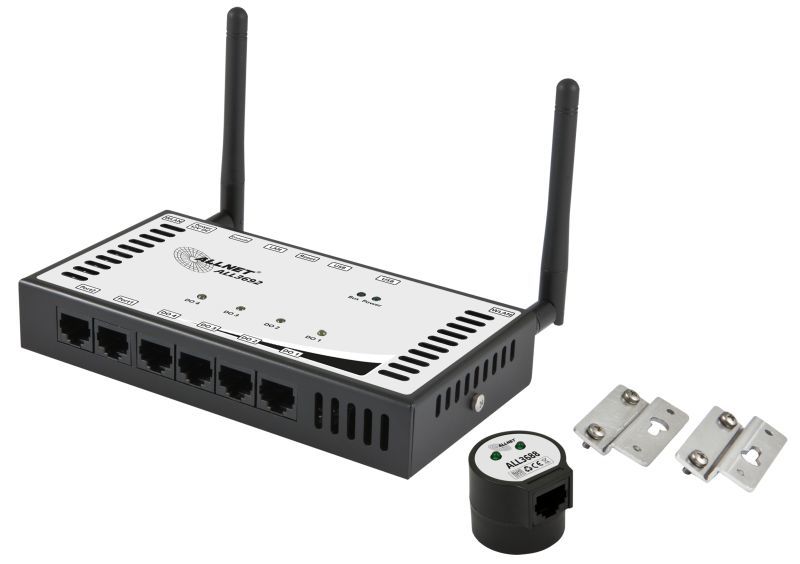

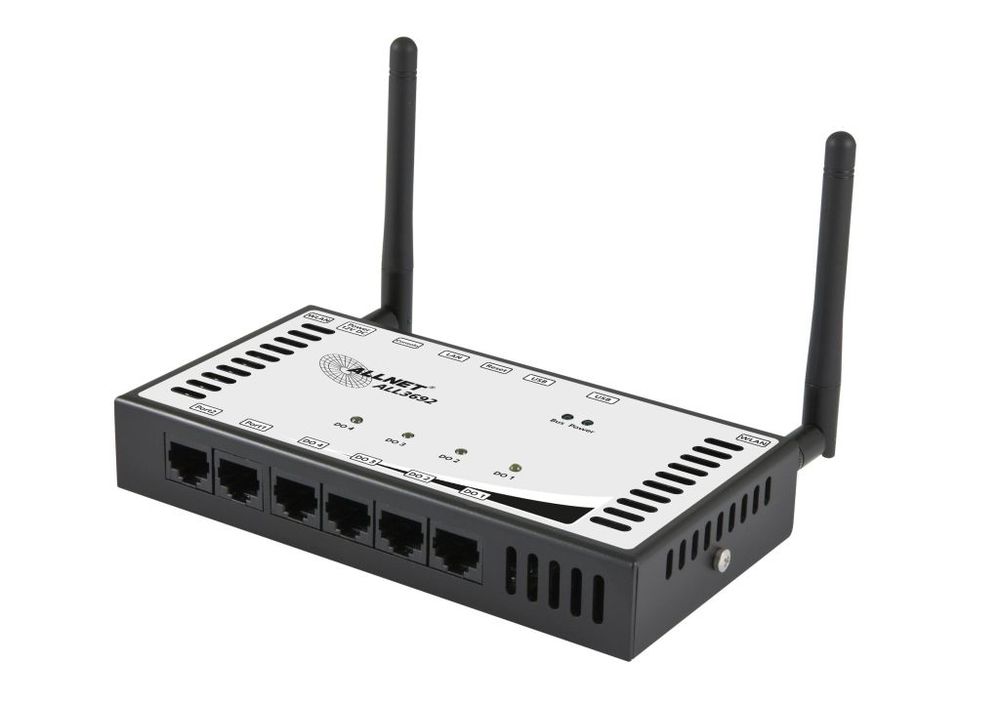

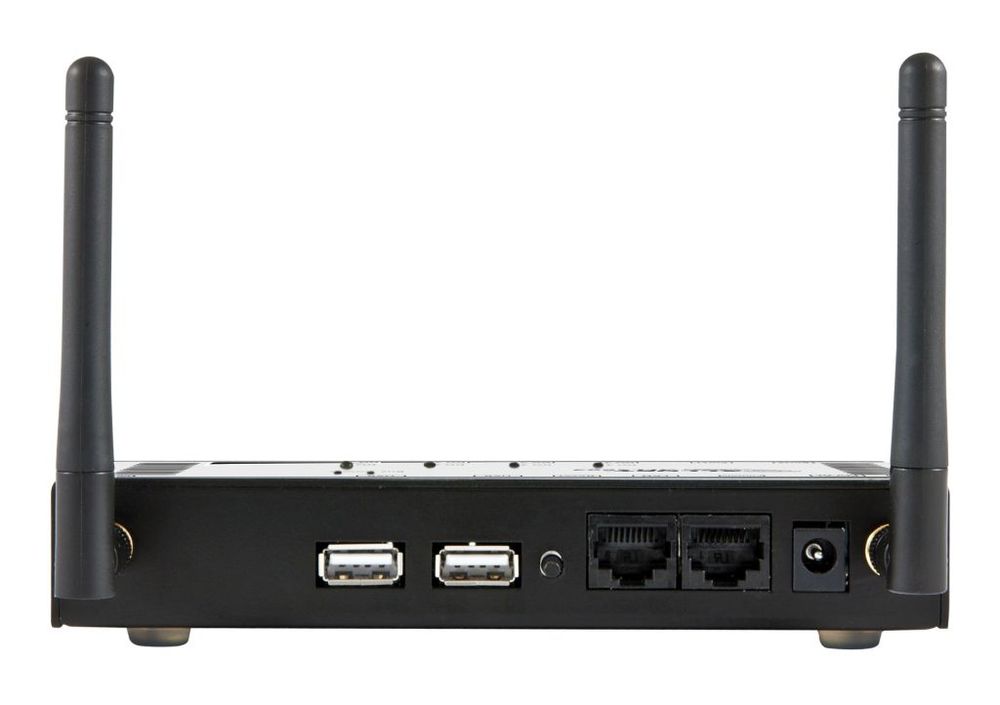

ALLNET ALL3692 / smart meter gateway PM3 4x ports D0

Your rating:
Average rating
Rating for ALLNET ALL3692 / smart meter gateway PM3 4x ports D0
( 4.3 / 5 ) 13 ratings
Allnet ALL3692Allnet ALL3692Allnet ALL3692Allnet ALL3692
Allnet ALL3692
This image may differ from the desired article.
-15% 103,24 EUR 121,91 EUR
( 122,86 EUR incl. VAT )
2025-09-13Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x ALLNET ALL3692 / smart meter gateway PM3 4x ports D0
Lieske Part No.:862785
Mfg Part No: ALL3692
UPC/EAN: 4038816001474
Weight:1 kg
Graduated prices net
From piecesPrice per pieces
4101,69 EUR
8100,14 EUR
1298,59 EUR
1697,05 EUR

Product information for Allnet ALL3692:

Know what's going on WiFi accessible power consumption and feed analysierenMeßwerte capture control via sensors and power save off! The Allnet ALL3692 is the consistent further development of the successful ALL369x Power Meter series, this time for D0 power meter with optical output. This concrete and calibrated readings are always erfasst.Messgerät to identify and monitor your current electricity consumption at several measuring points via the Internet regardless reach anywhere (Internet connection at the location of ALL3692 is required) Easy operation and installation through Web interface and the OKK optical D0 read head ALL3688, alternatively ALL3689 (no interference with the house wiring necessary) Integrated web server Email alerting at a set Wertes4 exceeded x D0 ports allows you to connect with each D0 power meter with optical output (ALL3688/ALL3689) Comprehensive consumption display with live chart, chart function, table display, etc. possibility to download the readings in database format, such as CSV file interfaces: 1x network, 1x 300Mbit WiFi, 4x D0, 2x I2C sensor / port, 2 x External USB ports, Easy installation by placing the OKK optical D0 read head by its magnetic ring on any modern electricity meter. A calibration of the ALL3692 omitted by the D0 signals of calibrated electricity meter. There is no interference with the 230V house wiring nötig.Features and Finish: The speedometer, display our power meter allows you to live to check which power consumption you currently have on the various stages and shows in addition the recognized current cost of consumption. The additional sensor ports, you can read optional values &#8203;&#8203;such as temperature, air pressure, brightness, and, where appropriate, to actuators definieren.Das Power Meter gives you the opportunity to represent your consumption graphically. You can represent a daily, weekly, monthly or yearly graphs and single-phase or hide. The configuration page of the Power Meter gives you the opportunity to set individual values &#8203;&#8203;within the device. This includes the cost of power consumption, labels and Graphenfarben.Sofern you continue to use the values &#8203;&#8203;determined from the power meter, or export for archiving, you can export it easily via the web menu or SQLLite as a CSV file. The live charts of the device provides you with the current power consumption of the device Represent graphically here have the option of single-phase power to directly compare. Specifications: Item Specification Interfaces: 4x D0 for D0-compatible power meter with optical Ausgang2x RJ-45 sensor and / or actuator Ports2x External USB Anschlüsse1x RS232 system console port Internal memory: 4GB USB Flash memory stick Networking: 1x RJ45 10/100Mbps1x 2 , 4 GHz Wireless N, up to 300 MbpsNetzwerk protocols: HTTP / HTTPS, TCP / IP, SNTP, SMTP, SSHBetriebssysteme: all network-capable operating systems browsers Power supply: 100 ~ 240 VAC, 50/60 Hz, external power supply Power consumption: <3 watts maximum housing : Aluminum housing with bore groove for wall mounting environment: Operating temperature: 0 ~ 40 ° CLuftfeuchtigkeit Operating: 10% ~ 85% (non-condensing) Temperature Storage: -20 ~ 60 ° C Humidity Storage: 5% ~ 90% (non-condensing) Certification mark: CE , RoHSMaße: 155 x 28 x 26 mm (length x width x height) Weight: 26 grams (without package and accessories) Warranty: 36 months Package Content: 1x ALL36921x ALL3688 OKK Optical D0 read head 1x read head Anschlußkabel2x Fi Antennen1x Ethernetkabel1x power supply 230VAC - 12V DC Universal 2A2x Haltewinkel1x Manual


Questions & answers

What is the delivery time of ALLNET ALL3692 / smart meter gateway PM3 4x ports D0?

The article ALLNET ALL3692 / smart meter gateway PM3 4x ports D0 is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allnet ALL3692 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you ALLNET ALL3692 / smart meter gateway PM3 4x ports D0 always at the best possible price. We can give you a discount of 2% on ALLNET ALL3692 / smart meter gateway PM3 4x ports D0 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of ALLNET ALL3692 / smart meter gateway PM3 4x ports D0 we can offer you a price of 101,69 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
