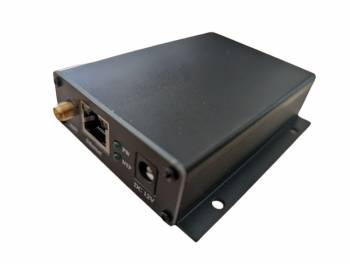

ALLNET Network NTP GPS Server ALL-NTP-101

ALLNET NTP Server is a time server based on the NTP (V2, V3, V4) / SNTP protocol. It obtains standard UTC time information from the GNSS satellite receiver and transmits this information on the network. Devices that require time signals on the network, such as computers and controllers, can synchronize with the standard clock signal to realize the network timing function. The standard clock signals are transmitted over the TCP/IP network and support point-to-point and broadcast transmission modes. The ALL-NTP101 is easy to use. Connect the GNSS satellite antenna and connect the device to the network. Due to the small size of the device, the NTP server can be accommodated unobtrusively in the network infrastructure. The device also has extremely low power consumption and is plug and play capable.
Specifications:Up to 6000 visits per second WebUI interface, convenient and fast management LAN synchronous time accuracy: 0.5-2ms Internally integrated GNSS satellite receiver with high-precision timekeeping Supports GPS, Beidou, GLONASS and QZSS NTP v2 (RFC 1119), NTP v3 (RFC 1305),NTP v4 (RFC5905) SNTP v3 (RFC 1769), SNTP v4 (RFC 2030) Supports MD5 information verification Supports server and broadcast working modes The Ethernet port supports 10/100M, full duplex and half duplex and supports the automatic negotiation mechanism Supports user-defined MAC addresses NMEA0183 is transmitted via the TCP protocol Compact structure and convenient installation The power consumption is only 1W Scope of delivery:
1x GPS time server ALL-NTP101, 1x power supply 12V, 1x GPS antenna with 10m cable, 1x manual
