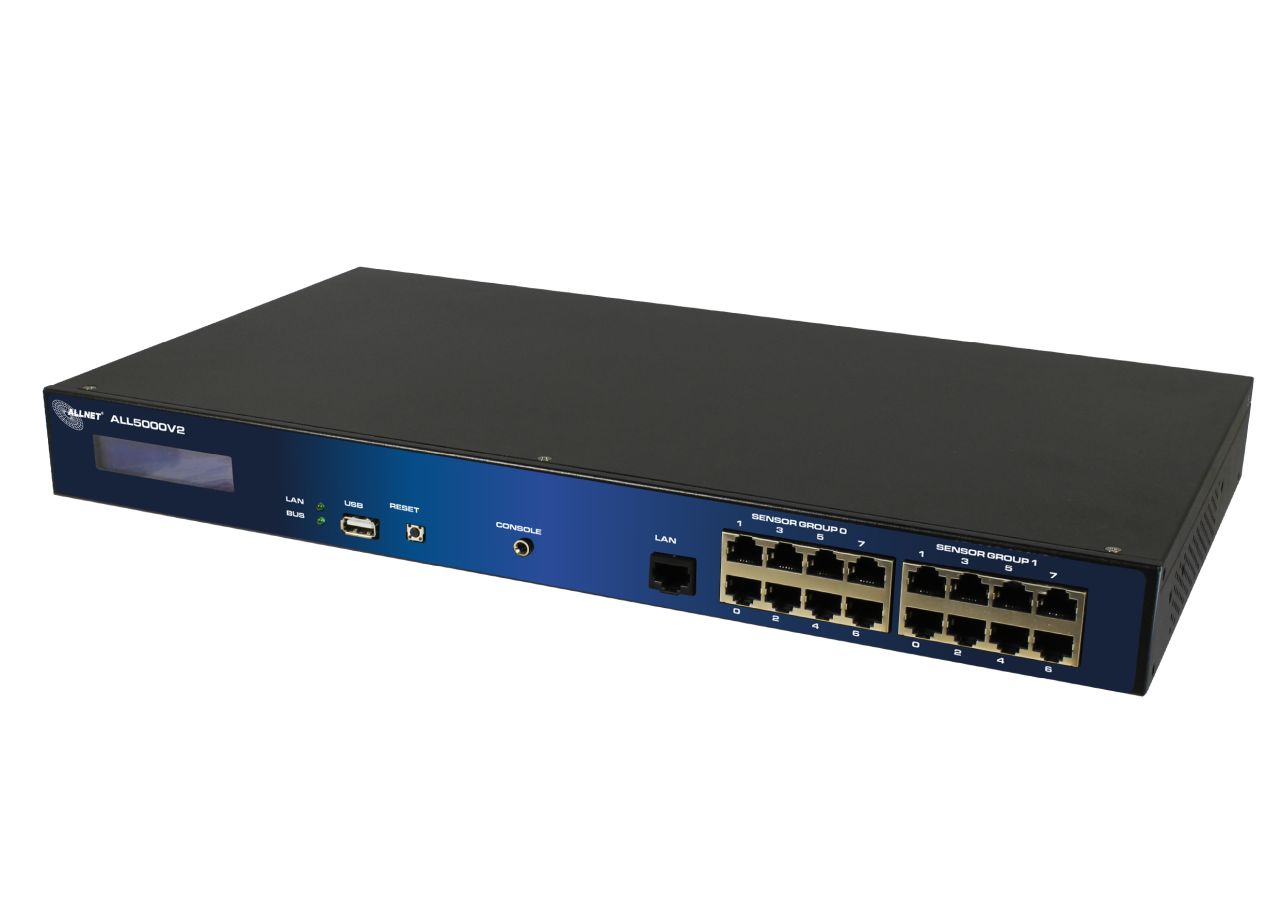

ALLNET MSR central ALL5000v5,1 cm ( 2 inch ) including 16 sensor ports & 19 for IP building automation content_copy

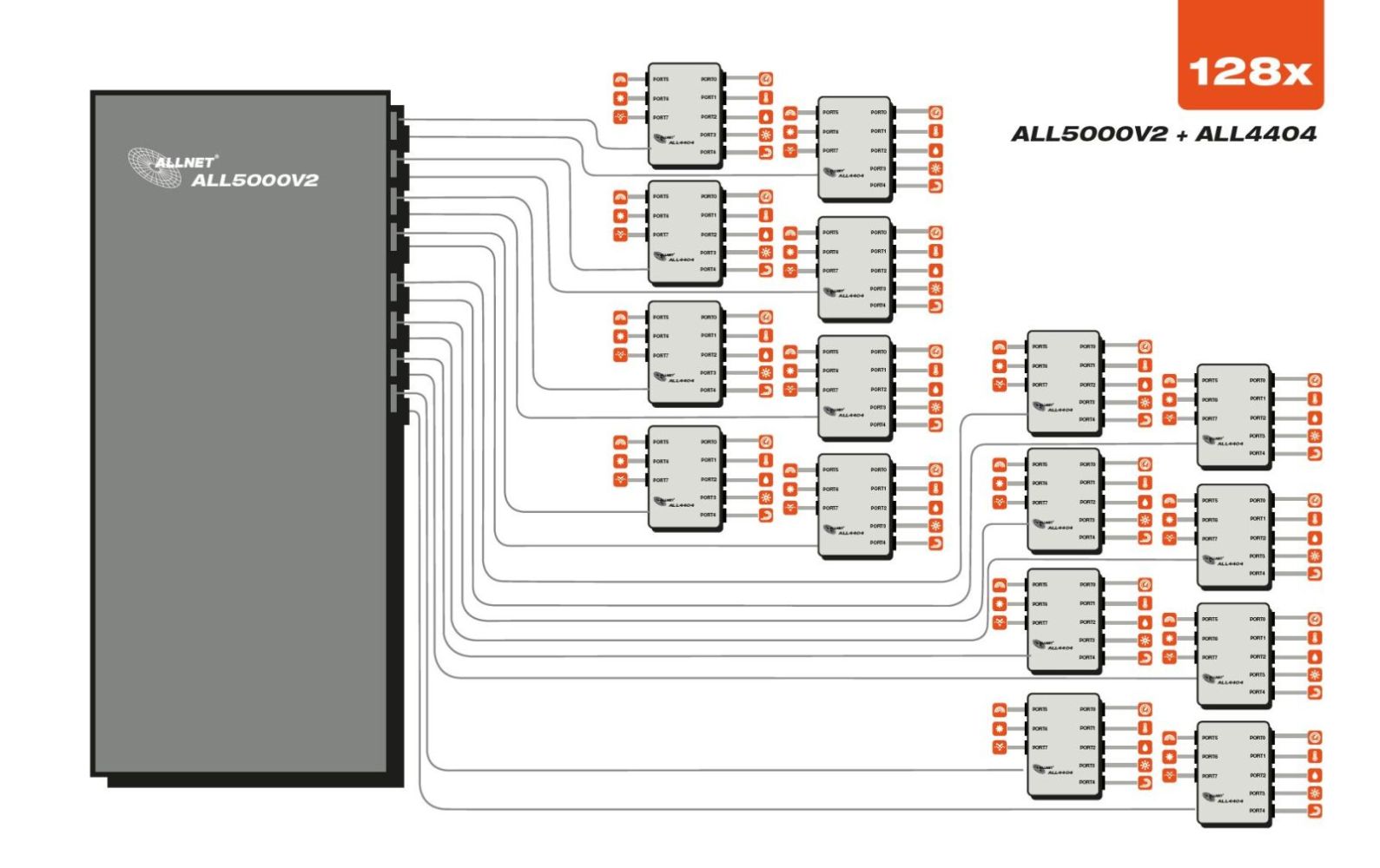

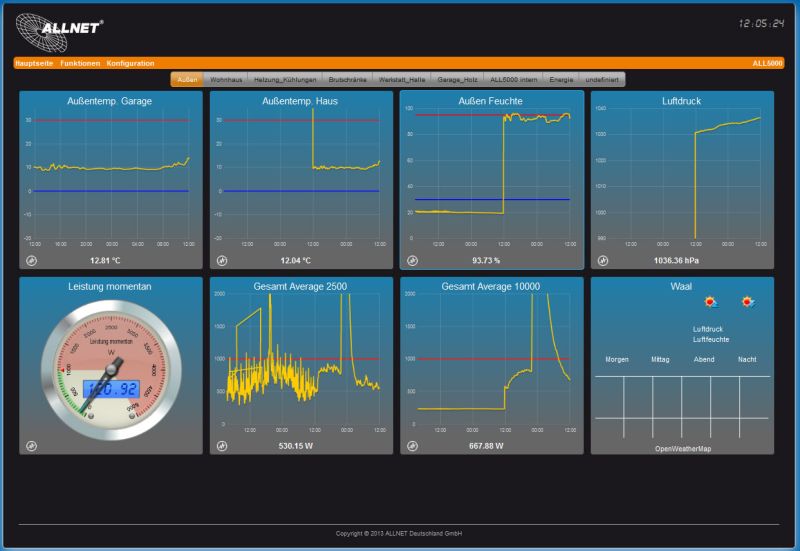

The new central unit for your building controlHighlights: 16x I2C sensor ports for maximum expansion. max. 128x possible sensors via ALL4404 multiplexing hub. Linux based open source operating system 1x USB front port for optional USB dongles Two-line LCD display for status and IP address display Redundant 12VDC input with Widget display in the webgui
The ALLNET ALL5000v2 IP Facility Control Server is the new flagship of ALLNET home automation Series. It offers all the features of the other MSR control panels, which represents the consistent further development of the popular ALLNET MSR Ethernet sensor meter. When developing the Control Server, the wishes of existing MSR users were taken into account and a variety of new features and interfaces were added without sacrificing the well-known functions. Another new feature is the expandability of the devices.
The ALLNET ALL5000v2 IP Facility Control Server automates all tasks in building control, such as recording and signaling environmental conditions such as temperature, humidity, pressure and much more, as well as triggering switching processes via contacts, relays and the like. This can be done manually, time-controlled or depending on recorded values.
A wide variety of scenarios such as light, blinds, ventilation and household appliances can be controlled with the ALLNET ALL5000v2 IP Facility Control Server. From temperature recording and needs-based heating of individual rooms, control of garden irrigation, alarms in the event of the smell of gas and water intrusion to the automatic opening and closing of blinds depending on daylight and much more, there are no limits to your ideas.
Accessible anywhere via network, internet and smartphone
You control everything from a PC, notebook or other mobile device such as a smartphone or webpad. No matter whether the devices you want to control, measure or regulate are in the same building or on another continent. The ALLNET ALL5000v2 can be reached via an IP address. Your existing computer network and the Internet serve as the medium. The determined values can be accessed directly from the device via the web browser or sent periodically by email or when certain preset limit values are exceeded or fallen short of. An integrated JSON interface is used to query data externally via the Internet.
Individually adapted to every need
The ALLNET ALL5000v2 IP Facility Control Server has a Linux-based open source operating system. This means that it offers enough freedom for your own developments and adaptations of the software directly to the intended use by the user.
May it be a little bit more? The new variety of interfaces

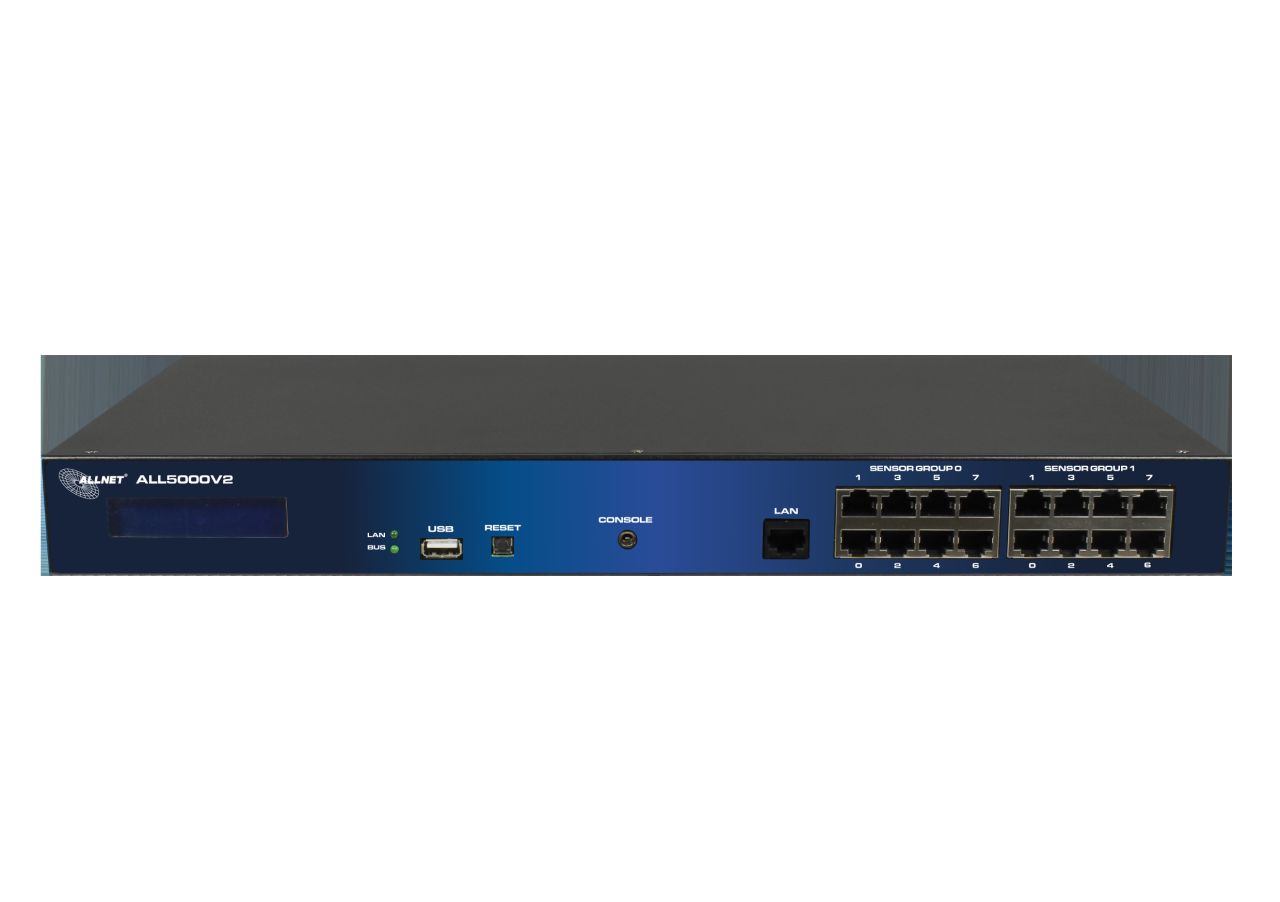

The ALLNET ALL5000v2 IP Facility Control Server leaves nothing to be desired and even tops the ALLNET ALL3505 Sensoric Appliance. There are 16 sensor ports (RJ45) for connecting sensors, actuators, relays, and much more. available. There is also 1x USB port available, for example USB memory sticks or EnOcean USB dongles can be used to use the EnOcean radio buttons.
The two-line LCD display integrated into the housing shows you the status and the IP address.
Technical data: Element Specification Product: ALLNET ALL5000v2 IP Facility Control Server Module ports for measuring and switching modules: 16x RJ45 I2C sensor ports
Interfaces: 1x USB 2.0 external
1x USB 2.0 internal

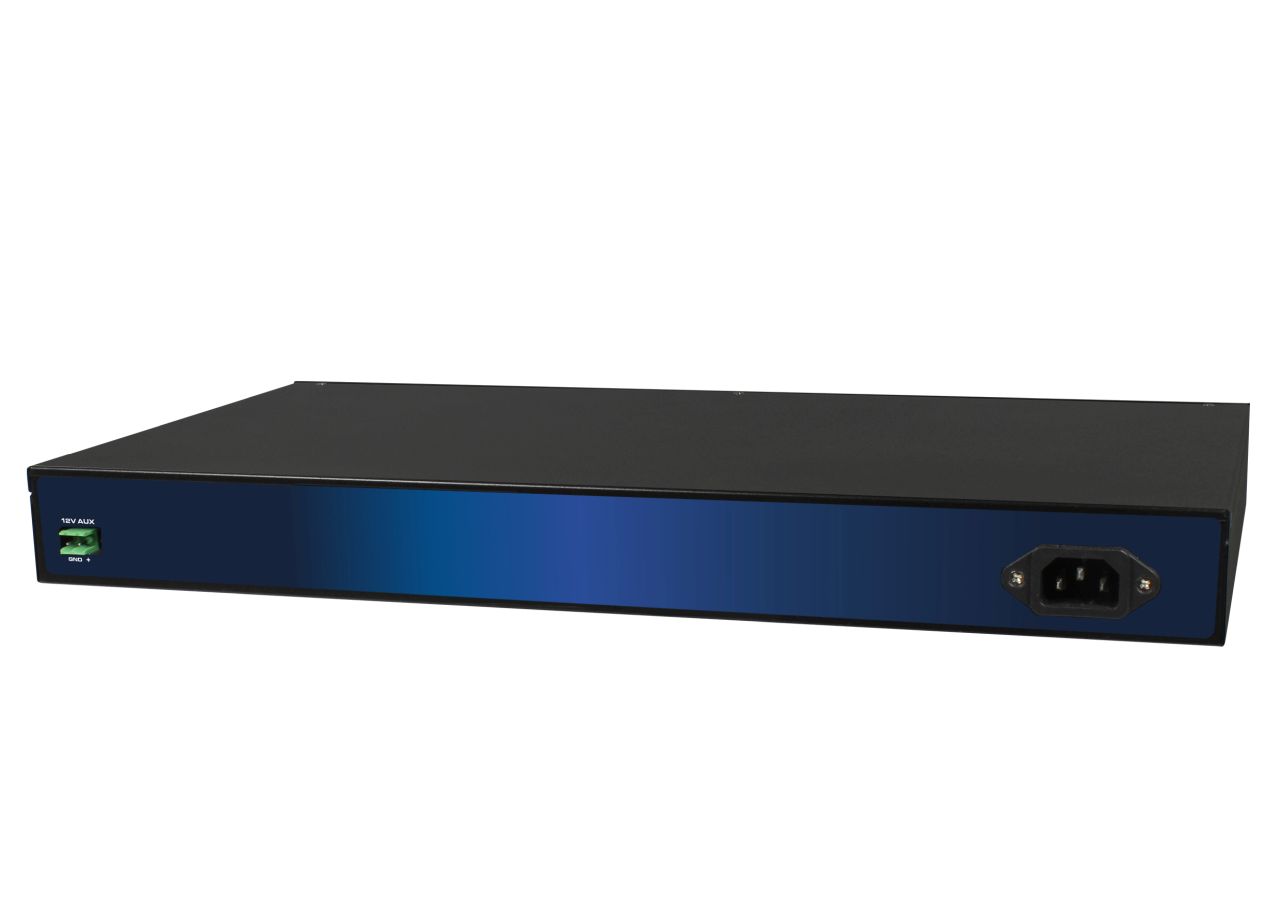

1x temperature sensor onboard Network connection: 1x RJ45 10/100Mbps Power supply: 100~240 VAC, 50/60 Hz, internal power supply optional redundant 12VDC power input Power consumption: Housing: 19” metal housing (1U) Environment: Operating temperature: 5 ~ 40 °C
Operating humidity: 10% ~ 85% (non-condensing)
Storage temperature: -20 ~ 60 °C
Humidity Storage: 5% ~ 90% (non-condensing) Marking: CE, RoHS Dimensions: 440 x 230 x 44 mm (width x depth x height) Packaging contents: 1 piece ALLNET ALL5000v2 1 piece ALLNET ALL3008 temperature sensor 1 manual power cable
