Allnet ALL4404-white MSR Sensor zbh. ALL4404 Port multiplexer 8-way white
|
73,39 EUR |
|
|
( 87,33 EUR incl. VAT ) ≈ £63.04 | ≈ $84.10 plus delivery charges: 53,00 € |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 372503 |
|---|---|
| Mfg Part No: | ALL4404-white |
| UPC/EAN: | 4038816017543 |
| Weight: | 0.31 kg |
Further Home Automation - Others from AllnetFurther products in category Home Automation - Others
All products of Allnet
Product information for Allnet ALL4404-white:

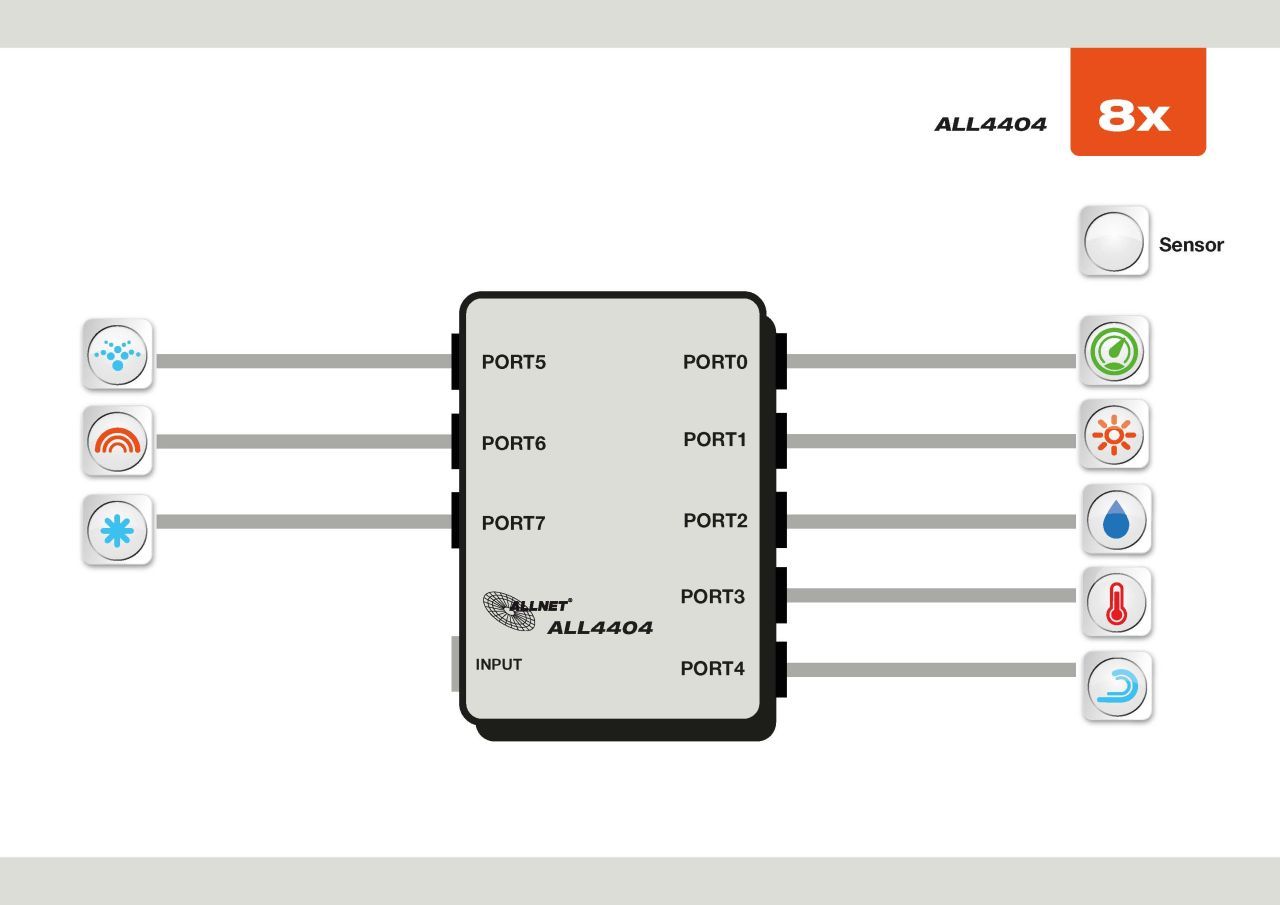

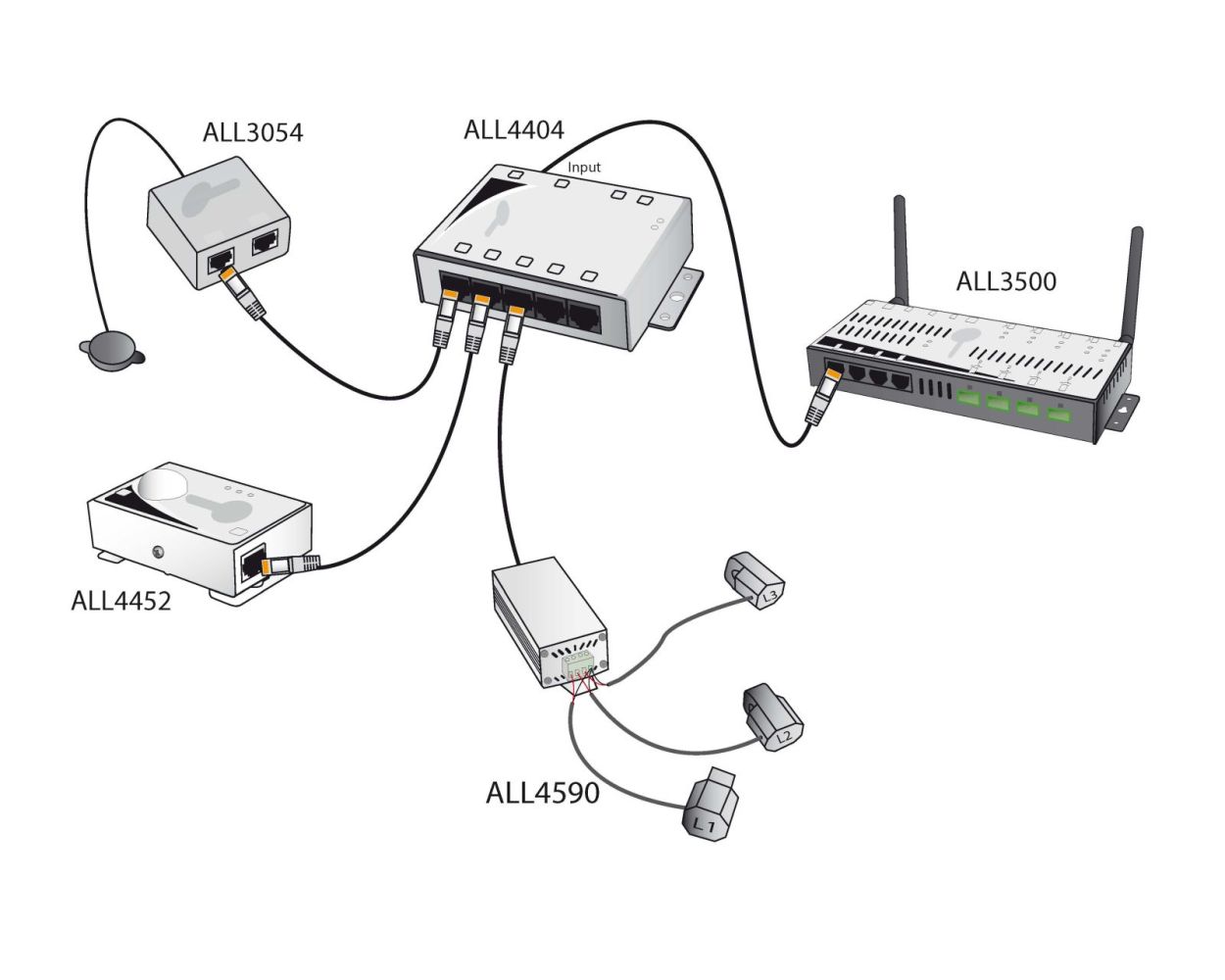

The ALL4404-white is an 8-channel multiplexing module hub, specifically designed for star distribution of up to eight sensor modules within home automation systems of the ALL4500/ALL5000 series. It increases the number of controllable sensors by a factor of 8, significantly enhancing system scalability and flexibility in complex installations. Operation requires a base station or central unit; only one ALL4404 can be connected per master port on the central unit. The maximum cable length for the I2C sensor port is 100 meters, and the hub does not extend this length—thus, the total range remains limited to 100 meters. The device is housed in a robust metal casing, ensuring reliable and long-lasting performance in professional applications.

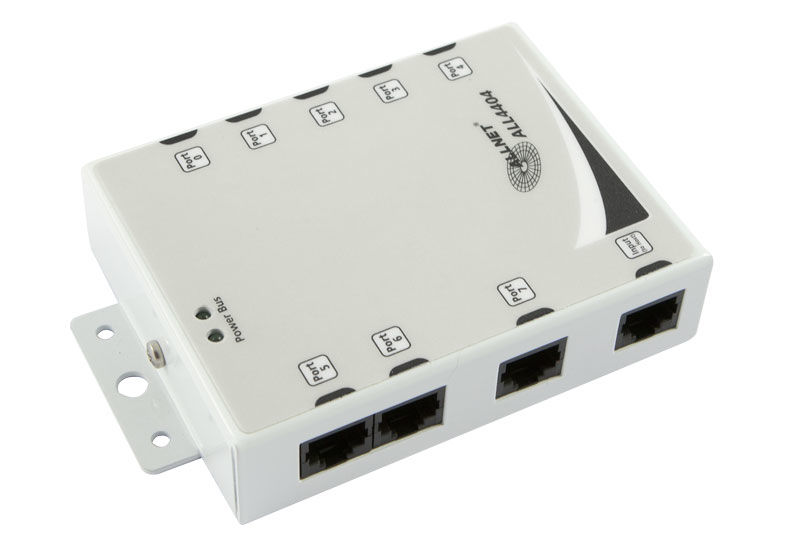

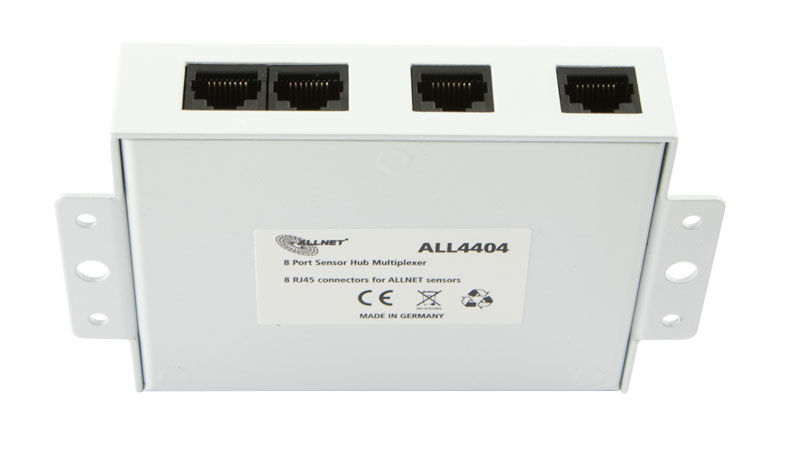

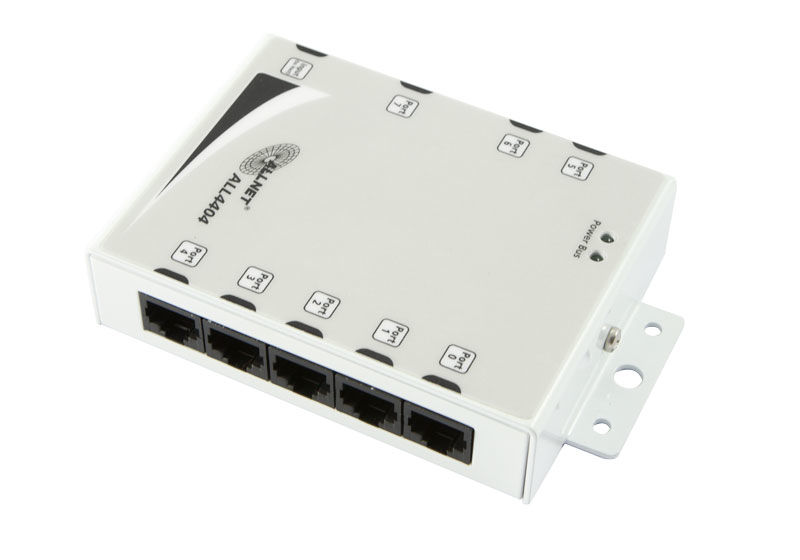

The module features eight RJ45 connectors that utilize the I2C bus for communication with connected sensors. It is compatible with a wide range of central units, including models such as ALL3418, ALL3419, ALL3420, ALL3500, ALL3500PoE, ALL3692, ALL3696, ALL4176, ALL4500, ALL5000, ALL5000v2, and ALL5100. Its compact form factor, measuring 110 x 80 x 26 mm, allows for flexible mounting in standard rack or wall installations. The device weighs 0.310 kg and is manufactured in Hungary. A 24-month warranty ensures the quality and reliability of the product.
Technical Specifications
The module features eight RJ45 connectors that utilize the I2C bus for communication with connected sensors. It is compatible with a wide range of central units, including models such as ALL3418, ALL3419, ALL3420, ALL3500, ALL3500PoE, ALL3692, ALL3696, ALL4176, ALL4500, ALL5000, ALL5000v2, and ALL5100. Its compact form factor, measuring 110 x 80 x 26 mm, allows for flexible mounting in standard rack or wall installations. The device weighs 0.310 kg and is manufactured in Hungary. A 24-month warranty ensures the quality and reliability of the product.
Technical Specifications
- Product Type: Multiplexing Module Hub / Port Multiplexer, 8-channel
- Application: Star distribution of up to 8 sensor modules for ALL4500/ALL5000
- Compatibility with Central Units: ALL3418, ALL3419, ALL3420, ALL3500, ALL3500PoE, ALL3692, ALL3696, ALL4176, ALL4500, ALL5000, ALL5000v2, ALL5100, PoE Signal Lamp
- Housing: Metal casing
- Interface: 8x RJ45 (I2C Bus)
- Warranty: 24 months
Questions & answers
What is the delivery time of Allnet ALL4404-white MSR Sensor zbh. ALL4404 Port multiplexer 8-way white?
The article Allnet ALL4404-white MSR Sensor zbh. ALL4404 Port multiplexer 8-way white is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 19151 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Allnet ALL4404-white to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Allnet ALL4404-white MSR Sensor zbh. ALL4404 Port multiplexer 8-way white always at the best possible price. We can give you a discount of 2% on Allnet ALL4404-white MSR Sensor zbh. ALL4404 Port multiplexer 8-way white if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
