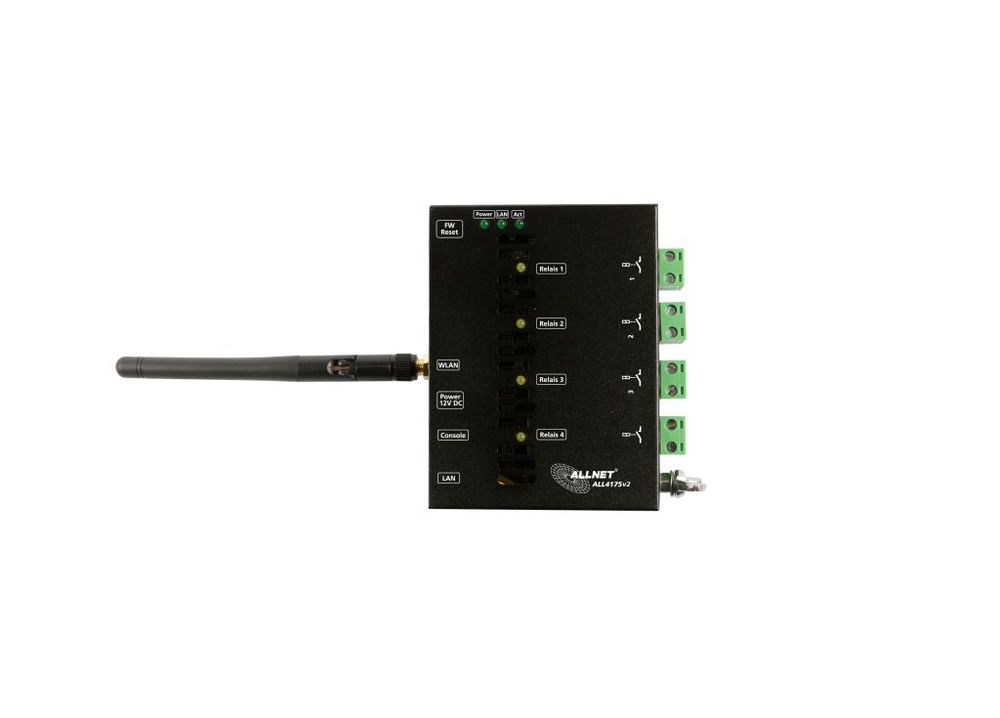

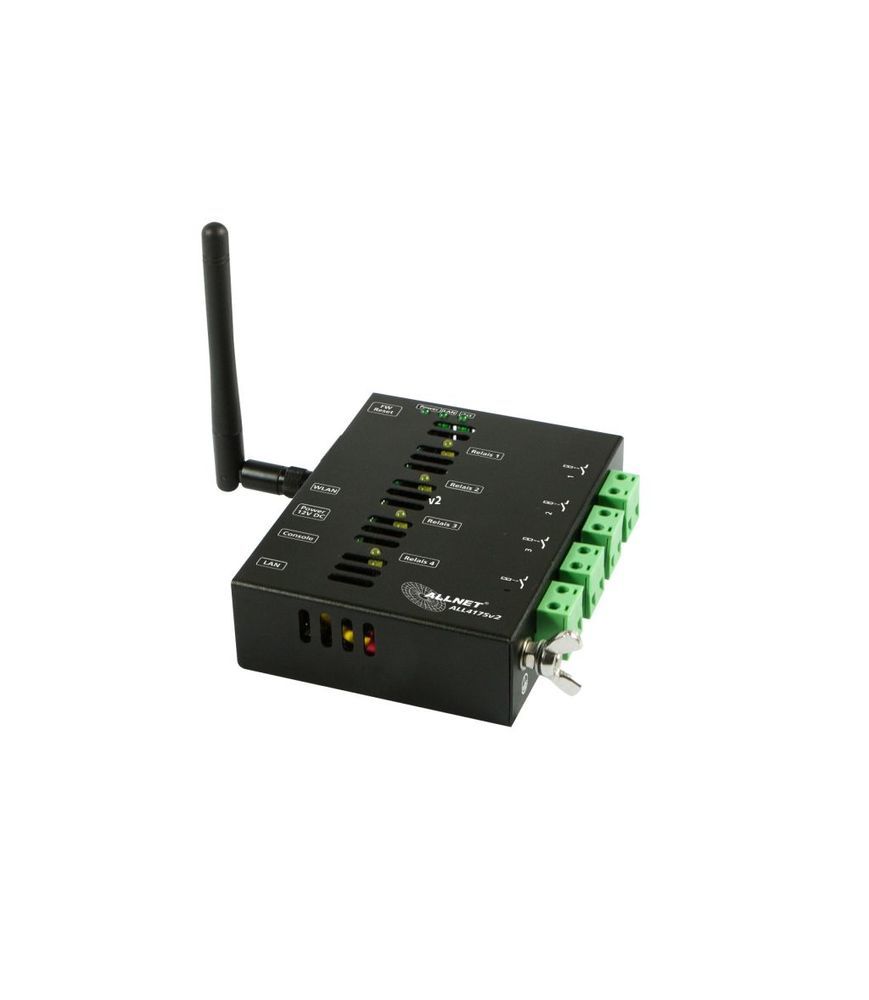

ALLNET MSR IO central ALL4175v2 / network switching device 4-fold relay 230VAC/10A

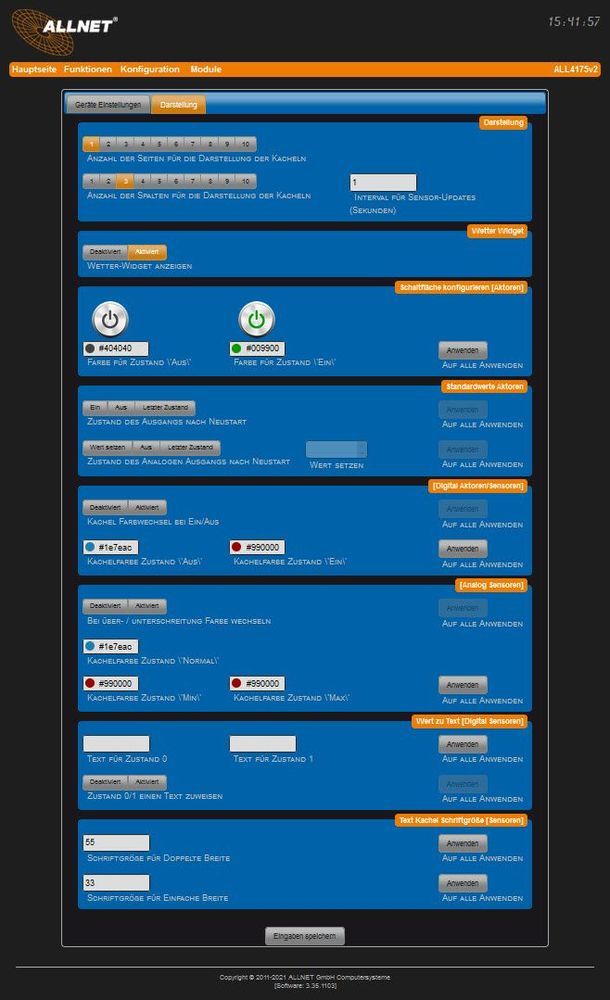

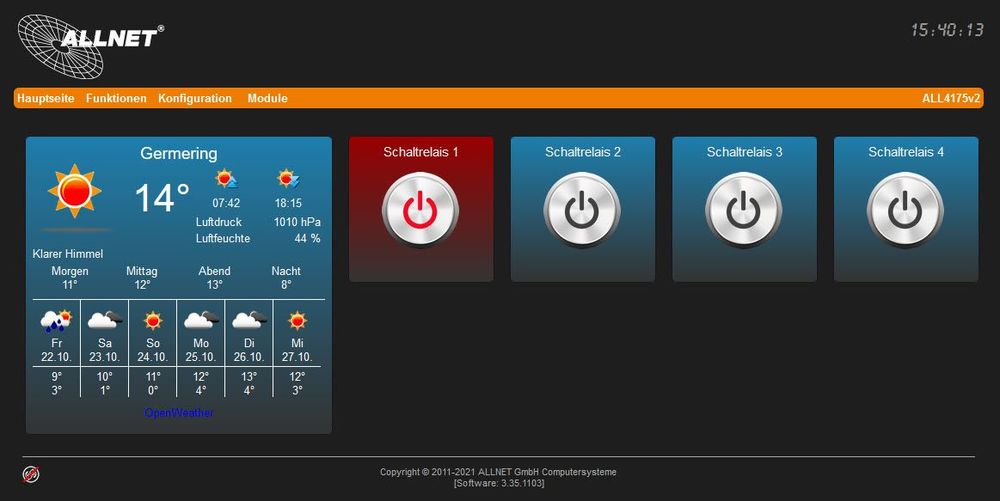

Highlights: Intelligent 4-way relay box for switching loads up to 10 amps Operation via web browser (no software required) / XML and JSON Access via 100BaseTX Ethernet and WLAN 802.11b/g/n max. 150Mbit/s Can be used as a remote actuator for the ALL3500 control panels etc. can be switched. Slim, robust aluminum housing The ALLNET ALL4175v2 4-way network relay can be used to switch electrical devices via a computer network. The configuration and operation takes place independently of an operating system via any web browser on a PC, MAC, tablet or smartphone. No additional software is required.
Four screw terminals (2-pole) are available for connecting the electrical consumers to be switched. Each of these interfaces can be switched individually. The switching processes can be carried out manually or programmed in a time-controlled manner. In addition, it can be used as a remote switching actuator by the current ALLNET automation solutions, such as ALL369x Powermeter, ALL3418v2, ALL3419, ALL3500, ALL3505, ALL4500, ALL5000, etc.). "see ALLNET remote function\dlashIn addition to the wired network connection, the ALL4175v2 network relay has a wireless LAN interface (2.4 GHz IEEE802.11b/g/n) and can be integrated wirelessly into an existing WLAN network. An ALL4175v2 can also act as a WLAN access point and control other WLAN clients.

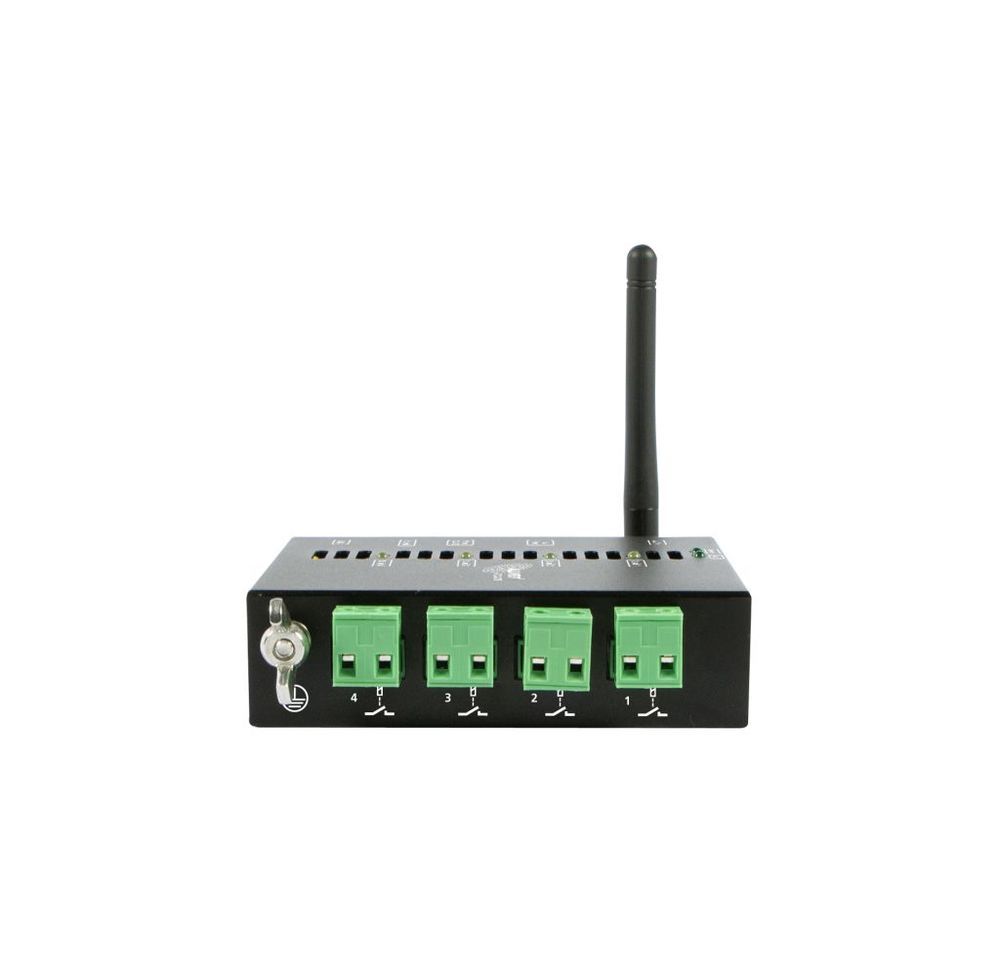

Technical data: Connections: 4x relay contact (screw terminal)

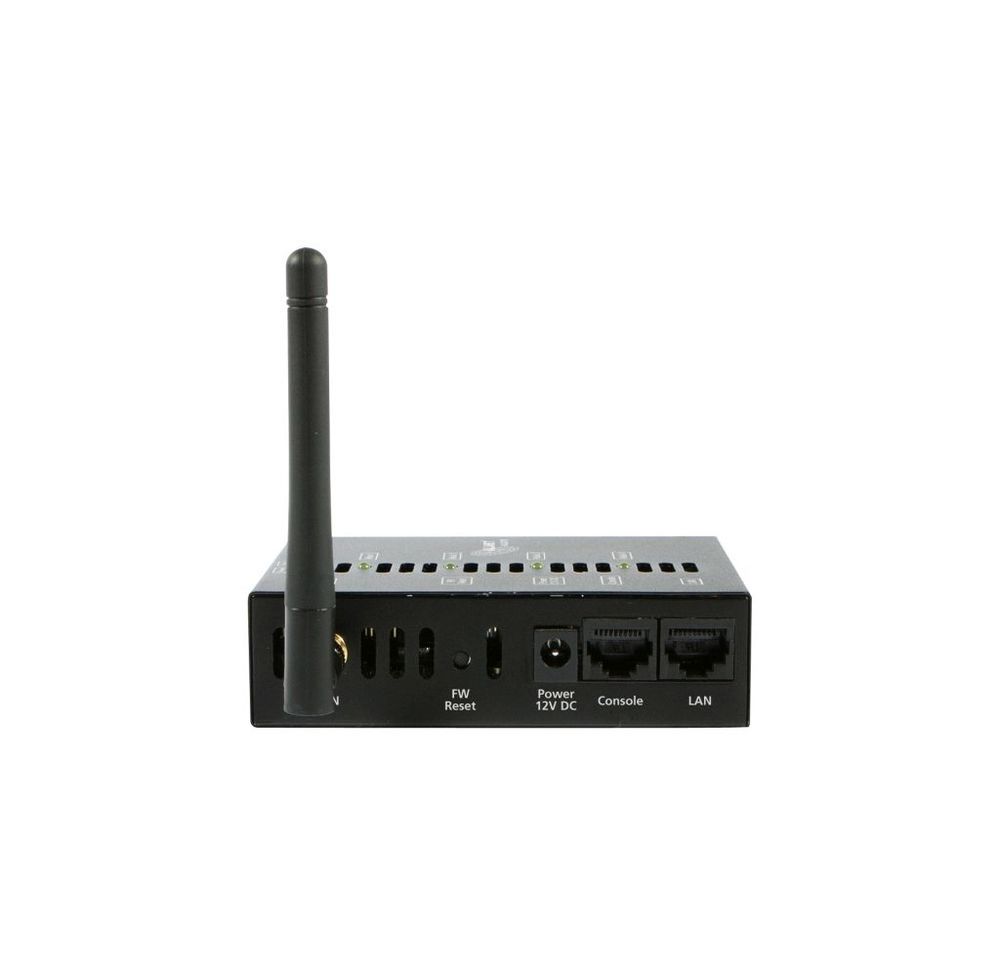

1x RJ45 LAN 10/100 Mbit/s
1x R-SMA (WLAN) Wireless LAN: 2.4 GHz Wireless N, up to 150 Mbps 1T1R encryption: WEP,WPA,WPA2 Wireless LAN Chipset: Ralink RT7688 Supported standards: IEEE 802.3
IEEE 802.3u
IEEE 802.11b/g/n Protocols: HTTP/HTTPS
TCP/IP Management/control: via web browser Operating systems: all network-capable operating systems Voltage range: 200 - 250 volts Switching current: 4x 10 amps max . Housing: Aluminum housing with wall mount option Environment: Temperature Operating: 0 ~ 40°C
Humidity Operating: 10% ~ 85% (non-condensing)
Temperature Storage: -20 ~ 60°C
Humidity Storage: 5% ~ 90% (non-condensing) Dimensions : 105 x 78 x 29 mm (length x width x height) Weight: 175 grams (without packaging and accessories) Marking: CE
