Triton RAX-MS-X81-X1 48,3 cm ( 19 inch ) enclosure, incl. roller set (wheels), 4x, with brake, up to 200/400 kg content_copy

The Triton castor set RAX-MS-X81-X1 is an accessory for 48,3 cm ( 19 inch ) server and network enclosures, enabling mobile use. It consists of four castors, two of which are equipped with brakes and two without brakes, to ensure flexible positioning and secure fixation of the enclosure. Installation is directly onto the enclosure housing, increasing the overall height by 11 cm. This castor set is exclusively intended for enclosures without a plinth, as installation is performed on the underside of the enclosure and no additional plinth must be present.

Castor set
The castor set is specifically designed for direct mounting on 48,3 cm ( 19 inch ) enclosures, particularly for types RMA and RZA. The maximum load capacity is 800 kg for all four castors combined, with the actual load capacity depending on the total weight of the enclosure. The castors are designed to enable safe and stable movement, preventing the enclosure from tipping or slipping during movement.

Functions and equipment in detail

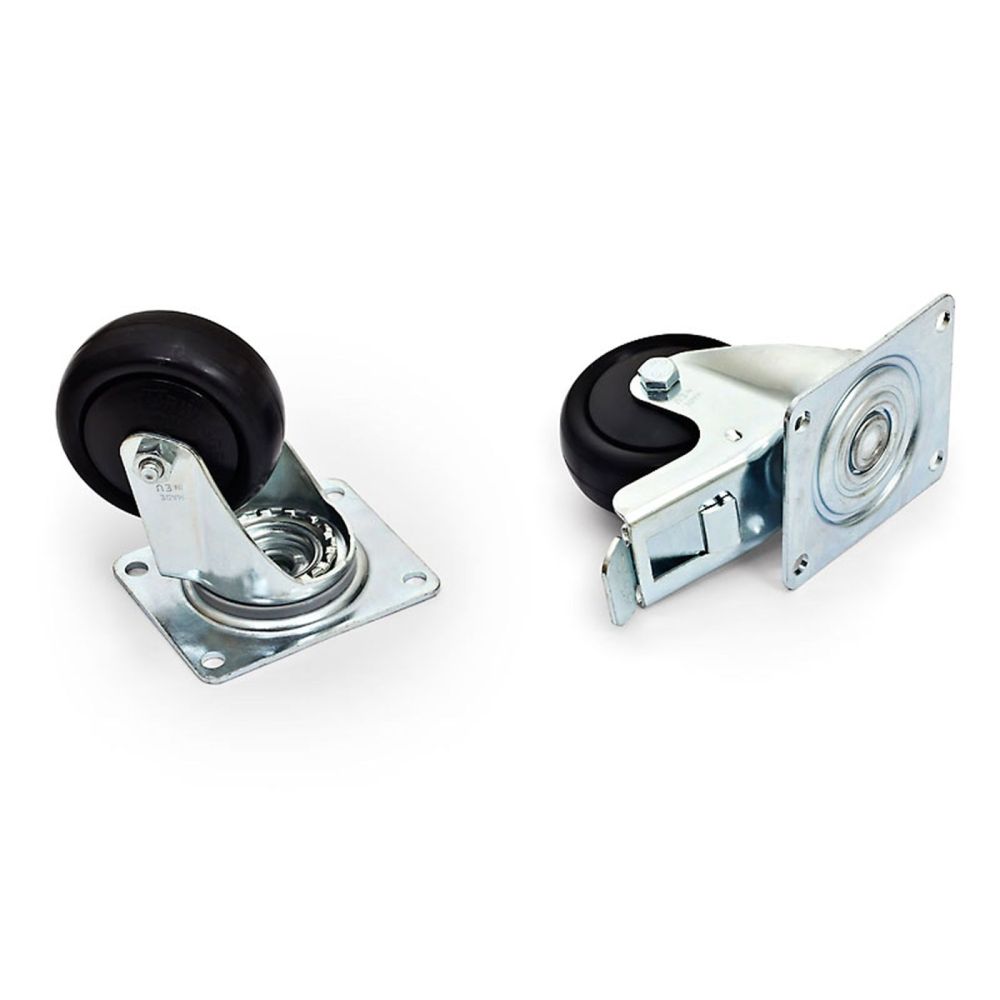

The castor set includes two castors with brakes, enabling secure fixation of the enclosure at a location, and two castors without brakes, used for movement. The brakes ensure that the enclosure does not move unintentionally during operation. Installation is carried out using 16 M5 x 12 Torx screws, included in the delivery scope. Additionally, 16 large washers with a diameter of 5.5 mm are included, ensuring even load distribution and secure fastening.

Technology explained simply
The castors used are designed for use in server and network environments, where high load capacity and stability are required. The brakes are mechanically operated and allow for simple yet secure locking. The Torx-format screws provide secure fastening that does not loosen under high loads. The washers prevent the screws from penetrating the enclosure material and ensure even load distribution.

Compatibility and accessories
The castor set is designed for 48,3 cm ( 19 inch ) enclosures, particularly for enclosure types RMA and RZA. Installation is only possible on enclosures without a plinth, as the castors are mounted directly to the underside of the housing. The maximum load capacity of 800 kg refers to the total load the castor set system can carry, with the weight of the enclosure itself to be subtracted.

Installation and mounting
Installation is performed by securing the castors to the underside of the enclosure using the 16 M5 x 12 Torx screws and 16 large washers included in the delivery scope. The screws must be tightened securely to ensure safe fastening. The castors are arranged such that two with brakes and two without brakes are mounted, enabling flexible use. Installation is only possible on enclosures without a plinth, as the castors are mounted directly to the housing.

Advantages in operation
The use of the castor set enables flexible positioning of the enclosure, particularly in environments where the enclosure must be moved frequently, such as in data centers or during maintenance work. The brakes ensure the enclosure remains stable during operation. The high load capacity of 800 kg ensures even heavier enclosures can be moved safely. Installation is simple and requires no additional tools other than a Torx screwdriver.

Technical data
Height packaging	0.110m
Weight	2.250kg
Width packaging	0.485m
Length packaging	0.090m
Packaging volume	0.0048m³

---
