Triton RAC-CH-X03-X3 48,3 cm ( 19 inch ) enclosure, optional fan insert, 2x, roof/base, light content_copy

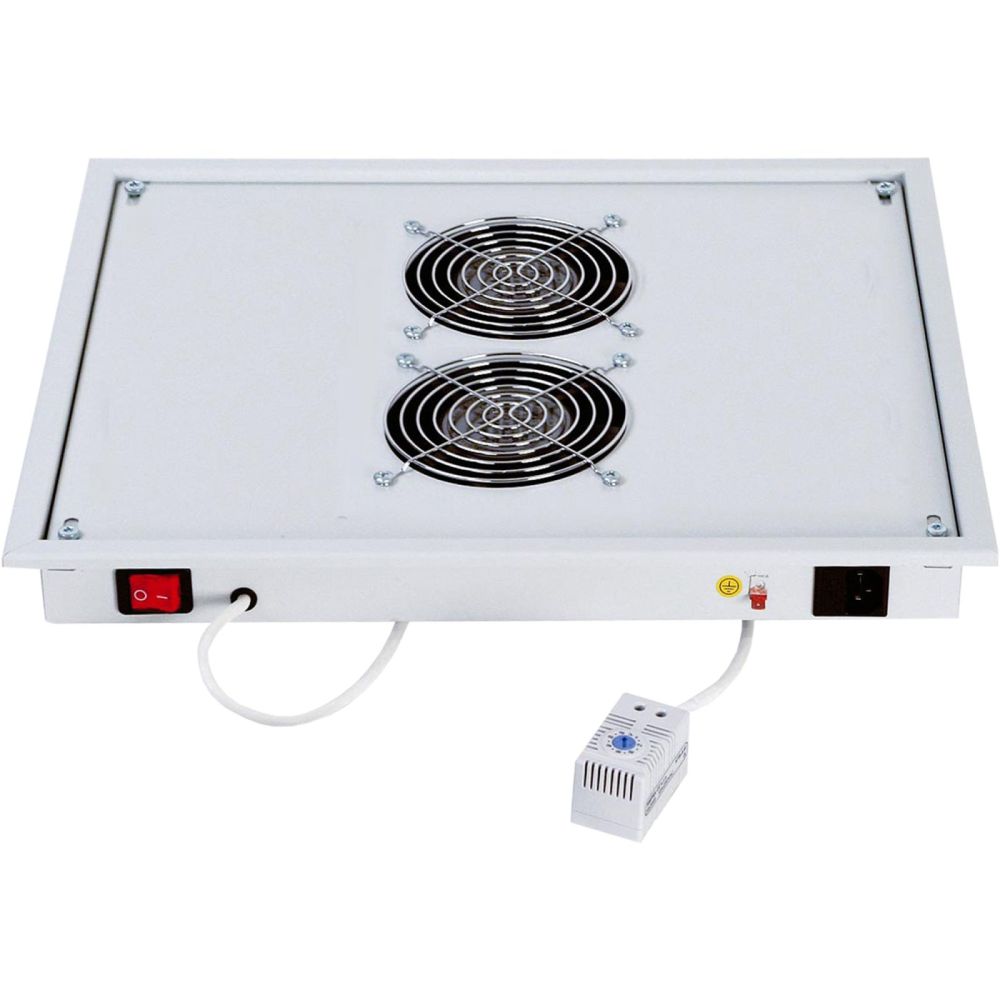

The Triton ventilation unit RAC-CH-X03-X3 is a 48,3 cm ( 19 inch ) accessory module for ventilation and heat dissipation in floor-standing rack enclosures. It is designed for mounting in the roof or at the base of the enclosure and serves targeted air circulation to regulate the temperature inside. The unit features two active fans, each providing an airflow rate of 160 m³/h, enabling overall high ventilation performance. The unit's color is Light Grey (RAL7035), ensuring visual harmony with typical server and network enclosures.

Applications
This ventilation unit is specifically designed for 48,3 cm ( 19 inch ) floor-standing distributors and enclosures used in data centers, server rooms, or technical facilities. It can be mounted either in the roof area from the outside or at the base from the inside, depending on requirements. For base mounting, a separate mounting frame (type RAx-CH-XXX-X1) is required, which is attached using double-sided adhesive tape. This makes the unit flexible for use, ensuring optimal airflow in various enclosure configurations.

Functions and Equipment in Detail
The unit is powered by 240V mains voltage (50/60 Hz) and consumes 30W of power. The fans are equipped with a bimetal thermostat, with a switchable temperature range between 0°C and +60°C. This enables automatic control of fan operation based on the temperature inside the enclosure, saving energy and ensuring consistent cooling performance. A red-lit on/off switch allows visual monitoring of the operating status.

Technology Explained Simply
The two fans ensure continuous air circulation, with each fan delivering an airflow of 160 m³/h, enabling effective heat dissipation from the interior of the enclosure. The thermostat control responds to temperature changes and automatically turns the fans on or off when the set thresholds are reached. Power supply is via mains, and the unit does not require additional power sources or external control. Mounting is either directly in the roof or at the base, with an optional mounting frame required for base mounting.

Compatibility and Accessories
The ventilation unit is designed for 48,3 cm ( 19 inch ) enclosures and can be used in standard server and network enclosures. The fan plates are specifically developed for floor-standing distributors and can be mounted in the roof, at the base, or in the door as needed. The unit is therefore modular and can be adapted to various enclosure configurations.

Mounting and Installation
Mounting is either in the roof of the enclosure from the outside or at the base from the inside. For base mounting, a mounting frame is required, which is attached using double-sided adhesive tape. Installation does not require special tools, although correct positioning is important to ensure optimal airflow. The unit is easy to handle and can be installed without additional tools.

Operational Advantages
The automatic temperature control via thermostat ensures efficient cooling and prevents unnecessary energy consumption. The high airflow rate of 160 m³/h per fan guarantees sufficient ventilation even in heavily loaded systems. The robust construction and Light Grey (RAL7035) color design blend visually into typical IT infrastructures. The unit is designed for use in technical rooms and supports thermal stability of servers and network equipment.

Technical data
Weight	4.710kg
Height packaging	0.056m
Number of fans	2
Packaging volume	0.0102m³
Width packaging	0.365m
Colour	Grey (RAL7035)
Length packaging	0.500m
Mounting	Roof / bottom

---
