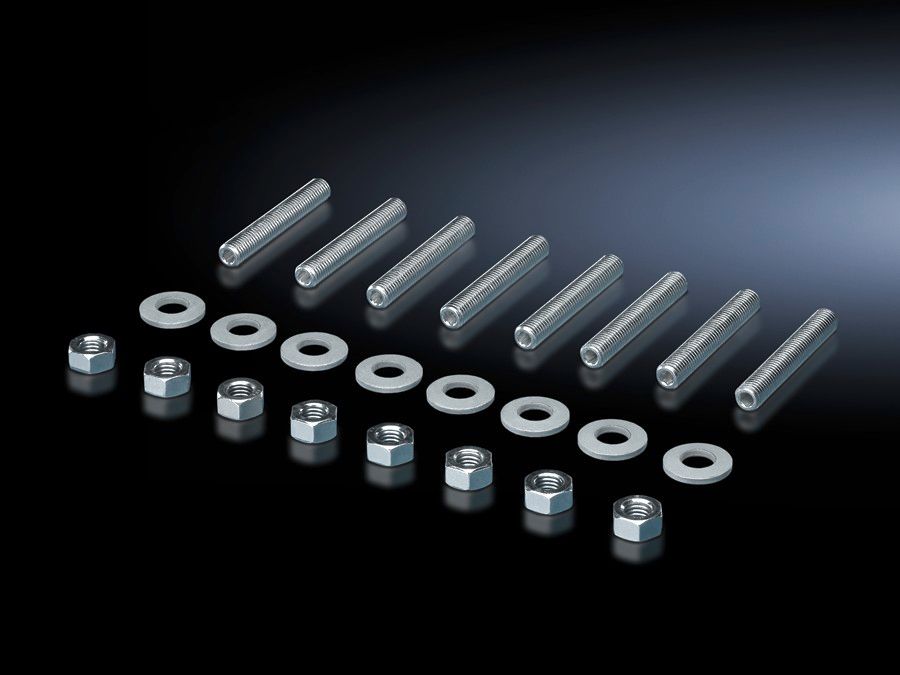

Rittal 9676977 Connection bolt M10x80 for connection sets/connection

Your rating:
Average rating
product review for Rittal 9676977 Connection bolt M10x80 for connection sets/connection
( 4.6 / 5 ) 9 ratings
Rittal 9676977
This image may differ from the desired article.
Rittal 9676977Rittal 9676977
11,16 EUR
( 13,28 EUR incl. VAT )
≈ £9.33  |  ≈ $12.33
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9676977 Connection bolt M10x80 for connection sets/connection
Datasheet:file_download Download
Lieske Part No.:1013258
Mfg Part No: 9676977
UPC/EAN: 4028177607002
Weight:0.431 kg
Type:SV 9676977

Product information for Rittal 9676977:

The SV 9676977 from Rittal is a steel threaded bolt, specifically designed for securing connection components such as cable lugs in power distribution systems. It serves as a fixed mounting element for slot nuts and sliding nuts, enabling individual connection options in enclosures and distributors. The bolt features an M10 thread with a total length of 80 mm, where the entire length is threaded. It is used in combination with busbar systems of type Maxi-PLS 45 S/45 and Maxi-PLS 60, which are common in industrial distributors and enclosures.

Threaded bolts are indispensable in electrical installation for securely and durably fastening electrical components. The SV 9676977 is particularly suitable for this purpose, as it ensures a stable mechanical connection. The steel material provides high strength and longevity under industrial conditions. The delivery includes mounting hardware, simplifying installation and making the necessary accessories immediately available.

Application areas include the mounting of connection components in power distribution systems, particularly in enclosures equipped with Maxi-PLS busbars. These busbars are widely used in industrial electrical engineering and allow for modular and flexible arrangement of distributors and connection points. The bolt is inserted into the designated holes in the busbars to securely fix cable lugs, terminal blocks, or other connection components.

Functions and equipment in detail include an exact fit for the specified busbar profiles. The threaded length of 80 mm allows sufficient depth of engagement to ensure a secure connection without the risk of the screw connection being too short. The packaging unit contains 8 pieces, which is sufficient for small to medium-sized installation tasks. Mounting is done using the included fasteners, specifically designed for use with the bolt.

Technology explained simply shows that the bolt functions as a mechanical fastening element, securing electrical connection components against vibrations, mechanical stress, and displacement. The use of steel as the material ensures high tensile strength and corrosion resistance under normal industrial conditions. The M10 thread size is a standard dimension widely used in the electrical and mechanical engineering industries and can be processed with common tools.

Compatibility and accessories are limited to Maxi-PLS busbar systems 45 S/45 and 60. These busbar profiles are commonly used in Rittal distribution systems and other industrial enclosures. The bolt is not intended for other busbar profiles or fastening systems.

Mounting and installation is performed by inserting the bolt into the hole of the busbar and then securing it with the included fasteners. The installation does not require special tools, although the use of a suitable screwdriver or electric screwdriver is recommended to ensure an even and secure connection. The specified threaded length of 80 mm ensures that the screw engages sufficiently deep into the busbar to enable a stable connection.

Advantages in operation include easy handling, high mechanical stability, and direct compatibility with common Rittal distribution systems. The delivery includes mounting hardware, reducing installation effort and avoiding additional purchases. The use of steel ensures a long service life and low maintenance frequency. The standardization of the M10 thread size enables universal use in various systems.

The product description is based on the official information provided by the manufacturer Rittal, confirmed in data sheets and product pages. The specifications regarding material, thread, length, compatibility, and delivery scope are consistent across all sources. The packaging unit contains 8 pieces, which is sufficient for typical installation tasks in electrical engineering. Mounting hardware is included in the delivery scope to enable immediate installation.

General
MaterialSteel
Scope of deliveryIncluding mounting hardware
Suitable for busbarsMaxi-PLS 45 S/45, Maxi-PLS 60
ThreadM10
Thread length80 mm


Product data sheet
Datasheet for Rittal 9676977, EAN: 4028177607002

Questions & answers

What is the delivery time of Rittal 9676977 Connection bolt M10x80 for connection sets/connection?

The article Rittal 9676977 Connection bolt M10x80 for connection sets/connection is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9676977 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9676977 Connection bolt M10x80 for connection sets/connection always at the best possible price. We can give you a discount of 2% on Rittal 9676977 Connection bolt M10x80 for connection sets/connection if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
