Rittal 9650905 Slide nut M8 for Maxi-PLS busbar E-Cu (Maxi

Your rating:
Average rating
product review for Rittal 9650905 Slide nut M8 for Maxi-PLS busbar E-Cu (Maxi
( 4.6 / 5 ) 30 ratings

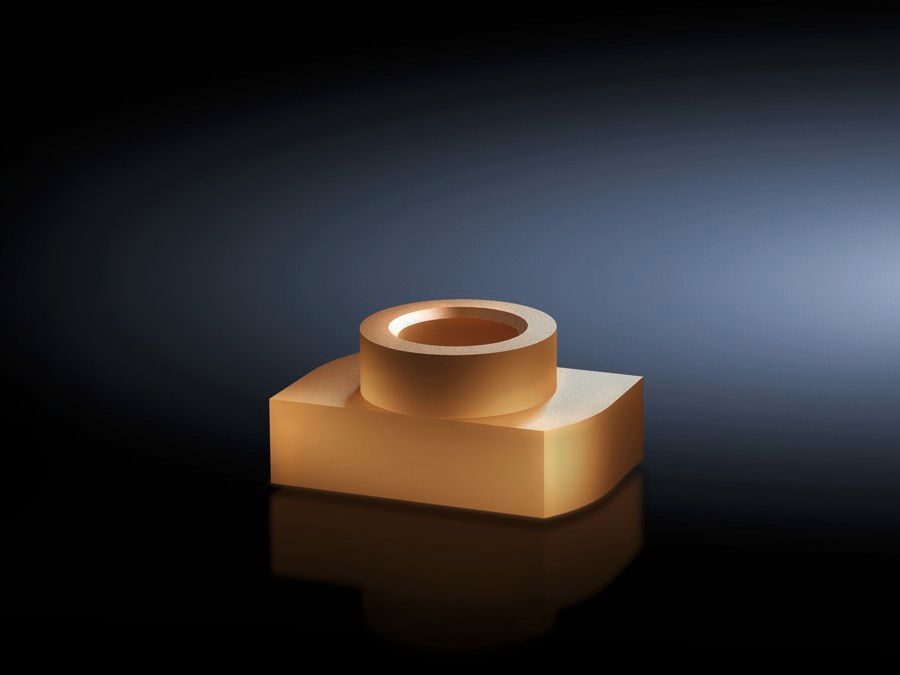

Rittal 9650905
This image may differ from the desired article.
Rittal 9650905Rittal 9650905
25,07 EUR
( 29,83 EUR incl. VAT )
≈ £20.96  |  ≈ $27.70
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9650905 Slide nut M8 for Maxi-PLS busbar E-Cu (Maxi
Datasheet:file_download Download
Lieske Part No.:960048
Mfg Part No: 9650905
UPC/EAN: 4028177662810
Weight:0.075 kg
Type:SV 9650905

Product information for Rittal 9650905:

The SV 9650905 is a slide nut from manufacturer Rittal, specifically designed for securing flat copper busbars and connection components to Maxi-PLS busbar systems. The product is intended for retrofitted installation into the busbar profile, enabling mechanical connection via an M8 thread. It is made of E-Cu (electro-copper), a material used in electrical engineering for its high electrical conductivity and mechanical stability. The slide nut is designed for the Maxi-PLS 60 busbar, which serves as a load-bearing and conductive structure in industrial power distribution systems.

Applications

The slide nut is used in industrial electrical engineering, particularly in enclosures and power distribution systems, where flexible and retrofitted mounting of components to busbars is required. It enables the installation of flat copper busbars, which serve as main conductors for power distribution, as well as connection components such as terminals or connection sets. Its use is typical in systems requiring modular expansion or maintenance without having to remove the entire busbar.

Functions and Equipment in Detail

The SV 9650905 is designed as a slide nut, meaning it is inserted into the profile of the Maxi-PLS busbar without requiring any prior drilling or modification of the busbar profile. This simplifies installation and maintenance, as mounting can be done flexibly and without tools. The packaging unit contains 3 pieces, which is sufficient for small to medium-sized mounting tasks.

Technology Explained Simply

The slide nut is made of E-Cu, a high-quality copper material that meets both electrical and mechanical requirements. Using E-Cu ensures reliable electrical conductivity and high mechanical strength, which are critical for securing power conductors in industrial installations. The M8 thread is a standard thread widely used in electrical engineering and compatible with numerous standard components. The sliding function allows for simple yet secure installation into the busbar profile, reducing mounting time and improving installation quality.

Compatibility and Accessories

The slide nut is specifically designed for the Maxi-PLS 60 busbar, which is part of Rittal’s Maxi-PLS system. Compatible accessories include various connection bolts such as M10x35, M10x45, M10x55, M10x70, M10x80, M12x40, M12x50, M12x60, M12x70, and M12x80, which can be used with the slide nut. Additionally, threaded bolts M6 and M8 are available for other Maxi-PLS profiles (e.g., Maxi-PLS1600/2000), but are not directly compatible with the SV 9650905. Using the slide nut requires selecting a suitable bolt that accommodates the M8 thread.

Mounting and Installation

Installation is performed by simply sliding the slide nut into the profile of the Maxi-PLS 60 busbar. No additional modification of the busbar is required. After insertion, the slide nut is secured with a matching threaded bolt (M8), which fastens the flat copper busbar or other connection components. Mounting can be done without tools, enabling quick installation without special equipment.

Operational Advantages

The slide nut enables flexible and maintenance-friendly mounting of components to busbars. Retrofitted installation without drilling or modification reduces mounting time and minimizes the risk of damage to the busbar. The use of E-Cu ensures high electrical conductivity and mechanical stability, increasing the reliability of power distribution. The packaging unit with 3 pieces provides a practical quantity for small mounting tasks.

General
MaterialE-Cu
Suitable for busbarsMaxi-PLS 60
ThreadM8


Product data sheet
Datasheet for Rittal 9650905, EAN: 4028177662810

Questions & answers

What is the delivery time of Rittal 9650905 Slide nut M8 for Maxi-PLS busbar E-Cu (Maxi?

The article Rittal 9650905 Slide nut M8 for Maxi-PLS busbar E-Cu (Maxi is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9650905 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9650905 Slide nut M8 for Maxi-PLS busbar E-Cu (Maxi always at the best possible price. We can give you a discount of 2% on Rittal 9650905 Slide nut M8 for Maxi-PLS busbar E-Cu (Maxi if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
