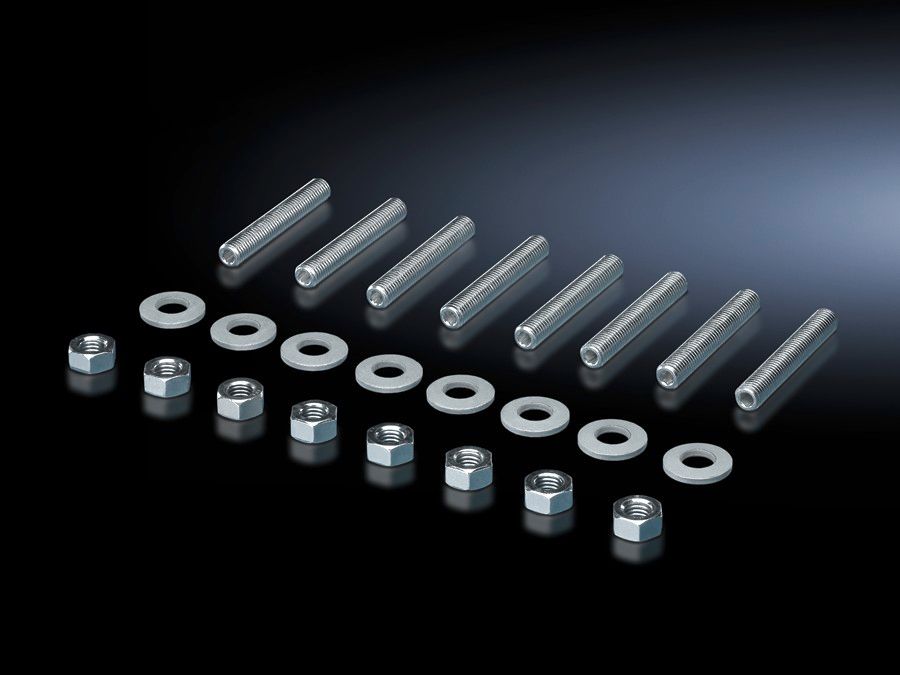

Rittal 9676986 Connection bolt M12x70 for connection sets/connection

Your rating:
Average rating
product review for Rittal 9676986 Connection bolt M12x70 for connection sets/connection
( 4.5 / 5 ) 8 ratings
Rittal 9676986
This image may differ from the desired article.
Rittal 9676986Rittal 9676986
12,54 EUR 12,77 EUR
( 14,92 EUR incl. VAT )
≈ £10.48  |  ≈ $13.86
plus delivery charges: 55,00 €
Made to order · Expected to be available from 17.11.2026info_outline
1x Rittal 9676986 Connection bolt M12x70 for connection sets/connection
Datasheet:file_download Download
Lieske Part No.:1013245
Mfg Part No: 9676986
UPC/EAN: 4028177606944
Weight:0.59 kg
Type:SV 9676986

Product information for Rittal 9676986:

The SV 9676986 is a threaded bolt from the brand Rittal, specifically developed for securing connection components such as cable lugs or ring terminals to busbars in industrial applications. The product serves as a mechanical fastening element in power distribution systems and enables individual connection options to Maxi-PLS 60 busbars. It is a steel bolt with an M12 thread and a thread length of 70 mm, intended for mounting in enclosures and distributors.

Applications

The threaded bolt is used in electrical and automation technology, particularly in enclosures, where secure and durable fastening of connection components to busbars is required. It is suitable for installations where cable lugs or other connection elements must be mounted to Maxi-PLS 60 busbars. Typical use occurs in industrial environments where high mechanical loads and reliable electrical connections are required.

Functions and Equipment in Detail

The bolt is made of steel, ensuring high strength and durability under industrial conditions. The M12 thread size allows for universal use with compatible nuts and slot inserts. The total thread length is 70 mm, sufficient to securely insert the component into the busbar and ensure adequate fastening depth. The delivery includes the fastening material required for installation.

Technology Explained Simply

The SV 9676986 is a mechanical fastening element used in combination with a busbar (here Maxi-PLS 60) to fix electrical connection components such as cable lugs. The busbar is installed in the enclosure, and the bolt is inserted into the designated slots of the busbar. Subsequently, the component (e.g., a cable lug) is mounted onto the bolt and secured with a nut. The M12 thread size is an industry standard and ensures a secure connection. The length of 70 mm provides sufficient clearance for installation and the required fastening.

Compatibility and Accessories

The bolt is specifically designed for Maxi-PLS 60 busbars, which are widely used in Rittal enclosures and systems. It is compatible with slot inserts and sliding nuts also designed for these busbars. Use with other busbar types is not intended. The packaging unit contains 8 pieces, sufficient for small to medium installation tasks.

Installation and Mounting

Installation is performed by inserting the bolt into the slots of the Maxi-PLS 60 busbar. Then, the desired connection component (e.g., cable lug) is placed onto the bolt and secured with a nut. The included fastening material facilitates the installation process. No special tools are required, although a screwdriver or appropriate wrench is needed for tightening the nut. Installation typically occurs during enclosure assembly or when installing distributors.

Operational Advantages

The bolt provides a stable and reliable fastening that remains secure even under mechanical stress. The use of steel ensures long service life and resistance to wear. Standardization of the M12 thread size enables easy interchangeability and compatibility with common tools and accessories. Delivery with fastening material reduces preparation time and simplifies installation.

General
MaterialSteel
Scope of deliveryIncluding mounting hardware
Suitable for busbarsMaxi-PLS 60
ThreadM12
Thread length70 mm


Product data sheet
Datasheet for Rittal 9676986, EAN: 4028177606944

Questions & answers

What is the delivery time of Rittal 9676986 Connection bolt M12x70 for connection sets/connection?

The article Rittal 9676986 Connection bolt M12x70 for connection sets/connection is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9676986 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9676986 Connection bolt M12x70 for connection sets/connection always at the best possible price. We can give you a discount of 2% on Rittal 9676986 Connection bolt M12x70 for connection sets/connection if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
