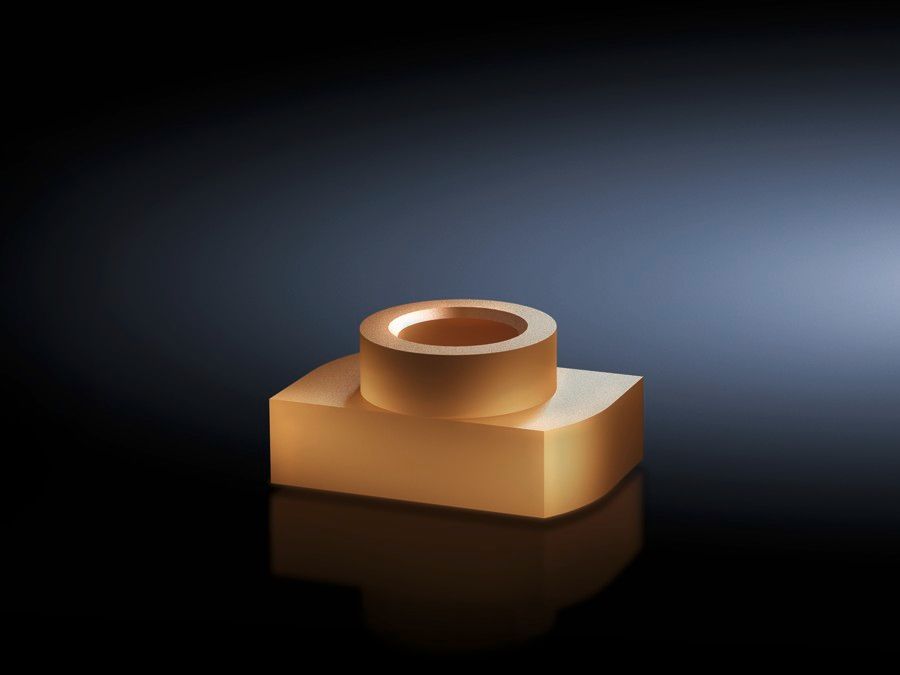

Rittal 9650920 Slide nut M12 for Maxi-PLS busbar E-Cu (Max

Your rating:
Average rating
product review for Rittal 9650920 Slide nut M12 for Maxi-PLS busbar E-Cu (Max
( 4.5 / 5 ) 37 ratings
Rittal 9650920
This image may differ from the desired article.
Rittal 9650920Rittal 9650920
-12% 119,14 EUR 135,64 EUR
( 141,78 EUR incl. VAT )
≈ £99.60  |  ≈ $131.65
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 9650920 Slide nut M12 for Maxi-PLS busbar E-Cu (Max
Datasheet:file_download Download
Lieske Part No.:838709
Mfg Part No: 9650920
UPC/EAN: 4028177239708
Weight:0.259 kg
Type:SV 9650920

Product information for Rittal 9650920:

Rittal SV 9650920 is a slide nut with M12 thread, specifically designed for securing flat copper busbars and connection components to Maxi-PLS busbars. The product is inserted into the busbar profile after installation to securely fix threaded bolts. It is a component intended for use in industrial power distribution systems, where flexible and secure mounting of connection elements is required. The slide nut is made of E-Cu (electrolytic copper), a material valued in electrical engineering for its high electrical conductivity and mechanical stability.

Applications
The slide nut is used in industrial electrical installations, particularly when mounting power distribution systems with Maxi-PLS busbars. It enables the post-installation fixation of components such as flat copper busbars, connection terminals, or other connection elements without requiring the entire busbar to be remounted. This is especially advantageous during expansions or maintenance work, where quick and precise mounting is necessary. The product is used in enclosures and distribution systems, where secure mechanical and electrical connections are essential.

Functions and Features in Detail
The SV 9650920 is designed for the Maxi-PLS 60 busbar, meaning it fits into the corresponding profile and can be securely positioned there. The slide nut is inserted into the busbar profile and serves as a fixed attachment point for mounting components. The packaging unit contains 15 pcs, suitable for larger installation projects or series applications.

Technology Explained Simply
The slide nut is a mechanical component inserted into the Maxi-PLS busbar profile to create a secure mounting point for threaded bolts. The material E-Cu offers high electrical conductivity, which is crucial for power distribution, and sufficient mechanical strength to withstand operational loads. The M12 thread is a standard thread in the electrical industry, allowing the use of standardized bolts available in various lengths and with different head shapes. The ability to insert the slide nut after installation reduces mounting effort, as no additional drilling or machining of the busbar is required.

Compatibility and Accessories
The slide nut is specifically designed for the Maxi-PLS 60 busbar. Compatible accessories include various connection bolts in sizes M10 and M12, such as M12x40, M12x50, M12x60, M12x70, M12x80, as well as M10x35, M10x45, M10x55, M10x70, and M10x80. Additionally, threaded bolts M6 and M8 are available for other Maxi-PLS profiles (e.g. Maxi-PLS1600/2000), but are not compatible with this slide nut. The correct bolt length is essential to ensure a secure connection without damaging the busbar.

Installation and Mounting
Installation is performed by simply sliding the slide nut into the busbar profile. It is important that the nut is fully seated within the profile to ensure secure fastening. Subsequently, the appropriate threaded bolt (e.g. M12) is screwed into the nut to establish the connection to flat copper busbars or other components. No special tools are required for mounting, although a suitable screwdriver or wrench size for the M1梁 thread is necessary. The use of appropriate bolt lengths is critical to ensure a secure and durable connection.

Operational Advantages
The SV 9650920 provides a flexible and reliable solution for securing components to Maxi-PLS busbars. Its post-installation insertability reduces mounting effort and enables quick adjustments during expansions or maintenance work. The E-Cu material ensures high electrical conductivity and mechanical stability, enhancing reliability in operation. The packaging unit of 15 pcs is suitable for larger projects and reduces the number of orders. Compatibility with standardized M12 bolts simplifies procurement and installation.

The slide nut is certified with UL + C-UL (listed), allowing its use in electrical installations in the USA and Canada. This certification confirms compliance with safety and quality standards relevant for industrial applications. The use of the slide nut in combination with appropriate connection bolts enables a secure and durable connection that meets the requirements of industrial electrical installations.

Note: Batteries or other accessories are not included in the delivery scope.

General
MaterialE-Cu
Suitable for busbarsMaxi-PLS 60
ThreadM12


Product data sheet
Datasheet for Rittal 9650920, EAN: 4028177239708

Questions & answers

What is the delivery time of Rittal 9650920 Slide nut M12 for Maxi-PLS busbar E-Cu (Max?

The article Rittal 9650920 Slide nut M12 for Maxi-PLS busbar E-Cu (Max is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9650920 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9650920 Slide nut M12 for Maxi-PLS busbar E-Cu (Max always at the best possible price. We can give you a discount of 2% on Rittal 9650920 Slide nut M12 for Maxi-PLS busbar E-Cu (Max if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
