Rittal 9676983 Connection bolt M12x60 for connection sets/connection

Your rating:
Average rating
product review for Rittal 9676983 Connection bolt M12x60 for connection sets/connection
( 4.2 / 5 ) 5 ratings

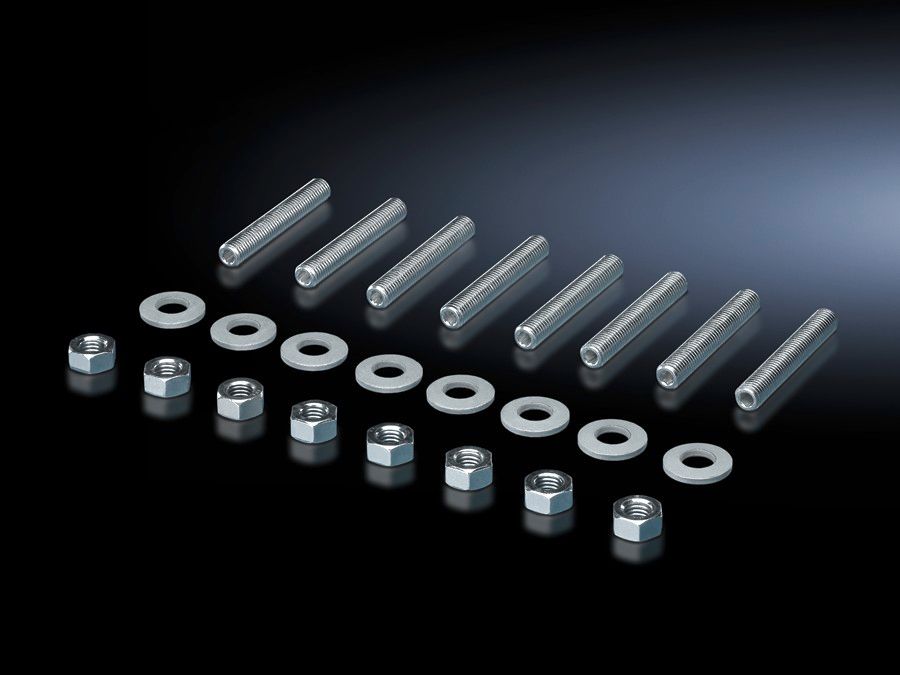

Rittal 9676983
This image may differ from the desired article.
Rittal 9676983Rittal 9676983
11,50 EUR
( 13,68 EUR incl. VAT )
≈ £9.61  |  ≈ $12.71
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9676983 Connection bolt M12x60 for connection sets/connection
Datasheet:file_download Download
Lieske Part No.:1564512
Mfg Part No: 9676983
UPC/EAN: 4028177606937
Weight:0.536 kg
Type:SV 9676983

Product information for Rittal 9676983:

The SV 9676983 from Rittal is a steel threaded bolt, specifically designed for securing connection components such as cable lugs to busbars in industrial applications. It features an M12 thread with a total length of 60 mm and is intended for use with Maxi-PLS 60 busbars. The design enables individual connection options in enclosures and power distribution systems, where secure and stable mounting of connection elements is required.

Threaded bolt made of steel offers high mechanical strength and is suitable for use in industrial environments where high loads and continuous operation are present. The precise M12 thread ensures a secure connection with matching nuts and slot inserts. The thread length of 60 mm provides sufficient depth of engagement into the busbar to ensure stable fastening without damaging the bar.

Functions and equipment in detail

The bolt serves as a connecting element between the busbar and connected components, such as ring or screw cable lugs. It is part of a modular system that enables flexible and quick installation of connection points in enclosures. The use of slot inserts and sliding nuts, specifically developed for the Maxi-PLS 60 bar, is supported by this bolt. The product is available in a packaging unit of 8 pieces, which is advantageous for standardization in assembly.

Technology explained simply

The bolt is inserted into the pre-machined slots of the Maxi-PLS 60 busbar and secured with a matching M12 nut or slot insert. The M12 thread size is a standard size in the industrial sector and ensures high load capacity and a secure connection. The length of 60 mm is sufficient to achieve adequate thread depth without excessively stressing the bar. The steel material selection ensures high strength and durability under industrial conditions.

Compatibility and accessories

The SV 9676983 is specifically developed for Maxi-PLS 60 busbars, used in Rittal enclosures and power distribution systems. It is compatible with the corresponding slot inserts and sliding nuts, also available in the Rittal system. The delivery includes fastening materials required for installation.

Installation and mounting

Mounting is performed by inserting the bolt into the designated slot of the busbar and then securing it with an M12 nut or slot insert. The fastening materials included in the delivery facilitate installation. Mounting should be carried out in accordance with the relevant safety regulations and standards to ensure a secure and durable connection.

Advantages in operation

The bolt enables quick and secure mounting of connection components, reducing assembly time in enclosures. The use of standard threads and compatible components from the Rittal system ensures high interoperability and simplifies maintenance. The high mechanical strength of steel ensures long service life even under demanding operating conditions. The packaging unit of 8 pieces supports standardization in production and assembly.

Approvals

The product is certified with UL and C-UL listing, confirming compliance with the relevant safety standards for electrical components in North America. This approval is relevant for use in installations that must meet the requirements of UL and CSA standards.

General
MaterialSteel
Scope of deliveryIncluding mounting hardware
Suitable for busbarsMaxi-PLS 60
ThreadM12
Thread length60 mm


Product data sheet
Datasheet for Rittal 9676983, EAN: 4028177606937
