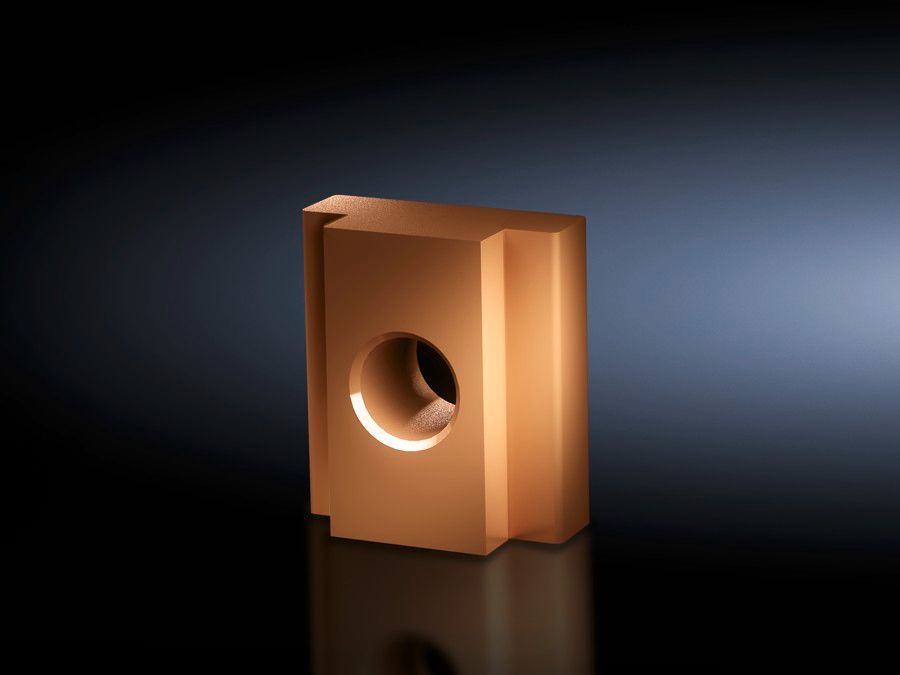

Rittal 9640980 Nuts M10, L=25 mm, for Maxi-PLS busbar

Your rating:
Average rating
product review for Rittal 9640980 Nuts M10, L=25 mm, for Maxi-PLS busbar
( 4.8 / 5 ) 22 ratings
Rittal 9640980
This image may differ from the desired article.
Rittal 9640980Rittal 9640980
-12% 85,79 EUR 97,67 EUR
( 102,09 EUR incl. VAT )
≈ £71.72  |  ≈ $94.80
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9640980 Nuts M10, L=25 mm, for Maxi-PLS busbar
Datasheet:file_download Download
Lieske Part No.:384616
Mfg Part No: 9640980
UPC/EAN: 4028177238824
Weight:0.333 kg
Type:SV 9640980

Product information for Rittal 9640980:

The SV 9640980 from Rittal is a slot insert made of copper alloy, specifically developed for securing flat copper busbars and connection components to Maxi-PLS busbar systems. It is inserted laterally into the busbar profile and serves as a base for mounting threaded bolts. The design enables a secure and precise connection, with a length of 25 mm and M10 thread size tailored to the specific dimensions of Maxi-PLS 45 S/45 busbar systems. The use of copper alloy ensures high electrical conductivity and mechanical stability, which is essential for applications in industrial enclosures and electrical installations.

Slot insert is the technical term for this component, which is inserted into the slot of the busbar to enable a secure connection. The copper alloy as material provides an optimal combination of electrical conductivity and mechanical strength, which is important for the reliability of the connection in demanding applications. The length of 25 mm is designed to match the profile geometry of Maxi-PLS 45 S/45 busbar systems, ensuring secure and stable positioning.

Applications include the mounting of flat copper busbars and connection components in industrial enclosures, where a secure and conductive connection is required. The slot insert is particularly used in systems based on the Maxi-PLS 45 S/45 busbar, such as in models Maxi-PLS 1600/2000. Its use typically occurs during the installation or maintenance of electrical distributions, where precise and stable busbar fixation is necessary.

Functions and features in detail include lateral insertion into the busbar profile, enabling quick and easy installation. The copper alloy ensures high electrical conductivity, which is crucial for its function as a current conductor. The precise fit to the Maxi-PLS 45 S/45 busbar guarantees secure anchoring without additional tools. The use of M10 threaded bolts allows for firm fixation of connected components.

Technology explained simply shows that the slot insert acts as an intermediate component establishing both electrical and mechanical connection between the busbar and connected parts. The copper alloy is known for its excellent conductivity, enhancing the efficiency of current transmission. The 25 mm length is dimensioned to allow the slot insert to fully fit into the busbar slot while ensuring stable positioning. The M10 thread is a standard thread widely used in the electrical industry and can be processed with common tools.

Compatibility and accessories include use with Maxi-PLS 45 S/45 busbar systems, particularly models Maxi-PLS 1600/2000. Matching connection bolts are available in various lengths, including M10x35, M10x45, M10x55, M10x70, and M10x80, for securing components to the slot inserts. Additionally, M8 and M6 threaded bolts are available for other Maxi-PLS models (1600/2000), although not specifically intended for this slot insert.

Installation and mounting is performed by laterally inserting the slot insert into the slot of the busbar. Subsequently, the M10 threaded bolt is screwed into the thread of the slot insert, securely fastening the connected components. The installation requires no additional tools beyond a screwdriver or suitable wrench for the M10 thread. Its use typically occurs during installation or maintenance of electrical distributions in enclosures.

Operational advantages lie in the secure and conductive connection ensured by the copper alloy and precise fit. The simple lateral insertion reduces installation time and minimizes error sources. Use in systems with Maxi-PLS 45 S/45 busbars ensures high compatibility and reliability in industrial applications. The packaging unit contains 15 pieces, which is advantageous for larger installations or maintenance work.

The use of SV 9640980 is specifically designed for Maxi-PLS 45 S/45 busbar systems, with the specified dimensions and materials ensuring functionality and reliability of the connection.

General
MaterialSliding block: copper alloy
Length25 mm
Suitable for busbarsMaxi-PLS 45 S/45
ThreadM10


Product data sheet
Datasheet for Rittal 9640980, EAN: 4028177238824

Questions & answers

What is the delivery time of Rittal 9640980 Nuts M10, L=25 mm, for Maxi-PLS busbar?

The article Rittal 9640980 Nuts M10, L=25 mm, for Maxi-PLS busbar is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9640980 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9640980 Nuts M10, L=25 mm, for Maxi-PLS busbar always at the best possible price. We can give you a discount of 2% on Rittal 9640980 Nuts M10, L=25 mm, for Maxi-PLS busbar if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
