Rittal 9650990 Nuts M12, L=35 mm, for Maxi-PLS busbar

Your rating:
Average rating
product review for Rittal 9650990 Nuts M12, L=35 mm, for Maxi-PLS busbar
( 4.5 / 5 ) 13 ratings

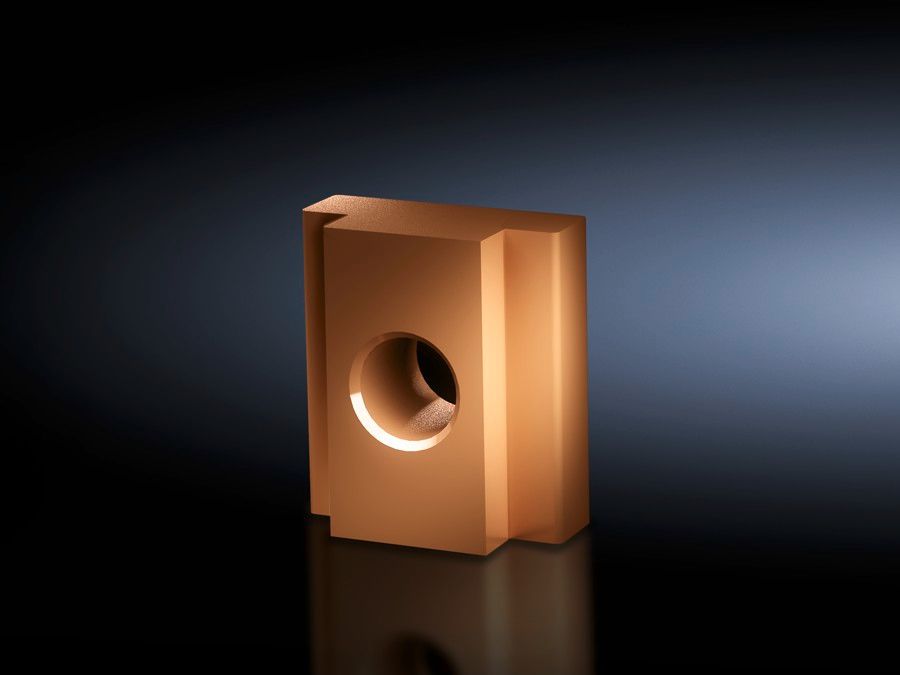

Rittal 9650990
This image may differ from the desired article.
Rittal 9650990Rittal 9650990
-12% 102,01 EUR 116,13 EUR
( 121,39 EUR incl. VAT )
≈ £85.28  |  ≈ $112.72
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 9650990 Nuts M12, L=35 mm, for Maxi-PLS busbar
Datasheet:file_download Download
Lieske Part No.:767784
Mfg Part No: 9650990
UPC/EAN: 4028177239739
Weight:0.884 kg
Type:SV 9650990

Product information for Rittal 9650990:

The article SV 9650990 from Rittal is a slot insert, specifically developed for the mounting of flat copper busbars and connection components on Maxi-PLS busbar systems. It serves as a connecting element that is inserted laterally into the profile of the busbar system to securely fix threaded bolts. The application is particularly in the field of power distribution in industrial enclosures, where a stable and reliable electrical connection is required.

Applications

The slot insert is designed for use in electrical distribution systems, particularly in enclosures with Maxi-PLS busbar systems. It enables the secure mounting of conductors, cable connections, or other components that are fastened to the busbar system using threaded bolts. The application is in industrial electrical engineering, where high mechanical loads and electrical conductivity are required.

Functions and Equipment in Detail

The slot insert is made of a copper alloy, ensuring high electrical conductivity and mechanical strength. The length is 35 mm, allowing sufficient anchoring in the busbar profile. The M12 thread is standardized and enables connection with compatible threaded bolts. The construction is designed so that the slot insert is inserted laterally into the profile of the Maxi-PLS 60 busbar system, enabling a secure and flexible mounting.

Technology Explained Simply

The copper alloy ensures low electrical resistance and high corrosion resistance, which is important for the long-term stability of the connection. The M12 thread is a common industrial standard, compatible with many standard bolts. The length of 35 mm ensures that the slot insert can be inserted deeply enough into the busbar profile to guarantee a secure mechanical connection. The lateral installation function allows for easy mounting without additional tools or drilling.

Compatibility and Accessories

The slot insert is specifically designed for Maxi-PLS 60 busbar systems. It is compatible with various threaded bolts, including connection bolts M12x80, used for mounting components to the busbar system. Additional compatible accessories include threaded bolts M6 and M8 with a length of 35 mm, intended for other Maxi-PLS models (e.g., Maxi-PLS1600/2000). The use of these bolts allows flexible adaptation to different mounting requirements.

Mounting and Installation

Mounting is done by laterally inserting the slot insert into the profile of the Maxi-PLS busbar system. Subsequently, the threaded bolt (e.g., M12x80) is screwed into the thread of the slot insert, securely fastening the component. The installation requires no additional tools or drilling, as the slot insert fits directly into the pre-formed profile. The packaging unit includes 15 pieces, sufficient for larger mounting projects.

Advantages in Operation

The use of the slot insert provides a reliable and durable connection between the busbar system and connected components. The copper alloy ensures high electrical conductivity, which is important for the efficiency of power distribution. The lateral mounting enables quick and easy installation, reducing mounting time. Compatibility with standard threaded bolts simplifies maintenance and component replacement during operation.

Certifications

The article is UL- and C-UL-certified (listed), confirming compliance with international safety and quality standards. These certifications are significant for use in industrial facilities, as they emphasize the reliability and safety of the product.

General
MaterialSliding block: copper alloy
Length35 mm
Suitable for busbarsMaxi-PLS 60
ThreadM12


Product data sheet
Datasheet for Rittal 9650990, EAN: 4028177239739
