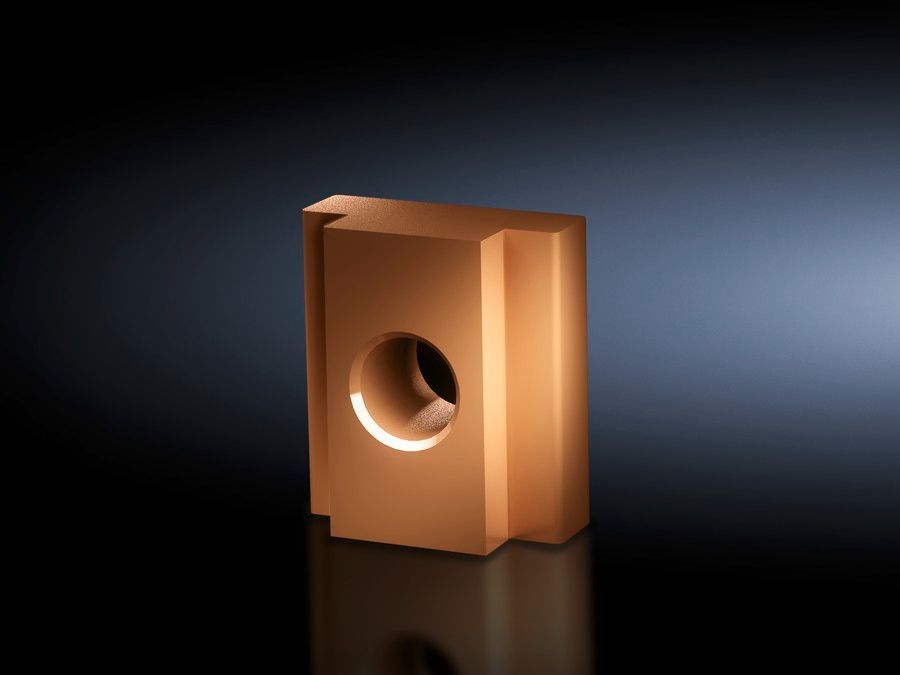

Rittal 9640970 T-slot nuts M8, L=20 mm, for busbar Maxi-PLS2
|
82,80 EUR |
|
|
( 98,53 EUR incl. VAT ) ≈ £69.22 | ≈ $91.49 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 762929 |
| Mfg Part No: | 9640970 |
| UPC/EAN: | 4028177238817 |
| Weight: | 0.276 kg |
| Type: | SV 9640970 |
Product information for Rittal 9640970:
Applications
The slot insert is intended for mounting in industrial enclosures, particularly in systems based on Maxi-PLS busbar technology. These systems are commonly used in electrical installation, automation technology, and power distribution. The component enables the secure fastening of copper busbars and other connection components, which are attached to the busbar via threaded bolts. Its use is typical in installations requiring high electrical loads and mechanical stability.
Functions and Equipment in Detail
The slot insert is made of a copper alloy designed for electrical conductivity and mechanical strength. Its length is 20 mm, providing sufficient insertion depth for secure anchoring in the busbar profile. The design allows for lateral insertion into the profile of the Maxi-PLS busbar, enabling quick and secure mounting without additional tools or drilling.
Technology Explained Simply
The copper alloy of the slot insert ensures good electrical conductivity, which is essential for power distribution. The shape of the slot insert is designed to fit precisely into the profile of the Maxi-PLS busbar, creating a firm connection. The M8 thread is a standard thread widely used in the electrical and mechanical engineering industries. The 20 mm length ensures the slot insert can be inserted deeply enough into the busbar profile to guarantee stable fastening.
Compatibility and Accessories
The slot insert is specifically designed for Maxi-PLS busbars of types 45 S/45, 1600, and 2000. The range also includes other connection bolts, such as M10x45, M10x55, M10x70, M10x80, as well as threaded bolts M6 and M8 in various lengths, suitable for connecting with other components. Combining these bolts with the slot insert allows for flexible mounting of various components onto the busbar.
Installation and Mounting
Mounting is done by laterally inserting the slot insert into the profile of the Maxi-PLS busbar. Subsequently, the M8 threaded bolt is screwed into the thread of the slot insert, securing the flat copper busbar or another connection component. Installation requires no additional drilling or tools, as the slot insert fits directly into the pre-formed profile. The packaging unit contains 15 pieces, sufficient for larger mounting projects.
Advantages in Operation
Using the slot insert enables quick and secure mounting of power distribution components. The use of copper alloy ensures good electrical conductivity and mechanical stability. Compatibility with Maxi-PLS busbars guarantees standardized and reliable integration into existing systems. The simple mounting without additional drilling reduces installation effort and increases efficiency when installing enclosures.
| General | |
| Material | Sliding block: copper alloy |
| Length | 20 mm |
| Suitable for busbars | Maxi-PLS 45 S/45 |
| Thread | M8 |
