Rittal 8618802 VX profile for cable entry, central, W: 1000 mm,

Your rating:
Average rating
product review for Rittal 8618802 VX profile for cable entry, central, W: 1000 mm,
( 4.3 / 5 ) 24 ratings

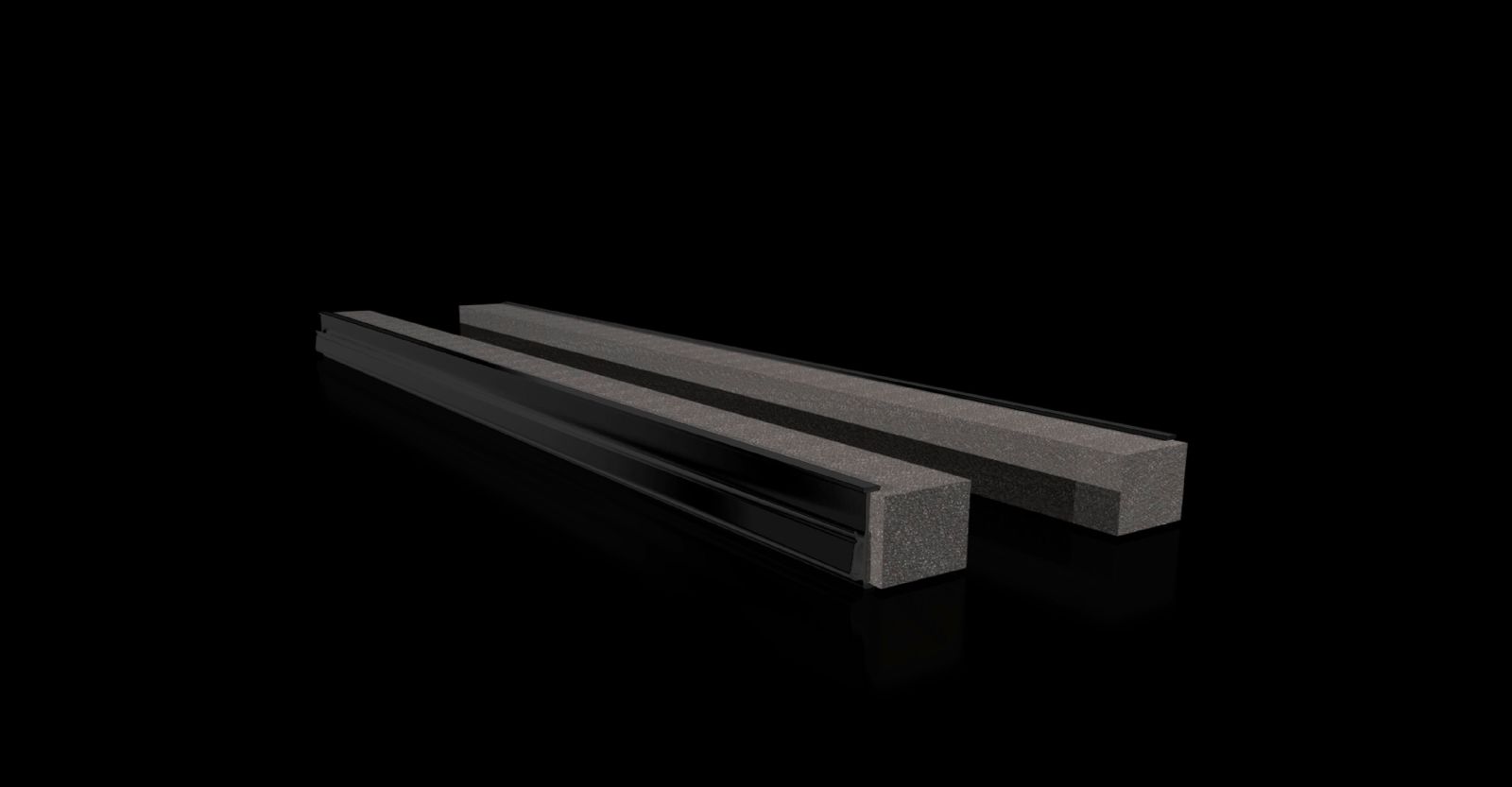

Rittal 8618802
This image may differ from the desired article.
Rittal 8618802Rittal 8618802Rittal 8618802
32,07 EUR 32,08 EUR
( 38,16 EUR incl. VAT )
≈ £26.84  |  ≈ $35.24
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 8618802 VX profile for cable entry, central, W: 1000 mm,
Datasheet:file_download Download
Lieske Part No.:1441952
Mfg Part No: 8618802
UPC/EAN: 4028177922761
Weight:0.28 kg
Type:VX 8618.802

Product information for Rittal 8618802:

The Rittal VX 8618.802 is a cable entry profile, specifically designed for enclosures with a width of 1000 mm. It serves as a snap-on profile on the base plates of enclosures and enables structured and sealed cable routing when installing the mounting plate in a pre-extended position. The profile is mounted directly onto the base plates, allowing cables to be routed directly to a strain relief rail without large bending radii. In combination with a strain relief rail, optimal alignment between the cable entry and the mounting plate is achieved.

Applications
This profile is intended for enclosures of type VX with a width of 1000 mm, including variants VX SE and console CX. It is snapped onto the base plates to ensure a stable and sealed connection for cable entry. From a cabinet width of 1000 mm, the base group is divided into two sections, allowing one cable entry point to be installed on each side (left/right). Two profiles are required for each cable entry point.

Functions and Features in Detail
The profile is made of rigid PVC, which is flame retardant and self-extinguishing. It is temperature resistant up to +60 °C, making it suitable for industrial environments. The sealing consists of PU foam, which ensures high sealing performance for cables introduced into the enclosure. The cross-sectional dimension is 30 x 25 mm, providing sufficient guidance for standard cables. The elastic clamp profiles included in the delivery ensure secure fastening and prevent cable displacement.

Technology Explained Simply
The profile’s construction allows for full-surface contact with the base plates, ensuring stable mounting and even load distribution. Cables are routed directly to the pre-extended mounting position, minimizing bending radii and reducing mechanical stress on the cables. The PU foam sealing provides effective sealing to keep moisture and dust out of the enclosure interior. The use of rigid PVC ensures high mechanical strength and resistance to chemical influences.

Compatibility and Accessories
The profile is compatible with enclosure types VX (width 1000 mm), VX SE, and console CX. It can be used in combination with a strain relief rail to achieve optimal cable guidance and securing. Suitable accessories include the C-profile rail 1=6 30/15 EN60715 TS/SE L955mm for BT1000mm and the VX strain relief rail, angle profile, W: 1000 mm. These components complement the profile and support structured cable routing within the enclosure.

Installation and Mounting
Mounting is done by snapping the profile onto the designated base plates. The elastic clamp profiles included in the delivery facilitate fastening and ensure a secure connection. Installation is simple and requires no additional tools. The pre-extended mounting position of the mounting plate allows for direct cable routing, reducing installation time.

Operational Advantages
The profile offers easy installation and high sealing performance for introduced cables, increasing the reliability of the enclosure. The full-surface contact ensures stable fastening, and the use of rigid PVC guarantees long service life under industrial conditions. Combined with a strain relief rail, it enables structured and clear cable routing, simplifying maintenance and inspection. The materials are designed for industrial applications and offer sufficient resistance to mechanical stress and environmental influences.

General
ApplicationsFor mounting on floor plates
MaterialRigid PVC, Flame retardant, self-extinguishing, temperature resistant up to +60 °C, Seal: PU foam, Cross-section: 30 x 25 mm
Scope of deliveryClip-on profiles, including elastic clamp profiles
NoteTwo pieces required per cable entry point. For cabinet width 1000 mm and above, the base group is divided into two width sections. Two cable entry points (left/right) can be used.
Suitable forHousing type: VX: = 1,000 mm, housing type: VX SE, housing type: CX console


Product data sheet
Datasheet for Rittal 8618802, EAN: 4028177922761

Questions & answers

What is the delivery time of Rittal 8618802 VX profile for cable entry, central, W: 1000 mm, ?

The article Rittal 8618802 VX profile for cable entry, central, W: 1000 mm, is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8618802 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8618802 VX profile for cable entry, central, W: 1000 mm, always at the best possible price. We can give you a discount of 2% on Rittal 8618802 VX profile for cable entry, central, W: 1000 mm, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
