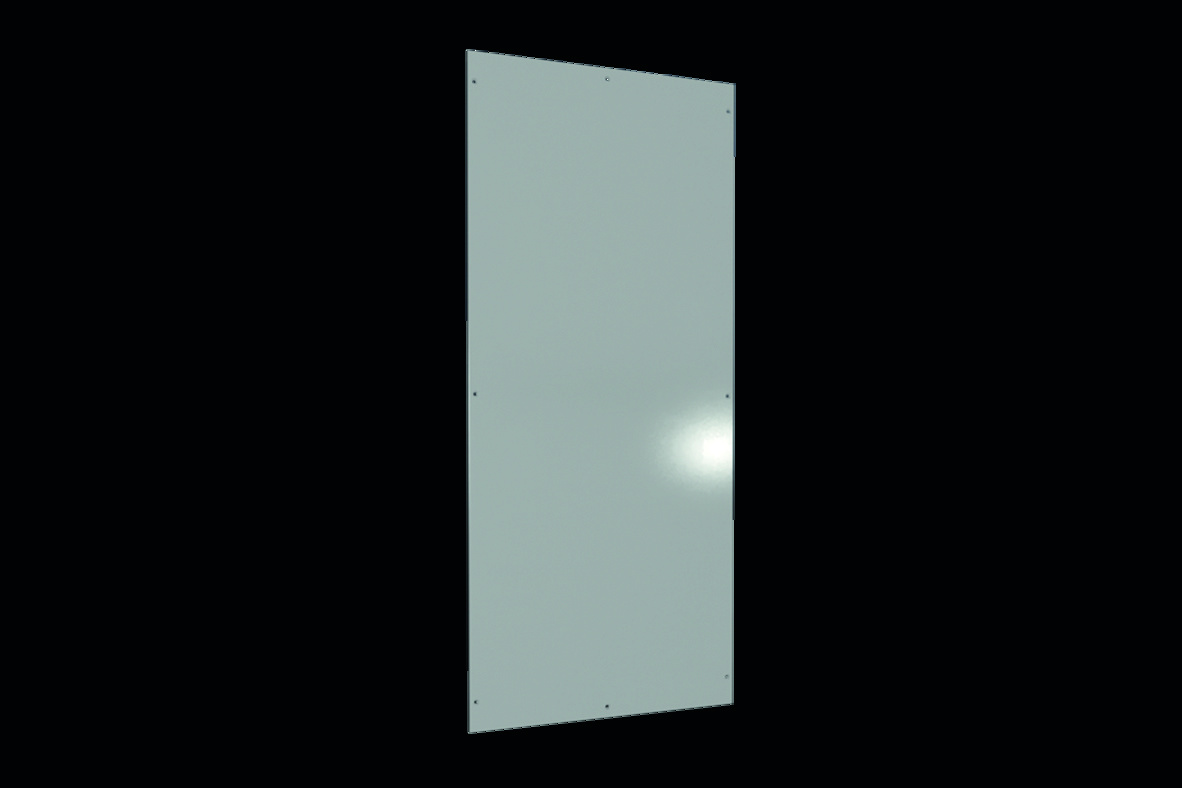

Rittal 8120245 VX side panel, screwable, for 2200x1000 mm (freight shipping)

Your rating:
Average rating
product review for Rittal 8120245 VX side panel, screwable, for 2200x1000 mm (freight shipping)
( 4.7 / 5 ) 3 ratings
Rittal 8120245
This image may differ from the desired article.
Rittal 8120245Rittal 8120245Rittal 8120245Rittal 8120245
424,81 EUR
( 505,52 EUR incl. VAT )
≈ £355.57  |  ≈ $466.87
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 8120245 VX side panel, screwable, for 2200x1000 mm (freight shipping)
Datasheet:file_download Download
Lieske Part No.:1910672
Mfg Part No: 8120245
UPC/EAN: 4028177921597
Weight:52.2 kg
Type:VX 8120245

Product information for Rittal 8120245:

The Rittal VX 8120245 is a screw-mounted side panel made of sheet steel, specifically designed for enclosures of type VX IT with a height of 2,200 mm and a depth of 1,000 mm. The component serves as a stable closure for the side surfaces of industrial enclosures and ensures secure and durable installation. The side panel is made of 1.5 mm thick sheet steel, which is dip-primed and externally powder-coated, achieving high corrosion resistance and uniform surface quality. The color is RAL 7035, a standard gray tone commonly used in industrial electrical engineering. The protection rating IP 55 according to IEC 60 529 provides protection against dust and splashing water, enabling use in indoor environments as well as in areas with increased humidity or light contamination. Additionally, the product complies with Type ratings Type 1 and Type 12 according to UL 50E, confirming suitability for dry indoor spaces and environments with light contamination.

Applications

The side panel is intended for use in industrial enclosures, particularly in electrical, automation, and IT infrastructure systems. It is used in enclosures of the VX IT system, which is designed for modular and flexible configurations. The dimensions of 2,200 mm height and 1,000 mm depth correspond to standard enclosures of this series. The robust construction makes it suitable for applications in production plants, factories, power supply systems, and other industrial environments where high mechanical stability and environmental resistance are required.

Functions and Equipment in Detail

The side panel is mounted by screwing, with the use of clip-on side panel holders reducing installation time. The holders allow for quick and precise fastening without additional tools. An integrated flat part holder with internal contact elements ensures automatic equipotential bonding and enhances EMC protection by providing a secure electrical connection between the side panel and the enclosure body. The hanging aid facilitates precise positioning in height and depth, simplifying installation even for a single person. The earthing bolts feature a large, paint-free contact surface, ensuring optimal electrical connection and reliable earthing contact.

Technology Explained Simply

The use of 1.5 mm thick sheet steel provides sufficient mechanical strength to protect the side panel against external influences such as mechanical loads or vibrations. The dip priming and external powder coating protect the material from corrosion and ensure a long service life. The IP 55 protection rating means the side panel is protected against dust and splashing water, making it suitable for use in damp or lightly contaminated environments. The Type ratings Type 1 and Type 12 according to UL 50E confirm suitability for dry indoor spaces and environments with light contamination, with Type 12 fulfilling additional protection requirements for splashing water and dust.

Compatibility and Accessories

The side panel is specifically designed for enclosures of type VX IT with dimensions of 2,200 mm height and 1,000 mm depth. As compatible accessories, the VX internal locking mechanism for side panel, galvanized, is offered, which enables additional securing of the side panel. The locking mechanism can be used to prevent unauthorized access or to improve mechanical stability. The side panel is part of a modular system that allows flexible adaptation to different requirements.

Installation and Mounting

Installation is done by screwing, using the included mounting materials. The clip-on side panel holders enable time-saving installation, while the hanging aid facilitates precise positioning in height and depth. Single-person installation is possible, as the construction and mounting elements are designed so that no additional tools or multiple people are required. The earthing bolts ensure a secure electrical contact, which is important for EMC protection and earthing of the enclosure.

Operational Advantages

The side panel offers high mechanical stability and long service life due to robust materials and corrosion-resistant surface treatment. The quick mounting and easy positioning reduce installation time and lower labor effort. The automatic equipotential bonding and enhanced EMC protection ensure a safe and reliable electrical connection, increasing the operational safety of the enclosure. The IP 55 protection rating and UL Type ratings guarantee suitability for a wide range of industrial operating conditions, making the side panel highly versatile. The use of standardized mounting elements and modular construction facilitates maintenance and replacement during operation.

General
MaterialSheet steel, 1.5 mm
Surface protectionDip-coated, powder-coated exterior
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Suitable forCabinet type: VX IT, height: = 2.200 mm, depth: = 1.000 mm
Degree of protection IP according to IEC 60 529IP 55
Type rating according to UL 50EType 1, Type 12
Base materialsteel sheet
PCF/VE (Cradle-to-Gate)153.33 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 8120245, EAN: 4028177921597

Questions & answers

What is the delivery time of Rittal 8120245 VX side panel, screwable, for 2200x1000 mm (freight shipping)?

The article Rittal 8120245 VX side panel, screwable, for 2200x1000 mm (freight shipping) is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8120245 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8120245 VX side panel, screwable, for 2200x1000 mm (freight shipping) always at the best possible price. We can give you a discount of 2% on Rittal 8120245 VX side panel, screwable, for 2200x1000 mm (freight shipping) if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
