Rittal 5302166 VX IT depth brace for 48,3 cm ( 19 inch ) stand/dyn 600x1200 mm

Your rating:
Average rating
product review for Rittal 5302166 VX IT depth brace for 48,3 cm ( 19 inch ) stand/dyn 600x1200 mm
( 4.3 / 5 ) 3 ratings

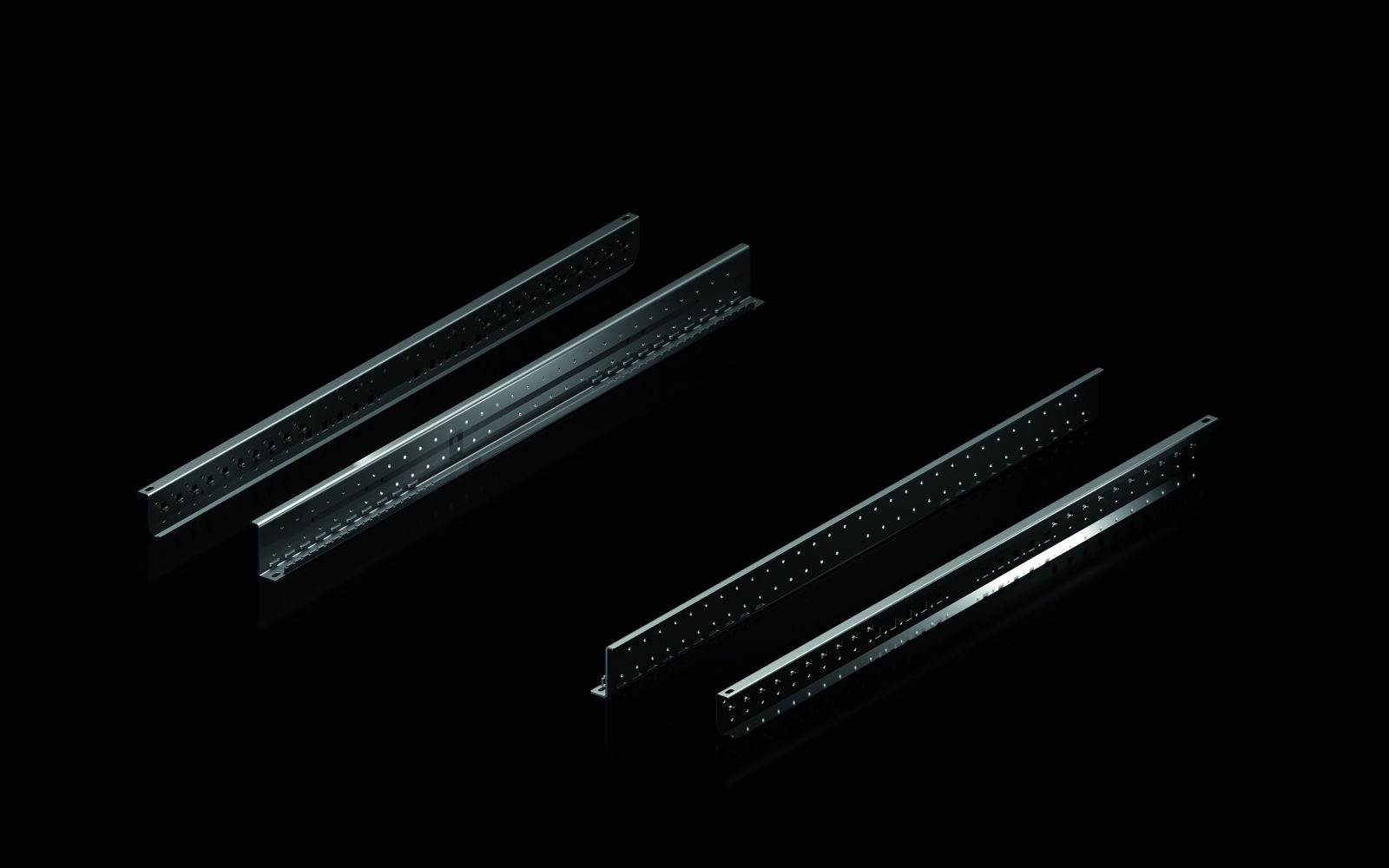

Rittal 5302166
This image may differ from the desired article.
Rittal 5302166Rittal 5302166
-23% 48,07 EUR 62,12 EUR
( 57,20 EUR incl. VAT )
≈ £40.23  |  ≈ $52.83
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 5302166 VX IT depth brace for 48,3 cm ( 19 inch ) stand/dyn 600x1200 mm
Datasheet:file_download Download
Lieske Part No.:1910622
Mfg Part No: 5302166
UPC/EAN: 4028177955608
Weight:3.652 kg
Type:VXIT 5302166

Product information for Rittal 5302166:

The VXIT 5302166 depth brace from Rittal is a component for securing 482.6 mm (48,3 cm ( 19 inch )) profile rails in VX IT enclosure housings. It ensures secure mounting of inch-based profile rails and enables the use of server or IT components based on these standards. The brace is specifically designed for enclosures with a width of 600 mm and a depth of 1,200 mm and is made of sheet steel with a lacquered surface in RAL 9005. The design is compatible with VX IT 48,3 cm ( 19 inch ) profile rails in standard and dynamic variants.

Applications
The depth brace is used in IT and server enclosures where stable mounting of profile rails is required. It is particularly suitable for use in VX IT housings designed for IT infrastructure installation. The construction allows for alternative expansion with components in 53,3 cm ( 21 inch ), 58,4 cm ( 23 inch ) or 61 cm ( 24 inch ) formats, offering flexibility in device selection. The brace also supports integration of Liquid Cooling Units (LCU), especially with asymmetric, single-sided mounting, creating additional space for cable routing or cooling.

Functions and Equipment in Detail
The depth brace offers a particularly high load capacity up to 15,000 N, ensuring secure mounting even for heavy devices. The increased stability results from improved load distribution, evenly spreading the load across the brace. Mounting is possible both symmetrically and asymmetrically, facilitating adaptation to different enclosure configurations and device arrangements. The delivery includes the depth braces and the required mounting hardware.

Technology Explained Simply
The construction from sheet steel ensures high mechanical strength. The lacquered surface in RAL 9005 provides protective and visually uniform finishing, integrating well into standardized IT infrastructures. The depth brace is designed for enclosures with an exact depth of 1,200 mm and a width of 600 mm. For enclosures with a depth over 1,000 mm and a width over 600 mm, an additional support rail for VX IT is required to ensure secure mounting of profile rails.

Compatibility and Accessories
The depth brace is specifically designed for VX IT housings in Standard and Dynamic versions. It is compatible with 48,3 cm ( 19 inch ) profile rails in standard and dynamic variants. As suitable accessories, the support rail for VX IT is offered, which is additionally required for enclosures with greater depth or width to ensure stability of the profile rails.

Mounting and Installation
Mounting is done using the included mounting hardware. The braces are attached at the designated mounting points in the enclosure, with mounting possible both symmetrically and asymmetrically. For enclosures with a depth over 1,000 mm and a width over 600 mm, the additional use of the support rail for VX IT is required to ensure the necessary stability.

Operational Advantages
The depth brace offers high mechanical stability and load capacity, increasing safety when mounting heavy IT components. The option for asymmetric mounting provides flexibility in device arrangement and enables integration of cooling or cable routing systems. Compatibility with various profile rail variants and IT components in different formats increases adaptability to various infrastructure concepts. The use of sheet steel with a lacquered surface ensures a durable and low-maintenance construction.

The packaging unit includes 2 pieces of depth braces. The net weight is 3.5 kg, the gross weight 3.652 kg. Product identification is via manufacturer number 5302166 and EAN 4028177955608. The PCF value (Cradle-to-Gate) is 27.1 kg CO2 eq (Category B), with the value approximately calculated and self-declared based on product weight.

The depth brace is an integral part of VX IT modular systems and supports flexible and stable integration of IT infrastructure in standardized enclosure housings.

General
Modelfor VX IT 19"-profile rail standard, for VX IT 19"-profile rail dynamic
Materialsteel sheet
Surface protectionPainted
ColourRAL 9005
Scope of deliveryDepth braces, including fastening material
Mounting noteFor mounting profile rails in cabinets with depth >1000 mm and width >600 mm, the VX IT support rail is additionally required
Suitable forHousing type: VX IT, Standard, VX IT, Dynamic, width: = 600 mm, depth: = 1,200 mm
PCF/VE (Cradle-to-Gate)27.1 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302166, EAN: 4028177955608

Questions & answers

What is the delivery time of Rittal 5302166 VX IT depth brace for 48,3 cm ( 19 inch ) stand/dyn 600x1200 mm?

The article Rittal 5302166 VX IT depth brace for 48,3 cm ( 19 inch ) stand/dyn 600x1200 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302166 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302166 VX IT depth brace for 48,3 cm ( 19 inch ) stand/dyn 600x1200 mm always at the best possible price. We can give you a discount of 2% on Rittal 5302166 VX IT depth brace for 48,3 cm ( 19 inch ) stand/dyn 600x1200 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
