Rittal 5302157 VX IT 48,3 cm ( 19 inch ) profile rails, dynamic, rear, 47 U

Your rating:
Average rating
product review for Rittal 5302157 VX IT 48,3 cm ( 19 inch ) profile rails, dynamic, rear, 47 U
( 5 / 5 ) 1 ratings

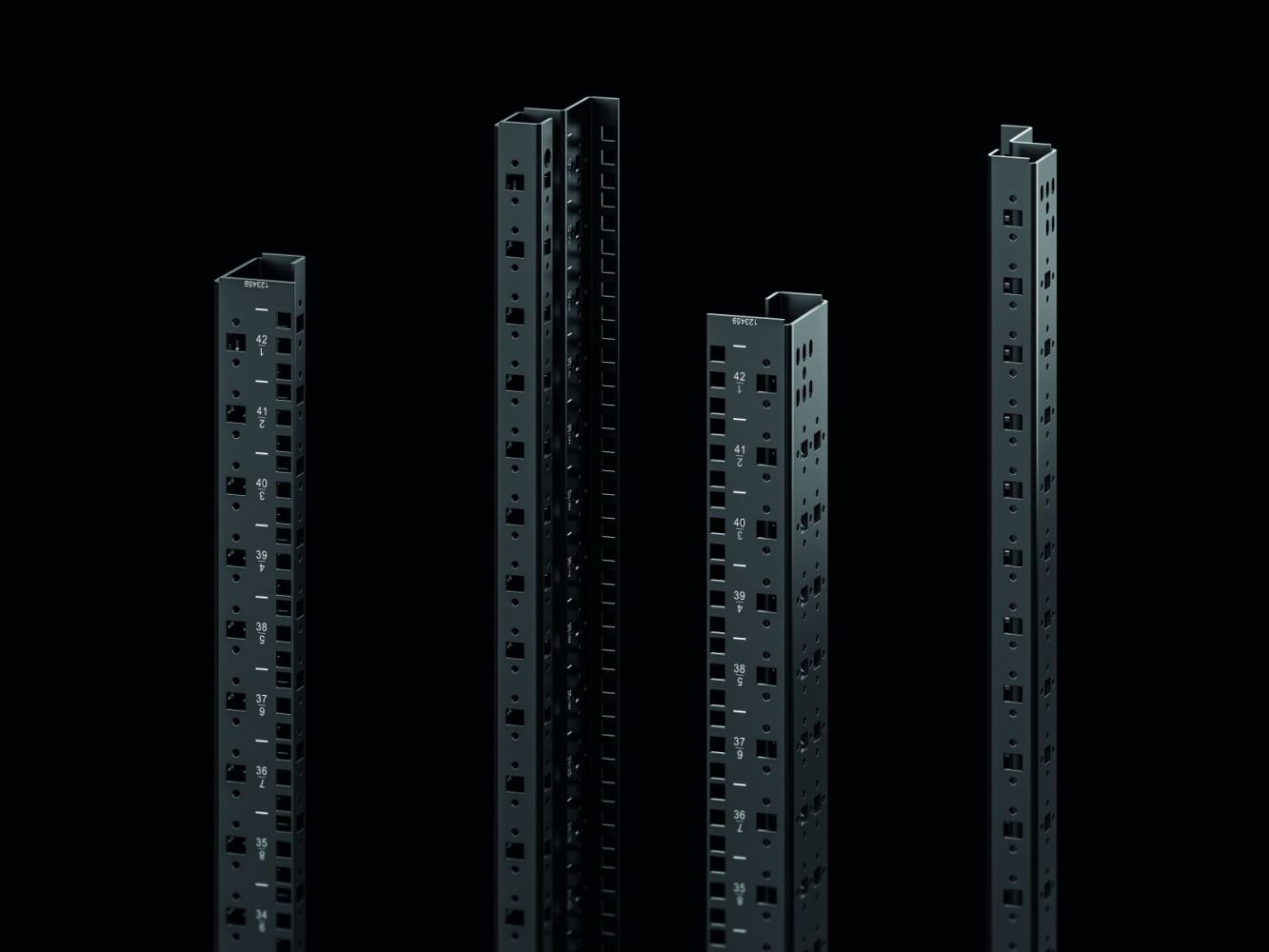

Rittal 5302157
This image may differ from the desired article.
-10% 117,30 EUR 130,85 EUR
( 139,59 EUR incl. VAT )
≈ £98.18  |  ≈ $128.91
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 5302157 VX IT 48,3 cm ( 19 inch ) profile rails, dynamic, rear, 47 U
Datasheet:file_download Download
Lieske Part No.:593608
Mfg Part No: 5302157
UPC/EAN: 4028177960039
Weight:14.9 kg
Type:VX 5302157

Product information for Rittal 5302157:

Rittal profile rails dynamic, type VX 5302157, are specifically designed for use in the VX IT enclosure system and serve to create an inch-based mounting plane in the rear area of the enclosure. The rails have a width of 482.6 mm (19 inch) and are designed for enclosures with a height of 47 U (equivalent to 2,200 mm). They are made of steel sheet with a thickness of 2.5 mm and feature a primed surface finish in the colour RAL 9005. The L-shaped construction allows for direct mounting of installation kits for server systems, which are secured to the 48,3 cm ( 19 inch )-system hole pattern.

Applications
These profile rails are intended for use in the VX IT enclosure system, particularly for creating an inch-based mounting plane or for partial inch-based installations. They are suitable for installing servers, network devices, and other IT components that are mounted on an inch-based mounting plane. The installation position is at the rear, enabling optimal use of the rear enclosure area.

Functions and Equipment in Detail
The rails feature integrated, bidirectional U labelling, enabling precise positioning and orientation of mounted devices. System hole patterns in the U grid are integrated into front and side surfaces, supporting U-based mounting of cable management elements for structured cabling. The side round and square hole patterns in the U grid allow flexible attachment of accessories. Equipotential bonding within the mounting plane and with the frame is achieved via the mounting elements.

Technology Explained Simply
The inch-based mounting hole pattern corresponds to standard EIA 310 E and includes a U centre mounting, ensuring compatibility with common IT and server components. The rails are made of steel sheet, providing sufficient strength for mounting heavy equipment. The priming protects the material from corrosion and ensures a uniform surface suitable for mounting. The colour RAL 9005 is a dark grey standard tone that integrates well into IT infrastructures.

Compatibility and Accessories
The profile rails are designed for use with various mounting elements in the VX IT system. Mounting requires combinations with cross braces, depth braces, or mounting brackets. The choice of mounting options depends on the specific enclosure dimensions. Suitable accessories include, among others, VX IT depth braces for 48,3 cm ( 19 inch ) dynamic and standard, VX IT cross braces, and mounting brackets for various widths. Installation options include alternative mounting widths from 53,3 cm ( 21 inch ) to 61 cm ( 24 inch ), depending on the chosen mounting method and enclosure dimensions.

Mounting and Installation
Mounting of the profile rails takes place in the rear area of the VX IT enclosure. A combination with a cross brace, depth brace, or mounting bracket is necessary to secure the rails. The exact selection of mounting elements depends on the dimensions of the respective enclosure. The delivery includes mounting materials required for installation.

Operational Advantages
The profile rails provide a stable and standard-compliant mounting base for IT components in the VX IT system. The integrated U labelling and system hole patterns in the U grid facilitate structuring and documentation of the installation. The inch-based mounting hole pattern according to EIA 310 E ensures compatibility with a wide range of devices. The use of primed steel sheet ensures a durable and low-maintenance construction. The possibility to realise alternative mounting widths from 53,3 cm ( 21 inch ) to 61 cm ( 24 inch ) offers flexibility in planning and adapting to different requirements.

General
Technical dataside round and square holes in HE grid, potential equalisation within the mounting plane and with the mounting frame is achieved via the fastening elements, inch-sized fastening holes including HE centre mounting according to standard EIA 310 E
ApplicationsFor creating a standard mounting surface within the VX IT enclosure system
MaterialSheet steel, 2.5 mm
Surface protectionPrimed
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Installation positionBack side
Mounting optionsAlternative mounting widths of 21" – 24", depending on chosen mounting method and housing dimensions
Mounting noteFor mounting, a combination with cross brace, depth brace, or mounting angle is required. The use of different mounting options depends on the respective housing dimensions.
Suitable forHeight: = 47 U, = 2,200 mm
PCF/VE (Cradle-to-Gate)56.8 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302157, EAN: 4028177960039
