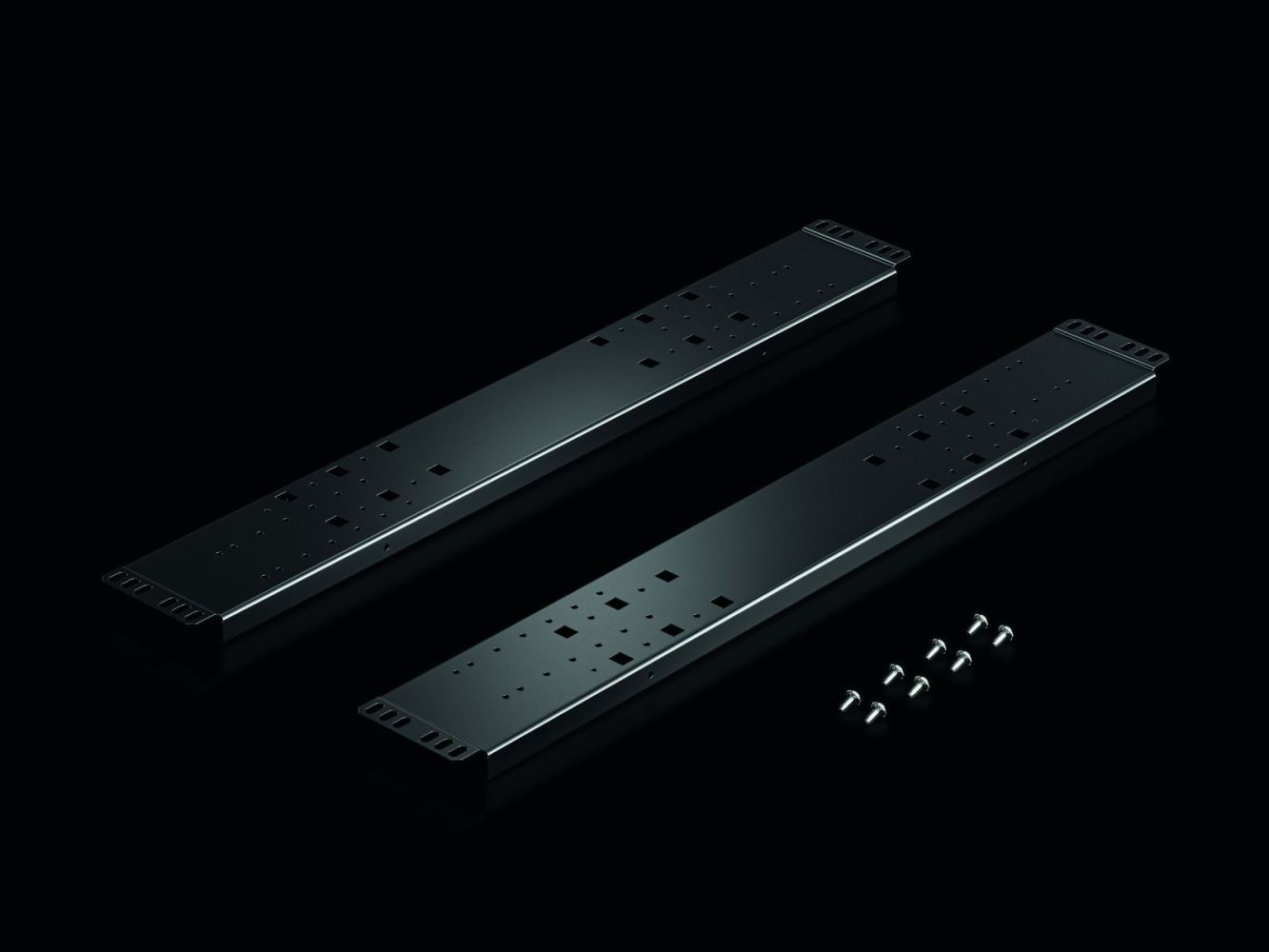

Rittal 5302168 VX IT cross brace for 48,3 cm ( 19 inch ) dynamic in VX IT network
|
-10% 97,41 EUR 108,65 EUR |
|
|
( 115,92 EUR incl. VAT ) ≈ £81.53 | ≈ $107.05 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 602600 |
| Mfg Part No: | 5302168 |
| UPC/EAN: | 4028177970847 |
| Weight: | 6.3 kg |
| Type: | VX_IT 5302168 |
Product information for Rittal 5302168:
Applications
The cross brace is intended for use in VX IT enclosures with a width of at least 800 mm. It enables symmetrical or asymmetrical installation of profile rails, creating additional space for cable routing or integration of a Liquid Cooling Unit (LCU). Particularly advantageous is its use in alternative installation scenarios with 53,3 cm ( 21 inch ), 58,4 cm ( 23 inch ), or 61 cm ( 24 inch ) components, as the brace supports flexible positioning of the mounting plane. Asymmetrical installation can also contribute to optimizing airflow within the enclosure, especially when air baffle plates are used to cover the surrounding area around the mounting plane.
Functions and Equipment in Detail
The brace is designed for mounting at the underside of the profile rails. The maximum load capacity is 7,500 N per mounting plane, equating to a total load of 15,000 N per enclosure. This load capacity ensures stable mounting even with heavy or numerous components.
Technology Explained Simply
The construction from sheet steel ensures high mechanical stability and load-bearing capacity. The lacquered surface in RAL 9005 provides a uniform, dirt-repellent protection and matches the standard color palette of VX IT enclosures. The depth- and width-variable mounting allows individual adjustment of the mounting position, which is beneficial when integrating various components or optimizing airflow within the enclosure. Direct mounting to the frame structure ensures secure and vibration-resistant installation.
Compatibility and Accessories
The cross brace is specifically designed for the VX IT 48,3 cm ( 19 inch ) profile rail dynamic. For mounting the profile rails to the brace, mounting brackets for VX IT 48,3 cm ( 19 inch ) profile rails (part number 5302169) are required. The top side of the profile rails is complemented by another cross brace (part number 5302167), designed for the standard profile rail. The combination of both braces enables complete mounting of the profile rails within the enclosure.
Mounting and Installation
Mounting is done directly to the frame structure of the VX IT enclosure. The brace is exclusively intended for the underside of the profile rails. Installation requires the use of mounting brackets (5302169) to securely attach the profile rails to the brace.
Operational Advantages
The flexible mounting allows optimized use of the enclosure volume, especially with asymmetrical arrangements, creating additional space for cables or cooling components. The high load capacity of 7,500 N per mounting plane ensures secure mounting even with heavy equipment. Integration of air baffle plates supports energy efficiency in integrated rack climate control by directing cooling airflow and reducing exhaust air currents. The use of RAL 9005 ensures uniform visual design within the enclosure environment.
| General | |
| Model | for VX IT 19" profile rail dynamic |
| Material | steel sheet |
| Surface protection | Painted |
| Colour | RAL 9005 |
| Scope of delivery | Including mounting hardware |
| Load capacity | The maximum load capacity of a mounting level on this crossbar is 7,500 N per mounting level or 15,000 N per cabinet. |
| Mounting note | Mounting is directly to the frame structure. Installation is only on the underside of the profile rails. On the top side, use cross-braces for VX IT profile rail standard 5302167. To screw the profile rails to the cross-braces, additional mounting brackets for VX IT 19" profile rails 5302169 are required. |
| Suitable for | Enclosure type: VX IT, width: = 800 mm |
| PCF/VE (Cradle-to-Gate) | 13.3 kg CO2 eq (Cat B) |
| Note on PCF class | Category B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared |
