Rittal 5302156 VX IT 48,3 cm ( 19 inch ) profile rails, dynamic, front, 47 U

Your rating:
Average rating
product review for Rittal 5302156 VX IT 48,3 cm ( 19 inch ) profile rails, dynamic, front, 47 U
( 0 / 5 ) 0 ratings
Rittal 5302156

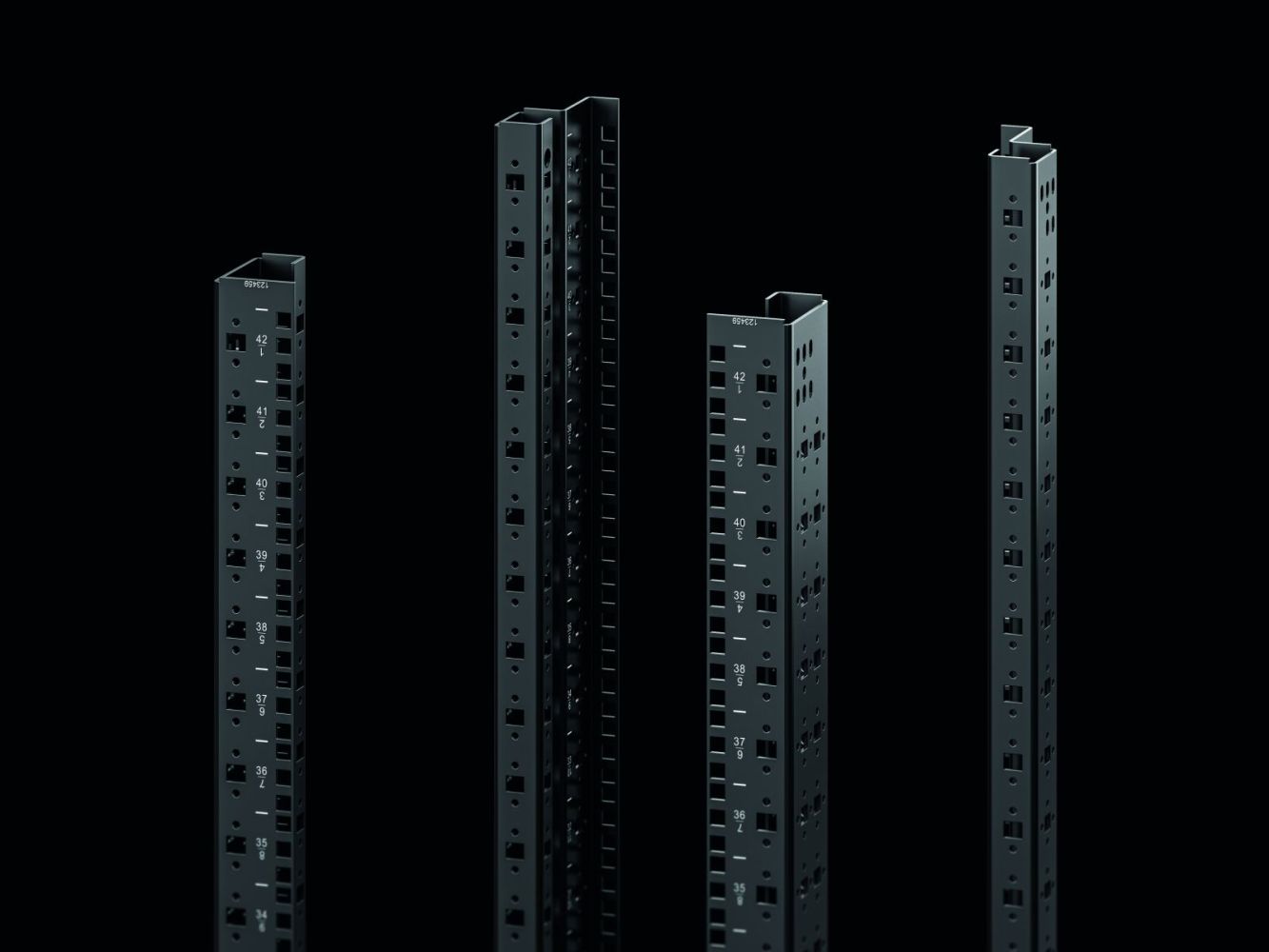

This image may differ from the desired article.
-10% 118,11 EUR 130,85 EUR
( 140,55 EUR incl. VAT )
≈ £98.86  |  ≈ $129.80
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 5302156 VX IT 48,3 cm ( 19 inch ) profile rails, dynamic, front, 47 U
Datasheet:file_download Download
Lieske Part No.:593607
Mfg Part No: 5302156
UPC/EAN: 4028177960046
Weight:13.26 kg
Type:VX 5302156

Product information for Rittal 5302156:

The Rittal profile rails dynamic, type VX 5302156, are specifically designed for use in the VX IT enclosure system and serve to create an inch-based mounting plane. These 19 inch profiles enable the installation of server systems and other mounting kits that are secured to the standardized 48,3 cm ( 19 inch ) mounting hole pattern. The L-shaped design ensures direct and stable mounting of devices, with the rails designed for a cabinet height of 47 U (equivalent to 2,200 mm). The installation position is at the front, making them ideal for the front area of IT enclosures.

Applications include inch-based partial installation and complete mounting plane within the VX IT system. The rails are designed for integration into IT infrastructures where structured and standardized mounting of servers, network devices, or other 48,3 cm ( 19 inch ) components is required. The integrated, bidirectional U marking facilitates orientation and planning of the installation, as device positioning within the enclosure is clearly visible.

Functions and equipment in detail include side round and square holes in the U grid, enabling flexible mounting of cable management elements and other accessories. The inch-based mounting hole pattern corresponds to standard EIA 310 E and includes a U center mounting, ensuring compatibility with common IT systems. Equipotential bonding within the mounting plane and with the mounting frame is achieved via the mounting elements, ensuring a secure electrical connection.

Technology explained simply shows that the rails are made of sheet steel with a thickness of 2.5 mm, ensuring high mechanical stability and durability. The surface is primed and finished in RAL 9005, providing a corrosion-resistant and uniform coating. The rails are suitable for installation widths from 53,3 cm ( 21 inch ) to 61 cm ( 24 inch ), with the exact width depending on the chosen mounting method and the dimensions of the enclosure.

Compatibility and accessories require combination with additional mounting elements such as cross brace, depth brace, or mounting bracket to securely fix the rails in the enclosure. The choice of mounting options depends on the specific dimensions of the VX IT enclosure. Compatible accessories include, for example, the VX IT depth brace for 48,3 cm ( 19 inch ) dynamic 700/800 x1200 mm, the VX IT cross brace for 48,3 cm ( 19 inch ) dynamic in VX IT network, and mounting brackets for 48,3 cm ( 19 inch ) dynamic with a width of 600 mm.

Installation and mounting require the use of the mentioned mounting elements to securely fix the rails in the enclosure. Installation takes place at the front of the enclosure, with exact positioning and mounting technique depending on the specific enclosure configuration. The rails are designed for stable and secure mounting, with integrated holes and material thickness ensuring load capacity.

Operational advantages lie in high compatibility with standardized IT systems, easy installation, and structured cabling options. The integrated U marking and inch-based hole pattern facilitate planning and maintenance of IT infrastructure. The rails are designed for use in professional IT environments where reliability and standard compliance are critical.

The Rittal profile rails dynamic are thus a reliable solution for creating an inch-based mounting plane in the VX IT system, with a focus on stability, standard compliance, and easy integration into existing IT infrastructures.

General
Technical dataside round and square holes in HE grid, potential equalisation within the mounting plane and with the mounting frame is achieved via the fastening elements, inch-sized fastening holes including HE centre mounting according to standard EIA 310 E
ApplicationsFor creating a standard mounting surface within the VX IT enclosure system
MaterialSheet steel, 2.5 mm
Surface protectionPrimed
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Installation positionFront side
Mounting optionsAlternative mounting widths of 21" – 24", depending on chosen mounting method and housing dimensions
Mounting noteFor mounting, a combination with cross brace, depth brace, or mounting angle is required. The use of different mounting options depends on the respective housing dimensions.
Suitable forHeight: = 47 U, = 2,200 mm
PCF/VE (Cradle-to-Gate)50.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302156, EAN: 4028177960046
