Rittal 5302164 VX IT depth brace for 48,3 cm ( 19 inch ) dynamic 700/800 x1200 mm

Your rating:
Average rating
product review for Rittal 5302164 VX IT depth brace for 48,3 cm ( 19 inch ) dynamic 700/800 x1200 mm
( 4 / 5 ) 1 ratings
Rittal 5302164

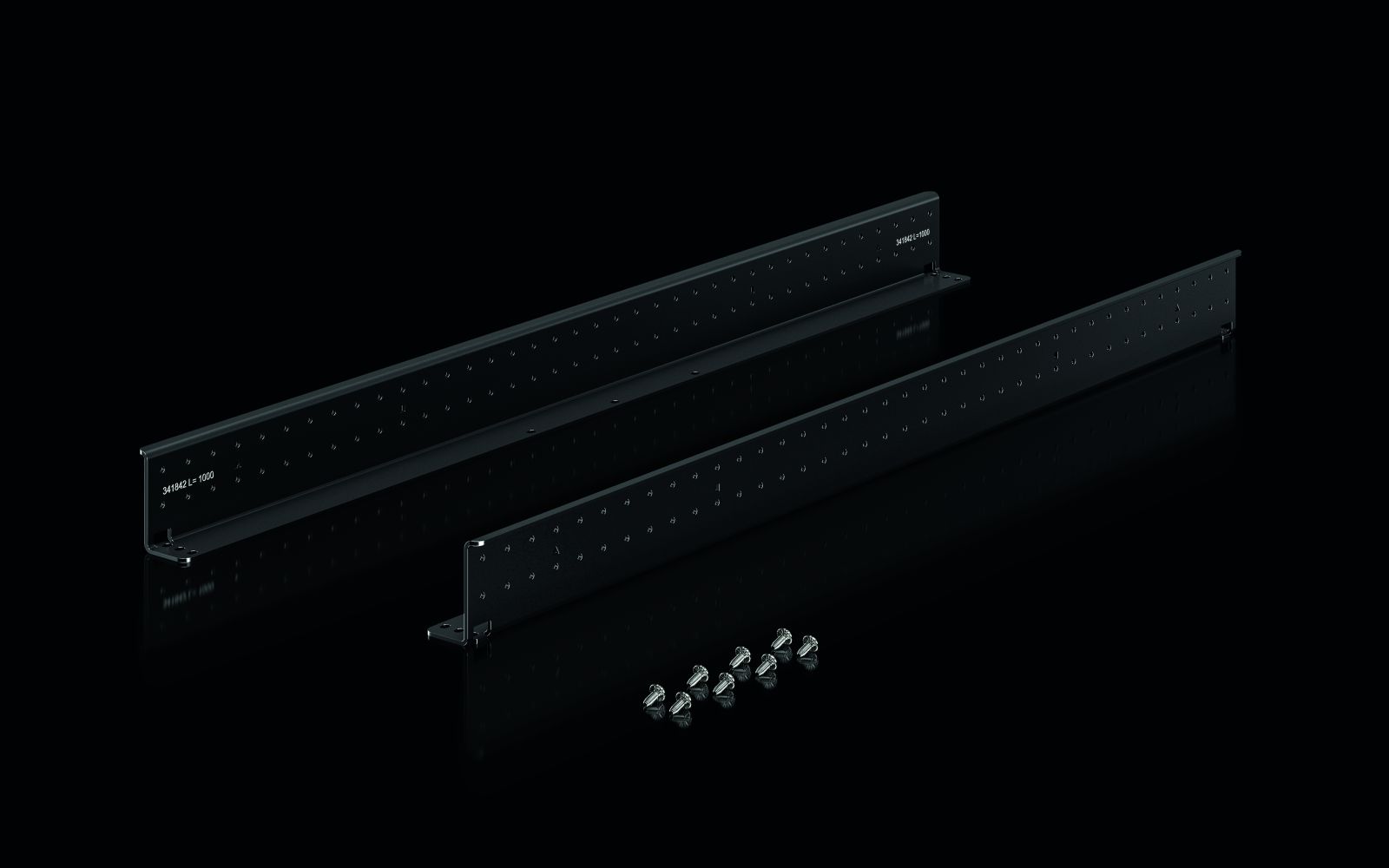

This image may differ from the desired article.
Rittal 5302164Rittal 5302164
-10% 105,23 EUR 117,38 EUR
( 125,22 EUR incl. VAT )
≈ £88.08  |  ≈ $115.65
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 5302164 VX IT depth brace for 48,3 cm ( 19 inch ) dynamic 700/800 x1200 mm
Datasheet:file_download Download
Lieske Part No.:593612
Mfg Part No: 5302164
UPC/EAN: 4028177955592
Weight:12.5 kg
Type:VX IT 5302164

Product information for Rittal 5302164:

The VX IT 5302164 depth brace from Rittal is an accessory for 48,3 cm ( 19 inch ) profile rails in the VX IT Dynamic system, specifically designed for enclosures with a width greater than 600 mm and a depth of exactly 1200 mm. The product is made of sheet steel and is painted in RAL 9005, providing a robust and visually uniform surface for use in server and IT infrastructures. The depth brace ensures secure mounting of inch-based profile rails and enables the integration of mounting kits for server systems. The delivery includes four depth braces – two for the upper and two for the lower mounting level – as well as the required mounting hardware.

Applications

The depth brace is designed for use in VX IT Dynamic enclosures, particularly in configurations with increased depth (1200 mm) and width (>600 mm). It is used to ensure the stability of profile rails in larger enclosure dimensions, especially when the enclosure depth exceeds 1000 mm. In such cases, the support rail for VX IT is additionally required to optimize load distribution and ensure secure mounting.

Functions and Equipment in Detail

The depth brace offers a particularly high load capacity of up to 15,000 N, enabling secure mounting even for heavy IT components. The improved load distribution ensures increased stability and prevents deformation or displacement of the profile rails. Mounting can be done symmetrically or asymmetrically, with a one-sided, offset installation providing additional space for cable routing or integration of a Liquid Cooling Unit (LCU). This is particularly advantageous for complex cooling systems or when placing cable trees inside the enclosure.

Technology Explained Simply

The depth brace is made of sheet steel and features a durable paint finish in RAL 9005, which resists corrosion and mechanical stress during operation. The construction is tailored to the specific dimensions of VX IT Dynamic enclosures, ensuring precise fit and secure anchoring. Mounting is done using the included fastening materials, designed for connection to the enclosure walls. The maximum load of 15,000 N is designed for use in professional IT environments where high mechanical loads from heavy equipment may occur.

Compatibility and Accessories

The depth brace is specifically developed for the VX IT Dynamic system and adapts to the dimensions of enclosures with a width greater than 600 mm and a depth of 1200 mm. For enclosures with a depth exceeding 1000 mm, the additional use of the support rail for VX IT is required to ensure the stability of the profile rails. The depth brace also enables the integration of 48,3 cm ( 19 inch ) profile rails, which can be used for alternative expansion scenarios with 53,3 cm ( 21 inch ), 58,4 cm ( 23 inch ), or 61 cm ( 24 inch ) components.

Mounting and Installation

Mounting is done at the designated fastening points in the enclosure, with the depth braces installed at the top and bottom. The included fastening materials facilitate installation. For enclosures with a depth exceeding 1000 mm, the additional mounting of the support rail for VX IT is required to optimize load distribution. The asymmetric mounting option provides flexibility for component and cable placement within the enclosure.

Advantages in Operation

The depth brace provides high mechanical stability and load capacity, increasing the safety and reliability of installed IT components. The option for asymmetric mounting offers additional space for cable routing or cooling, simplifying the planning and maintenance of IT systems. Compatibility with various profile rail and component formats (53,3 cm ( 21 inch ), 58,4 cm ( 23 inch ), 61 cm ( 24 inch )) expands the range of applications in server and network environments.

General
Modelfor VX IT 19" profile rail dynamic
Materialsteel sheet
Surface protectionPainted
ColourRAL 9005
Scope of deliveryDepth braces, incl. fastening material, 4 depth braces (2 top, 2 bottom)
Mounting noteFor mounting profile rails in cabinets with depth >1000 mm and width >600 mm, the VX IT support rail is additionally required
Suitable forEnclosure type: VX IT, Dynamic, width: > 600 mm, depth: = 1,200 mm
PCF/VE (Cradle-to-Gate)47.6 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302164, EAN: 4028177955592
