Rittal 5302152 48,3 cm ( 19 inch )-profile rails dynamic, front, 38 U

Your rating:
Average rating
product review for Rittal 5302152 48,3 cm ( 19 inch )-profile rails dynamic, front, 38 U
( 4.5 / 5 ) 2 ratings

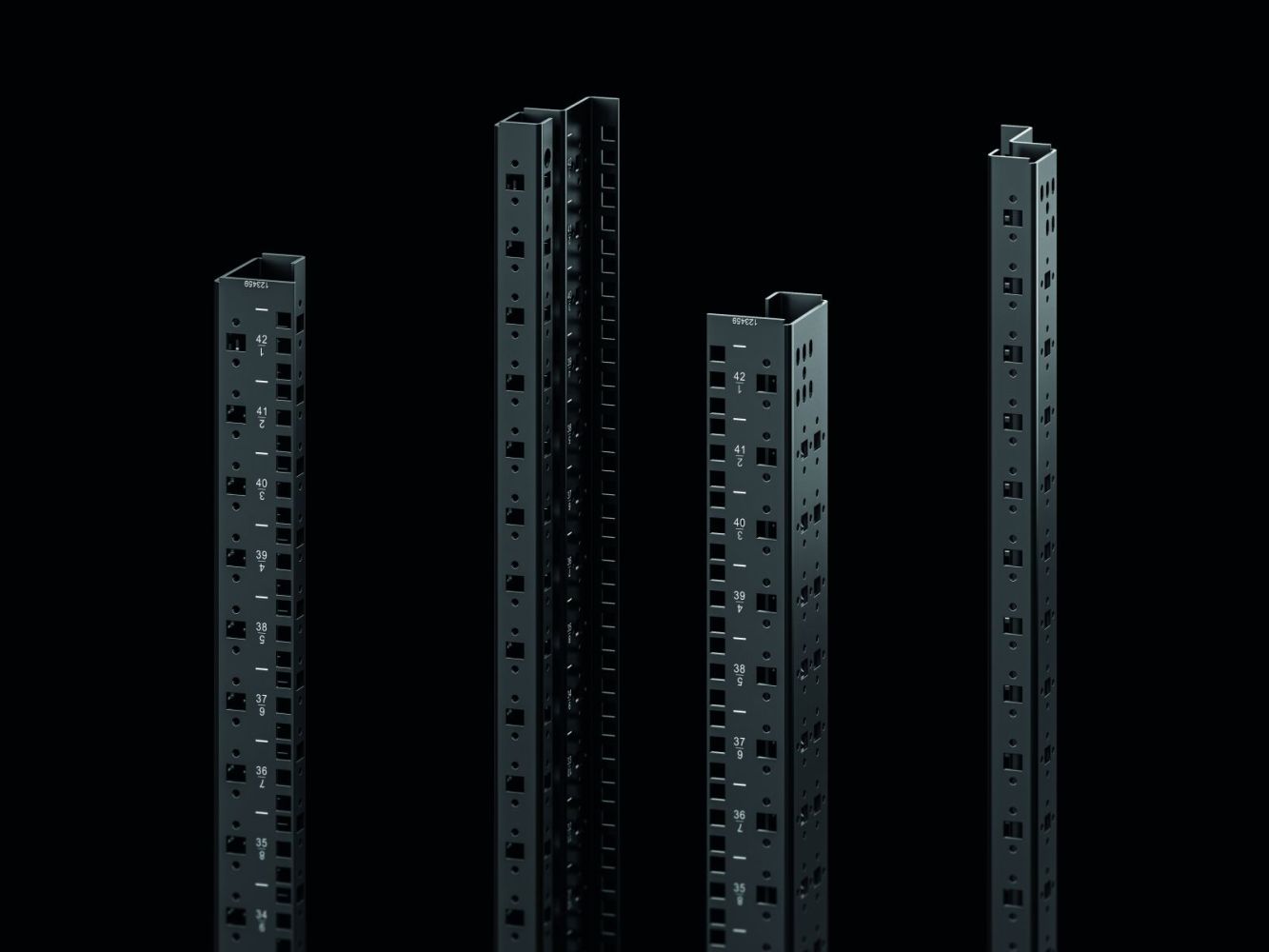

Rittal 5302152
This image may differ from the desired article.
Rittal 5302152Rittal 5302152
-21% 104,50 EUR 132,90 EUR
( 124,35 EUR incl. VAT )
≈ £87.47  |  ≈ $114.85
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 5302152 48,3 cm ( 19 inch )-profile rails dynamic, front, 38 U
Datasheet:file_download Download
Lieske Part No.:1055453
Mfg Part No: 5302152
UPC/EAN: 4028177955530
Weight:10.88 kg
Type:VXIT 5302152

Product information for Rittal 5302152:

Rittal profile rails dynamic, 482.6 mm (48,3 cm ( 19 inch )), type VXIT 5302152, are specifically designed for use in the VX IT enclosure system. They are used to create an inch-based mounting plane on the front of the enclosure and enable the installation of server and IT components that are mounted on the 48,3 cm ( 19 inch ) system hole pattern. The L-shaped design ensures direct and stable mounting of installation kits for server systems. The rails are made of steel sheet with a thickness of 2.5 mm and feature a primed surface in the color RAL 9005. The installation position is fixed at the front of the enclosure, and they are designed for enclosures with a height of 38 U (equivalent to 1,800 mm).

Applications
These profile rails are intended for use in the VX IT enclosure system, particularly for creating an inch-based mounting plane or for partial inch-based installation. They are suitable for structured mounting of IT and server components that are installed on the 48,3 cm ( 19 inch ) system hole pattern. The integrated, bidirectional U marking facilitates orientation and identification of the mounting plane. The side round and square holes in the U grid allow U-based mounting of cable management elements, which keeps cabling neat and organized.

Functions and Equipment in Detail
The rails feature an inch-based mounting hole pattern, including U center mounting according to the EIA 310 E standard. This ensures compatible and standardized mounting within the VX IT system. Equipotential bonding within the mounting plane and with the frame is achieved through the mounting elements, ensuring electrical safety and protection against voltage differences. The rails are supplied in a pack of two and include the necessary mounting hardware.

Technology Explained Simply
The profile rails are made of robust steel sheet with a thickness of 2.5 mm, providing high mechanical stability and load capacity for mounted devices. The primed surface in RAL 9005 offers a protective coating that resists corrosion. The L-shaped construction allows direct mounting of server and IT components on the front of the enclosure. The integrated system hole pattern in the U grid on the front and sides enables precise and structured mounting of cable management elements, making cabling clear and easy to maintain.

Compatibility and Accessories
The profile rails are designed for use with various mounting elements such as cross braces, depth struts, or mounting brackets to enable installation in the VX IT enclosure. The choice of mounting method depends on the specific enclosure dimensions. Compatible accessories include, for example, VX IT depth struts for 48,3 cm ( 19 inch ) dynamic in various dimensions, VX IT cross braces for 48,3 cm ( 19 inch ) dynamic and stand/dyn, and mounting brackets for 48,3 cm ( 19 inch ) cross brace. The installation options allow alternative mounting widths from 53,3 cm ( 21 inch ) to 61 cm ( 24 inch ), depending on the chosen mounting method and enclosure dimensions.

Installation and Mounting
To mount the profile rails, a combination with a cross brace, depth strut, or mounting bracket is required. The exact selection of mounting elements depends on the specific enclosure dimensions. Installation takes place on the front of the VX IT enclosure, with the rails designed for an enclosure height of 38 U (1,800 mm). The integrated system hole pattern in the U grid enables precise and standardized mounting of components.

Operational Advantages
The profile rails provide a stable and standardized mounting base for IT and server components in the VX IT enclosure system. The integrated U marking and the system hole pattern in the U grid facilitate orientation and structured cabling. The use of mounting elements such as cross braces or depth struts enables flexible and secure installation. The robust steel sheet construction ensures long service life and high load capacity. The supply including mounting hardware reduces installation time and simplifies installation.

General
Technical dataside round and square holes in HE grid, potential equalisation within the mounting plane and with the mounting frame is achieved via the fastening elements, inch-sized fastening holes including HE centre mounting according to standard EIA 310 E
ApplicationsFor creating a standard mounting surface within the VX IT enclosure system
MaterialSheet steel, 2.5 mm
Surface protectionPrimed
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Installation positionFront side
Mounting optionsAlternative mounting widths of 21" – 24", depending on chosen mounting method and housing dimensions
Mounting noteFor mounting, a combination with cross brace, depth brace, or mounting angle is required. The use of different mounting options depends on the respective housing dimensions.
Suitable forHeight: = 38 U, = 1,800 mm
PCF/VE (Cradle-to-Gate)41.5 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302152, EAN: 4028177955530

Questions & answers

What is the delivery time of Rittal 5302152 48,3 cm ( 19 inch )-profile rails dynamic, front, 38 U?

The article Rittal 5302152 48,3 cm ( 19 inch )-profile rails dynamic, front, 38 U is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 5302152 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 5302152 48,3 cm ( 19 inch )-profile rails dynamic, front, 38 U always at the best possible price. We can give you a discount of 2% on Rittal 5302152 48,3 cm ( 19 inch )-profile rails dynamic, front, 38 U if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
