Rittal 5302153 48,3 cm ( 19 inch ) profile rails dynamic, rear, 38 U

Your rating:
Average rating
product review for Rittal 5302153 48,3 cm ( 19 inch ) profile rails dynamic, rear, 38 U
( 4 / 5 ) 2 ratings
Rittal 5302153
This image may differ from the desired article.
Rittal 5302153Rittal 5302153
-21% 104,79 EUR 132,90 EUR
( 124,70 EUR incl. VAT )
≈ £87.71  |  ≈ $115.16
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 5302153 48,3 cm ( 19 inch ) profile rails dynamic, rear, 38 U
Datasheet:file_download Download
Lieske Part No.:1055454
Mfg Part No: 5302153
UPC/EAN: 4028177955547
Weight:12.32 kg
Type:VXIT 5302153

Product information for Rittal 5302153:

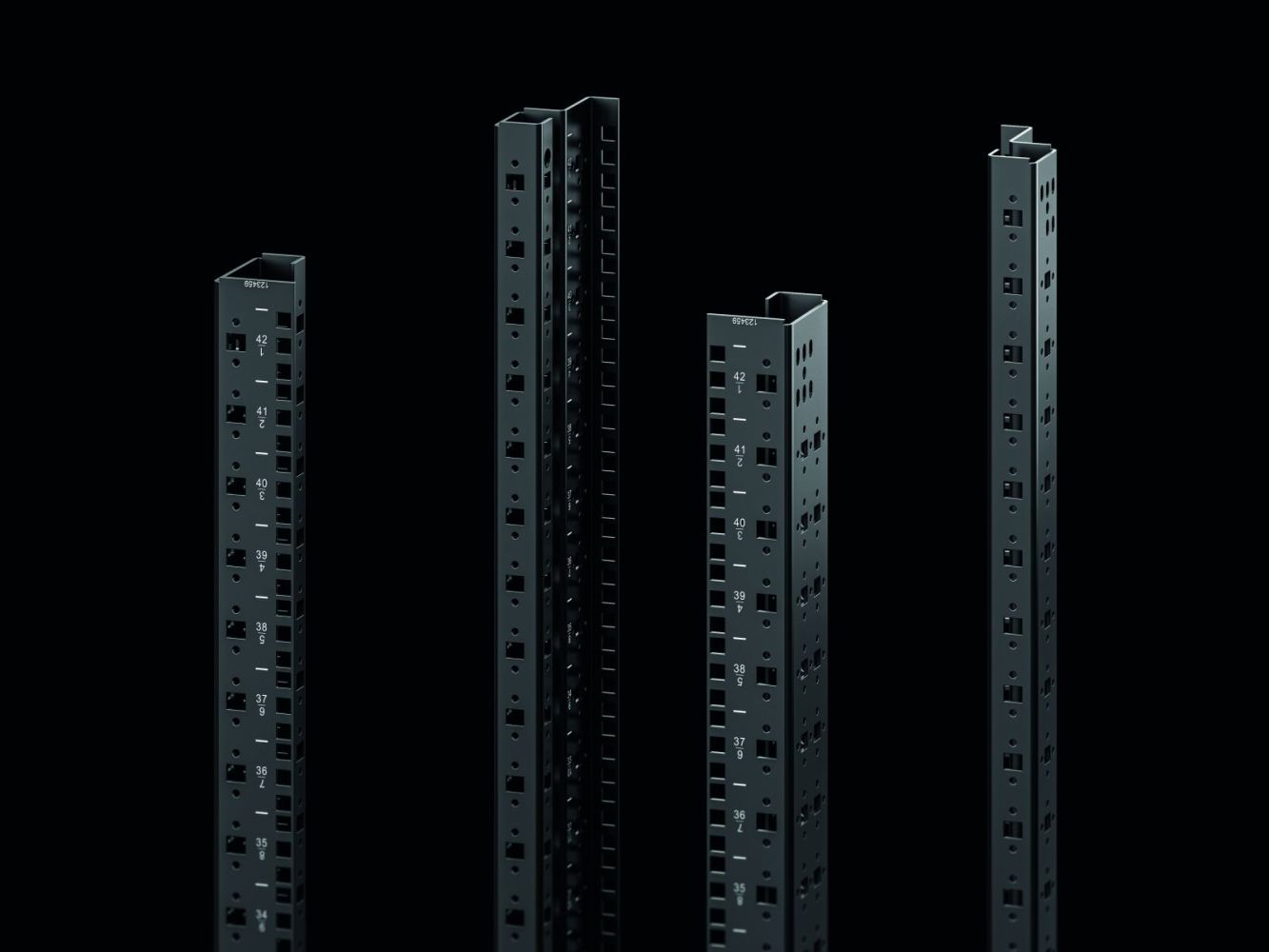

Rittal profile rails dynamic, type VXIT 5302153, are specifically designed for use in the VX IT housing system and serve to create an inch-based mounting plane in the rear area of the enclosure. The rails have a width of 482.6 mm (48,3 cm ( 19 inch )) and are designed for enclosures with a height of 38 U (equivalent to 1,800 mm). They are made of steel sheet with a thickness of 2.5 mm and are primed in the colour RAL 9005. The L-shaped construction allows for direct mounting of mounting kits for server systems, which are secured to the 48,3 cm ( 19 inch ) system hole pattern. The rails are intended for rear installation and provide a stable mounting plane within the housing.

Applications
These profile rails are intended for use in the VX IT housing system, particularly for creating an inch-based mounting plane or for partial inch-based installation. They are suitable for installing server and network units that are mounted on a 48,3 cm ( 19 inch ) system hole pattern. The rails are designed for enclosures with a height of 38 U and enable structured and secure mounting of devices in the rear area of the housing.

Functions and Equipment in Detail
The rails feature integrated, bidirectional U labelling, which allows for clear identification of mounting positions. Integrated system holes in the U grid are present at the front and sides, enabling U-based mounting of cable management elements for structured cabling. The side round and square holes in the U grid support flexible component mounting. Equipotential bonding within the mounting plane and with the frame is achieved via the mounting elements, ensuring a secure electrical connection.

Technology Explained Simply
The profile rails are made of steel sheet and offer high mechanical stability. The priming in RAL 9005 ensures uniform surface treatment with corrosion protection. The inch-based mounting hole pattern, including U-centre mounting according to standard EIA 310 E, enables compatible mounting with common IT and server components. The L-shaped design ensures optimal reception of mounting kits that are directly secured to the 48,3 cm ( 19 inch ) system hole pattern.

Compatibility and Accessories
The rails are designed for use with various mounting elements such as cross-brace, depth brace, or mounting angle. The choice of mounting method depends on the specific enclosure dimensions. Suitable accessories include, for example, VX IT depth braces, cross-braces, and mounting angles in various versions, which are suitable for mounting in the VX IT system. The rails can be adapted for alternative mounting widths from 53,3 cm ( 21 inch ) to 61 cm ( 24 inch ), depending on the chosen mounting method and enclosure dimensions.

Mounting and Installation
Mounting of the profile rails requires a combination with a cross-brace, depth brace, or mounting angle. Installation takes place in the rear area of the VX IT housing. The exact selection of mounting elements depends on the specific enclosure dimensions. The rails are supplied in a pack of 2 and include the necessary mounting material. Mounting is carried out using the integrated system holes in the U grid.

Operational Advantages
The profile rails provide a stable and secure mounting plane for server and network units in the VX IT system. The integrated U labelling and system holes in the U grid facilitate structured cabling and identification of mounting positions. The inch-based mounting hole pattern according to EIA 310 E ensures compatibility with common IT components. The L-shaped design enables direct and secure reception of mounting kits for server systems. The rails are designed for an enclosure height of 38 U, thus offering optimal use of available space within the housing.

General
Technical dataside round and square holes in HE grid, potential equalisation within the mounting plane and with the mounting frame is achieved via the fastening elements, inch-sized fastening holes including HE centre mounting according to standard EIA 310 E
ApplicationsFor creating a standard mounting surface within the VX IT enclosure system
MaterialSheet steel, 2.5 mm
Surface protectionPrimed
ColourRAL 9005
Scope of deliveryIncluding mounting hardware
Installation positionBack side
Mounting optionsAlternative mounting widths of 21" – 24", depending on chosen mounting method and housing dimensions
Mounting noteFor mounting, a combination with cross brace, depth brace, or mounting angle is required. The use of different mounting options depends on the respective housing dimensions.
Suitable forHeight: = 38 U, = 1,800 mm
PCF/VE (Cradle-to-Gate)46.9 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302153, EAN: 4028177955547
