Rittal 5302111 VX IT depth brace for 48,3 cm ( 19 inch ) standard, 800x1000 mm

Your rating:
Average rating
product review for Rittal 5302111 VX IT depth brace for 48,3 cm ( 19 inch ) standard, 800x1000 mm
( 4.3 / 5 ) 3 ratings

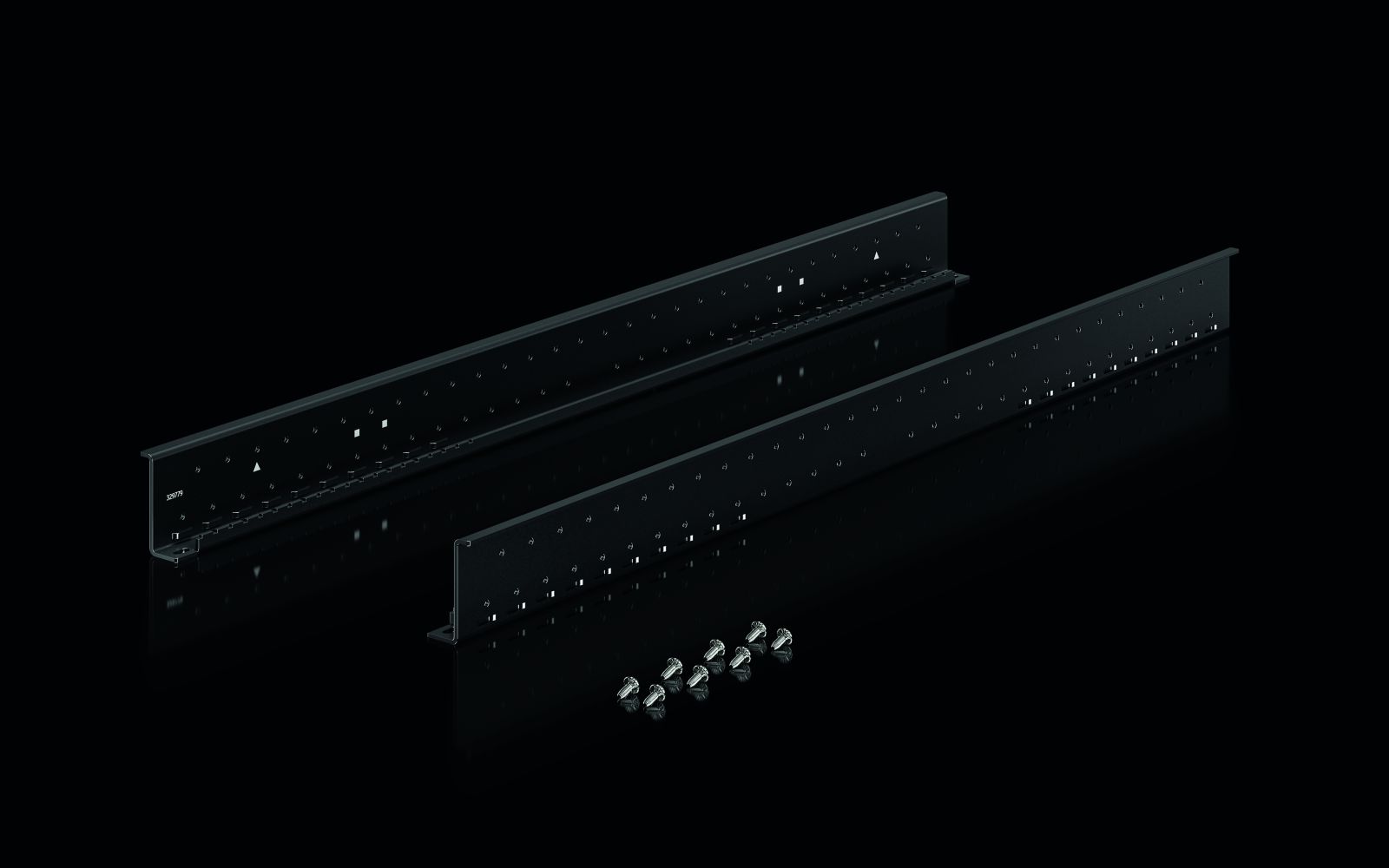

Rittal 5302111
This image may differ from the desired article.
Rittal 5302111Rittal 5302111Rittal 5302111
80,85 EUR
( 96,21 EUR incl. VAT )
≈ £67.67  |  ≈ $88.85
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 5302111 VX IT depth brace for 48,3 cm ( 19 inch ) standard, 800x1000 mm
Datasheet:file_download Download
Lieske Part No.:1910615
Mfg Part No: 5302111
UPC/EAN: 4028177955493
Weight:9.1 kg
Type:VXIT 5302111

Product information for Rittal 5302111:

The VXIT 5302111 depth brace from Rittal is a component for securing 48,3 cm ( 19 inch ) profile rails in VX IT enclosure housings. It provides secure mounting for inch-based profile rails and enables the use of server or IT components based on standard 48,3 cm ( 19 inch ) form factors. The design is intended for use in VX IT 48,3 cm ( 19 inch ) profile rail standard and is manufactured from sheet steel with a lacquered surface in the colour RAL 9005. This coating ensures high corrosion resistance and visual compatibility with other components in the enclosure.

Applications

The depth brace is specifically designed for enclosures with a width greater than 600 mm and a depth of exactly 1000 mm. It is used to fix the profile rails in depth, particularly in larger enclosure configurations where additional stability is required. The construction allows for both symmetrical and asymmetrical mounting, creating more space for cable routing or integration of a Liquid Cooling Unit (LCU) when installed on one side. This is particularly advantageous when installing components that should not be mounted centrally in the enclosure.

Functions and Equipment in Detail

The depth brace offers a particularly high load capacity of up to 15,000 N, ensuring secure mounting even under high mechanical loads. The improved load distribution ensures even force transmission and increases the stability of the entire enclosure structure. The delivery includes mounting hardware and comprises a total of four depth braces, with two mounted at the top and two at the bottom. This enables stable fixation of the profile rails across the entire enclosure depth.

Technology Explained Simply

The construction from sheet steel with a lacquered surface provides sufficient strength and corrosion protection. The colour RAL 9005 corresponds to a dark grey, which integrates well visually in typical IT and server environments. The depth braces are dimensioned to securely hold the 482.6 mm (48,3 cm ( 19 inch )) profile rails and simultaneously provide the necessary stability for the operation of IT systems. Mounting is done directly in the enclosure, with the braces attached at the designated mounting points.

Compatibility and Accessories

The depth brace is specifically designed for VX IT enclosure housings in standard format. It is compatible with enclosures having a width greater than 600 mm and a depth of 1000 mm. For enclosures with a depth greater than 1000 mm or a width greater than 600 mm, the support rail for VX IT is additionally required to ensure the necessary stability. The depth brace is optimally suited for use with 53,3 cm ( 21 inch ), 58,4 cm ( 23 inch ), or 61 cm ( 24 inch ) components that are to be mounted in alternative configurations.

Mounting and Installation

Mounting is performed by securing the depth braces at the designated points in the enclosure. The braces are installed in two planes – top and bottom – to stabilise the profile rails across the entire depth. The mounting instructions included in the delivery support correct and secure installation.

Advantages in Operation

The depth brace provides high mechanical stability and load capacity, increasing the safety and reliability of the enclosure structure. The option for asymmetrical mounting offers flexibility in component placement and improves cable routing. Compatibility with various IT components and easy installation make the depth brace a reliable component for professional use in IT and server environments. The use of sheet steel with a lacquered surface ensures long service life and ease of maintenance.

General
Modelfor VX IT 19" standard profile rail
Materialsteel sheet
Surface protectionPainted
ColourRAL 9005
Scope of deliveryDepth braces, incl. fastening material, 4 depth braces (2 top, 2 bottom)
Mounting noteFor mounting profile rails in cabinets with depth >1000 mm and width >600 mm, the VX IT support rail is additionally required
Suitable forEnclosure type: VX IT, standard, width: > 600 mm, depth: = 1.000 mm
PCF/VE (Cradle-to-Gate)34.7 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 5302111, EAN: 4028177955493
