Rittal 3238035 SK absorber mat IP55 pack of 5 for filter fan 3238.7xx/3238.3xx

Your rating:
Average rating
product review for Rittal 3238035 SK absorber mat IP55 pack of 5 for filter fan 3238.7xx/3238.3xx
( 4 / 5 ) 1 ratings

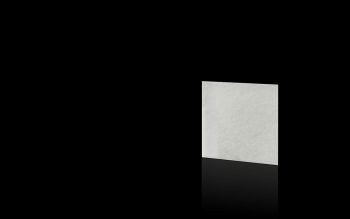

Rittal 3238035
This image may differ from the desired article.
Rittal 3238035Rittal 3238035
7,31 EUR 7,63 EUR
( 8,70 EUR incl. VAT )
≈ £6.12  |  ≈ $8.03
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3238035 SK absorber mat IP55 pack of 5 for filter fan 3238.7xx/3238.3xx
Datasheet:file_download Download
Lieske Part No.:612042
Mfg Part No: 3238035
UPC/EAN: 4028177043046
Weight:0.019 kg
Type:SK 3238035

Product information for Rittal 3238035:

The SK 3238035 is an absorber mat from Rittal, specifically developed for use in filter fans of the 3238.3xx and 3238.7xx series. It serves as an additional protective layer within the context of enclosure climate control and is used in combination with pleated filters to ensure the protection rating IP 55 according to IEC 60 529. The mat is made of 100 % polyester and is white in colour, providing high chemical resistance and long service life under industrial conditions. Dimensions are 120 mm width, 120 mm height, and 2.9 mm depth, ensuring an exact fit into the designated filter modules of the specified fan types.

Applications

The absorber mat is used in industrial enclosures where effective air purification and protection against dust and fine particles are required. It is part of an integrated filter and ventilation system that continuously filters the indoor air within the enclosure to maintain the functionality of electronic components. The protection rating IP 55, which is only achieved in combination with the pleated filter, protects against dust and splashing water, making it suitable for locations with increased contamination risk. The mat is not intended for use with EMC filter fans, as these require a different filtration technology.

Functions and Equipment in Detail

The absorber mat serves as an additional filtration stage, capturing the finest particles from the incoming air that the pleated filter alone cannot fully retain. This extends the service life of the main filter and improves air quality within the enclosure. The material composition of 100 % polyester ensures high mechanical strength and chemical resistance against commonly occurring industrial chemicals. The white colour facilitates visual inspection of contamination levels, which is helpful during maintenance.

Technology Explained Simply

The protection rating IP 55 means the device is protected against dust and splashing water. However, this is only achieved when the absorber mat is installed in combination with the pleated filter. The mat itself provides no protection but enhances the filtration effect of the pleated filter. The dimensions of 120 x 120 x 2.9 mm are specifically matched to the filter modules of Rittal filter fans 3238.3xx and 3238.7xx to ensure secure and tight installation. The material thickness of 2.9 mm ensures sufficient filtration performance without unnecessary air resistance.

Compatibility and Accessories

The absorber mat is exclusively intended for filter fan types 3238.3xx and 3238.7xx. It is not compatible with EMC filter fans, as these require a different filtration technology and design. The use of original Rittal filter mats is required to ensure the performance data, protection rating, and approvals of the devices. The mat is supplied in packaging units of five pieces, covering maintenance and replacement intervals for multiple filter modules.

Installation and Mounting

Installation is carried out by simply inserting the absorber mat into the designated filter compartment of the filter fan, directly behind the pleated filter. No additional tools or mounting aids are required. The fit is designed to ensure a secure and tight connection. Maintenance consists of regularly replacing the mat once it is visibly contaminated to maintain filtration performance.

Operational Advantages

Using the absorber mat increases the reliability of enclosure climate control, as it enhances the filtration performance of the pleated filter and reduces contamination of electronic components. The high chemical resistance of polyester ensures long service life, even under difficult environmental conditions. The precise dimensions and fit for the specified fan types simplify replacement and maintenance, thereby increasing the operational uptime of the system. The packaging unit of five pieces enables economical and practical maintenance.

General
Modelfor pleated filters
MaterialAbsorber mat: 100 % polyester
ColourWhite
NoteThe performance data, degree of protection and approvals of the devices are only guaranteed in combination with original Rittal filter mats.
Suitable for part no.3238.3xx, 3238.7xx
Absorber mat dimensionsWidth: 120 mm, height: 120 mm, depth: 2.9 mm
Degree of protection IP according to IEC 60 529IP 55 in combination with the pleated filter
Note on part numberNot suitable for use in EMC filter fans.


Product data sheet
Datasheet for Rittal 3238035, EAN: 4028177043046
