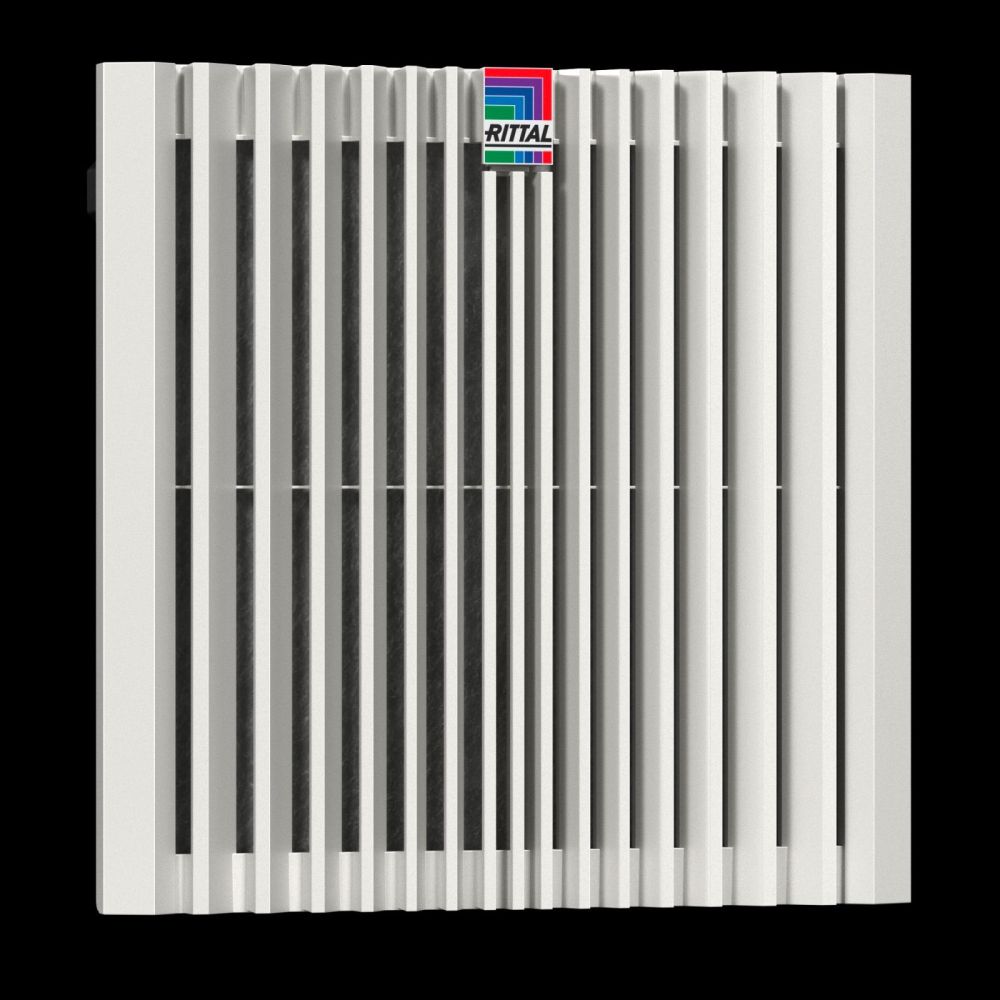

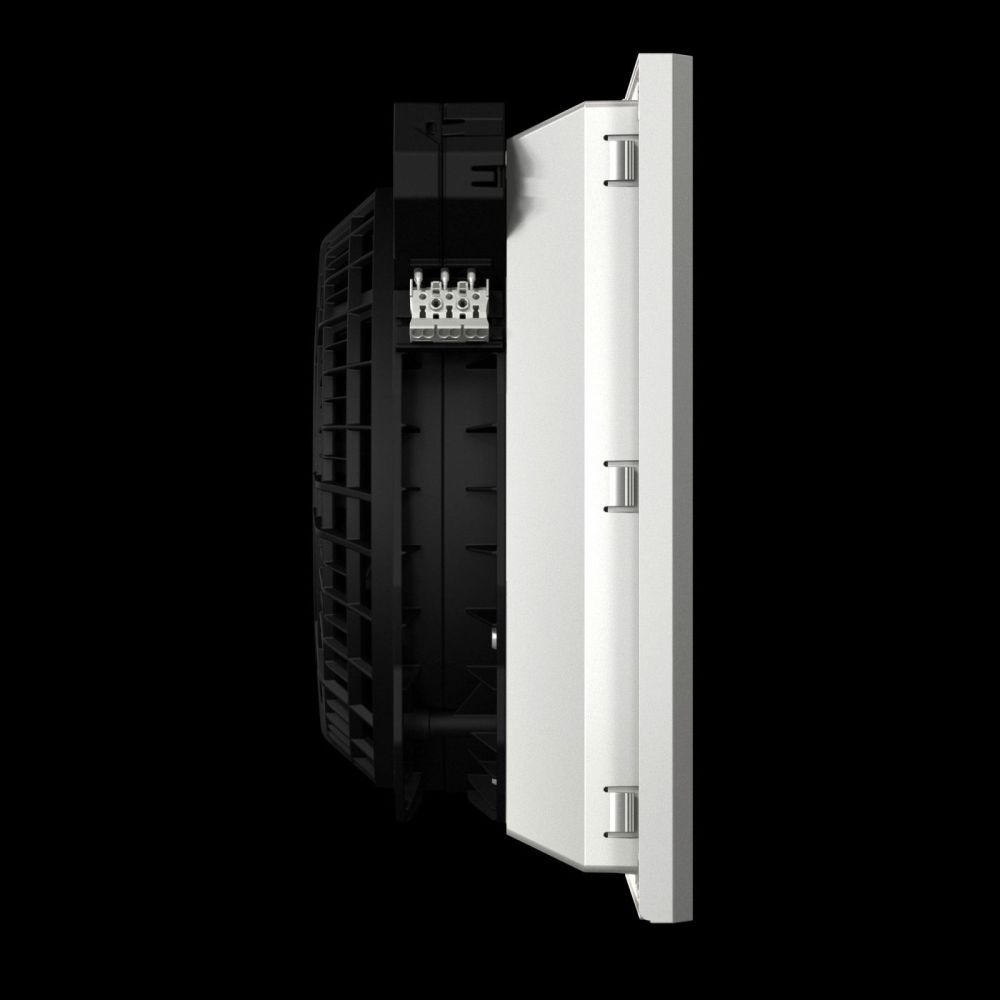

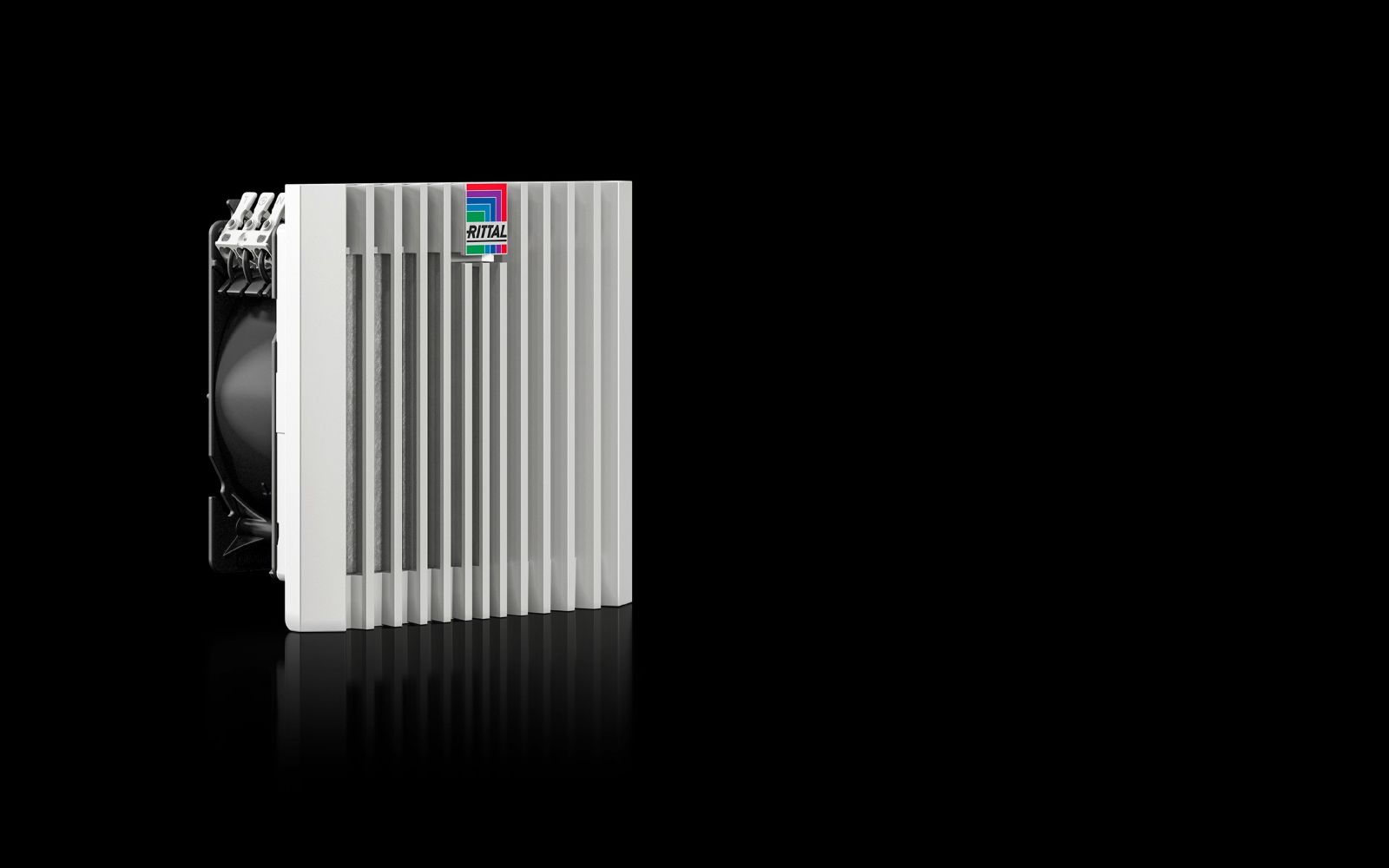

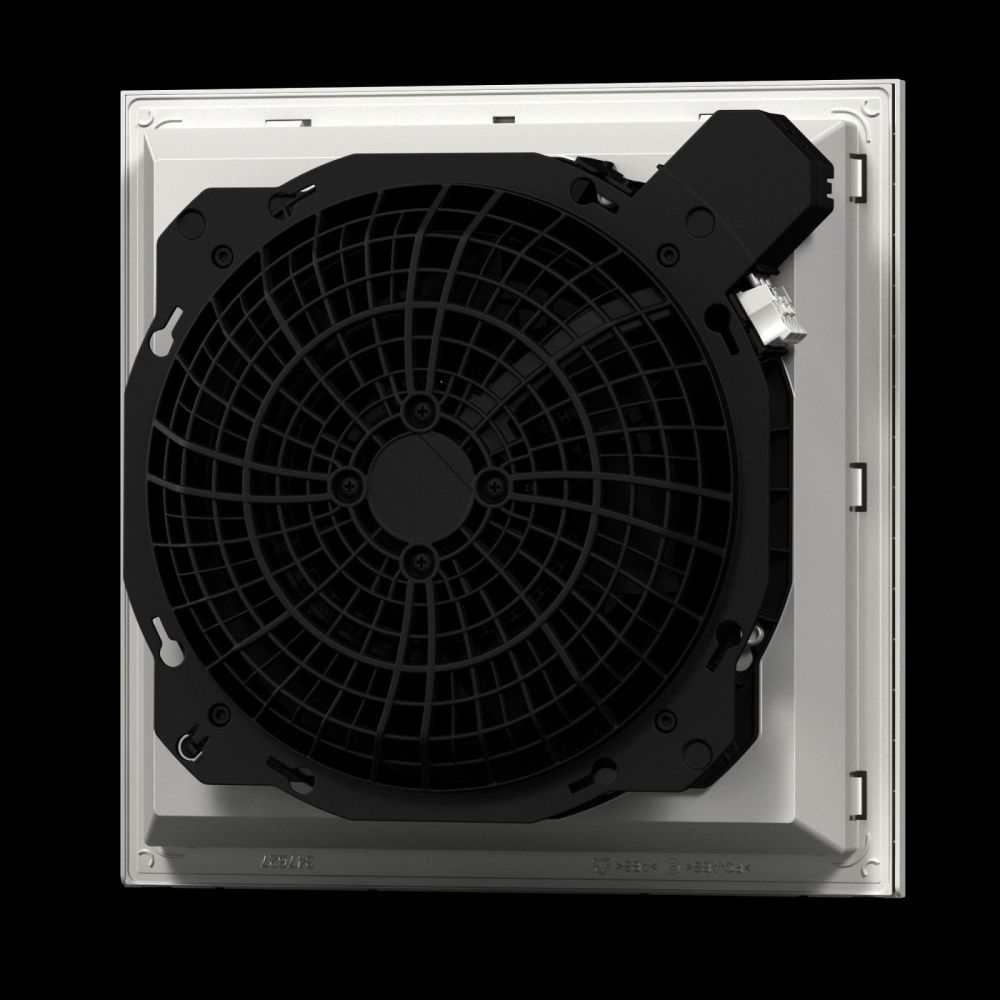

Rittal 3238700 Blue e+ filter fan 63/72 m³/h, 230 V, RAL 7035

Your rating:
Average rating
product review for Rittal 3238700 Blue e+ filter fan 63/72 m³/h, 230 V, RAL 7035
( 4 / 5 ) 4 ratings
Rittal 3238700
This image may differ from the desired article.
Rittal 3238700Rittal 3238700Rittal 3238700Rittal 3238700Rittal 3238700
83,93 EUR 83,97 EUR
( 99,88 EUR incl. VAT )
≈ £70.25  |  ≈ $92.24
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3238700 Blue e+ filter fan 63/72 m³/h, 230 V, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683792
Mfg Part No: 3238700
UPC/EAN: 4028177997615
Weight:0.86 kg
Type:SK 3238.700

Product information for Rittal 3238700:

The Rittal SK 3238.700 is a Blue e+ filter fan, specifically designed for efficient control cabinet climate conditioning. It ensures even and targeted ventilation of control cabinets through diagonal airflow, thus preventing overheating of sensitive electronics. The compact fan/filter unit can be mounted tool-free on control cabinet walls or surfaces, making installation quick and easy. With an airflow rate of 63 m³/h at 50 Hz and 72 m³/h at 60 Hz, it provides reliable cooling performance under various operating conditions. The fan is designed for industrial environments and offers a high protection rating of IP54, providing protection against dust and splashing water – ideal for indoor areas with increased contamination risk. The RAL 7035 (gray) color ensures harmonious integration into existing control cabinet systems.

Technical Data
  • Airflow: 63 m³/h at 50 Hz; 72 m³/h at 60 Hz
  • Rated voltage: 230 V
  • Frequency: 50 Hz / 60 Hz
  • Dimensions (W x H x D): 148.5 x 148.5 x 82.5 mm
  • Protection rating: IP54
  • RAL color: RAL 7035


General
ModelWall surface mounted
MaterialPlastic
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit, including pleated filter
FanAxial, split-pole motor
Airflow free blowing (with pleated filter)At 50 Hz: 63 m³/h, At 60 Hz: 72 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 49 m³/h, at 60 Hz: 55 m³/h
Airflow free-blowing (with filter)At 50 Hz: 53 m³/h, At 60 Hz: 64 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 40 m³/h, At 60 Hz: 46 m³/h
Rated operating voltage230 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 14.7 W, At 60 Hz: 16.5 W
Rated current max.At 50 Hz: 0.1 A, At 60 Hz: 0.12 A
Width148,5 mm
Height148,5 mm
Depth82,5 mm
Built-in depth64 mm
Mounting cutoutCutout width: 124 mm, cutout height: 124 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 2 A
NoteFor the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal.
Operating temperature range-15 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt 50 Hz: 52 dB(A), At 60 Hz: 54 dB(A)


Product data sheet
Datasheet for Rittal 3238700, EAN: 4028177997615
