Rittal 3238300 Blue e+ outlet filter, RAL 7035

Your rating:
Average rating
product review for Rittal 3238300 Blue e+ outlet filter, RAL 7035
( 4.4 / 5 ) 8 ratings
Rittal 3238300
This image may differ from the desired article.
Rittal 3238300Rittal 3238300Rittal 3238300Rittal 3238300Rittal 3238300Rittal 3238300Rittal 3238300Rittal 3238300Rittal 3238300
21,90 EUR
( 26,06 EUR incl. VAT )
≈ £18.33  |  ≈ $24.07
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >500 pieces
1x Rittal 3238300 Blue e+ outlet filter, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683788
Mfg Part No: 3238300
UPC/EAN: 4028177997653
Weight:0.206 kg
Type:SK 3238.300

Product information for Rittal 3238300:

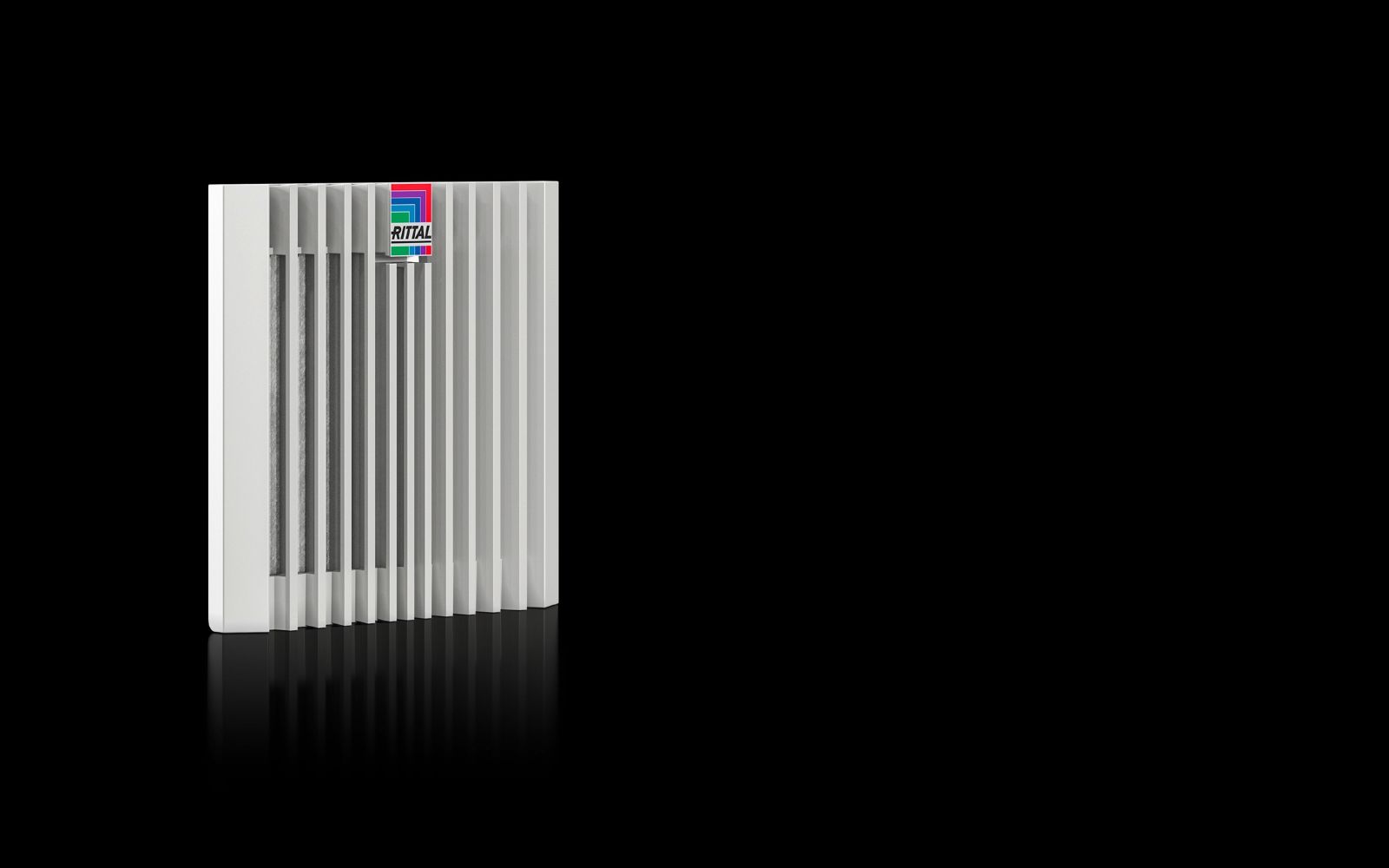

The Rittal SK 3238.300 is an outlet filter for filter fans of the SK 3238.7xx series, designed as a wall-mounted installation. It serves to control the discharge of waste heat from enclosures and supports ventilation to protect temperature-sensitive components. The function is achieved by direct supply of ambient air, the temperature of which must be below the permissible enclosure internal temperature. The device is made of plastic and is available in the colour RAL 7035. Dimensions are 148.5 mm width, 148.5 mm height, and 34.2 mm depth. The mounting cutout requires a break-out of 124 mm width and 124 mm height in the enclosure.

Applications

The outlet filter is designed for use in industrial enclosures where continuous ventilation and cooling are required. It is used in conjunction with the filter fan SK 3238.7xx to regulate the internal temperature of the enclosure. The application is in environments where a certain degree of protection against dust and splashing water is required, such as production halls, machine construction, or automation technology.

Functions and Equipment in Detail

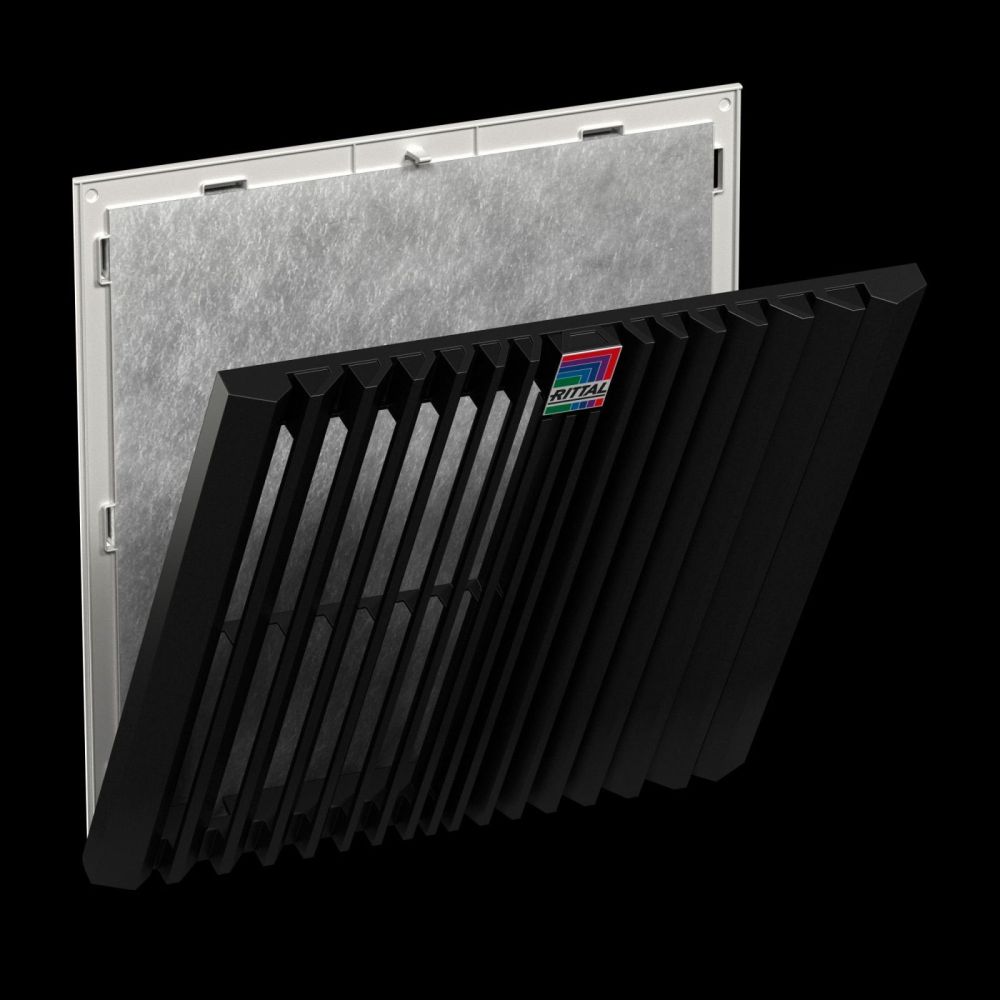

The filter features a new opening mechanism on the louver grille, simplifying filter replacement. Mounting to the enclosure is achieved via optimized snap hooks, enabling faster and tool-free installation. The delivery includes the outlet filter and a pleated filter. The combination of outlet filter and pleated filter ensures efficient filtration of the discharged air.

Technology Explained Simply

Protection rating IP 54 is achieved when the outlet filter is operated with a non-woven filter or pleated filter. With the use of a pleated filter and an absorber mat, protection rating IP 54 can be achieved. Protection rating IP 54 is possible when an additional spray water hood is mounted. The NEMA protection ratings include Type 12 with non-woven filter/pleated filter, as well as Type 3, 3R, 4, and 4X, with the latter also requiring the combination of filter and spray water hood. These protection ratings are suitable for use in environments with increased dust and splashing water hazards.

Compatibility and Accessories

The outlet filter is specifically designed for filter fans of the SK 3238.7xx series. As accessories, replacement filter mats, a blanking cover for the mounting cutout, a spray water hood, and an absorber mat for IP 54 are available. The spray water hood increases the protection rating and protects the filter from direct splashing water. The absorber mat improves filtration performance and supports achieving protection rating IP 54.

Mounting and Installation

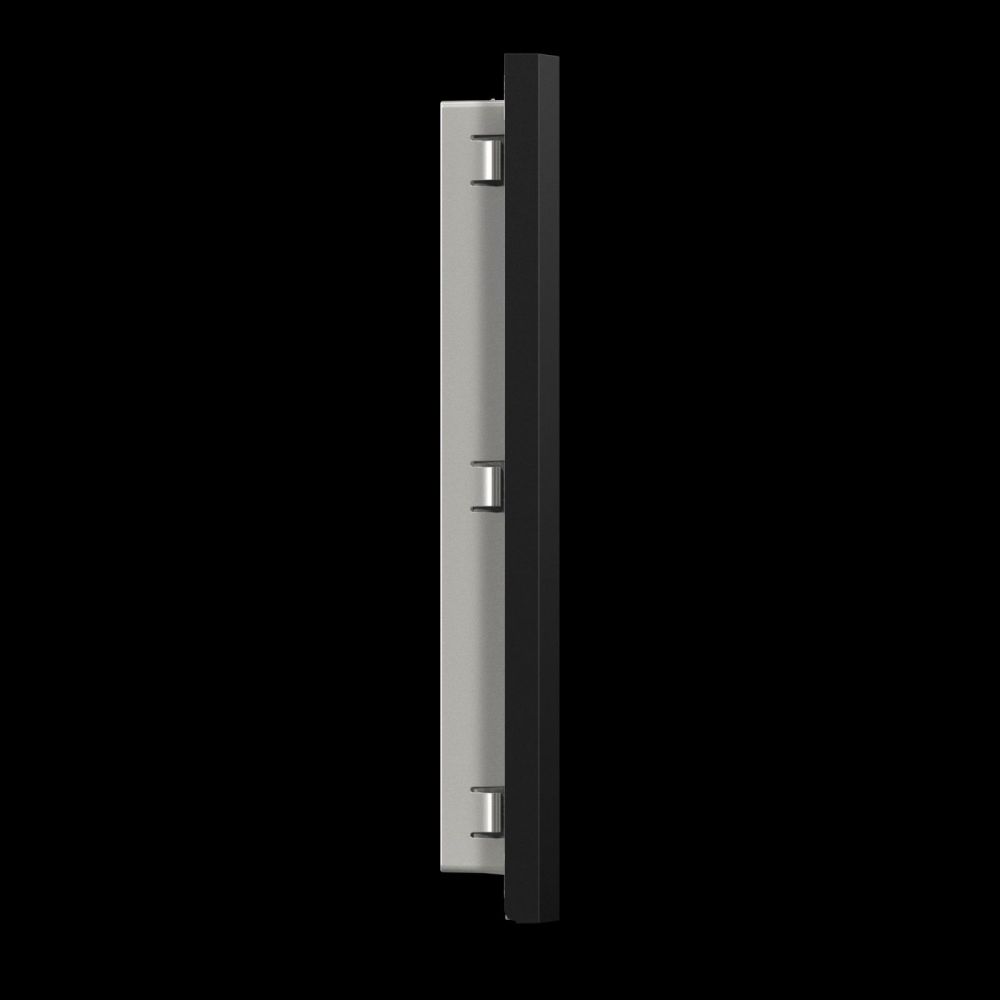

Mounting is tool-free at the designated location in the enclosure. The optimized snap hooks allow for quick and secure fastening. A mounting cutout of 124 mm × 124 mm must be provided in the enclosure. Installation is carried out in conjunction with the filter fan SK 3238.7xx, with the airflow being directed outward through the outlet filter.

Operational Advantages

The outlet filter offers easy maintenance thanks to the new opening mechanism on the louver grille. Tool-free mounting reduces installation time. The combination with various filter and protection components allows adaptation to different environmental conditions. Protection ratings IP 54 to IP 54 and NEMA classes Type 12 to Type 4X ensure reliable operation in various industrial applications.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 7035
Scope of deliveryOutlet filter, pleated filter
Mounting cutoutCutout width: 124 mm, cutout height: 124 mm
Suitable for part no.SK 3238.7xx
Width148,5 mm
Height148,5 mm
Depth34,2 mm
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood


Product data sheet
Datasheet for Rittal 3238300, EAN: 4028177997653

Questions & answers

What is the delivery time of Rittal 3238300 Blue e+ outlet filter, RAL 7035?

The article Rittal 3238300 Blue e+ outlet filter, RAL 7035 is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3238300 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3238300 Blue e+ outlet filter, RAL 7035 always at the best possible price. We can give you a discount of 2% on Rittal 3238300 Blue e+ outlet filter, RAL 7035 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
