Rittal 3238710 Blue e+ filter fan 63/72 m³/h, 115 V, RAL 7035

Your rating:
Average rating
product review for Rittal 3238710 Blue e+ filter fan 63/72 m³/h, 115 V, RAL 7035
( 4 / 5 ) 1 ratings
Rittal 3238710
This image may differ from the desired article.
Rittal 3238710Rittal 3238710Rittal 3238710Rittal 3238710Rittal 3238710
89,36 EUR
( 106,34 EUR incl. VAT )
≈ £74.79  |  ≈ $98.21
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 3238710 Blue e+ filter fan 63/72 m³/h, 115 V, RAL 7035
Datasheet:file_download Download
Lieske Part No.:683795
Mfg Part No: 3238710
UPC/EAN: 4028177998247
Weight:0.859 kg
Type:SK 3238.710

Product information for Rittal 3238710:

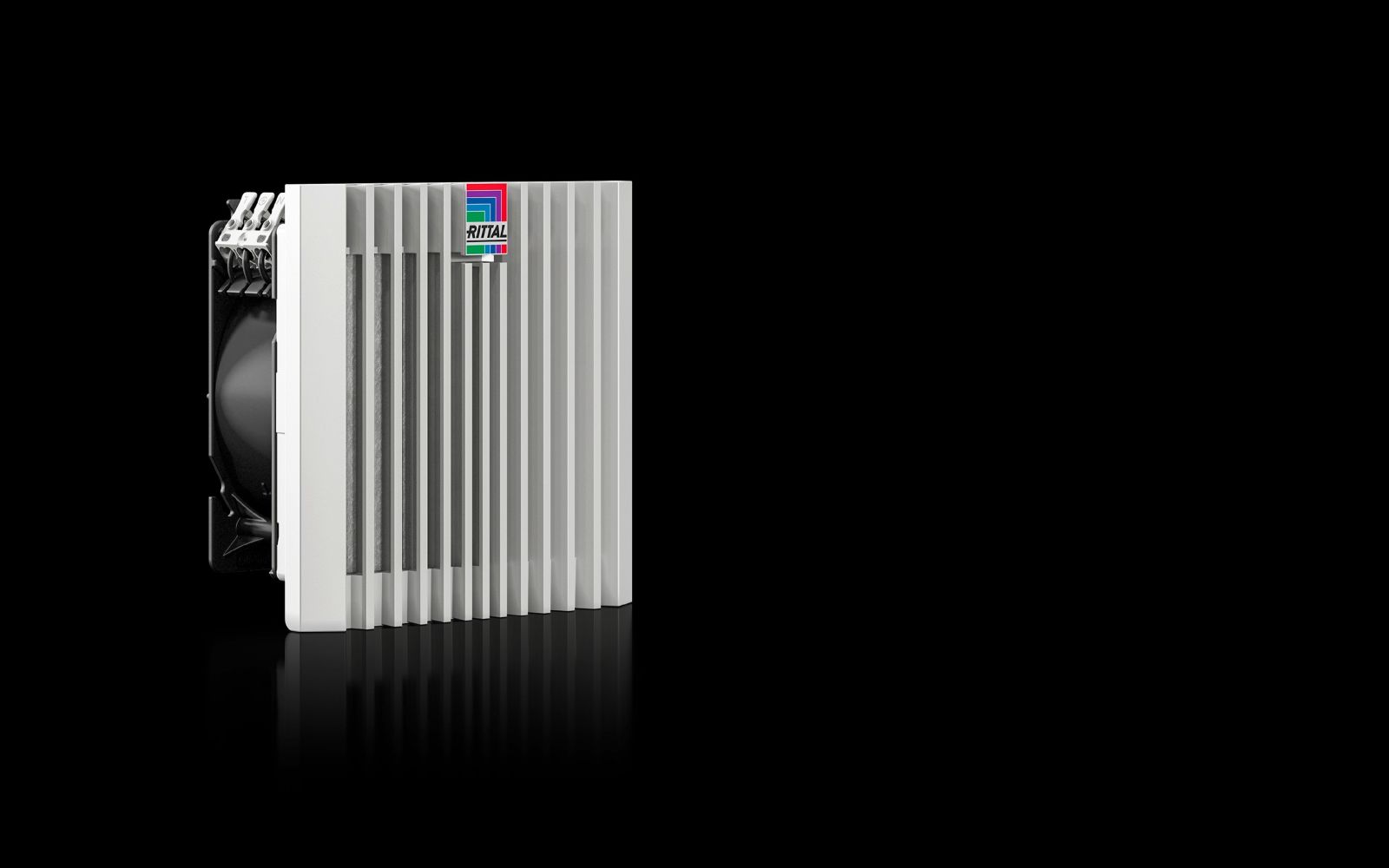

The Rittal SK 3238.710 is a filter fan for enclosure climate control, designed for wall mounting in industrial applications. The device provides controlled ventilation of enclosures to regulate internal temperature and extend the service life of installed electronic components. It is delivered as a fully ready-to-install unit, including a pleated filter, and enables tool-free installation via optimized snap hooks. The diagonal fan technology ensures higher pressure stability and more uniform, consistent air circulation within the enclosure, resulting in more efficient cooling of electronic components.

Applications

The filter fan is designed for use in industrial environments where continuous cooling of enclosures is required. It is particularly suitable for applications in manufacturing, automation technology, or power supply, where electronic devices must be protected from overheating. The protection rating IP 54 (with felt filter/pleated filter) provides protection against dust and splashing water, making it suitable for many indoor and outdoor applications. With additional components such as an absorber mat or spray water hood, the protection rating can be increased to IP 54 or IP 54, expanding its use in humid or dusty environments.

Functions and Equipment in Detail

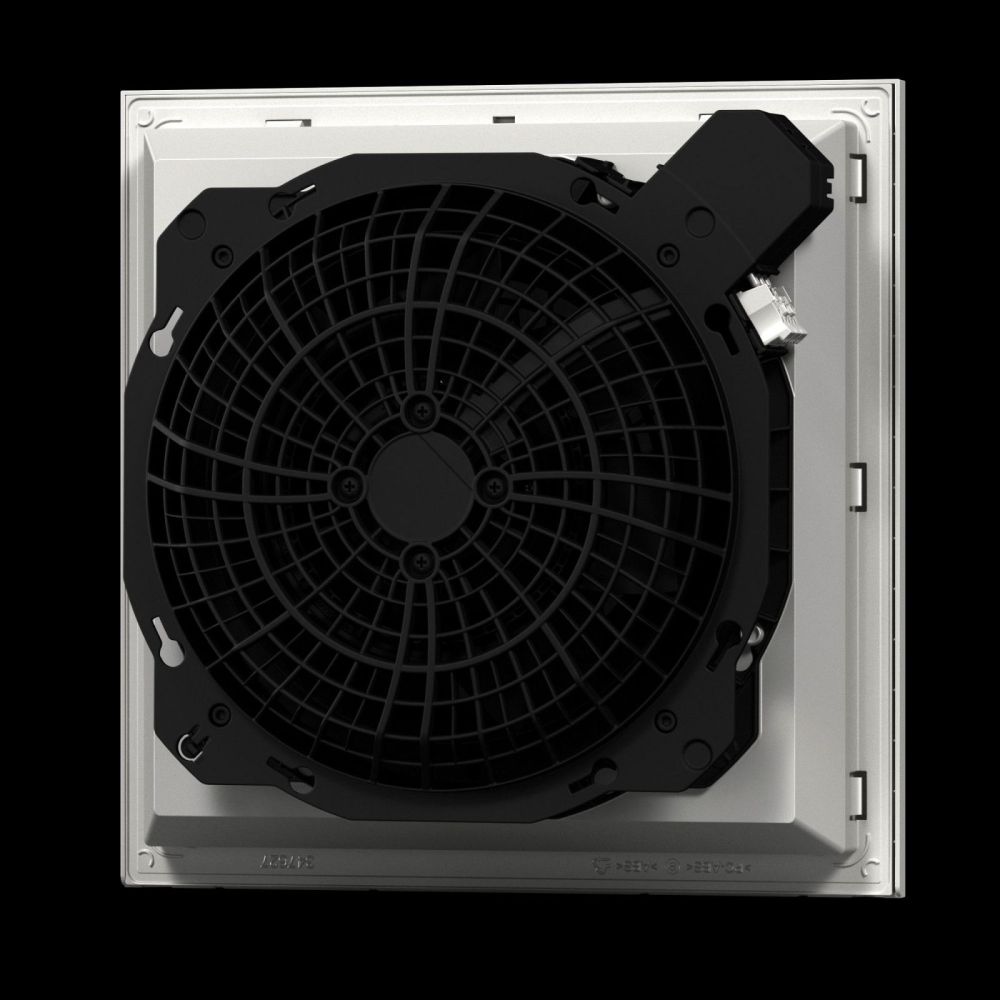

The fan features an axial fan with split-pole motor, ensuring quiet and reliable operation. The air performance is 63 m³/h at 50 Hz and 72 m³/h at 60 Hz when free blowing, with actual performance varying depending on filter type and connection conditions. When using an outlet filter, the air performance drops to 49 m³/h (50 Hz) or 55 m³/h (60 Hz). The rated operating voltage is 115 V, 1~, 50 Hz/60 Hz, making it suitable for standard mains voltages in many countries. The rated power is 15.4 W (50 Hz) and 15.8 W (60 Hz), with a maximum rated current of 0.2 A (50 Hz) or 0.21 A (60 Hz). The fuse is rated at 2 A to protect the fan from overloads.

Technology Explained Simply

The diagonal fan technology ensures that air flows diagonally rather than vertically from the device. This results in more even air distribution within the enclosure and prevents local overheating. The integrated pleated filter included in the delivery filters particles from ambient air, cleaning the internal air in the enclosure. Filter replacement is simplified by a new opening mechanism on the louver grille. The sound pressure level is 52 dB(A) (50 Hz) and 54 dB(A) (60 Hz), which is acceptable for industrial environments. The operating temperature range is from -15 °C to 55 °C, enabling use in regions with varying climates.

Compatibility and Accessories

The filter fan can be combined with various accessories to extend protection rating or functionality. These include outlet filters in RAL 7035, replacement filter mats in various versions, a spray water hood for increased protection rating IP 54, an absorber mat for IP 54, and speed controllers for finer control of airflow. Thermostats and hygrostats can also be used for temperature and humidity control within the enclosure. Installation is done via a mounting cutout of 124 mm (W) x 124 mm (H), with an installation depth of 64 mm. The device dimensions are 148.5 mm (W) x 148.5 mm (H) x 82.5 mm (D).

Installation and Mounting

Mounting is tool-free via integrated snap hooks, allowing quick and secure attachment to the enclosure. Electrical connection is made via spring-loaded terminals, enabling easy connection to the network. The unit is delivered as a fully ready-to-install unit, including the pleated filter, so no additional components are required for basic operation.

Operational Advantages

The Rittal SK 3238.710 provides a reliable and maintenance-friendly climate control solution for enclosures. The maximum air performance is achieved in the delivered state with the integrated pleated filter. The tool-free mounting and easy filter replacement reduce maintenance time. The diagonal fan technology ensures even air distribution, increasing cooling efficiency. The protection rating IP 54 offers sufficient protection for many industrial applications, with the option to increase protection rating further using additional components. The operating temperature range of -15 °C to 55 °C allows use in a wide variety of environments.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 7035
Scope of deliveryComplete ready-to-install unit, including pleated filter
FanAxial, split-pole motor
Airflow free blowing (with pleated filter)At 50 Hz: 63 m³/h, At 60 Hz: 72 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 49 m³/h, at 60 Hz: 55 m³/h
Airflow free-blowing (with filter)At 50 Hz: 53 m³/h, At 60 Hz: 64 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 40 m³/h, At 60 Hz: 46 m³/h
Rated operating voltage115 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 15.4 W, at 60 Hz: 15.8 W
Rated current max.At 50 Hz: 0.2 A, At 60 Hz: 0.21 A
Width148,5 mm
Height148,5 mm
Depth82,5 mm
Built-in depth64 mm
Mounting cutoutCutout width: 124 mm, cutout height: 124 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 2 A
NoteFor the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal.
Operating temperature range-15 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt 50 Hz: 52 dB(A), At 60 Hz: 54 dB(A)


Product data sheet
Datasheet for Rittal 3238710, EAN: 4028177998247
