Rittal 3238708 Blue e+ filter fan 63/72 m³/h, 230 V, RAL 9005

Your rating:
Average rating
product review for Rittal 3238708 Blue e+ filter fan 63/72 m³/h, 230 V, RAL 9005
( 4.5 / 5 ) 2 ratings

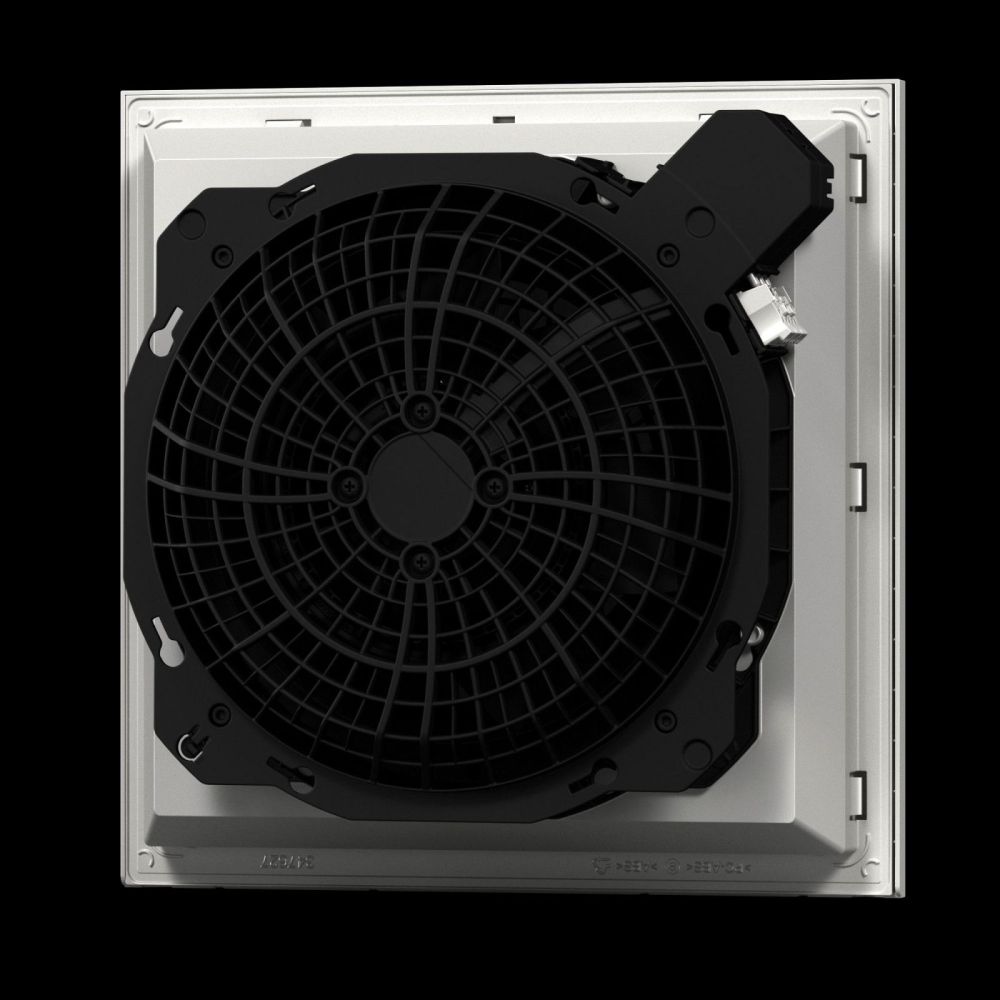

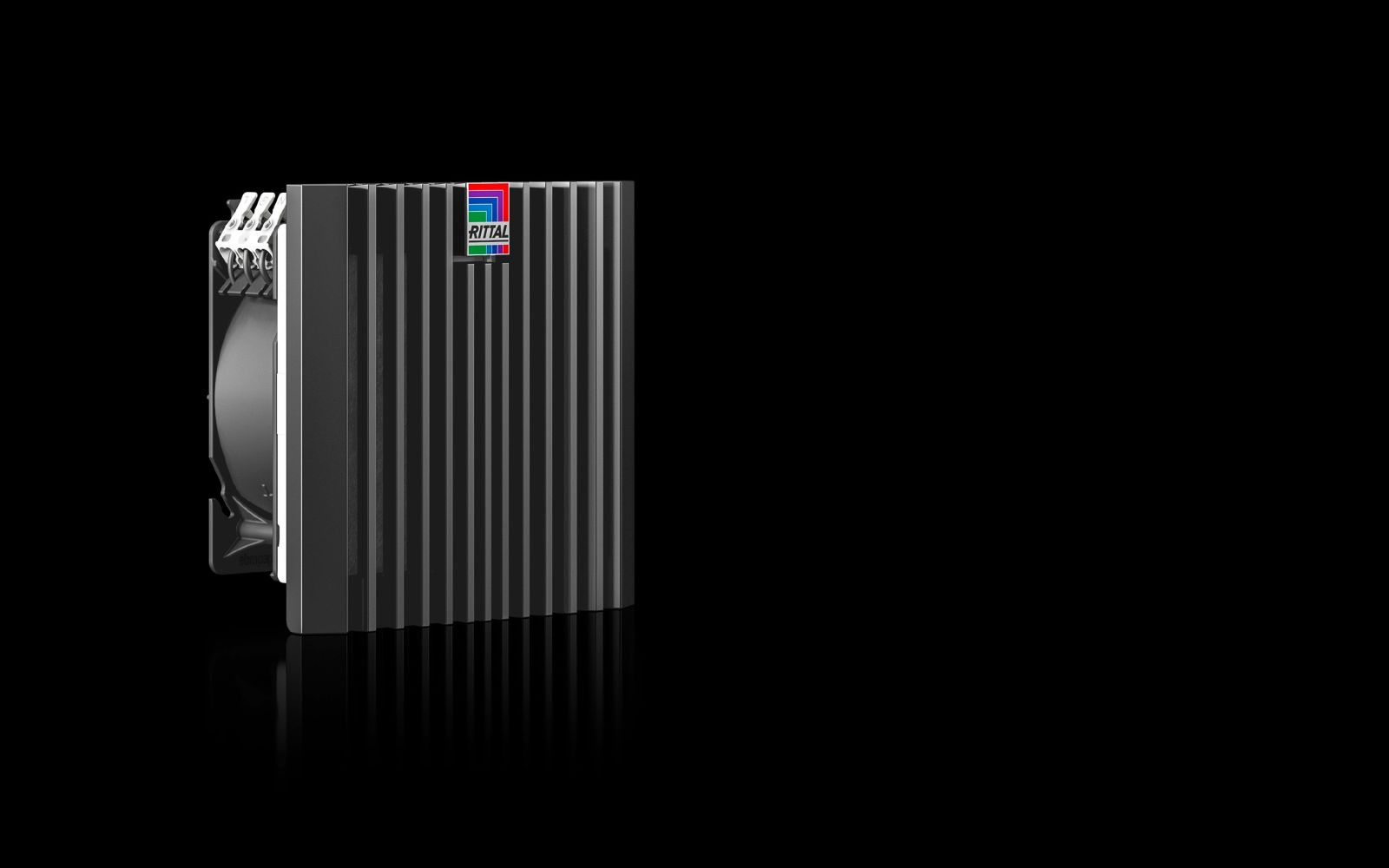

Rittal 3238708
This image may differ from the desired article.
Rittal 3238708Rittal 3238708Rittal 3238708Rittal 3238708Rittal 3238708
90,39 EUR
( 107,56 EUR incl. VAT )
≈ £75.66  |  ≈ $99.34
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3238708 Blue e+ filter fan 63/72 m³/h, 230 V, RAL 9005
Datasheet:file_download Download
Lieske Part No.:683794
Mfg Part No: 3238708
UPC/EAN: 4028177997622
Weight:0.9 kg
Type:SK 3238.708

Product information for Rittal 3238708:

The Rittal SK 3238.708 is a filter fan for enclosure climate control, designed as a wall-mounted unit. It serves for controlled ventilation of enclosures, regulating internal temperature and extending the service life of installed electronic components. The device is finished in RAL 9005 and made of plastic, making it robust and easy to install.

Applications

The filter fan is designed for use in industrial environments where continuous and reliable ventilation of enclosures is required. It is particularly suitable for installations operating in rooms with high dust loads or in areas subject to occasional splashing water. The integrated filter technology ensures that incoming air is cleaned of dust and particles, minimizing contamination of internal components. The diagonal fan technology ensures more uniform and consistent airflow within the enclosure due to higher pressure stability, resulting in more efficient heat dissipation.

Functions and Equipment in Detail

The fan features an axial fan with split-pole motor, ensuring efficient air movement. The air performance is 63 m³/h at 50 Hz and 72 m³/h at 60 Hz when free blowing. When used with a corresponding outlet filter, the air performance reduces to 49 m³/h at 50 Hz and 55 m³/h at 60 Hz. Air performance may vary depending on the filter type: with a nonwoven filter, free-blowing performance is 53 m³/h at 50 Hz and 64 m³/h at 60 Hz, and with an outlet filter, it is 40 m³/h at 50 Hz and 46 m³/h at 60 Hz. The rated power is 14.7 W at 50 Hz and 16.5 W at 60 Hz, with a rated current of up to 0.1 A at 50 Hz and 0.12 A at 60 Hz. The rated operating voltage is 230 V, 1~, 50 Hz/60 Hz. The fuse is rated at 2 A.

Technology Explained Simply

The diagonal fan technology ensures that air flows diagonally rather than vertically from the unit. This results in more even air distribution within the enclosure and prevents localized overheating. The pleated filters included in the delivery filter fine particles from the incoming air, reducing contamination of internal components. The opening mechanism on the louver grille allows for easy filter replacement without requiring tools. The optimized snap hooks enable faster installation onto the enclosure. The protection rating IP 54 is standard, and with additional components such as an absorber mat or spray water hood, higher protection ratings such as IP 55 or IP 56 can be achieved. The protection rating NEMA Type 12 is also standard, and with additional components, Type 3, 3R, 4, 4X can also be achieved.

Compatibility and Accessories

Various accessories are available to extend protection ratings and functionality. These include outlet filters in RAL 9005, replacement filter mats, thermostats for internal temperature control, speed controllers for adjusting airflow, blanking plates for unused mounting openings, digital temperature display and control, spray water hoods for higher protection requirements, absorber mats for IP 54, hygrostats for humidity control, as well as pleated filters and nonwoven filters in various configurations. These components can be combined according to requirements to achieve the desired protection rating and functionality.

Installation and Mounting

Mounting is tool-free onto the enclosure wall. The mounting cutout measures 124 mm width and 124 mm height, with an installation depth of 64 mm. The device dimensions are 148.5 mm width, 148.5 mm height, and 82.5 mm depth. Electrical connection is made via spring clamp terminals, enabling quick and secure installation. The operating temperature range is between -15 °C and 55 °C, and the storage temperature range is between -30 °C and 70 °C. The sound pressure level is 52 dB(A) at 50 Hz and 54 dB(A) at 60 Hz, ensuring quiet operation.

Operational Advantages

The filter fan offers high air performance, maximized by the integrated pleated filter in the standard delivery. Tool-free mounting and easy filter replacement reduce maintenance effort. The diagonal fan technology ensures even air distribution, increasing cooling efficiency. The high protection rating IP 54 and compatibility with additional protection components make the device suitable for a wide range of industrial applications. The low rated power and low sound pressure level ensure energy-efficient and quiet operation.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 9005
Scope of deliveryComplete ready-to-install unit, including pleated filter
FanAxial, split-pole motor
Airflow free blowing (with pleated filter)At 50 Hz: 63 m³/h, At 60 Hz: 72 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 49 m³/h, at 60 Hz: 55 m³/h
Airflow free-blowing (with filter)At 50 Hz: 53 m³/h, At 60 Hz: 64 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 40 m³/h, At 60 Hz: 46 m³/h
Rated operating voltage230 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 14.7 W, At 60 Hz: 16.5 W
Rated current max.At 50 Hz: 0.1 A, At 60 Hz: 0.12 A
Width148,5 mm
Height148,5 mm
Depth82,5 mm
Built-in depth64 mm
Mounting cutoutCutout width: 124 mm, cutout height: 124 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 2 A
NoteFor the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal.
Operating temperature range-15 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt 50 Hz: 52 dB(A), At 60 Hz: 54 dB(A)


Product data sheet
Datasheet for Rittal 3238708, EAN: 4028177997622
