Rittal 3238308 Blue e+ outlet filter, RAL 9005

Your rating:
Average rating
product review for Rittal 3238308 Blue e+ outlet filter, RAL 9005
( 4 / 5 ) 2 ratings
Rittal 3238308
This image may differ from the desired article.
Rittal 3238308Rittal 3238308Rittal 3238308Rittal 3238308Rittal 3238308Rittal 3238308Rittal 3238308Rittal 3238308
28,64 EUR
( 34,08 EUR incl. VAT )
≈ £23.97  |  ≈ $31.48
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3238308 Blue e+ outlet filter, RAL 9005
Datasheet:file_download Download
Lieske Part No.:683789
Mfg Part No: 3238308
UPC/EAN: 4028177997660
Weight:0.207 kg
Type:SK 3238.308

Product information for Rittal 3238308:

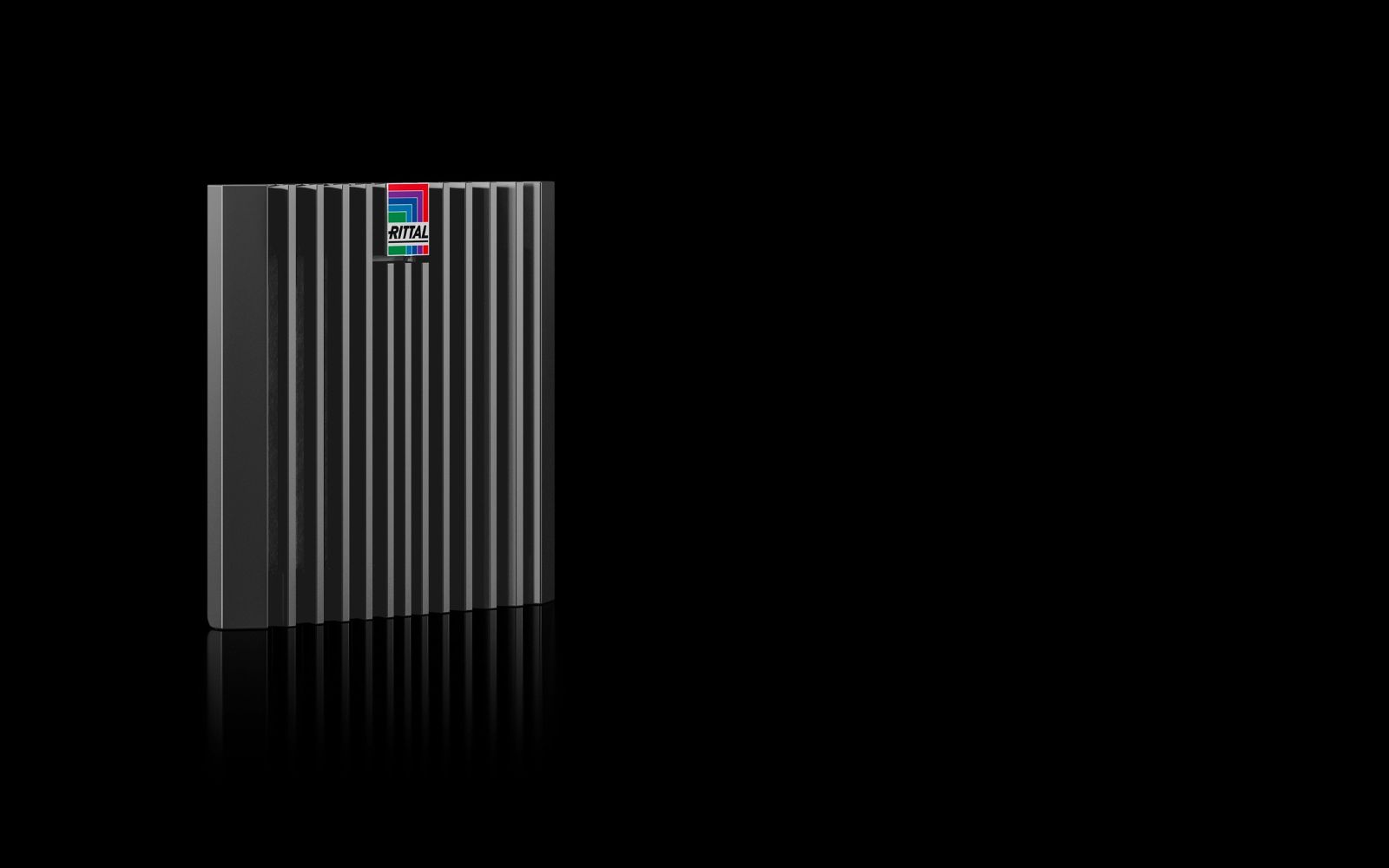

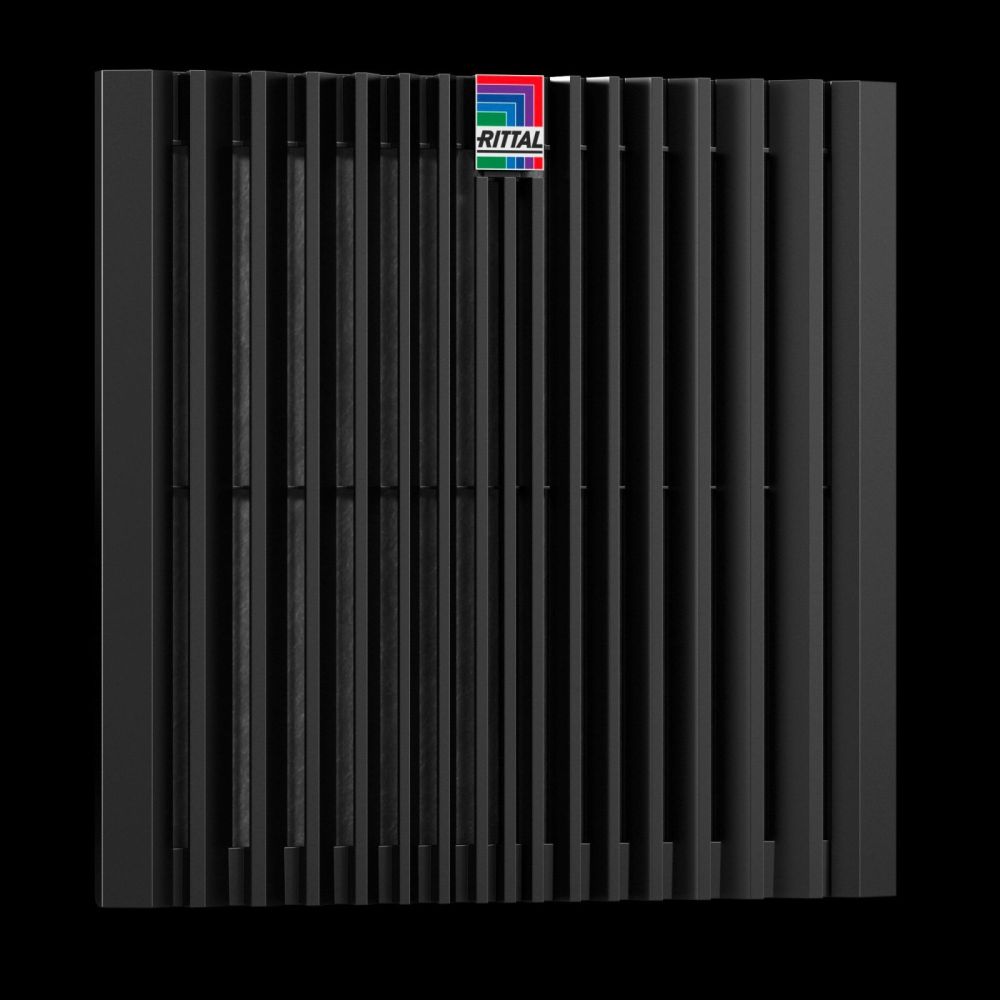

The Rittal SK 3238.308 is an outlet filter for filter fans of the SK 3238.7xx series, designed as a wall-mounted installation and conceived to support enclosure climate control. It serves for the controlled exhaust of waste heat from enclosures and ensures uniform ventilation, thereby protecting temperature-sensitive components. The function is achieved by direct intake of ambient air, whose temperature must be below the permissible internal temperature of the enclosure. The device is made of plastic and is available in the colour RAL 9005 (black). Dimensions are 148.5 mm width, 148.5 mm height, and 34.2 mm depth. The mounting cutout requires a 124 mm width and 124 mm height opening in the enclosure.

Applications

The outlet filter is used in industrial plants where continuous ventilation and cooling of enclosures are required. It is specifically designed for use with filter fans of the SK 3238.7xx series, which are integrated into enclosures for heat dissipation and air purification. The application is in environments requiring a certain degree of protection against dust and splashing water, for example in production halls, manufacturing technology, or automation technology.

Functions and Equipment in Detail

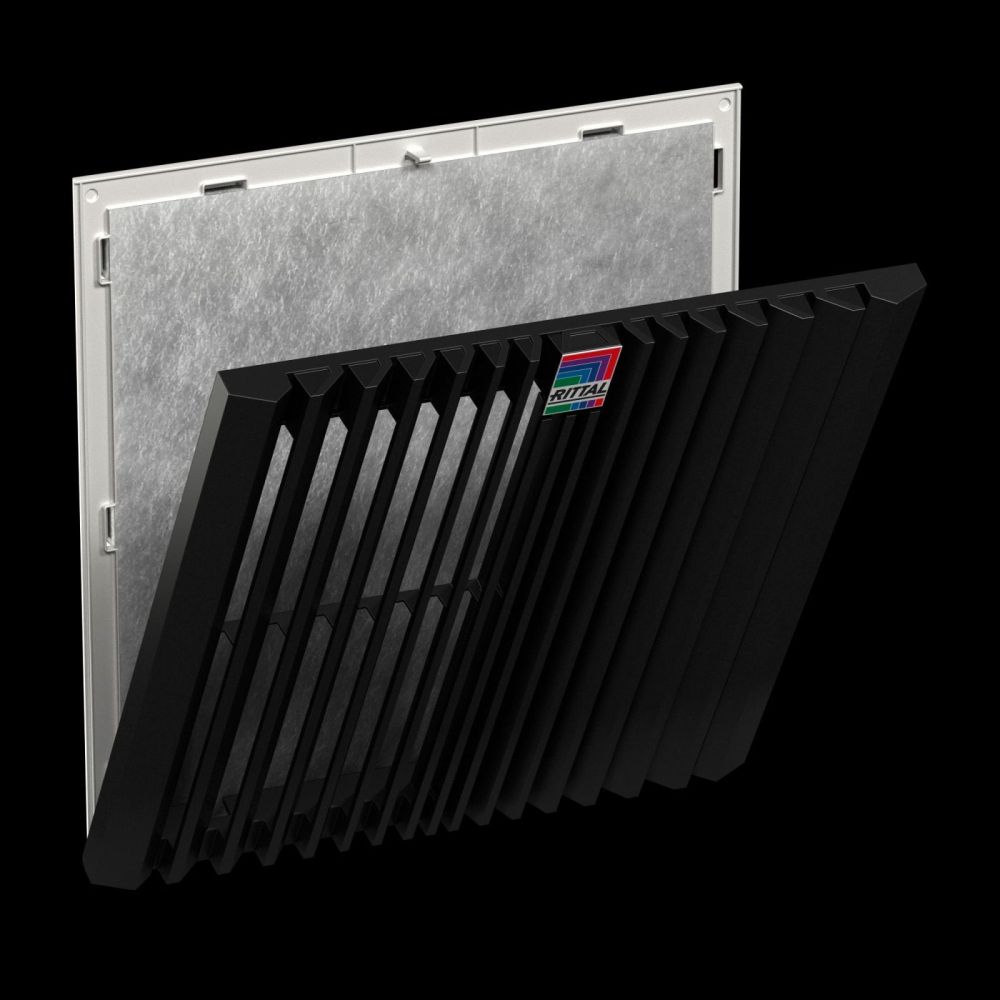

The filter features a new opening mechanism on the louver grille, simplifying filter replacement. Mounting to the enclosure is done via optimized snap hooks, enabling faster and tool-free installation. The device is thus designed for maintenance and replacement without additional tools. The delivery includes the outlet filter and a pleated filter, which serves as the air purification medium.

Technology Explained Simply

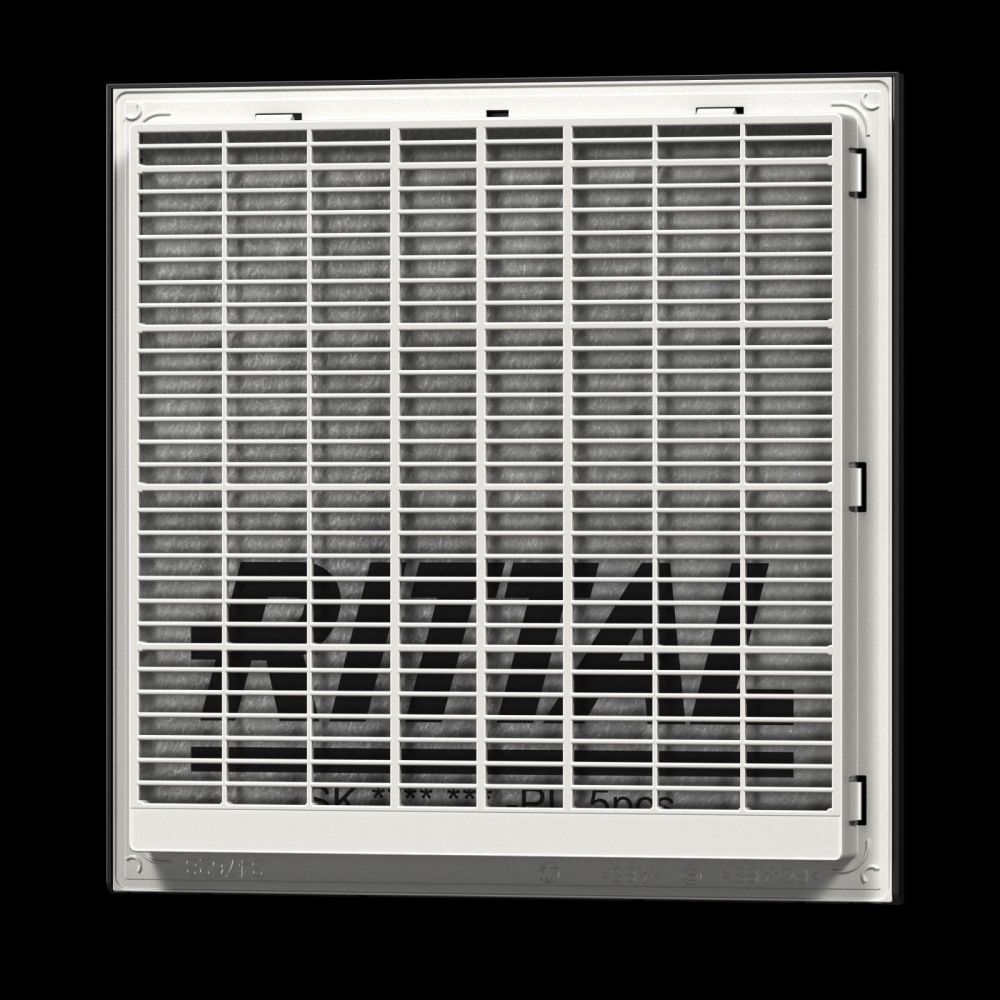

The outlet filter operates in combination with a filter fan, which draws air through the enclosure and expels it via the outlet filter. The integrated pleated filter removes particles from the air, protecting internal systems from contamination. Protection class IP 54 is achieved when the pleated filter is installed. With the use of an additional absorber mat and a pleated filter, the protection class can be increased to IP 54. With a spray hood and pleated filter, protection class IP 54 is possible. NEMA protection classes include Type 12, Type 3, 3R, 4, and 4X, with higher classes also requiring the use of a spray hood. The IP classification according to IEC 60 529 refers to protection against dust and splashing water, with IP 54, IP 54, and IP 54 each specifying different requirements for filter and cover configurations.

Compatibility and Accessories

The outlet filter is specifically designed for filter fans with article number SK 3238.7xx. As accessories, replacement filter mats, a blanking cover for the mounting cutout, a spray hood, and an absorber mat for IP 54 are available. These components can be used to increase the protection class or to replace the filter. The spray hood is required to achieve protection class IP 54 and NEMA Type 4/4X.

Mounting and Installation

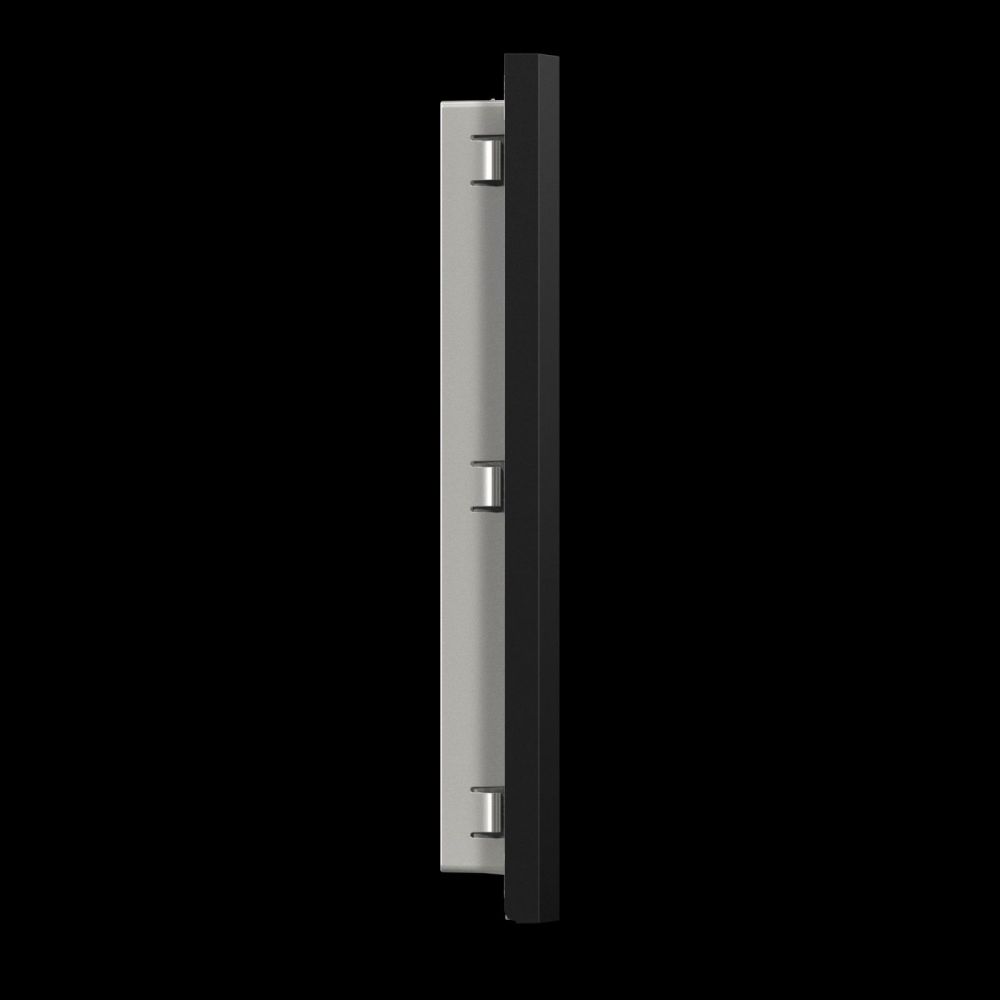

Installation is tool-free at the designated location in the enclosure. A mounting cutout of 124 mm x 124 mm must be provided in the enclosure. The optimized snap hooks allow for quick and secure fastening. The filter can be easily re-closed after replacing the pleated filter, without requiring additional tools.

Operational Advantages

The outlet filter offers simple and quick maintenance thanks to the new opening mechanism on the louver grille. Tool-free mounting reduces installation time and minimizes effort. The combination with various filter and cover elements allows adaptation to different environmental conditions and protection requirements. The use of pleated filters and absorber mats ensures effective air purification and increases the service life of electronic components installed in the enclosure.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 9005
Scope of deliveryOutlet filter, pleated filter
Mounting cutoutCutout width: 124 mm, cutout height: 124 mm
Suitable for part no.SK 3238.7xx
Width148,5 mm
Height148,5 mm
Depth34,2 mm
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood


Product data sheet
Datasheet for Rittal 3238308, EAN: 4028177997660

Questions & answers

What is the delivery time of Rittal 3238308 Blue e+ outlet filter, RAL 9005?

The article Rittal 3238308 Blue e+ outlet filter, RAL 9005 is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3238308 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3238308 Blue e+ outlet filter, RAL 9005 always at the best possible price. We can give you a discount of 2% on Rittal 3238308 Blue e+ outlet filter, RAL 9005 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
