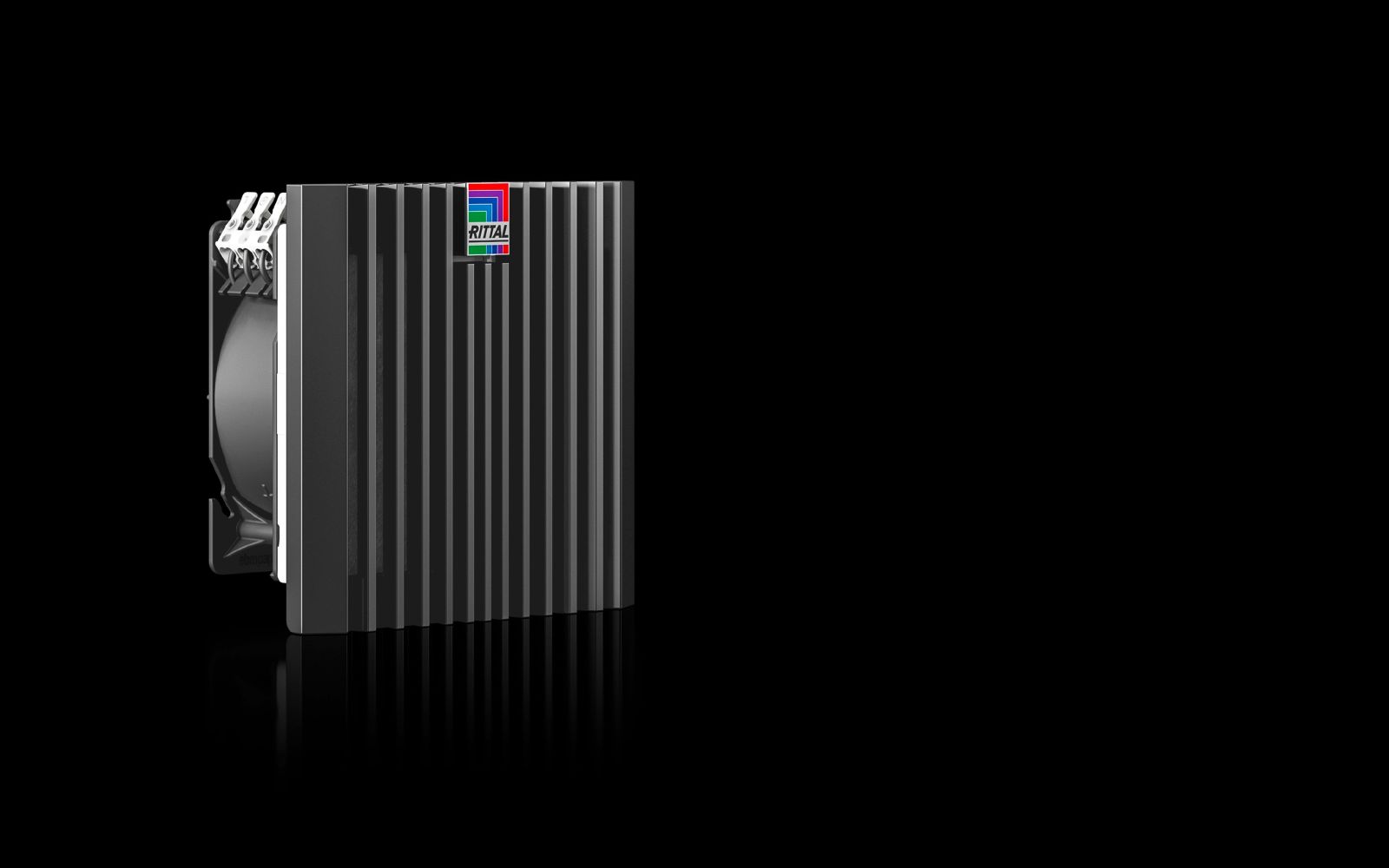

Rittal 3238718 Blue e+ filter fan 63/72 m³/h, 115 V, RAL 9005

Your rating:
Average rating
product review for Rittal 3238718 Blue e+ filter fan 63/72 m³/h, 115 V, RAL 9005
( 4 / 5 ) 3 ratings
Rittal 3238718
This image may differ from the desired article.
Rittal 3238718Rittal 3238718Rittal 3238718Rittal 3238718Rittal 3238718
95,34 EUR 96,03 EUR
( 113,45 EUR incl. VAT )
≈ £79.80  |  ≈ $104.78
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3238718 Blue e+ filter fan 63/72 m³/h, 115 V, RAL 9005
Datasheet:file_download Download
Lieske Part No.:683796
Mfg Part No: 3238718
UPC/EAN: 4028177998230
Weight:0.86 kg
Type:SK 3238.718

Product information for Rittal 3238718:

The Rittal SK 3238.718 is a filter fan for enclosure climate control, designed as a wall-mounted unit. It is intended for controlled ventilation of enclosures to regulate internal temperature and extend the service life of installed electronic components. The device is made of plastic and available in the color RAL 9005, enabling visual integration into industrial environments. The delivery includes a fully ready-to-install unit including pleated filter, which can be directly installed into the enclosure.

Applications

The filter fan is intended for use in industrial plants, machine construction, automation technology, and other areas where continuous cooling of electronic components is required. It is particularly suitable for enclosures operated in environments with dust, fine particle contamination, or low humidity. The integrated filter technology ensures that incoming air is cleaned, thereby reducing contamination of internal components.

Functions and Equipment in Detail

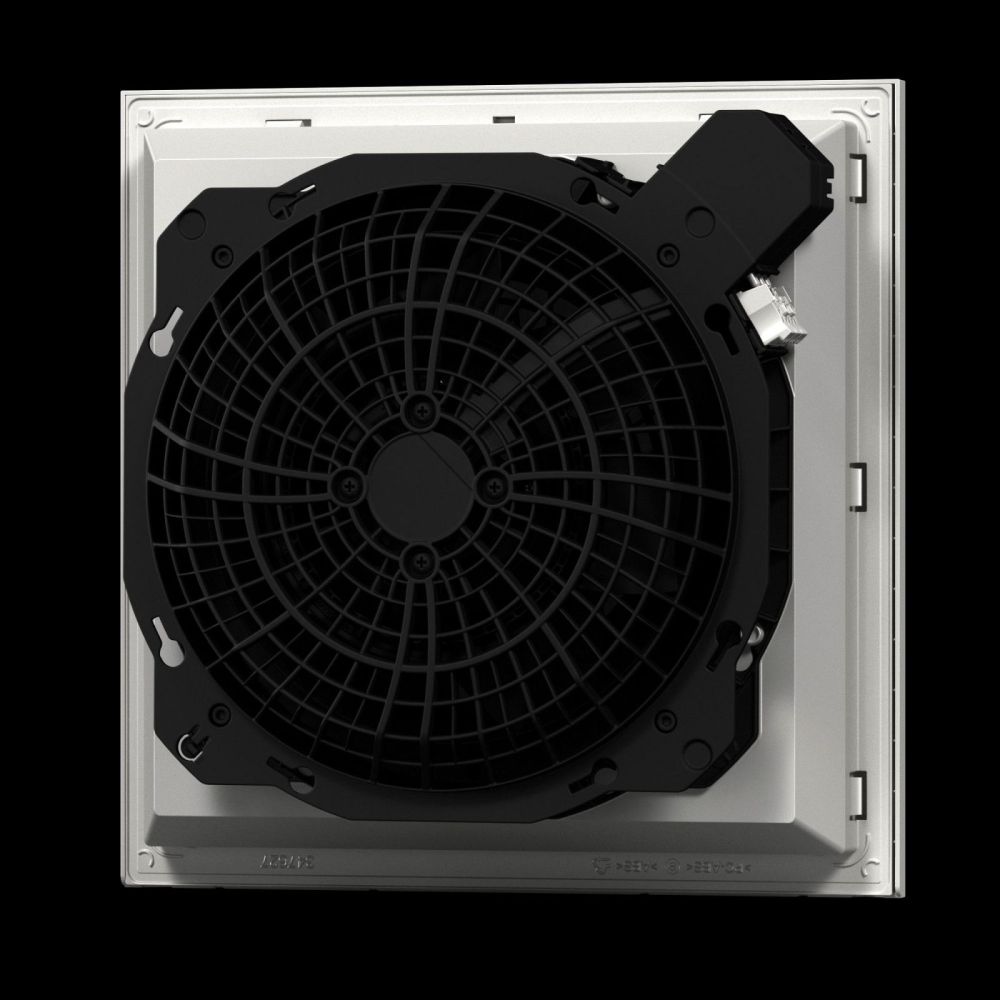

The fan features diagonal fan technology, providing higher pressure stability and more consistent airflow. The diagonal exhaust direction ensures more even cooling of the enclosure. The airflow rate is 63 m³/h at 50 Hz and 72 m³/h at 60 Hz when using the integrated pleated filter. With a nonwoven filter, the values are 53 m³/h (50 Hz) and 64 m³/h (60 Hz). The airflow decreases to 49 m³/h (50 Hz) and 55 m³/h (60 Hz) with pleated filter, or 40 m³/h (50 Hz) and 46 m³/h (60 Hz) with nonwoven filter when an outlet filter is used. The rated power is 15.4 W at 50 Hz and 15.8 W at 60 Hz, with a rated current of max. 0.2 A (50 Hz) or 0.21 A (60 Hz). The rated operating voltage is 115 V, 1~, 50 Hz/60 Hz.

Technology Explained Simply

The fan is an axial fan with a split-pole motor, designed for reliable and quiet operation. The protection rating IP 54 is achieved standard when using nonwoven or pleated filters. With an additional absorber mat, the device reaches IP 55, and with a spray hood, IP 56 is achieved. The protection rating NEMA Type 12 is achieved with nonwoven or pleated filters, while Type 3, 3R, 4, 4X are achieved with nonwoven or pleated filters and a spray hood. The sound pressure level is 52 dB(A) at 50 Hz and 54 dB(A) at 60 Hz, enabling acoustically pleasant operation in industrial environments. The operating temperature range is between -15 °C and 55 °C, and the storage temperature range is between -30 °C and 70 °C.

Compatibility and Accessories

Various accessories are available for the filter fan to extend its functionality. These include outlet filters in RAL 9005, replacement filter mats in various types, a spray hood for increased protection rating, an absorber mat for IP 54, and speed controllers for adjusting airflow. A thermostat or hygrostat can be used for temperature or humidity control. A blanking cover is available to close the mounting opening if the fan is not used. Electrical connection is made via spring clamp terminal, with a fuse of 2 A provided.

Mounting and Installation

Mounting is tool-free using optimized snap hooks, enabling quick and secure attachment to the enclosure. The mounting cutout measures 124 mm (width) x 124 mm (height), and the installation depth is 64 mm. The device dimensions are 148.5 mm (width) x 148.5 mm (height) x 82.5 mm (depth). The pleated filters are included in the delivery and can be easily replaced thanks to a new opening mechanism on the louver grid.

Advantages in Operation

The SK 3238.718 offers high airflow, maximized by the integrated pleated filter in the delivered state. The diagonal fan technology ensures even and consistent ventilation, increasing cooling efficiency. Tool-free mounting and easy filter replacement reduce installation and maintenance time. The high protection rating allows use in various industrial environments, and the combination with accessories such as spray hood or absorber mat enables adaptation to specific requirements. The operating voltage of 115 V is common in many industrial plants, increasing compatibility. The low rated power and moderate sound pressure level contribute to energy-efficient and quiet operation.

General
ModelWall surface mounted
MaterialPlastic
ColourRAL 9005
Scope of deliveryComplete ready-to-install unit, including pleated filter
FanAxial, split-pole motor
Airflow free blowing (with pleated filter)At 50 Hz: 63 m³/h, At 60 Hz: 72 m³/h
Airflow with associated exhaust filter including pleated filterAt 50 Hz: 49 m³/h, at 60 Hz: 55 m³/h
Airflow free-blowing (with filter)At 50 Hz: 53 m³/h, At 60 Hz: 64 m³/h
Airflow with associated exhaust filter including felt filterAt 50 Hz: 40 m³/h, At 60 Hz: 46 m³/h
Rated operating voltage115 V, 1~, 50 Hz/60 Hz
Rated power PelAt 50 Hz: 15.4 W, at 60 Hz: 15.8 W
Rated current max.At 50 Hz: 0.2 A, At 60 Hz: 0.21 A
Width148,5 mm
Height148,5 mm
Depth82,5 mm
Built-in depth64 mm
Mounting cutoutCutout width: 124 mm, cutout height: 124 mm
Degree of protection IP according to IEC 60 529IP 54 with nonwoven filter/pleated filter, IP 55 with pleated filter and absorber mat, IP 56 with nonwoven filter/pleated filter and spray water hood
NEMA degree of protectionType 12 with felt filter/pleated filter, Type 3, 3R, 4, 4X with felt filter/pleated filter and spray water hood
FuseCircuit breaker/fuse: 2 A
NoteFor the filter fan 3237.XXX, the electrical connection is made via 2 individual wires (approx. 300 mm length) on the device; for all other filter fans, via spring clamp terminal.
Operating temperature range-15 °C...55 °C
Storage temperature range-30 °C...70 °C
Sound pressure levelAt 50 Hz: 52 dB(A), At 60 Hz: 54 dB(A)


Product data sheet
Datasheet for Rittal 3238718, EAN: 4028177998230
